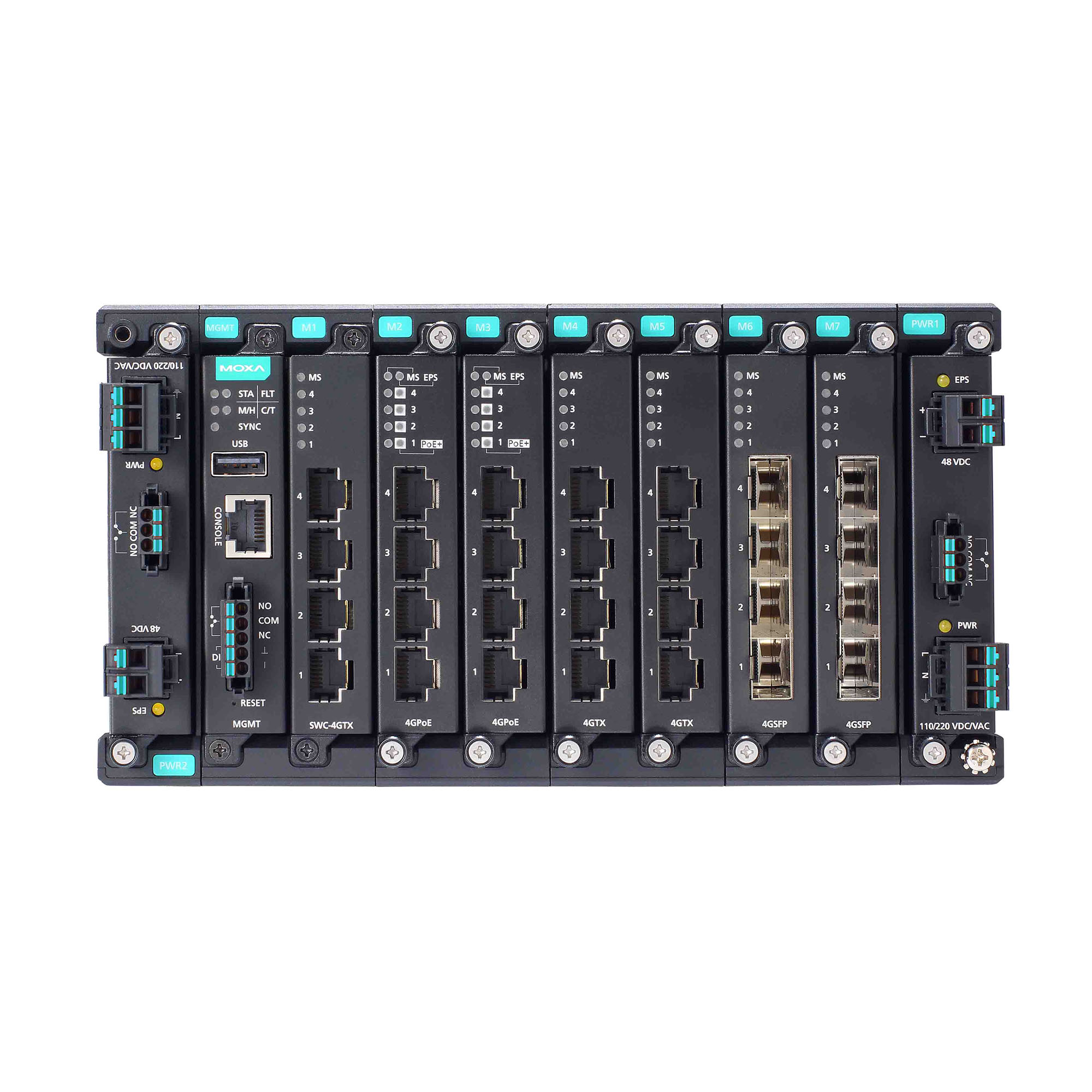

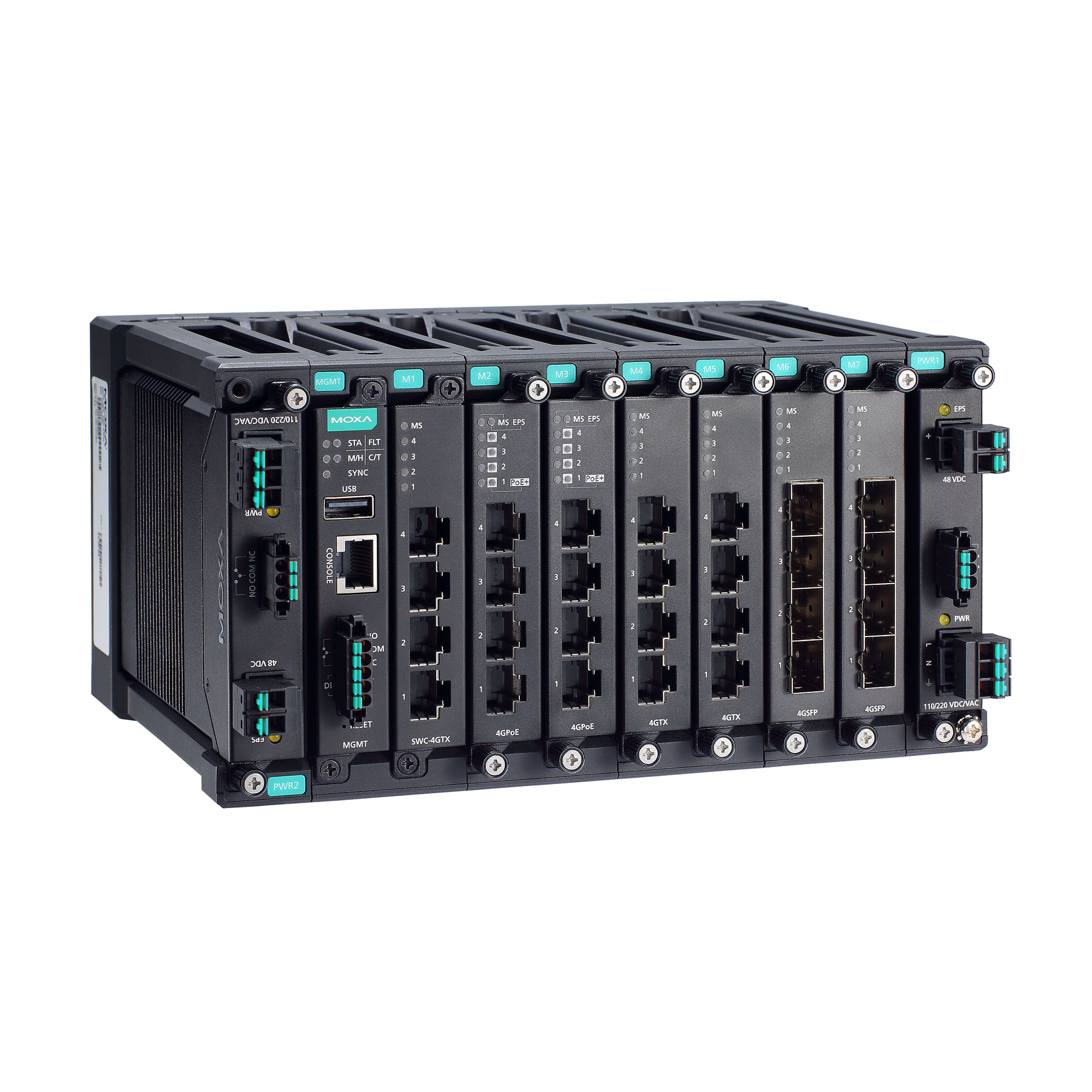

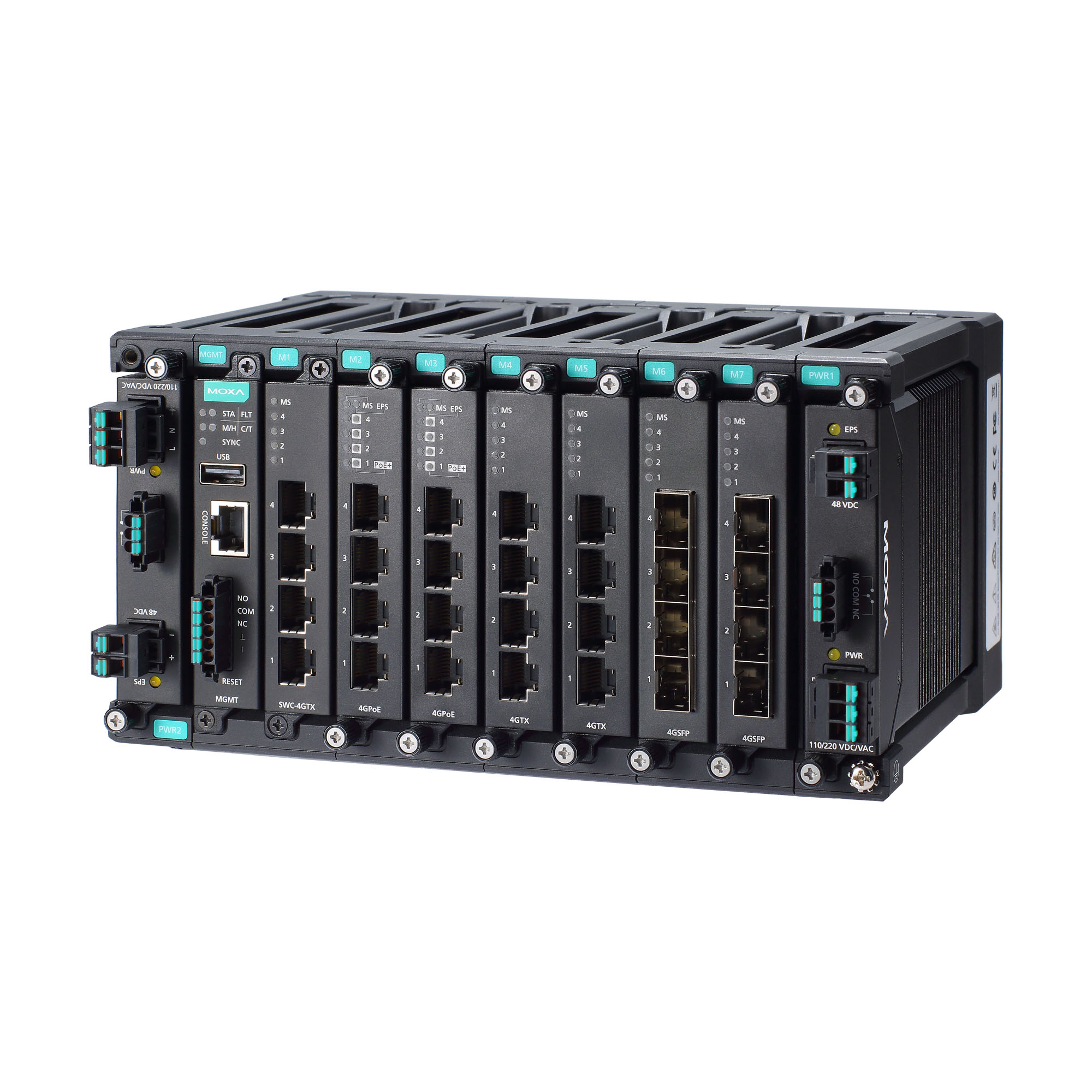

MDS-G4028 Series

28G-port Layer 2 full Gigabit modular managed Ethernet switches

moxa-mds-g4028-series-image-(1).jpg | Moxa
moxa-mds-g4028-series-image-1-(1).jpg | Moxa
moxa-mds-g4028-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Multiple interface type modules for greater versatility
  • Tool-free design for effortlessly adding or replacing modules without shutting down the switch
  • Ultra-compact size and multiple mounting options for flexible installation
  • Passive backplane to minimize maintenance efforts
  • Rugged die-cast design for use in harsh environments
  • Intuitive, HTML5-based web interface for a seamless experience across different platforms
  • High EMC immunity compliant with IEC 61850-3 and IEEE 1613
  • Hardware-based IEEE 1588 PTP for high-precision time synchronization
  • IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-nema-ts2-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

Contact Sales

Introduction

The MDS-G4028 Series modular switches support up to 28 Gigabit ports, including 4 embedded ports, 6 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4000 Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations.

The multiple types of interface modules (RJ45, SFP, PoE+, and PRP/HSR) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4000 Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and a highly durable housing, the MDS-G4000 Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual power modules provides redundancy for high reliability and availability while LV and HV power module options offer additional flexibility to accommodate the power requirements of different applications.

In addition, the MDS-G4000 Series features an HTML5–based, user-friendly web interface providing a responsive, smooth user experience across different platforms and browsers.

  • Pre-installed Modules

    4 embedded Gigabit ports

  • Module

    6 slots for optional FE/GE modules

  • Slot Combination

    See the LM-7000H module series datasheet for more information.

    Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.

    LM-7000H non-PoE modules:
    Any power module

    Note: LM-7000H-2GPHR module must be used with MDS-G4000 v2.0.0 or above.

    Note: The LM-7000H-2GPHR module can only be installed in one unit in slot M3.

    LM-7000H PoE modules:
    PWR-HV-P48, PWR-LV-P48 only

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.3x for flow control
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1X for authentication

  • Management

    IPv4/IPv6
    Flow control
    Back Pressure Flow Control
    DHCP Server/Client
    ARP
    DHCP Relay Agent (Option 82)
    Fiber check
    RARP
    LLDP
    Linkup Delay
    Port Mirroring (SPAN, RSPAN)
    SMTP
    SNMP Trap
    SNMP Inform
    SNMPv1/v2c/v3
    RMON
    TFTP
    SFTP
    HTTP
    HTTPS
    Telnet
    Syslog
    Private MIB

  • Filter

    GMRP
    GVRP
    GARP
    802.1Q VLAN
    IGMP Snooping v1/v2/v3
    IGMP Querier

  • Redundancy Protocols

    Link Aggregation
    MRP
    MRP Interconnection
    MSTP
    Multiple Dual Homing
    Multiple Network Coupling
    Network Loop Protection
    Ring Coupling
    RSTP
    STP
    Tracking
    Turbo Ring v2
    Turbo Chain

  • Security

    Access control list
    Broadcast storm protection
    DHCP Snooping
    Dynamic ARP Inspection
    HTTPS/SSL
    IEEE 802.1AE MAC security
    IP Source Guard
    Login and Password Policy
    MAC authentication bypass
    MAC Sticky
    RADIUS
    Rate Limit
    SSH
    Static Port Lock
    TACACS+
    Trust access control

  • Time Management

    SNTP
    IEEE 1588v2 PTP (hardware-based)
    Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
    NTP Server/Client
    NTP Authentication

  • Protocols

    802.1X
    ARP
    DHCP Client
    DHCP Server
    DNS
    HTTP
    HTTPS
    ICMP
    IPv4/IPv6
    NTP Client
    QoS
    RARP
    RMON
    SMTP
    SNMPv1/v2c/v3
    Syslog
    TCP/IP
    Telnet
    TFTP
    UDP
    VLAN Assignment

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP
    PROFINET

  • MIB

    P-BRIDGE MIB
    Q-BRIDGE MIB
    IEEE8021-SPANNING-TREE-MIB
    IEEE8021-PAE-MIB
    IEEE8023-LAG-MIB
    LLDP-EXT-DOT1-MIB
    LLDP-EXT-DOT3-MIB
    SNMPv2-MIB
    RMON MIB Groups 1, 2, 3, 9

  • Power Substation

    1588 PTP Power Profile C37.238-2017
    1588 PTP Power Profile IEC 61850-9-3
    GOOSE Check
    MMS

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    256

  • VLAN ID Range

    VID 1 to 4094

  • IGMP Groups

    1024

  • Jumbo Frame Size

    9.216 KB

  • Priority Queues

    8

  • Packet Buffer Size

    12 Mbits

  • LED Indicators

    PWR, EPS, STATE, SYNC, FAULT, MSTR/HEAD, CPLR/TAIL

  • Console Port

    RS-232 (RJ45)

  • USB Connector

    USB Type A

  • Digital Input Channels

    1 (On MGMT Module)

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Alarm Contact Channels

    3 (On MGMT, PWR1, PWR2 Module)
    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Buttons

    Reset button

  • Input Voltage

    With PWR-HV-P48 installed:
    110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC

    With PWR-LV-P48 installed:
    24/48 VDC, PoE: 48 VDC

    With PWR-HV-NP installed:
    110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz

    With PWR-LV-NP installed:
    24/48 VDC

  • Operating Voltage

    With PWR-HV-P48 installed:
    88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC

    With PWR-LV-P48 installed:
    18 to 72 VDC (24/48 VDC for hazardous location), PoE: 46 to 57 VDC (48 VDC for
    hazardous location)

    With PWR-HV-NP installed:
    88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz

    With PWR-LV-NP installed:
    18 to 72 VDC

  • Input Current

    With PWR-HV-P48/PWR-HV-NP installed:
    Max. 0.30 A @ 110 VDC
    Max. 0.15 A @ 220 VDC
    Max. 0.60 A @ 110 VAC
    Max. 0.40 A @ 220 VAC

    With PWR-LV-P48/PWR-LV-NP installed:
    Max. 1.5 A @ 24 VDC
    Max. 0.75 A @ 48 VDC

    EPS (PoE models only):
    Max. 8.2 A @ 48 VDC

    Note: These are the input current ratings for the device with the maximum number of modules installed.

  • Power Consumption (Max.)

    With PWR-HV-P48/PWR-HV-NP installed:
    Max. 33.0 W @ 110 VDC
    Max. 34.0 W @ 220 VDC
    Max. 35.8 W @ 110 VAC
    Max. 38.0 W @ 220 VAC

    With PWR-LV-P48/PWR-LV-NP installed:
    Max. 36.0 W @ 24 VDC
    Max. 36.0 W @ 48 VDC

    Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.

  • Max. PoE Power Output per Port

    36 W

  • Total PoE Power Budget

    Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems

    Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems

    Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems

    Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • IP Rating

    IP40

  • Dimensions

    218 x 115 x 163.25 mm (8.59 x 4.53 x 6.44 in)

  • Weight

    2840 g (6.27 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)
    Rack mounting (with optional kit)

  • Operating Temperature

    Standard Temperature: -10 to 60°C (14 to 140°F)
    Wide Temperature: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN IEC 62368-1
    IEC 60950-1
    IEC 62368-1
    UL 62368-1

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 Voltage Dips & Interruptions

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Vibration

    IEC 60068-2-6

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Power Substation

    IEEE 1613
    IEC 61850-3

  • Time

    966,801 hrs

  • Standards

    Telcordia Standard SR-332

Software, Firmware, and Drivers

FILTER

All Firmware Software Package
Name Type Checksum Version Operating System Release Date
MIB file for MDS-G4000 Series
428.4 KB 		Software Package
SHA-512
v5.0
Aug 01, 2025 Aug 01, 2025 Release notes
Firmware for MDS-G4000 Series
57.5 MB 		Firmware
SHA-512
v5.0
Aug 01, 2025 Aug 01, 2025 Release notes
EDS file for MDS-G4000 Series
147.9 KB 		Software Package
SHA-512
v2.0
Aug 01, 2025 Aug 01, 2025 Release notes
GSD file for MDS-G4000 Series
73.9 KB 		Software Package
SHA-512
v1.0
Aug 01, 2025 Aug 01, 2025 Release notes
AOI file for MDS-G4000 Series
57.6 KB 		Software Package
SHA-512
v2.0
Aug 01, 2025 Aug 01, 2025 Release notes
Software Package for MXview One Series (Windows version)
238.9 MB 		Software Package
SHA-512
v1.6.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Jul 31, 2025 Jul 31, 2025 Release notes
Software Package for MXview One Series (Linux version)
336.8 MB 		Software Package
SHA-512
v1.6.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Jul 31, 2025 Jul 31, 2025 Release notes
Software Package for MDS-G4000 Series (MIB file)
376.1 KB 		Software Package
SHA-512
v4.0
Sep 26, 2023 Sep 26, 2023 Release notes
Firmware for MDS-G4000 Series
65.8 MB 		Firmware
SHA-512
v4.0
Sep 26, 2023 Sep 26, 2023 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Declaration Manual QIG
Name Type Version Release Date
Moxa Managed Switch MX-NOS (v5.x) Command Line Interface User Manual
6.8 MB 		Manual v1.1 Aug 01, 2025 Aug 01, 2025
Moxa Managed Switch MX-NOS (v5.x) User Manual
23.3 MB 		Manual v1.1 Aug 01, 2025 Aug 01, 2025
FOSS Statement for MX-NOS v5.x
1.2 MB 		Declaration v1.1 Aug 01, 2025 Aug 01, 2025
QIG for MDS-G4000/MDS-G4000-L3 Series
1.7 MB 		QIG v1.8 Aug 01, 2025 Aug 01, 2025
Datasheet for MDS-G4028 Series
1.1 MB 		Datasheet v1.7 Aug 01, 2025 Aug 01, 2025
FOSS Statement for Various MDS, MDS4XGS, RKS, EDS Series Products
2.2 MB 		Declaration v1.0 Aug 14, 2024 Aug 14, 2024
Moxa Managed Switch Next-generation OS (v4.x) Layer 2 Command Line Interface User Manual
5.4 MB 		Manual v1.2 Jun 26, 2024 Jun 26, 2024
Moxa Managed Switch Next-generation OS (v4.x) Layer 2 User Manual
18.7 MB 		Manual v1.3 Jun 26, 2024 Jun 26, 2024
Declaration of Conformity for MDS-G4012/G4020/G4028 Series with LM-7000H
525.7 KB 		Declaration v1.0 Sep 20, 2023 Sep 20, 2023
2D CAD for MDS-G4028 Series
2.6 MB 		2D CAD Mar 31, 2020 Mar 31, 2020

Available Models (2)

Show Images
Compare
moxa-mds-g4028-image.jpg | MoxaMDS-G4028
Compare
moxa-mds-g4028-t-image.jpg | MoxaMDS-G4028-T
Layer22
Total No. of Ports2828
100/1000Base SFP SlotsUp to 24Up to 24
10/100/
1000BaseT(X)
Ports RJ45 Connector		Up to 28Up to 28
PoE 10/100/ 1000BaseT(X)
Ports RJ45 Connector		Up to 24Up to 24
10/100BaseT(X)
Ports RJ45 Connector		Up to 24Up to 24
PoE 10/ 100BaseT(X)
Ports RJ45 Connector		Up to 24Up to 24
Operating Temp.-10 to 60°C-40 to 75°C
Add to QuoteView BagAdd to QuoteView Bag

Details

File Name: Firmware for Nport 6000 Series

Version: xx

SHA-512 Checksum: --checksum placeholder--

Copied to clipboard

product image

Buy online from distributors

Please sign in

Forgot your password?
Sign In
Remember Me.
Not a member? Sign up now

Do Not Share My Personal Information

To opt out of sharing your personal information for cross-context behavioral advertising, you can complete and submit the form provided below.


Please note that even if you choose to complete the form, you may still see our ads on other websites. However, these ads may not be as relevant to you as they would be if you had not opted out.



Added To Bag

View Bag
You have some items waiting in your bag; click here to finish your quote!

You are currently on the Global / English site.
Would you like to go to the site for your region?

Feedback
