Rackmount Switches

Industrial rackmount switches provide modular flexibility with 24 to 64-port routing and up to 10GbE switching capabilities, security features based on the IEC 62443 standard, and millisecond-level, fast multicast traffic redundancy to strengthen IIoT infrastructure such as power, transportation, manufacturing, and surveillance applications.

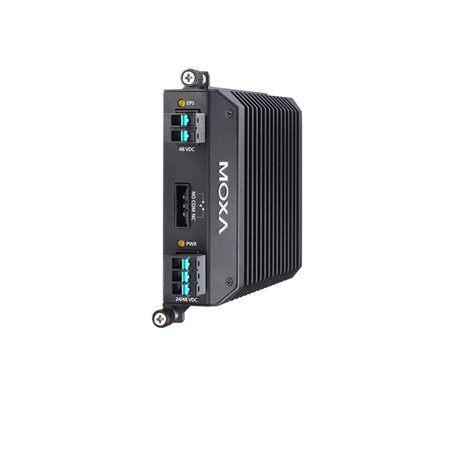

PWR-LV-P48-A
PWR-A Power Module Series

24/48 VDC power supply module with system power, relay, PoE power input, advanced heat sink

Power Parameters

  • Input Voltage

    • 24/48 VDC for the switch system
      48 VDC for PoE systems
      (53 to 57 VDC is recommended for PoE+ devices)

  • Operating Voltage

    • 18 to 72 VDC for the switch system
      46 to 57 VDC for PoE systems

  • Reverse Polarity Protection

    • Supported

  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC
Physical Characteristics

  • Weight

    • 400 g (0.88 lb)
MTBF

  • Time

    • 1,388,747 hrs

  • Standards

    • Telcordia (Bellcore), GB
