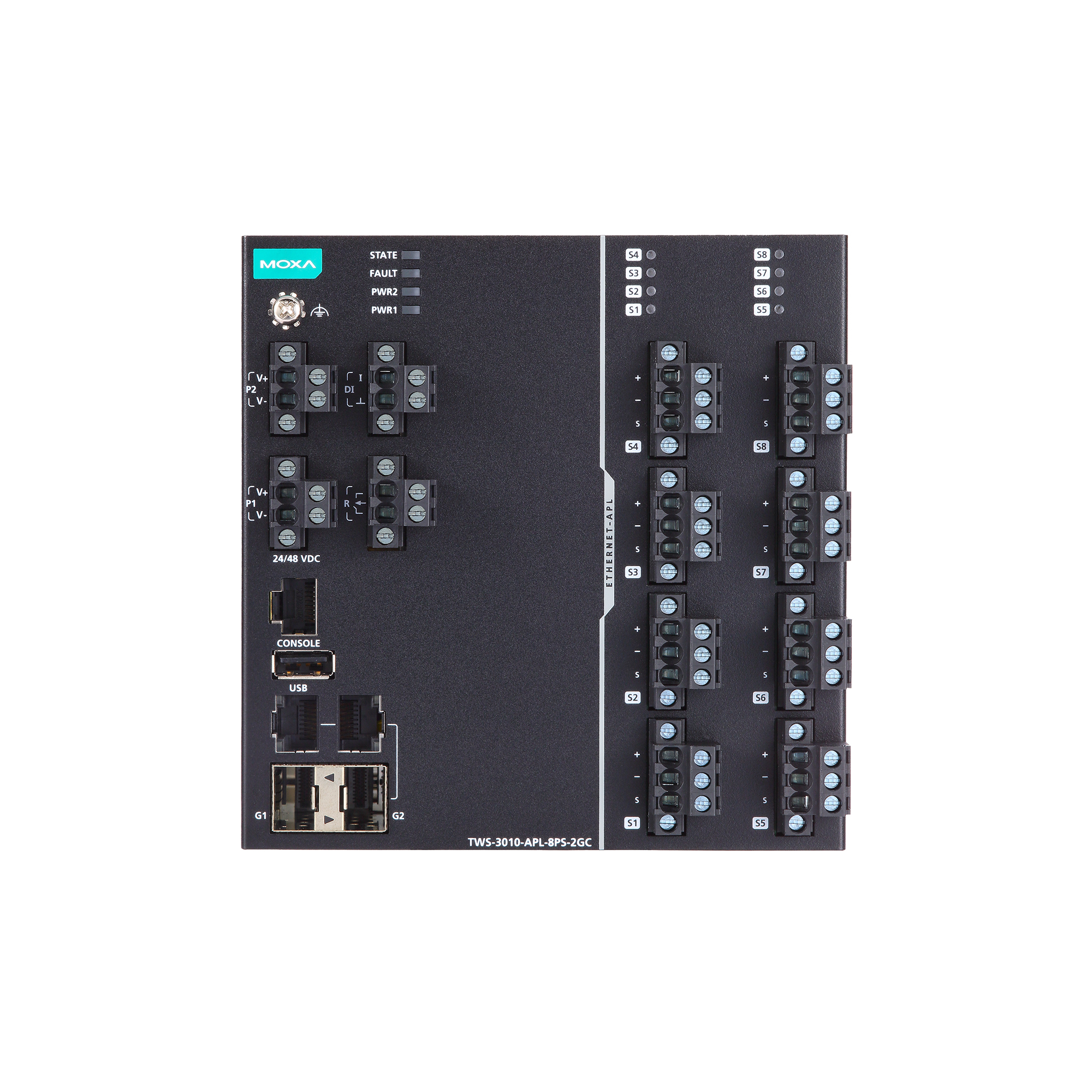

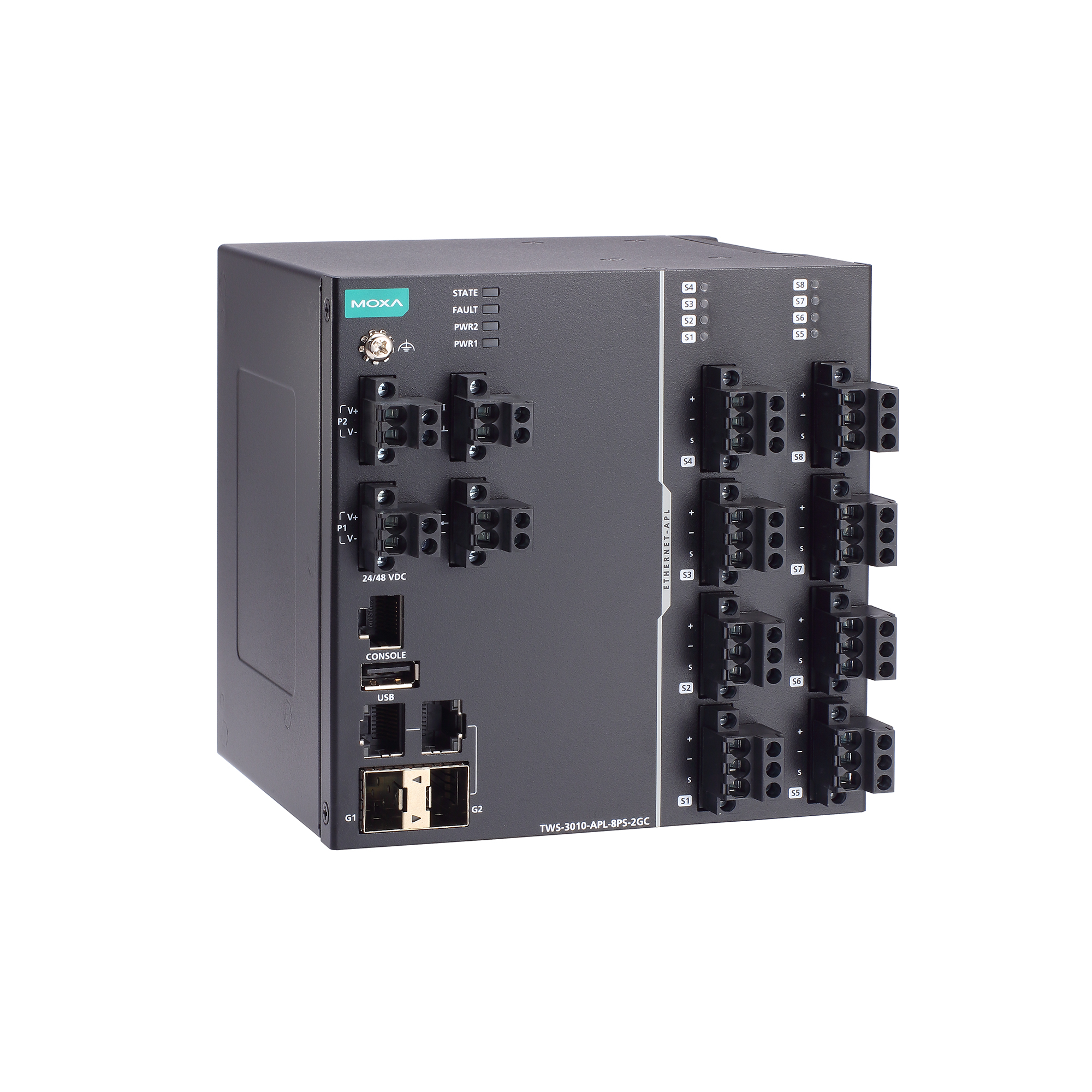

The TWS-3010-APL Series industrial two-wire Ethernet switch brings reliable Ethernet connectivity to process industries at the field level. Complies with the Ethernet-APL Technical Specification.
With 10BASE-T1L technology and support for APL Power Classes A and C, the switch extends Ethernet communication to field devices. It delivers both power and data over a single twisted pair at data rates up to 10 Mbps and distances up to 1 km, simplifying installation, lowering wiring costs, and enabling more flexible field deployment.
Diagnostic functions and port-mirroring make deployment and troubleshooting a breeze. Compact chassis and front-facing ports make installation and maintenance easy in tight control cabinets. Industrial Ethernet protocols, like PROFINET, allow for seamless integration with existing systems, and provide scalability for future digitalization and IIoT expansion.
Save
1 Relay output with current carrying capacity of 1 A @ 24 VDC
Reset button
1
+13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
2
IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE802.3cg for 10Base-T1L
8 3-pin terminal block connectors Ethernet-APL power classes A and C
802.1Q VLAN BPDU Guard BPDU Filter GMRP GVRP IGMP v1/v2/v3 Port-based VLAN
EtherNet/IP Modbus TCP PROFINET IO Device
LLDP Back Pressure Flow Control BOOTP Port Mirroring DHCP Option 66/67/82 DHCP Server/Client Fiber check Flow control IPv4/IPv6 RARP RMON SCP SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
Ethernet-like-MIB MIB-II Bridge-MIB P-BRIDGE MIB Q-BRIDGE-MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
Link Aggregation MRP MSTP RSTP STP
Broadcast storm protection HTTPS/SSL TACACS+ SNMPv3 Sticky MAC NTP authentication Port Lock RADIUS SSH SMTP with TLS
NTP Server/Client SNTP
2048
8 K
64
1 Mbits
4
VID 1 to 4094
USB Type A (for ABC-02 only)
PWR1, PWR2, STATE, FAULT, Gigabit combo port, Ethernet-APL spur port
RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Read more
2 removable 2-contact terminal block(s)
24 to 48 VDC, 1 A - 0.5 A (max.)
24/48 VDC Redundant dual inputs
20 to 60 VDC
Supported
Metal
IP30
133 x 135 x 111 mm (5.24 x 5.32 x 4.37 in)
1,452 g (3.20 lb)
DIN-rail mounting Wall mounting (with optional kit)
-40 to 75°C (-40 to 167°F)
-40 to 85°C (-40 to 185°F)
5 to 95% (non-condensing)
Up to 2,000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes
UL 61010-2-201 EN IEC 62368-1
EN 61000-6-2/-6-4
FCC Part 15B Class A
IEC 61000-4-2 ESD: Level 3 IEC 61000-4-3 RS: Level 3 IEC 61000-4-4 EFT: Level 3 IEC 61000-4-5 Surge: Level 3 IEC 61000-4-6 CS: Level 3 IEC 61000-4-8 PFMF: Level 3
IEC 60068-2-6 IEC 60068-2-64
IEC 60068-2-27
ISTA 1A (with package)
2,063,466 hrs
Telcordia (Bellcore), GB
5 years
