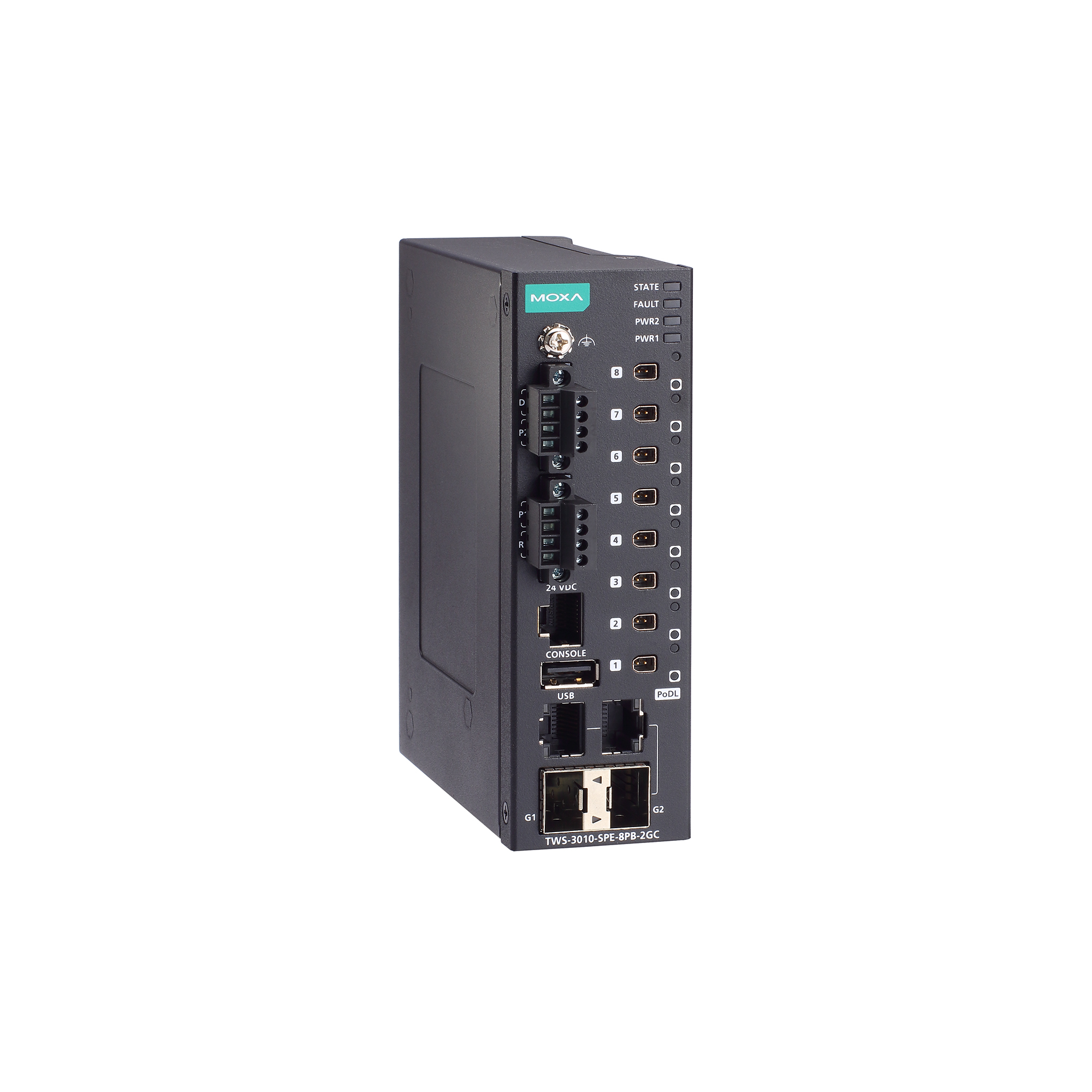

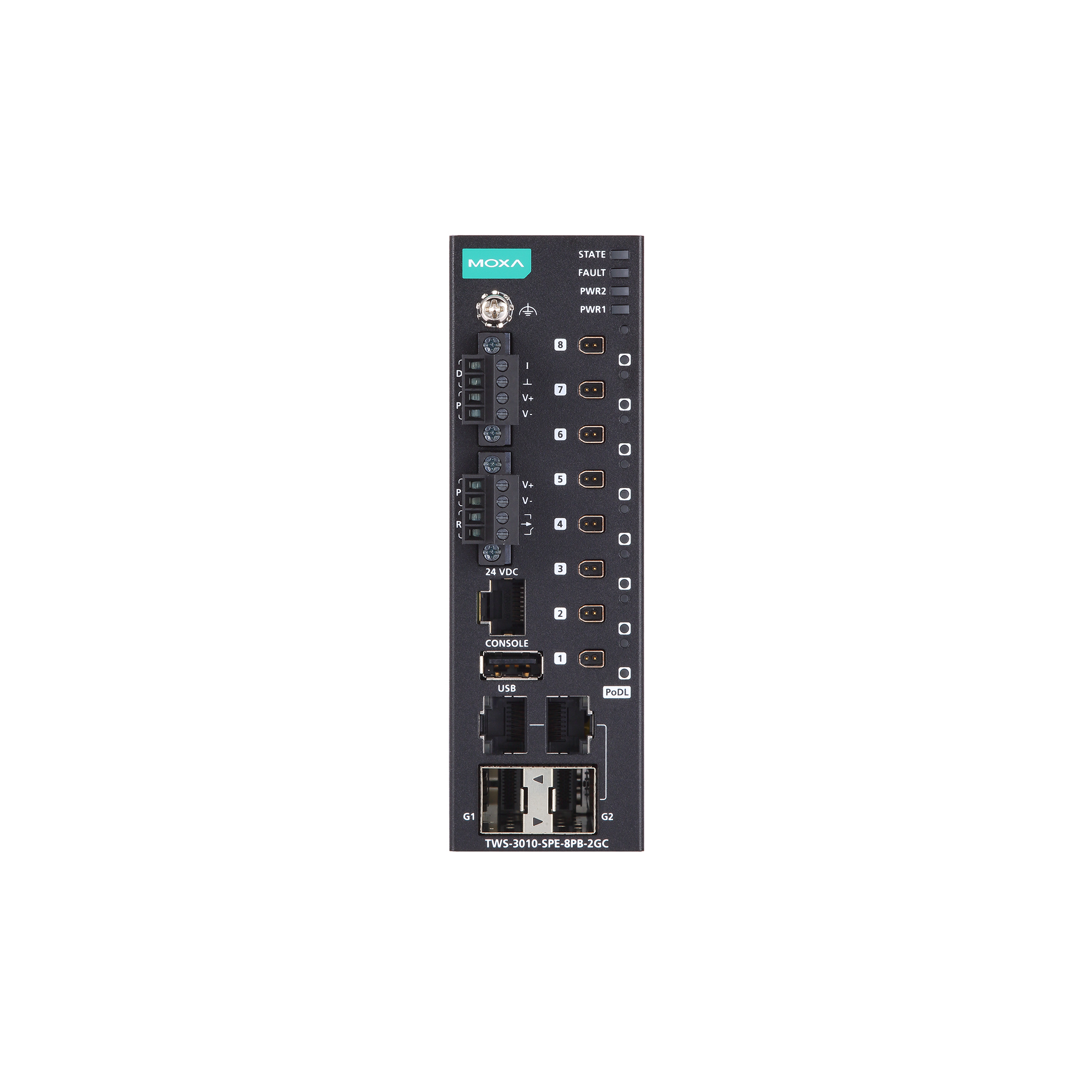

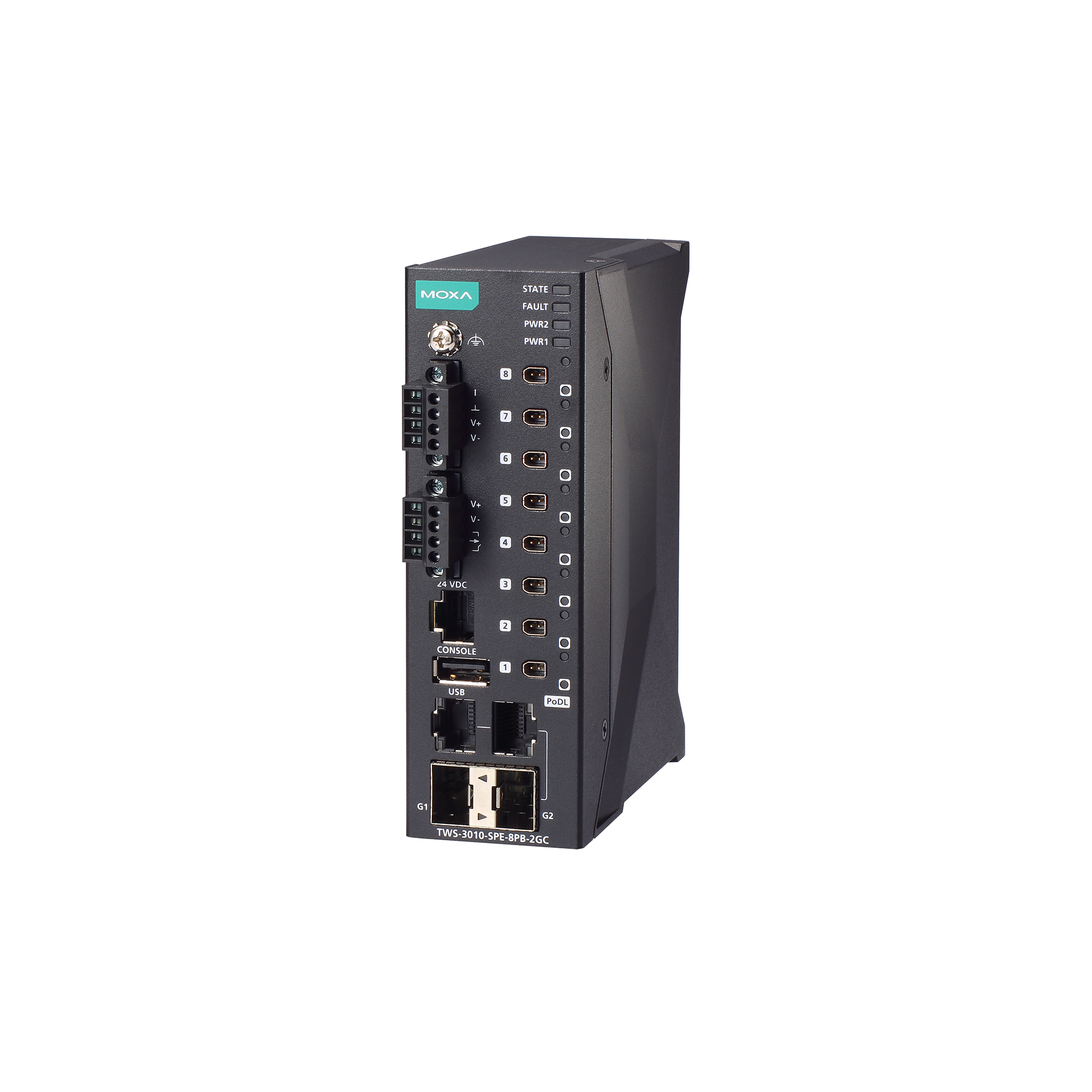

TWS-3010-SPE Series

8 10MbE-SPE, 2 1GbE-port managed Ethernet switches with PoDL

moxa-tws-3010-spe-series-image-1-(1).jpg | Moxa

moxa-tws-3010-spe-series-image-2-(1).jpg | Moxa

Features and Benefits

8 single-pair Ethernet 802.3cg 10Base-T1L ports
PoDL power classes 10, 11, and 12 on each SPE port
Compact size for easy installation
RSTP/STP and MRP for network redundancy and high network availability
Supports EtherNet/IP, PROFINET, and Modus TCP industrial protocols for easy integration and monitoring in automation systems
Rotary DIP switch enables profile-based configuration selection without a web browser

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The TWS-3010-SPE Series industrial two-wire Ethernet switch is designed to bring reliable Ethernet connectivity to the field.

With 10BASE-T1L technology and support for Power over Data Line (PoDL) Classes 10, 11, and 12, the switch extends Ethernet communication to field devices. It delivers both power and data over a single twisted pair at data rates up to 10 Mbps and distances up to 1 km, simplifying installation, lowering wiring costs, and enabling more flexible field deployment.

Diagnostic functions and port-mirroring make deployment and troubleshooting a breeze. Compact chassis and front-facing ports make installation and maintenance easy in tight control cabinets. Industrial Ethernet protocols, like PROFINET, allow for seamless integration with existing systems, and provide scalability for future digitalization and IIoT expansion.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

Alarm Contact Channels

1
Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons

Reset button
Digital Input Channels

1
Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)

2
Standards

IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE802.3cg for 10Base-T1L and PoDL
SPE Ports (10Base-T1L)

8
IEC 63171-2 SPE connectors
PoDL classes 10, 11, and 12

Filter

802.1Q VLAN
BPDU Guard
BPDU Filter
GMRP
GVRP
IGMP v1/v2/v3
Port-based VLAN
Industrial Protocols

EtherNet/IP
Modbus TCP
PROFINET IO Device
Management

LLDP
Back Pressure Flow Control
BOOTP
Port Mirroring
DHCP Option 66/67/82
DHCP Server/Client
Fiber check
Flow control
IPv4/IPv6
RARP
RMON
SCP
SMTP
SNMP Inform
SNMPv1/v2c/v3
Syslog
Telnet
TFTP
MIB

Ethernet-like-MIB
MIB-II
Bridge-MIB
P-BRIDGE MIB
Q-BRIDGE-MIB
RMON MIB Groups 1, 2, 3, 9
RSTP MIB
Redundancy Protocols

Link Aggregation
MRP
MSTP
RSTP
STP
Security

Broadcast storm protection
HTTPS/SSL
TACACS+
SNMPv3
Sticky MAC
NTP authentication
Port Lock
RADIUS
SSH
SMTP with TLS
Time Management

NTP Server/Client
SNTP

IGMP Groups

2048
MAC Table Size

8 K
Max. No. of VLANs

64
Packet Buffer Size

1 Mbits
Priority Queues

4
VLAN ID Range

VID 1 to 4094

Storage Port

USB Type A (for ABC-02 only)

LED Indicators

PWR1, PWR2, STATE, FAULT, Gigabit combo port, SPE port, SPE PoDL indicator

Console Port

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Industrial Profile

Indicator	Mode
0	No function enabled via DIP switch (Default)
1	PROFINET profile enabled
2	PROFINET profile and DHCP client enabled
3	EtherNet/IP profile enabled
4	EtherNet/IP profile and DHCP client enabled
5	Modbus TCP profile enabled
6	Modbus TCP profile and DHCP client enabled
7-9	Reserved (currently performs the same behavior as indicator 0)

Connection

2 removable 4-contact terminal block(s)
Input Current

24 VDC, 4.8 A (max.)
Input Voltage

24 VDC
Redundant dual inputs
Operating Voltage

20 to 30 VDC
Overload Current Protection

Supported
Reverse Polarity Protection

Supported

Housing

Metal
IP Rating

IP30
Dimensions

43 x 135 x 111 mm (1.69 x 5.32 x 4.37 in)
Weight

830 g (1.77 lb)
Installation

DIN-rail mounting
Wall mounting (with optional kit)

Operating Temperature

-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)
Altitude

Up to 2,000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes

Safety

UL 61010-2-201
EN IEC 62368-1
EMC

EN 61000-6-2/-6-4
EMI

FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Level 3
IEC 61000-4-3 RS: Level 3
IEC 61000-4-4 EFT: Level 3
IEC 61000-4-5 Surge: Level 3
IEC 61000-4-6 CS: Level 3
IEC 61000-4-8 PFMF: Level 3
Vibration

IEC 60068-2-6
IEC 60068-2-64
Shock

IEC 60068-2-27
Freefall

ISTA 1A (with package)

Time

1,332,050 hrs
Standards

Telcordia (Bellcore), GB

Warranty Period

5 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Checksum	Version	Operating System	Release Date
Software Package for TWS-3010 Series (AOI file) 33.5 KB	Software Package	29CCAFBABB98AAC48BE2978072A4BC2C22A6085E57A828A3B3D70083355717B0A67912998B5CDD10A5DE001574A7D6DEA1737C05B333F6CB4F55D91E1A2264B1 SHA-512	v1.0		Mar 26, 2026 Mar 26, 2026 Release notes
Firmware for TWS-3010 Series 3.4 MB	Firmware	E267B89C1681D7E2F5DBE595B2066F65869774518D62A985DFF509FC6294B2ABF628B392D98ED174EAABA7551E6FFC0F59E4DAB8EB39F95718169B3A484BFAAE SHA-512	v1.0		Mar 26, 2026 Mar 26, 2026 Release notes
Software Package for TWS-3010 Series (GSD file) 14.4 KB	Software Package	045B38E0F9730B220E9E1C553E3E5E22CB9F25D5F48638B4F5039C06F475A16C04E8C57C7714D7BA93F873C322457DB728E7892E96AC833312B0B20816D7712B SHA-512	v1.0		Mar 26, 2026 Mar 26, 2026 Release notes
Software Package for TWS-3010 Series (EDS file) 5.5 KB	Software Package	4EBA3F5F0716FF216431D689FCF9795272B03F72C7FC45AF95A3A67BDA7F09A1D472FF12DFDC75D87AF0E353EB76B24FF8BED7B49E03BD5197B57A7763938EE7 SHA-512	v1.0		Mar 26, 2026 Mar 26, 2026 Release notes
Software Package for TWS-3010-SPE Series (SNMP MIB file) 175.4 KB	Software Package	0FFA9424883BCB79E810C781FB691D29D99E357C1F9361A52A1365BD8F7E9231DE41799879EB20A575D6095BD19DDE712FA170771B7C05F7685ABF4A962EFD18 SHA-512	v1.0		Mar 26, 2026 Mar 26, 2026 Release notes
EtherNet/IP FactoryTalk View 17.1 MB	Software Package	06C6C4DE290A674FF852F80C292947605FF01BF7799A130F6EC7B50B9EB0678D78882AA54C0252A615B82AB2D3F1CEFCFC6A34D0B346CFECE1EF130AEBED5B2B SHA-512	v1.7		Sep 11, 2025 Sep 11, 2025 Release notes
Moxa USB Console Windows Driver 2.2 MB	Driver	A5B20737692FD008F905C9980DC1BC91C395EE3BBC6EA25A788A0CB5788C5766277B0CD8AD72548384782121CFF052D5033CE6391AA3C191709CA00502408C37 SHA-512	v1.8	Windows 11 Windows Server 2022	Apr 09, 2025 Apr 09, 2025 Release notes
Modbus File 2.3 KB	Software Package	00DF9CB4D4A6CFF960251C6AE9D94DC61620E0B4920CF5A85B7DFC1C863827397BBC0E72B597187AA1B6EC9A916B9FCBB3F686E0E21EE7EB1879BCC849CCCAC7 SHA-512	v1.1		Mar 04, 2025 Mar 04, 2025 Release notes

Support Documents

Name	Type	Version	Release Date
QIG for TWS-3010-SPE Series 3.4 MB	QIG	v1.0	Mar 26, 2026 Mar 26, 2026
FOSS Statement for TWS-3010 Series 467.0 KB	Declaration	v1.0	Mar 26, 2026 Mar 26, 2026
Moxa Managed Two-wire Ethernet Switch CLI Manual 2.2 MB	Manual	v1.0	Mar 26, 2026 Mar 26, 2026
Moxa Managed Two-wire Ethernet Switch User Manual 3.8 MB	Manual	v1.0	Mar 26, 2026 Mar 26, 2026
Declaration of Conformity (EU/UK) for TWS-3010 Series 285.5 KB	Declaration	v1.0	Mar 26, 2026 Mar 26, 2026
Industrial Protocol Users Guide 11.9 MB	Manual	v6.7	Mar 26, 2026 Mar 26, 2026
Datasheet for TWS-3010-SPE Series 922.5 KB	Datasheet	v1.0	Mar 25, 2026 Mar 25, 2026
Moxa Managed Ethernet Switch Redundancy Protocol Manual (UI 2.0) 3.9 MB	Manual	v4.4	Mar 11, 2025 Mar 11, 2025

Available Models (1)

Show Images

	Compare TWS-3010-SPE-8PB-2GC-T
SPE PoDL Ports (10Base-T1L with SPE connectors according to IEC 63171-2)	8
Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP	2
Operating Temp.	-40 to 75°C
