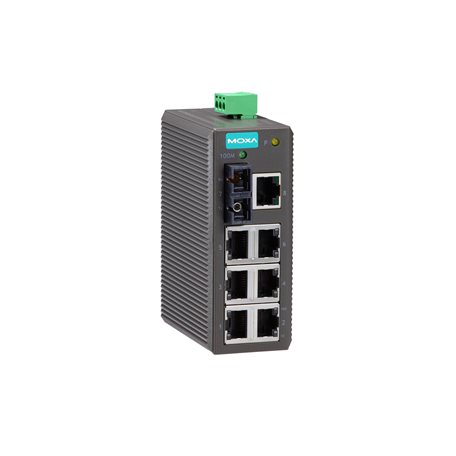

EDS-208-M-SC
EDS-208 Series

Entry-level unmanaged Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connector, plastic housing, -10 to 60°C operating temperature

Ethernet Interface
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
  • 100BaseFX Ports (multi-mode SC connector)

    • 1
  • Optical Fiber

Switch Properties
  • Processing Type

    • Store and Forward
  • MAC Table Size

    • 2 K
  • Packet Buffer Size

    • 768 kbits
Power Parameters
  • Input Voltage

    • 12/24/48 VDC
  • Operating Voltage

    • 9.6 to 60 VDC
  • Input Current

    • 0.1 A @ 24 VDC
  • Connection

    • 1 removable 3-contact terminal block(s)
  • Overload Current Protection

    • 2.5 A @ 24 VDC
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Plastic
  • IP Rating

    • IP30
  • Dimensions

    • 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)
  • Weight

    • 170 g (0.38 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508
      UL 60950-1
      EN 62368-1
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-32
MTBF
  • Time

    • 3,562,556 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
