EDS-210A Series

8+2G/9+1G-port Gigabit unmanaged Ethernet switches

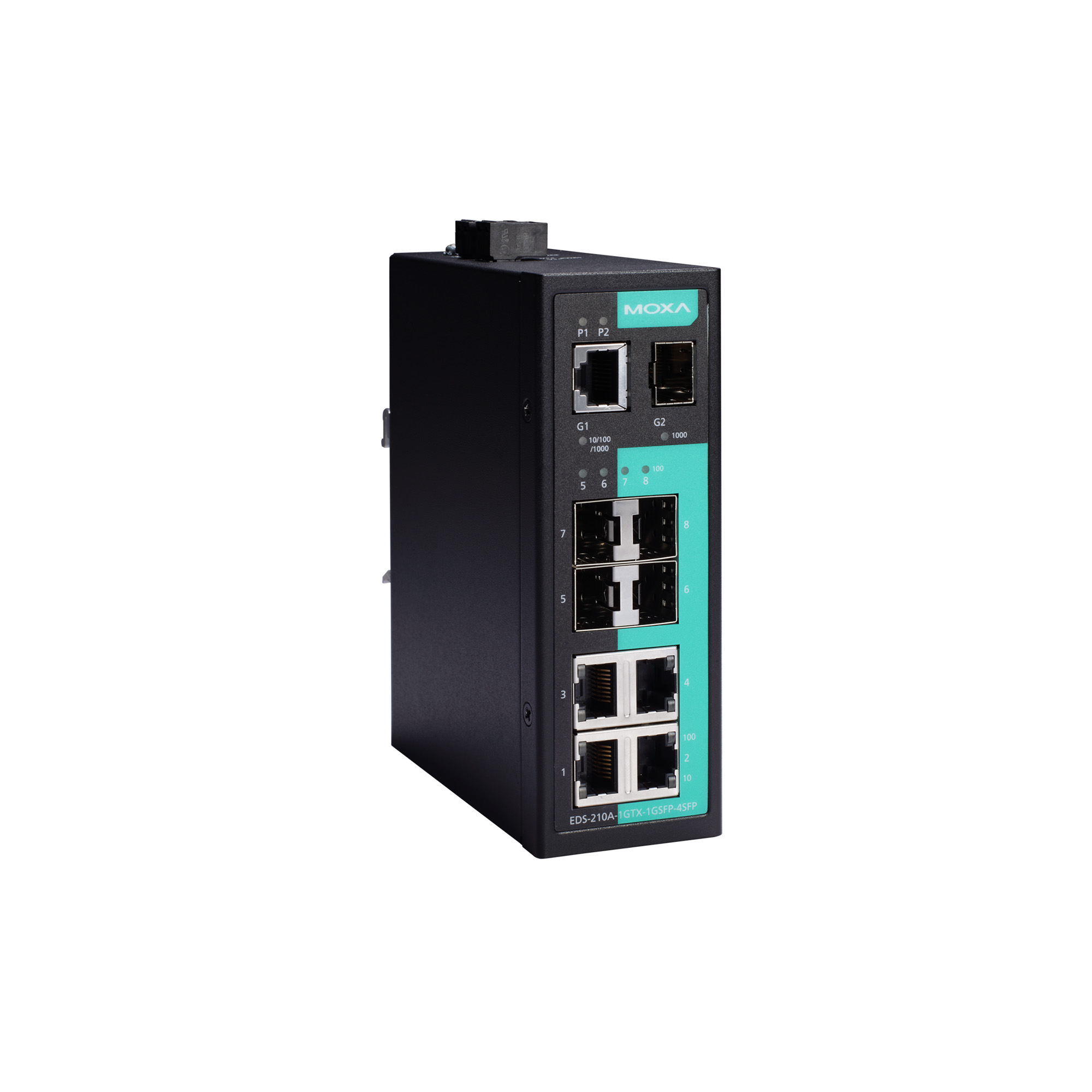

moxa-eds-210a-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Up to 2 Gigabit uplinks for high-bandwidth data aggregation
  • Multiple fiber ports with up to 4 100BaseSFP port combinations for maximum flexibility
  • IP30-rated metal housing
  • Redundant dual 12/24/48 VDC power inputs
  • -40 to 75°C operating temperature range (-T models)

Certifications

  • moxa-dnv-gl-certification-logo-image.png | Moxa
  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDS-210A Series 10-port industrial Ethernet unmanaged switches provide up to 2 Gigabit Ethernet ports and are ideal for applications that require high-bandwidth data convergence. The EDS-210A-1GSFP-1SFP is equipped with 1 Gigabit fiber SFP slot, whereas the EDS-210A-1GTX-1GSFP-4SFP is equipped with 1 Gigabit fiber SFP slot and 1 Gigabit copper port.

The EDS-210A unmanaged switches are equipped with multiple 100M ports, up to 4 100BaseSFP slots, and 8 100BaseTX copper ports for added flexibility and long-distance communications.

The EDS-210A Series provides 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size for space-saving installations, each EDS-210A has passed a 100% burn-in test to ensure its quality. Moreover, the EDS-210A Series has an operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

All of these features make the EDS-210A ideal for applications that require high-bandwidth transmission and data converge for uplink, such as video surveillance, tolling systems, ITS, and factory automation.

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    EDS-210A-1GTX-1GSFP-4SFP Series: 1

  • 10/100BaseT(X) Ports (RJ45 connector)

    EDS-210A-1GSFP-1SFP Series: 8
    EDS-210A-1GTX-1GSFP-4SFP Series: 4

    All models support:
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 1000BaseSFP Slots

    1

  • 100BaseSFP Slots

    EDS-210A-1GSFP-1SFP Series: 1
    EDS-210A-1GTX-1GSFP-4SFP Series: 4

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3z for 1000BaseX

  • MAC Table Size

    8 K

  • Packet Buffer Size

    1 Mbits

  • Processing Type

    Store and Forward

  • Connection

    2 removable 2-contact terminal block(s)

  • Input Current

    0.39 A @ 24 VDC

  • Input Voltage

    12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in)

  • Weight

    EDS-210A-1GSFP-1SFP Series: 520 g (1.15 lb)
    EDS-210A-1GTX-1GSFP-4SFP Series: 570 g (1.26 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 MHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-32

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    EDS-210A-1GSFP-1SFP Series: 2,469,233 hrs
    EDS-210A-1GTX-1GSFP-4SFP Series: 2,485,402 hrs

  • Standards

    Telcordia (Bellcore), GB

Support Documents

Name Type Version Release Date
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB
Tech Note v1.0 2019-02-12 Feb 12, 2019
Datasheet for EDS-210A Series
672.9 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
2D CAD for EDS-210A-1GTX-1GSFP-4SFP TOP
519.5 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for EDS-210A-1SFP-1GSFP TOP
436.2 KB
2D CAD 2018-01-19 Jan 19, 2018
QIG for EDS-210A Series
1.9 MB
QIG v3.0 2017-03-20 Mar 20, 2017

Available Models (4)

Show Images
moxa-eds-210a-1gsfp-1sfp-image.jpg | MoxaEDS-210A-1GSFP-1SFPmoxa-eds-210a-1gsfp-1sfp-t-image.jpg | MoxaEDS-210A-1GSFP-1SFP-Tmoxa-eds-210a-1gtx-1gsfp-4sfp-image.jpg | MoxaEDS-210A-1GTX-1GSFP-4SFPmoxa-eds-210a-1gtx-1gsfp-4sfp-t-image.jpg | MoxaEDS-210A-1GTX-1GSFP-4SFP-T
10/100BaseT(X) Ports
RJ45 Connector
8844
10/100/1000BaseT(X) Ports
RJ45 Connector
11
10/100Base SFP Slots1144
1000Base SFP Slots1111
Operating Temp.-10 to 60°C-40 to 75°C-10 to 60°C-40 to 75°C
