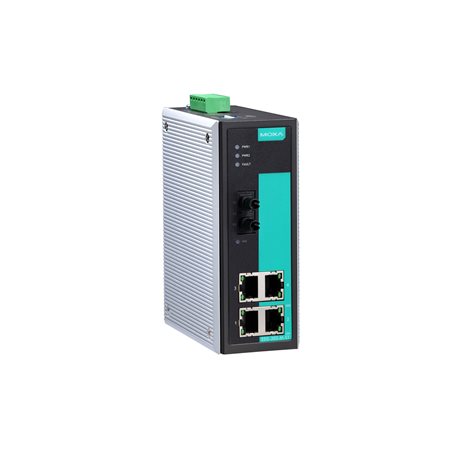

EDS-305-M-ST-T
EDS-305 Series

Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with ST connectors, relay output warning, -40 to 75°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 4
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • 100BaseFX Ports (multi-mode ST connector)

    • 1
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
  • Optical Fiber

DIP Switch Configuration
  • Ethernet Interface

    • Port break alarm
Switch Properties
  • MAC Table Size

    • 1 K
  • Packet Buffer Size

    • 384 K
  • Processing Type

    • Store and Forward
Power Parameters
  • Input Current

    • 0.15 A @ 24 VDC
  • Connection

    • 1 removable 6-contact terminal block(s)
  • Operating Voltage

    • 12 to 48 VDC
  • Input Voltage

    • 24 VDC
      Redundant dual inputs
  • Reverse Polarity Protection

    • Supported
  • Overload Current Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Weight

    • 790 g (1.75 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMC

    • EN 55032/24
  • Vibration

    • IEC 60068-2-6
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Safety

    • UL 508
      UL 60950-1
      CSA C22.2 No. 60950-1
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Maritime

    • DNV
MTBF
  • Time

    • 422,742 hrs
  • Standards

    • MIL-HDBK-217F
