Moxa has a large portfolio of industrial unmanaged switches that have been specifically designed for industrial Ethernet infrastructure. Our unmanaged Ethernet switches uphold the stringent standards that are required for operational reliability in harsh environments.

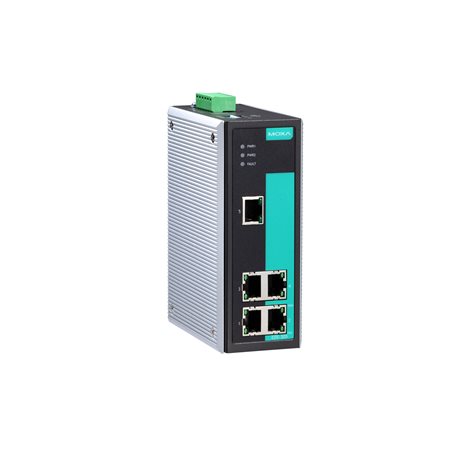

EDS-305-T
EDS-305 Series

Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, relay output warning, -40 to 75°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 5
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
  • Optical Fiber

DIP Switch Configuration
  • Ethernet Interface

    • Port break alarm
Switch Properties
  • MAC Table Size

    • 1 K
  • Packet Buffer Size

    • 384 K
  • Processing Type

    • Store and Forward
Power Parameters
  • Input Current

    • 0.11 A @ 24 VDC
  • Connection

    • 1 removable 6-contact terminal block(s)
  • Operating Voltage

    • 12 to 48 VDC
  • Input Voltage

    • 24 VDC
      Redundant dual inputs
  • Reverse Polarity Protection

    • Supported
  • Overload Current Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Weight

    • 790 g (1.75 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMC

    • EN 55032/24
  • Vibration

    • IEC 60068-2-6
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Safety

    • UL 508
      UL 60950-1
      CSA C22.2 No. 60950-1
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Maritime

    • DNV
MTBF
  • Time

    • 422,742 hrs
  • Standards

    • MIL-HDBK-217F
Warranty
