Unmanaged Switches

Moxa has a large portfolio of industrial unmanaged switches that have been specifically designed for industrial Ethernet infrastructure. Our unmanaged Ethernet switches uphold the stringent standards that are required for operational reliability in harsh environments.

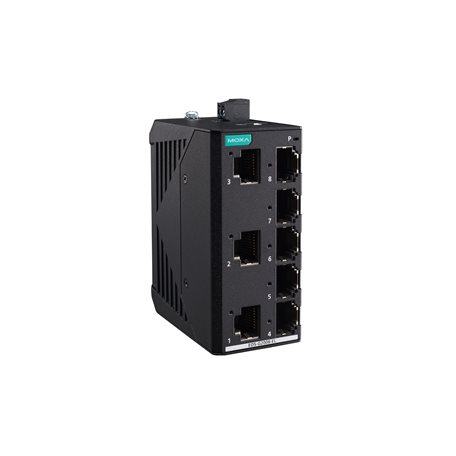

EDS-G2008-EL-T
EDS-G2008-EL Series

Unmanaged full Gigabit Ethernet switch with 8 10/100/1000 BaseT(X) ports, 12/24/48 power input, metal housing, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 8
  • 10/100BaseT(X) Ports (RJ45 connector)

    • Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.1p for Class of Service
      IEEE 802.3x for flow control
Switch Properties
  • Processing Type

    • Store and Forward
  • MAC Table Size

    • 4 K
  • Packet Buffer Size

    • 1.5 Mbits
DIP Switch Configuration
  • Ethernet Interface

    • Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
  • Connection

    • 1 removable 2-contact terminal block(s)
  • Input Current

    • 0.33 A (max.)
  • Input Voltage

    • 12/24/48 VDC
  • Operating Voltage

    • 9.6 to 60 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Weight

    • 180 g (0.4 lb)
  • Housing

    • Metal
  • Dimensions

    • 36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
Standards and Certifications
  • Safety

    • UL 61010-2-201
      EN 62368-1 (LVD)
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR, 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-32
MTBF
  • Time

    • 3,404,784 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
