MOXA

Secure Remote Access

The Moxa Remote Connect gives you a secure, easy-to-deploy, flexible, and scalable remote access solution that enables you to remotely configure, maintain, and troubleshoot your devices. It empowers machine builders by creating new business models for them to expand their services and keep their customers satisfied.

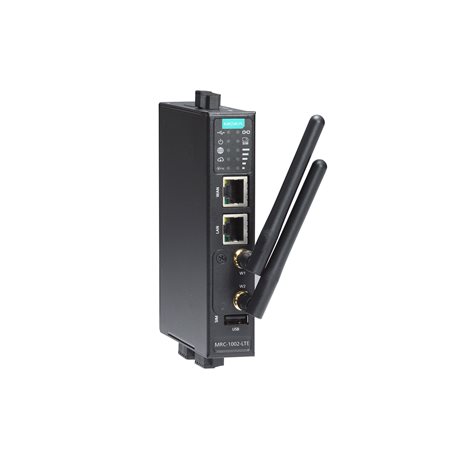

MRC-1002-LTE-US-T
Moxa Remote Connect Suite

Moxa Remote Connect gateway with 1 LTE cellular port and 2 Ethernet ports, -40 to 70°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
Cellular Interface
  • Cellular Standards

    • EDGE, GSM, GPRS, UMTS, HSPA, LTE CAT-3
  • Band Options (US)

    • UMTS/HSPA 2100 MHz / 1900 MHz / AWS MHz / 850 MHz / 900 MHz
      Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
      LTE Band B2 (1900 MHz) / LTE Band B4 (AWS) / LTE Band B5 (850 MHz) / LTE Band B13 (700 MHz) / LTE Band B17 (700 MHz) / LTE Band B25 (1900 MHz)
  • LTE Data Rate

    • 10 MHz bandwidth: 50 Mbps DL, 25 Mbps UL
      20 MHz bandwidth: 100 Mbps DL, 50 Mbps UL
  • GPRS Data Rates

    • 85.6 kbps DL, 42.8 kbps UL
  • EDGE Data Rates

    • 237 kbps DL, 237 kbps UL (Category 10, 12)
  • HSPA Data Rates

    • 42 Mbps DL, 5.76 Mbps UL (Category 24, 6)
  • Antenna Connectors

    • 2 SMA connector(s)
LED Interface
  • LED Indicators

    • USB, Power, Internet, Cloud, Key, Cellular Signal, Chain
USB Interface
  • USB Standards

    • USB 2.0
Input/Output Interface
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Relays
  • Contact Current Rating

    • 1 A @ 24 VDC
System Power Parameters
  • Input Current

    • 0.62 A @ 12 VDC
  • Input Voltage

    • 12 to 36 VDC
  • Power Consumption

    • 7.44 W
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
  • Weight

    • 470 g (1.04 lb)
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Safety

    • EN 61010-2-201
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 561,262 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
MRC Server Software
  • Amazon AWS EC2

    • Supports Amazon AWS EC2 service (can be downloaded from AWS Marketplace)
  • Licensing

    • Apply for an MRC Server License from Moxa’s channels before activating your software portal
MRC Client Software
  • Operating System

    • Windows 7/10 (32-bit or 64-bit)
