MOXA

EN 50155 Routers

The routers in the TN Series are designed for rolling stock backbone networks and include high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of cross-network applications.

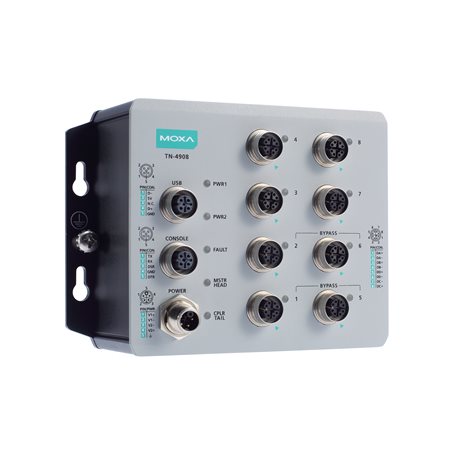

TN-4908-ETBN-F-4GTX-4GTXBP-WV-CT-T
TN-4900 Series

IEC 61375 ETBN industrial secure firewall router with 8 Gigabit Ethernet ports including 4 Gigabit Ethernet ports with bypass relay, 24 to 110 VDC power input, IP40, -40 to 70°C operating temperature, conformal coating

Ethernet Interface
  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    • 4
  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 4
  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    • 4
  • Standards

    • IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.1X for authentication
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.3x for flow control
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.1p for Class of Service
      IEEE 802.3 for 10BaseT
Ethernet Software Features
  • Configuration Options

    • Command Line Interface (CLI) through Serial/Telnet/SSH
      Web Console (HTTP/HTTPS)
      Windows Utility
  • Filter

    • IGMP v1/v2
      Static Multicast
      802.1Q
  • Management

    • Back Pressure Flow Control
      SNMP Inform
      LLDP
      Syslog
      HTTP
      HTTPS
      Flow control
      SMTP
      QoS/CoS/ToS
      Port Mirror
      SNMP Trap
      SNMPv1/v2c/v3
      IPv4
      Telnet
      DHCP Server
      SFTP
      SCP
      TFTP
      RARP
      Account Management
      DHCP Client (Option 1/3/12/50/51/53/54/55/57/61/66/67/124/255)
      DHCP Server (Option 1/3/6/12/15/28/42/50/55)
      DHCP Relay Agent
  • Redundancy Protocols

    • RSTP
      Static Port Trunk
      Turbo Ring v2
      STP
  • Routing Redundancy

    • VRRP
  • Security

    • Secure Boot
      IPsec
      L2TP (server)
      RADIUS
      Trust access control
  • Time Management

    • SNTP
      NTP Server/Client
  • Unicast Routing

    • RIPV1/V2
      OSPF
      Static Route
  • Railway

    • TRDP
  • Multicast Routing

    • Static Route
  • Routing Throughput

    • 450,000 FPS (pure routing)
DoS and DDoS Protection
  • Technology

    • NMAP-ID Scan
      ARP-Flood
      SYN/FIN Scan
      Null Scan
      ICMP-Death
      FIN Scan
      SYN-Flood
      NEWWithout-SYN Scan
      Xmas Scan
      NMAP-Xmas Scan
      SYN/RST Scan
Firewall
  • Filter

    • ICMP
      MAC address
      Ethernet protocols
      Ports
      IP address
      DDoS
  • Quick Automation Profiles

    • DNP
      DPI
      EtherCAT
      EtherNet/IP
      FOUNDATION Fieldbus
      FTP
      HTTP
      IEC 60870-104
      IPsec
      L2TP
      LonWorks
      Modbus TCP
      PPTP
      PROFINET
      RADIUS
      SSH
      Telnet
      VPN
  • Stateful Inspection

    • Router firewall
      Transparent (bridge) firewall
  • Throughput

    • Max. 350,000 packets per second
IPsec VPN
  • Authentication

    • MD5 and SHA (SHA-256)
      RSA (key size: 1024-bit, 2048-bit)
      X.509 v3 certificate
  • Encryption

    • 3DES
      DES
      AES-128
      AES-192
      AES-256
  • Concurrent VPN Tunnels

    • Max. 250 IPsec VPN tunnels
Switch Properties
  • IGMP Groups

    • 1024
  • MAC Table Size

    • 16 K
  • Max. No. of VLANs

    • 32
  • VLAN ID Range

    • VID 1 to 4094
LED Interface
  • LED Indicators

    • STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE
NAT
  • Features

    • 1-to-1
      Port forwarding
      N-to-1
Serial Interface
  • Console Port

    • RS-232 (M12 B-coded 5-pin female connector)
USB Interface
  • M12 Connector

    • M12 A-coded 5-pin female (for ABC-02 USB storage)
Power Parameters
  • Input Current

    • 0.65 A @ 24 V
  • Input Voltage

    • 24/36/48/72/96/110 VDC
      Redundant dual inputs
      No. of power inputs: 2
  • Operating Voltage

    • 16.8 to 137.5 VDC
  • Power Connector

    • M12 K-coded 5-pin male connector
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 160 x 115 x 70 mm (6.30 x 4.53 x 2.76 in)
  • IP Rating

    • IP40
  • Weight

    • 1120 g (2.47 lb)
  • Installation

    • Wall mounting
  • Protection

    • PCB conformal coating
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 3,000 m
Standards and Certifications
  • EMC

    • EN 55032, EN 55035
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Radio Frequency

    • FCC
  • Railway

    • EN 50121-4
      EN 50155
      IEC 60068-2-1, EN 50155
      IEC 60068-2-14, EN 50155
      IEC 60068-2-2, EN 50155
      IEC 60068-2-30, EN 50155
      IEC 60068-2-78
      IEC 60571
  • Railway Fire Protection

    • EN 45545-2
  • Safety

    • IEC 62368, UL 62368
  • Salt Spray Test

    • EN 50155
  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
  • Package Drop Test

    • ISTA 1A
  • Package Vibration Test

    • ISTA 1A
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 648,903 hrs
  • Standards

    • Telcordia SR332 Issue 2
