Rail Wireless LAN

Moxa’s field-proven wireless LAN products enable operators to manage carriage-to-carriage and train-to-ground communications with increased efficiency, enabling you to create helpful onboard multimedia services that enhance the safety and comfort of your passengers.

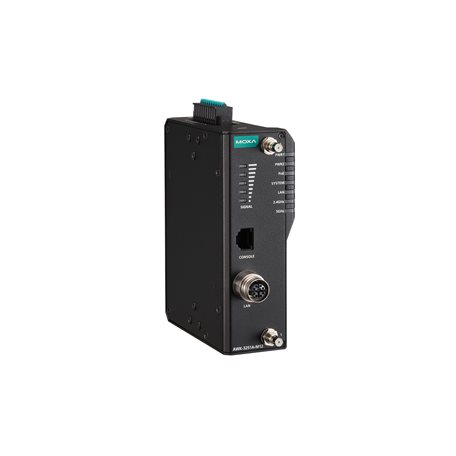

AWK-3251A-M12-RCC-US-T
AWK-3251A-RCC Series

Railway Wi-Fi 5 AP/client, US band, IP30, -40 to 75°C operating temperature

WLAN Interface
  • WLAN Standards

    • 2.4 GHz: 802.11b/g/n with 256 QAM support
      5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
  • Frequency Band for US (20 MHz operating channels)

    • 2.412 to 2.462 GHz (11 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.745 to 5.825 GHz (5 channels)
  • Wireless Security

    • WEP encryption (64-bit and 128-bit)
      WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2/WPA3-Personal
  • Transmission Rate

    • 2.4 GHz:
      802.11b: 1 to 11 Mbps
      802.11g: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps
      802.11ac: 6.5 to 400 Mbps

      5 GHz:
      802.11a: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps
      802.11ac: 6.5 to 867 Mbps
  • Transmitter Power for 802.11a

    • 22±1.5 dBm @ 6 Mbps
      22±1.5 dBm @ 9 Mbps
      22±1.5 dBm @ 12 Mbps
      20.5±1.5 dBm @ 18 Mbps
      20.5±1.5 dBm @ 24 Mbps
      20.5±1.5 dBm @ 36 Mbps
      20±1.5 dBm @ 48 Mbps
      20±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (5 GHz)

    • 22±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS1 20 MHz
      22±1.5 dBm @ MCS2 20 MHz
      20±1.5 dBm @ MCS3 20 MHz
      19.5±1.5 dBm @ MCS4 20 MHz
      19.5±1.5 dBm @ MCS5 20 MHz
      19.5±1.5 dBm @ MCS6 20 MHz
      19±1.5 dBm @ MCS7 20 MHz
      22±1.5 dBm @ MCS8 20 MHz
      22±1.5 dBm @ MCS9 20 MHz
      22±1.5 dBm @ MCS10 20 MHz
      20±1.5 dBm @ MCS11 20 MHz
      19.5±1.5 dBm @ MCS12 20 MHz
      19.5±1.5 dBm @ MCS13 20 MHz
      19.5±1.5 dBm @ MCS14 20 MHz
      19±1.5 dBm @ MCS15 20 MHz
      21±1.5 dBm @ MCS0 40 MHz
      21±1.5 dBm @ MCS1 40 MHz
      21±1.5 dBm @ MCS2 40 MHz
      19.5±1.5 dBm @ MCS3 40 MHz
      19±1.5 dBm @ MCS4 40 MHz
      19±1.5 dBm @ MCS5 40 MHz
      19.5±1.5 dBm @ MCS6 40 MHz
      19±1.5 dBm @ MCS7 40 MHz
      21±1.5 dBm @ MCS8 40 MHz
      21±1.5 dBm @ MCS9 40 MHz
      21±1.5 dBm @ MCS10 40 MHz
      19.5±1.5 dBm @ MCS11 40 MHz
      19±1.5 dBm @ MCS12 40 MHz
      19±1.5 dBm @ MCS13 40 MHz
      19±1.5 dBm @ MCS14 40 MHz
      19±1.5 dBm @ MCS15 40 MHz
  • Transmitter Power for 802.11ac (5 GHz, Dual Chain)

    • 21.5±1.5 dBm @ MCS0 20 MHz
      21.5±1.5 dBm @ MCS1 20 MHz
      21±1.5 dBm @ MCS2 20 MHz
      20±1.5 dBm @ MCS3 20 MHz
      19.5±1.5 dBm @ MCS4 20 MHz
      19.5±1.5 dBm @ MCS5 20 MHz
      19.5±1.5 dBm @ MCS6 20 MHz
      19±1.5 dBm @ MCS7 20 MHz
      19±1.5 dBm @ MCS8 20 MHz
      21±1.5 dBm @ MCS0 40 MHz
      21±1.5 dBm @ MCS1 40 MHz
      21±1.5 dBm @ MCS2 40 MHz
      19.5±1.5 dBm @ MCS3 40 MHz
      19±1.5 dBm @ MCS4 40 MHz
      19±1.5 dBm @ MCS5 40 MHz
      19±1.5 dBm @ MCS6 40 MHz
      19±1.5 dBm @ MCS7 40 MHz
      18.5±1.5 dBm @ MCS8 40 MHz
      18±1.5 dBm @ MCS9 40 MHz
      20±1.5 dBm @ MCS0 80 MHz
      20±1.5 dBm @ MCS1 80 MHz
      20±1.5 dBm @ MCS2 80 MHz
      17±1.5 dBm @ MCS3 80 MHz
      17±1.5 dBm @ MCS4 80 MHz
      17±1.5 dBm @ MCS5 80 MHz
      17±1.5 dBm @ MCS6 80 MHz
      17±1.5 dBm @ MCS7 80 MHz
      17±1.5 dBm @ MCS8 80 MHz
      17±1.5 dBm @ MCS9 80 MHz
  • Transmitter Power for 802.11b

    • 25.5±1.5 dBm @ 1 Mbps
      25.5±1.5 dBm @ 2 Mbps
      26±1.5 dBm @ 5.5 Mbps
      26±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g

    • 26±1.5 dBm @ 6 Mbps
      26±1.5 dBm @ 9 Mbps
      26±1.5 dBm @ 12 Mbps
      25±1.5 dBm @ 18 Mbps
      25±1.5 dBm @ 24 Mbps
      24.5±1.5 dBm @ 36 Mbps
      23.5±1.5 dBm @ 48 Mbps
      23±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz)

    • 24.5±1.5 dBm @ MCS0 20 MHz
      24.5±1.5 dBm @ MCS1 20 MHz
      24±1.5 dBm @ MCS2 20 MHz
      24±1.5 dBm @ MCS3 20 MHz
      23.5±1.5 dBm @ MCS4 20 MHz
      23.5±1.5 dBm @ MCS5 20 MHz
      22.5±1.5 dBm @ MCS6 20 MHz
      22±1.5 dBm @ MCS7 20 MHz
      24±1.5 dBm @ MCS8 20 MHz
      24.5±1.5 dBm @ MCS9 20 MHz
      24±1.5 dBm @ MCS10 20 MHz
      24±1.5 dBm @ MCS11 20 MHz
      23.5±1.5 dBm @ MCS12 20 MHz
      23±1.5 dBm @ MCS13 20 MHz
      22±1.5 dBm @ MCS14 20 MHz
      21.5±1.5 dBm @ MCS15 20 MHz
      24±1.5 dBm @ MCS0 40 MHz
      24±1.5 dBm @ MCS1 40 MHz
      24±1.5 dBm @ MCS2 40 MHz
      24±1.5 dBm @ MCS3 40 MHz
      23.5±1.5 dBm @ MCS4 40 MHz
      23.5±1.5 dBm @ MCS5 40 MHz
      22.5±1.5 dBm @ MCS6 40 MHz
      22±1.5 dBm @ MCS7 40 MHz
      24±1.5 dBm @ MCS8 40 MHz
      24±1.5 dBm @ MCS9 40 MHz
      24±1.5 dBm @ MCS10 40 MHz
      24±1.5 dBm @ MCS11 40 MHz
      23.5±1.5 dBm @ MCS12 40 MHz
      23±1.5 dBm @ MCS13 40 MHz
      22.5±1.5 dBm @ MCS14 40 MHz
      21.5±1.5 dBm @ MCS15 40 MHz
  • Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

    • 25±1.5 dBm @ MCS0 20 MHz
      25±1.5 dBm @ MCS1 20 MHz
      25±1.5 dBm @ MCS2 20 MHz
      25±1.5 dBm @ MCS3 20 MHz
      24±1.5 dBm @ MCS4 20 MHz
      23.5±1.5 dBm @ MCS5 20 MHz
      22.5±1.5 dBm @ MCS6 20 MHz
      22±1.5 dBm @ MCS7 20 MHz
      21.5±1.5 dBm @ MCS8 20 MHz
      25±1.5 dBm @ MCS0 40 MHz
      25±1.5 dBm @ MCS1 40 MHz
      25±1.5 dBm @ MCS2 40 MHz
      25±1.5 dBm @ MCS3 40 MHz
      24±1.5 dBm @ MCS4 40 MHz
      23.5±1.5 dBm @ MCS5 40 MHz
      22.5±1.5 dBm @ MCS6 40 MHz
      22±1.5 dBm @ MCS7 40 MHz
      21.5±1.5 dBm @ MCS8 40 MHz
      21±1.5 dBm @ MCS9 40 MHz
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    • Typ. -88 @ 6 Mbps
      Typ. -88 @ 9 Mbps
      Typ. -85 @ 12 Mbps
      Typ. -84 @ 18 Mbps
      Typ. -81 @ 24 Mbps
      Typ. -77 @ 36 Mbps
      Typ. -74 @ 48 Mbps
      Typ. -72 @ 54 Mbps
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    • Typ. -88 dBm @ MCS0 20 MHz
      Typ. -84 dBm @ MCS1 20 MHz
      Typ. -83 dBm @ MCS2 20 MHz
      Typ. -80 dBm @ MCS3 20 MHz
      Typ. -76 dBm @ MCS4 20 MHz
      Typ. -72 dBm @ MCS5 20 MHz
      Typ. -70 dBm @ MCS6 20 MHz
      Typ. -68 dBm @ MCS7 20 MHz
      Typ. -89 dBm @ MCS8 20 MHz
      Typ. -87 dBm @ MCS9 20 MHz
      Typ. -85 dBm @ MCS10 20 MHz
      Typ. -81 dBm @ MCS11 20 MHz
      Typ. -78 dBm @ MCS12 20 MHz
      Typ. -74 dBm @ MCS13 20 MHz
      Typ. -73 dBm @ MCS14 20 MHz
      Typ. -71 dBm @ MCS15 20 MHz
      Typ. -85 dBm @ MCS0 40 MHz
      Typ. -82 dBm @ MCS1 40 MHz
      Typ. -79 dBm @ MCS2 40 MHz
      Typ. -77 dBm @ MCS3 40 MHz
      Typ. -73 dBm @ MCS4 40 MHz
      Typ. -69 dBm @ MCS5 40 MHz
      Typ. -68 dBm @ MCS6 40 MHz
      Typ. -66 dBm @ MCS7 40 MHz
      Typ. -87 dBm @ MCS8 40 MHz
      Typ. -84 dBm @ MCS9 40 MHz
      Typ. -82 dBm @ MCS10 40 MHz
      Typ. -79 dBm @ MCS11 40 MHz
      Typ. -75 dBm @ MCS12 40 MHz
      Typ. -72 dBm @ MCS13 40 MHz
      Typ. -70 dBm @ MCS14 40 MHz
      Typ. -69 dBm @ MCS15 40 MHz
  • Receiver Sensitivity for 802.11ac (5 GHz, Dual Chain)

    • Typ. -89 dBm @ MCS0 20 MHz
      Typ. -86 dBm @ MCS1 20 MHz
      Typ. -84 dBm @ MCS2 20 MHz
      Typ. -81 dBm @ MCS3 20 MHz
      Typ. -78 dBm @ MCS4 20 MHz
      Typ. -74 dBm @ MCS5 20 MHz
      Typ. -72 dBm @ MCS6 20 MHz
      Typ. -71 dBm @ MCS7 20 MHz
      Typ. -67 dBm @ MCS8 20 MHz
      Typ. -86 dBm @ MCS0 40 MHz
      Typ. -84 dBm @ MCS1 40 MHz
      Typ. -81 dBm @ MCS2 40 MHz
      Typ. -78 dBm @ MCS3 40 MHz
      Typ. -75 dBm @ MCS4 40 MHz
      Typ. -71 dBm @ MCS5 40 MHz
      Typ. -70 dBm @ MCS6 40 MHz
      Typ. -69 dBm @ MCS7 40 MHz
      Typ. -64 dBm @ MCS8 40 MHz
      Typ. -63 dBm @ MCS9 40 MHz
      Typ. -84 dBm @ MCS0 80 MHz
      Typ. -81 dBm @ MCS1 80 MHz
      Typ. -79 dBm @ MCS2 80 MHz
      Typ. -76 dBm @ MCS3 80 MHz
      Typ. -73 dBm @ MCS4 80 MHz
      Typ. -69 dBm @ MCS5 80 MHz
      Typ. -67 dBm @ MCS6 80 MHz
      Typ. -65 dBm @ MCS7 80 MHz
      Typ. -61 dBm @ MCS8 80 MHz
      Typ. -60 dBm @ MCS9 80 MHz
  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    • Typ. -96 dBm @ 1 Mbps
      Typ. -92 dBm @ 2 Mbps
      Typ. -91 dBm @ 5.5 Mbps
      Typ. -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    • Typ. -90 dBm @ 6 Mbps
      Typ. -89 dBm @ 9 Mbps
      Typ. -88 dBm @ 12 Mbps
      Typ. -86 dBm @ 18 Mbps
      Typ. -82 dBm @ 24 Mbps
      Typ. -79 dBm @ 36 Mbps
      Typ. -75 dBm @ 48 Mbps
      Typ. -73 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    • Typ. -89 dBm @ MCS0 20 MHz
      Typ. -86 dBm @ MCS1 20 MHz
      Typ. -84 dBm @ MCS2 20 MHz
      Typ. -81 dBm @ MCS3 20 MHz
      Typ. -77 dBm @ MCS4 20 MHz
      Typ. -73 dBm @ MCS5 20 MHz
      Typ. -72 dBm @ MCS6 20 MHz
      Typ. -70 dBm @ MCS7 20 MHz
      Typ. -91 dBm @ MCS8 20 MHz
      Typ. -88 dBm @ MCS9 20 MHz
      Typ. -86 dBm @ MCS10 20 MHz
      Typ. -82 dBm @ MCS11 20 MHz
      Typ. -80 dBm @ MCS12 20 MHz
      Typ. -75 dBm @ MCS13 20 MHz
      Typ. -74 dBm @ MCS14 20 MHz
      Typ. -73 dBm @ MCS15 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -84 dBm @ MCS1 40 MHz
      Typ. -82 dBm @ MCS2 40 MHz
      Typ. -78 dBm @ MCS3 40 MHz
      Typ. -75 dBm @ MCS4 40 MHz
      Typ. -71 dBm @ MCS5 40 MHz
      Typ. -70 dBm @ MCS6 40 MHz
      Typ. -68 dBm @ MCS7 40 MHz
      Typ. -88 dBm @ MCS8 40 MHz
      Typ. -85 dBm @ MCS9 40 MHz
      Typ. -83 dBm @ MCS10 40 MHz
      Typ. -80 dBm @ MCS11 40 MHz
      Typ. -77 dBm @ MCS12 40 MHz
      Typ. -73 dBm @ MCS13 40 MHz
      Typ. -71 dBm @ MCS14 40 MHz
      Typ. -70 dBm @ MCS15 40 MHz
  • Receiver Sensitivity for 802.11ac (2.4 GHz, Dual Chain)

    • Typ. -90 dBm @ MCS0 20 MHz
      Typ. -87 dBm @ MCS1 20 MHz
      Typ. -85 dBm @ MCS2 20 MHz
      Typ. -82 dBm @ MCS3 20 MHz
      Typ. -79 dBm @ MCS4 20 MHz
      Typ. -75 dBm @ MCS5 20 MHz
      Typ. -73 dBm @ MCS6 20 MHz
      Typ. -72 dBm @ MCS7 20 MHz
      Typ. -68 dBm @ MCS8 20 MHz
      Typ. -88 dBm @ MCS0 40 MHz
      Typ. -85 dBm @ MCS1 40 MHz
      Typ. -83 dBm @ MCS2 40 MHz
      Typ. -80 dBm @ MCS3 40 MHz
      Typ. -77 dBm @ MCS4 40 MHz
      Typ. -72 dBm @ MCS5 40 MHz
      Typ. -71 dBm @ MCS6 40 MHz
      Typ. -70 dBm @ MCS7 40 MHz
      Typ. -66 dBm @ MCS8 40 MHz
      Typ. -64 dBm @ MCS9 40 MHz
  • WLAN Operation Mode

    • Access point
      Client
      Client-Router
      Master
      Slave
      Sniffer
      ACC
  • Antenna Connectors

    • QMA
Ethernet Interface
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3at for PoE
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 1
      Supports IEEE 802.3at PoE
Ethernet Software Features
  • Management

    • DHCP Server/Client
      DNS
      HTTP
      IPv4
      LLDP
      SMTP
      SNMPv1/v2c/v3
      Syslog
      TCP/IP
      Telnet
      UDP
      VLAN
      MXconfig
  • Security

    • HTTPS/SSL
      RADIUS
      SSH
  • Time Management

    • SNTP Client
Firewall
  • Filter

    • ICMP
      MAC address
      IP protocol
      Port-based
Serial Interface
  • Console Port

    • RS-232
      8-pin RJ45
LED Interface
  • LED Indicators

    • PWR1, PWR2, PoE, System, LAN, 2.4GHz, 5GHz, SIG
Input/Output Interface
  • Digital Inputs

    • 2
      Max. input current: 8 mA
      +13 to +30 V for state 1
      +3 to -30 V for state 0
  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons

    • Reset button
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 45 x 130 x 118 mm (1.77 x 5.12 x 4.65 in)
  • Weight

    • 800 g (1.76 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Power Parameters
  • Input Current

    • 12-48 VDC, 2.01-0.5 A
  • Input Voltage

    • 12 to 48 VDC
      Redundant dual inputs
      48 VDC Power-over-Ethernet
  • Power Connector

    • 1 removable 10-contact terminal block(s)
  • Power Consumption

    • 24.12 W (max.)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V/m
      IEC 61000-4-8 PFMF: 30 A/m
  • Safety

    • IEC 60950-1
      IEC 62368-1
      UL 62368-1
  • Railway

    • EN 50121-4
      EN 50155
  • Railway Fire Protection

    • EN 45545-2
  • Radio

    • EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, TELEC, NCC, RCM, SRRC, IC
MTBF
  • Time

    • 838,684 hrs
  • Standards

    • Telcordia SR332
Warranty
Added To Bag
You have some items waiting in your bag; click here to finish your quote!
Feedback
