Rail Wireless LAN

Moxa’s field-proven wireless LAN products enable operators to manage carriage-to-carriage and train-to-ground communications with increased efficiency, enabling you to create helpful onboard multimedia services that enhance the safety and comfort of your passengers.

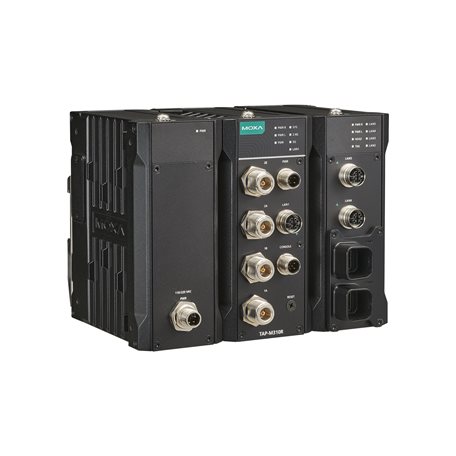

TAP-M310R-1P1R1S-EU-CT-T
TAP-M310R Series

Wi-Fi 6 railway wayside AP/client with one radio and one switch module, one M12 K-coded 110/220 VAC input, EU band, -40 to 75°C operating temperature, conformal coating

WLAN Interface

  • WLAN Standards

    • 2.4 GHz: 802.11b/g/n/ax with 1024 QAM support, 20/40 MHz
      5 GHz: 802.11a/n/ac/ax with 1024 QAM support, 20/40/80 MHz

  • Frequency Band for US (20 MHz operating channels)

    • 2.412 to 2.462 GHz (11 channels)
      5.180 to 5.240 GHz (4 channels)
      5,745 to 5,825 GHz (5 channels)

  • Frequency Band for EU (20 MHz operating channels)

    • 2,412 to 2,472 GHz (13 channels)
      5,180 to 5,240 GHz (4 channels)
      5,745 to 5,825 GHz (5 channels)

  • Wireless Security

    • SSID broadcast enable/disable
      WPA2/WPA3 Personal (AES)
      WPA2/WPA3 Enterprise (IEEE 802.1X/RADIUS, AES)

  • Transmission Rate

    • 802.11b: 1 to 11 Mbps
      802.11a/g: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps
      802.11ac: up to 540 Mbps
      802.11ax: 5 GHz up to 1201 Mbps, 2.4 GHz up to 576 Mbps

  • WLAN Operation Mode

    • Access point
      Master
      Sniffer
      Client
      Client-Router
      Slave

  • Antenna Connectors

    • 4 x N-type (female)

  • Transmitter Power for 802.11a

    • TAP-M310R-NPS-1R and -1P1R models:
      22±1.5 dBm @ 6 Mbps 20 MHz
      22±1.5 dBm @ 9 Mbps 20 MHz
      22±1.5 dBm @ 12 Mbps 20 MHz
      22±1.5 dBm @ 18 Mbps 20 MHz
      20±1.5 dBm @ 24 Mbps 20 MHz
      19.5±1.5 dBm @ 36 Mbps 20 MHz
      19±1.5 dBm @ 48 Mbps 20 MHz
      19±1.5 dBm @ 54 Mbps 20 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      18±1.5 dBm @ 6 Mbps 20 MHz
      18±1.5 dBm @ 9 Mbps 20 MHz
      18±1.5 dBm @ 12 Mbps 20 MHz
      18±1.5 dBm @ 18 Mbps 20 MHz
      17±1.5 dBm @ 24 Mbps 20 MHz
      17±1.5 dBm @ 36 Mbps 20 MHz
      16±1.5 dBm @ 48 Mbps 20 MHz
      15.5±1.5 dBm @ 54 Mbps 20 MHz

  • Transmitter Power for 802.11n (5 GHz)

    • TAP-M310R-NPS-1R and -1P1R models:
      22±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS1 20 MHz
      21.5±1.5 dBm @ MCS2 20 MHz
      21.5±1.5 dBm @ MCS3 20 MHz
      19.5±1.5 dBm @ MCS4 20 MHz
      19±1.5 dBm @ MCS5 20 MHz
      19±1.5 dBm @ MCS6 20 MHz
      18.5±1.5 dBm @ MCS7 20 MHz
      22±1.5 dBm @ MCS8 20 MHz
      22±1.5 dBm @ MCS9 20 MHz
      21.5±1.5 dBm @ MCS10 20 MHz
      21.5±1.5 dBm @ MCS11 20 MHz
      20.5±1.5 dBm @ MCS12 20 MHz
      19.5±1.5 dBm @ MCS13 20 MHz
      19.5±1.5 dBm @ MCS14 20 MHz
      19±1.5 dBm @ MCS15 20 MHz
      22±1.5 dBm @ MCS0 40 MHz
      22±1.5 dBm @ MCS1 40 MHz
      22±1.5 dBm @ MCS2 40 MHz
      21.5±1.5 dBm @ MCS3 40 MHz
      21±1.5 dBm @ MCS4 40 MHz
      20±1.5 dBm @ MCS5 40 MHz
      20±1.5 dBm @ MCS6 40 MHz
      19.5±1.5 dBm @ MCS7 40 MHz
      22±1.5 dBm @ MCS8 40 MHz
      22±1.5 dBm @ MCS9 40 MHz
      21.5±1.5 dBm @ MCS10 40 MHz
      21.5±1.5 dBm @ MCS11 40 MHz
      20±1.5 dBm @ MCS12 40 MHz
      20±1.5 dBm @ MCS13 40 MHz
      20±1.5 dBm @ MCS14 40 MHz
      20±1.5 dBm @ MCS15 40 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      18.5±1.5 dBm @ MCS0 20 MHz
      18.5±1.5 dBm @ MCS1 20 MHz
      18.5±1.5 dBm @ MCS2 20 MHz
      18±1.5 dBm @ MCS3 20 MHz
      17±1.5 dBm @ MCS4 20 MHz
      16.5±1.5 dBm @ MCS5 20 MHz
      16±1.5 dBm @ MCS6 20 MHz
      15.5±1.5 dBm @ MCS7 20 MHz
      18.5±1.5 dBm @ MCS8 20 MHz
      18.5±1.5 dBm @ MCS9 20 MHz
      18.5±1.5 dBm @ MCS10 20 MHz
      18±1.5 dBm @ MCS11 20 MHz
      17±1.5 dBm @ MCS12 20 MHz
      16.5±1.5 dBm @ MCS13 20 MHz
      15.5±1.5 dBm @ MCS14 20 MHz
      15.5±1.5 dBm @ MCS15 20 MHz
      18.5±1.5 dBm @ MCS0 40 MHz
      18.5±1.5 dBm @ MCS1 40 MHz
      18.5±1.5 dBm @ MCS2 40 MHz
      17.5±1.5 dBm @ MCS3 40 MHz
      17.5±1.5 dBm @ MCS4 40 MHz
      16.5±1.5 dBm @ MCS5 40 MHz
      15.5±1.5 dBm @ MCS6 40 MHz
      15±1.5 dBm @ MCS7 40 MHz
      18±1.5 dBm @ MCS8 40 MHz
      18±1.5 dBm @ MCS9 40 MHz
      17.5±1.5 dBm @ MCS10 40 MHz
      17±1.5 dBm @ MCS11 40 MHz
      17±1.5 dBm @ MCS12 40 MHz
      16.5±1.5 dBm @ MCS13 40 MHz
      15.5±1.5 dBm @ MCS14 40 MHz
      15±1.5 dBm @ MCS15 40 MHz

  • Transmitter Power for 802.11ac (5 GHz, Dual Chain)

    • TAP-M310R-NPS-1R and -1P1R models:
      22±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS1 20 MHz
      21.5±1.5 dBm @ MCS2 20 MHz
      21.5±1.5 dBm @ MCS3 20 MHz
      20.5±1.5 dBm @ MCS4 20 MHz
      20±1.5 dBm @ MCS5 20 MHz
      19.5±1.5 dBm @ MCS6 20 MHz
      19.5±1.5 dBm @ MCS7 20 MHz
      19±1.5 dBm @ MCS8 20 MHz
      21.5±1.5 dBm @ MCS0 40 MHz
      21.5±1.5 dBm @ MCS1 40 MHz
      21±1.5 dBm @ MCS2 40 MHz
      20.5±1.5 dBm @ MCS3 40 MHz
      20±1.5 dBm @ MCS4 40 MHz
      19.5±1.5 dBm @ MCS5 40 MHz
      19.5±1.5 dBm @ MCS6 40 MHz
      19.5±1.5 dBm @ MCS7 40 MHz
      19±1.5 dBm @ MCS8 40 MHz
      18.5±1.5 dBm @ MCS9 40 MHz
      21±1.5 dBm @ MCS0 80 MHz
      21±1.5 dBm @ MCS1 80 MHz
      21±1.5 dBm @ MCS2 80 MHz
      21±1.5 dBm @ MCS3 80 MHz
      20±1.5 dBm @ MCS4 80 MHz
      20±1.5 dBm @ MCS5 80 MHz
      19±1.5 dBm @ MCS6 80 MHz
      19±1.5 dBm @ MCS7 80 MHz
      18.5±1.5 dBm @ MCS8 80 MHz
      18.5±1.5 dBm @ MCS9 80 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      18±1.5 dBm @ MCS0 20 MHz
      18±1.5 dBm @ MCS1 20 MHz
      18±1.5 dBm @ MCS2 20 MHz
      18±1.5 dBm @ MCS3 20 MHz
      17±1.5 dBm @ MCS4 20 MHz
      17±1.5 dBm @ MCS5 20 MHz
      15.5±1.5 dBm @ MCS6 20 MHz
      15±1.5 dBm @ MCS7 20 MHz
      14.5±1.5 dBm @ MCS8 20 MHz
      18±1.5 dBm @ MCS0 40 MHz
      18±1.5 dBm @ MCS1 40 MHz
      18±1.5 dBm @ MCS2 40 MHz
      18±1.5 dBm @ MCS3 40 MHz
      17±1.5 dBm @ MCS4 40 MHz
      17±1.5 dBm @ MCS5 40 MHz
      15±1.5 dBm @ MCS6 40 MHz
      15.5±1.5 dBm @ MCS7 40 MHz
      15±1.5 dBm @ MCS8 40 MHz
      14.5±1.5 dBm @ MCS9 40 MHz
      18±1.5 dBm @ MCS0 80 MHz
      18±1.5 dBm @ MCS1 80 MHz
      18±1.5 dBm @ MCS2 80 MHz
      18±1.5 dBm @ MCS3 80 MHz
      17±1.5 dBm @ MCS4 80 MHz
      17±1.5 dBm @ MCS5 80 MHz
      15.5±1.5 dBm @ MCS6 80 MHz
      15±1.5 dBm @ MCS7 80 MHz
      14.5±1.5 dBm @ MCS8 80 MHz
      14.5±1.5 dBm @ MCS9 80 MHz

  • Transmitter Power for 802.11ax (5 GHz, Dual Chain)

    • TAP-M310R-NPS-1R and -1P1R models:
      22±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS1 20 MHz
      21±1.5 dBm @ MCS2 20 MHz
      21±1.5 dBm @ MCS3 20 MHz
      19±1.5 dBm @ MCS4 20 MHz
      19±1.5 dBm @ MCS5 20 MHz
      19±1.5 dBm @ MCS6 20 MHz
      19±1.5 dBm @ MCS7 20 MHz
      19±1.5 dBm @ MCS8 20 MHz
      18.5±1.5 dBm @ MCS9 20 MHz
      18±1.5 dBm @ MCS10 20 MHz
      17.5±1.5 dBm @ MCS11 20 MHz
      21.5±1.5 dBm @ MCS0 40 MHz
      21.5±1.5 dBm @ MCS1 40 MHz
      21±1.5 dBm @ MCS2 40 MHz
      21±1.5 dBm @ MCS3 40 MHz
      20±1.5 dBm @ MCS4 40 MHz
      20±1.5 dBm @ MCS5 40 MHz
      19±1.5 dBm @ MCS6 40 MHz
      19±1.5 dBm @ MCS7 40 MHz
      19±1.5 dBm @ MCS8 40 MHz
      18.5±1.5 dBm @ MCS9 40 MHz
      18±1.5 dBm @ MCS10 40 MHz
      17.5±1.5 dBm @ MCS11 40 MHz
      21±1.5 dBm @ MCS0 80 MHz
      21±1.5 dBm @ MCS1 80 MHz
      21±1.5 dBm @ MCS2 80 MHz
      21±1.5 dBm @ MCS3 80 MHz
      20±1.5 dBm @ MCS4 80 MHz
      20±1.5 dBm @ MCS5 80 MHz
      18.5±1.5 dBm @ MCS6 80 MHz
      18.5±1.5 dBm @ MCS7 80 MHz
      18.5±1.5 dBm @ MCS8 80 MHz
      18±1.5 dBm @ MCS9 80 MHz
      18±1.5 dBm @ MCS10 80 MHz
      17.5±1.5 dBm @ MCS11 80 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      18±1.5 dBm @ MCS0 20 MHz
      18±1.5 dBm @ MCS1 20 MHz
      18±1.5 dBm @ MCS2 20 MHz
      18±1.5 dBm @ MCS3 20 MHz
      17±1.5 dBm @ MCS4 20 MHz
      17±1.5 dBm @ MCS5 20 MHz
      15.5±1.5 dBm @ MCS6 20 MHz
      15±1.5 dBm @ MCS7 20 MHz
      14.5±1.5 dBm @ MCS8 20 MHz
      14±1.5 dBm @ MCS9 20 MHz
      13.5±1.5 dBm @ MCS10 20 MHz
      13.5±1.5 dBm @ MCS11 20 MHz
      18±1.5 dBm @ MCS0 40 MHz
      18±1.5 dBm @ MCS1 40 MHz
      17.5±1.5 dBm @ MCS2 40 MHz
      17.5±1.5 dBm @ MCS3 40 MHz
      16.5±1.5 dBm @ MCS4 40 MHz
      16.5±1.5 dBm @ MCS5 40 MHz
      16±1.5 dBm @ MCS6 40 MHz
      15.5±1.5 dBm @ MCS7 40 MHz
      14±1.5 dBm @ MCS8 40 MHz
      14±1.5 dBm @ MCS9 40 MHz
      13.5±1.5 dBm @ MCS10 40 MHz
      13.5±1.5 dBm @ MCS11 40 MHz
      18±1.5 dBm @ MCS0 80 MHz
      18±1.5 dBm @ MCS1 80 MHz
      17.5±1.5 dBm @ MCS2 80 MHz
      17.5±1.5 dBm @ MCS3 80 MHz
      16.5±1.5 dBm @ MCS4 80 MHz
      16.5±1.5 dBm @ MCS5 80 MHz
      15.5±1.5 dBm @ MCS6 80 MHz
      15.5±1.5 dBm @ MCS7 80 MHz
      14.5±1.5 dBm @ MCS8 80 MHz
      14±1.5 dBm @ MCS9 80 MHz
      13.5±1.5 dBm @ MCS10 80 MHz
      13.5±1.5 dBm @ MCS11 80 MHz

  • Transmitter Power for 802.11b

    • TAP-M310R-NPS-1R and -1P1R models:
      27±1.5 dBm @ 1 Mbps
      27±1.5 dBm @ 2 Mbps
      27±1.5 dBm @ 5.5 Mbps
      27±1.5 dBm @ 11 Mbps

      TAP-M310R-1P1R1S and -1P2R1S models:
      23.5±1.5 dBm @ 1 Mbps
      23.5±1.5 dBm @ 2 Mbps
      23.5±1.5 dBm @ 5.5 Mbps
      23.5±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    • TAP-M310R-NPS-1R and -1P1R models:
      26.5±1.5 dBm @ 6 Mbps
      26.5±1.5 dBm @ 9 Mbps
      26.5±1.5 dBm @ 12 Mbps
      25±1.5 dBm @ 18 Mbps
      25±1.5 dBm @ 24 Mbps
      25±1.5 dBm @ 36 Mbps
      24.5±1.5 dBm @ 48 Mbps
      23.5±1.5 dBm @ 54 Mbps

      TAP-M310R-1P1R1S and -1P2R1S models:
      23±1.5 dBm @ 6 Mbps
      23±1.5 dBm @ 9 Mbps
      23±1.5 dBm @ 12 Mbps
      22±1.5 dBm @ 18 Mbps
      22±1.5 dBm @ 24 Mbps
      22±1.5 dBm @ 36 Mbps
      21.5±1.5 dBm @ 48 Mbps
      20.5±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    • TAP-M310R-NPS-1R and -1P1R models:
      26.5±1.5 dBm @ MCS0 20 MHz
      26.5±1.5 dBm @ MCS1 20 MHz
      25±1.5 dBm @ MCS2 20 MHz
      25±1.5 dBm @ MCS3 20 MHz
      25±1.5 dBm @ MCS4 20 MHz
      24.5±1.5 dBm @ MCS5 20 MHz
      23.5±1.5 dBm @ MCS6 20 MHz
      23±1.5 dBm @ MCS7 20 MHz
      25.5±1.5 dBm @ MCS8 20 MHz
      25.5±1.5 dBm @ MCS9 20 MHz
      24±1.5 dBm @ MCS10 20 MHz
      24±1.5 dBm @ MCS11 20 MHz
      24±1.5 dBm @ MCS12 20 MHz
      24±1.5 dBm @ MCS13 20 MHz
      22.5±1.5 dBm @ MCS14 20 MHz
      22±1.5 dBm @ MCS15 20 MHz
      26±1.5 dBm @ MCS0 40 MHz
      26±1.5 dBm @ MCS1 40 MHz
      25.5±1.5 dBm @ MCS2 40 MHz
      25±1.5 dBm @ MCS3 40 MHz
      24.5±1.5 dBm @ MCS4 40 MHz
      24±1.5 dBm @ MCS5 40 MHz
      23±1.5 dBm @ MCS6 40 MHz
      22.5±1.5 dBm @ MCS7 40 MHz
      24±1.5 dBm @ MCS8 40 MHz
      24±1.5 dBm @ MCS9 40 MHz
      23.5±1.5 dBm @ MCS10 40 MHz
      23.5±1.5 dBm @ MCS11 40 MHz
      22±1.5 dBm @ MCS12 40 MHz
      22±1.5 dBm @ MCS13 40 MHz
      21.5±1.5 dBm @ MCS14 40 MHz
      21.5±1.5 dBm @ MCS15 40 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      23±1.5 dBm @ MCS0 20 MHz
      23±1.5 dBm @ MCS1 20 MHz
      22±1.5 dBm @ MCS2 20 MHz
      22±1.5 dBm @ MCS3 20 MHz
      21.5±1.5 dBm @ MCS4 20 MHz
      21±1.5 dBm @ MCS5 20 MHz
      20.5±1.5 dBm @ MCS6 20 MHz
      19.5±1.5 dBm @ MCS7 20 MHz
      23±1.5 dBm @ MCS8 20 MHz
      23±1.5 dBm @ MCS9 20 MHz
      21±1.5 dBm @ MCS10 20 MHz
      21±1.5 dBm @ MCS11 20 MHz
      21±1.5 dBm @ MCS12 20 MHz
      21±1.5 dBm @ MCS13 20 MHz
      20±1.5 dBm @ MCS14 20 MHz
      19±1.5 dBm @ MCS15 20 MHz
      22.5±1.5 dBm @ MCS0 40 MHz
      22.5±1.5 dBm @ MCS1 40 MHz
      22.5±1.5 dBm @ MCS2 40 MHz
      21.5±1.5 dBm @ MCS3 40 MHz
      21±1.5 dBm @ MCS4 40 MHz
      20.5±1.5 dBm @ MCS5 40 MHz
      20±1.5 dBm @ MCS6 40 MHz
      19.5±1.5 dBm @ MCS7 40 MHz
      22±1.5 dBm @ MCS8 40 MHz
      22±1.5 dBm @ MCS9 40 MHz
      21±1.5 dBm @ MCS10 40 MHz
      20±1.5 dBm @ MCS11 40 MHz
      19±1.5 dBm @ MCS12 40 MHz
      19±1.5 dBm @ MCS13 40 MHz
      18.5±1.5 dBm @ MCS14 40 MHz
      19±1.5 dBm @ MCS15 40 MHz

  • Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

    • TAP-M310R-NPS-1R and -1P1R models:
      26±1.5 dBm @ MCS0 20 MHz
      26±1.5 dBm @ MCS1 20 MHz
      24.5±1.5 dBm @ MCS2 20 MHz
      24.5±1.5 dBm @ MCS3 20 MHz
      24.5±1.5 dBm @ MCS4 20 MHz
      24±1.5 dBm @ MCS5 20 MHz
      23±1.5 dBm @ MCS6 20 MHz
      22.5±1.5 dBm @ MCS7 20 MHz
      22.5±1.5 dBm @ MCS8 20 MHz
      25±1.5 dBm @ MCS0 40 MHz
      25±1.5 dBm @ MCS1 40 MHz
      24±1.5 dBm @ MCS2 40 MHz
      24±1.5 dBm @ MCS3 40 MHz
      22.5±1.5 dBm @ MCS4 40 MHz
      22.5±1.5 dBm @ MCS5 40 MHz
      22.5±1.5 dBm @ MCS6 40 MHz
      22.5±1.5 dBm @ MCS7 40 MHz
      22.5±1.5 dBm @ MCS8 40 MHz
      22±1.5 dBm @ MCS9 40 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      22.5±1.5 dBm @ MCS0 20 MHz
      22.5±1.5 dBm @ MCS1 20 MHz
      22±1.5 dBm @ MCS2 20 MHz
      21.5±1.5 dBm @ MCS3 20 MHz
      21.5±1.5 dBm @ MCS4 20 MHz
      21±1.5 dBm @ MCS5 20 MHz
      20±1.5 dBm @ MCS6 20 MHz
      19.5±1.5 dBm @ MCS7 20 MHz
      19.5±1.5 dBm @ MCS8 20 MHz
      22±1.5 dBm @ MCS0 40 MHz
      22±1.5 dBm @ MCS1 40 MHz
      22±1.5 dBm @ MCS2 40 MHz
      21±1.5 dBm @ MCS3 40 MHz
      21±1.5 dBm @ MCS4 40 MHz
      20±1.5 dBm @ MCS5 40 MHz
      19.5±1.5 dBm @ MCS6 40 MHz
      19.5±1.5 dBm @ MCS7 40 MHz
      19±1.5 dBm @ MCS8 40 MHz
      18.5±1.5 dBm @ MCS9 40 MHz

  • Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)

    • TAP-M310R-NPS-1R and -1P1R models:
      26.5±1.5 dBm @ MCS0 20 MHz
      26.5±1.5 dBm @ MCS1 20 MHz
      24.5±1.5 dBm @ MCS2 20 MHz
      24.5±1.5 dBm @ MCS3 20 MHz
      24±1.5 dBm @ MCS4 20 MHz
      24±1.5 dBm @ MCS5 20 MHz
      23.5±1.5 dBm @ MCS6 20 MHz
      23.5±1.5 dBm @ MCS7 20 MHz
      22.5±1.5 dBm @ MCS8 20 MHz
      22±1.5 dBm @ MCS9 20 MHz
      21.5±1.5 dBm @ MCS10 20 MHz
      21.5±1.5 dBm @ MCS11 20 MHz
      25±1.5 dBm @ MCS0 40 MHz
      25±1.5 dBm @ MCS1 40 MHz
      24±1.5 dBm @ MCS2 40 MHz
      24±1.5 dBm @ MCS3 40 MHz
      24±1.5 dBm @ MCS4 40 MHz
      22±1.5 dBm @ MCS5 40 MHz
      22±1.5 dBm @ MCS6 40 MHz
      22±1.5 dBm @ MCS7 40 MHz
      22±1.5 dBm @ MCS8 40 MHz
      22±1.5 dBm @ MCS9 40 MHz
      21.5±1.5 dBm @ MCS10 40 MHz
      21.5±1.5 dBm @ MCS11 40 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      22.5±1.5 dBm @ MCS0 20 MHz
      22.5±1.5 dBm @ MCS1 20 MHz
      21±1.5 dBm @ MCS2 20 MHz
      21±1.5 dBm @ MCS3 20 MHz
      21±1.5 dBm @ MCS4 20 MHz
      20.5±1.5 dBm @ MCS5 20 MHz
      20±1.5 dBm @ MCS6 20 MHz
      19.5±1.5 dBm @ MCS7 20 MHz
      19±1.5 dBm @ MCS8 20 MHz
      19±1.5 dBm @ MCS9 20 MHz
      18.5±1.5 dBm @ MCS10 20 MHz
      18.5±1.5 dBm @ MCS11 20 MHz
      22±1.5 dBm @ MCS0 40 MHz
      22±1.5 dBm @ MCS1 40 MHz
      21±1.5 dBm @ MCS2 40 MHz
      21±1.5 dBm @ MCS3 40 MHz
      21±1.5 dBm @ MCS4 40 MHz
      20.5±1.5 dBm @ MCS5 40 MHz
      19.5±1.5 dBm @ MCS6 40 MHz
      19.5±1.5 dBm @ MCS7 40 MHz
      19±1.5 dBm @ MCS8 40 MHz
      18.5±1.5 dBm @ MCS9 40 MHz
      18±1.5 dBm @ MCS10 40 MHz
      18±1.5 dBm @ MCS11 40 MHz

  • Receiver Sensitivity for 802.11a

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -89 @ 6 Mbps
      Typ. -87 @ 9 Mbps
      Typ. -86 @ 12 Mbps
      Typ. -84 @ 18 Mbps
      Typ. -81 @ 24 Mbps
      Typ. -78 @ 36 Mbps
      Typ. -73 @ 48 Mbps
      Typ. -72 @ 54 Mbps

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -86 @ 6 Mbps
      Typ. -84 @ 9 Mbps
      Typ. -83 @ 12 Mbps
      Typ. -80 @ 18 Mbps
      Typ. -77 @ 24 Mbps
      Typ. -74 @ 36 Mbps
      Typ. -70 @ 48 Mbps
      Typ. -68 @ 54 Mbps

  • Receiver Sensitivity for 802.11n (5 GHz)

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -89 dBm @ MCS0 20 MHz
      Typ. -86 dBm @ MCS1 20 MHz
      Typ. -83 dBm @ MCS2 20 MHz
      Typ. -80 dBm @ MCS3 20 MHz
      Typ. -76 dBm @ MCS4 20 MHz
      Typ. -72 dBm @ MCS5 20 MHz
      Typ. -70 dBm @ MCS6 20 MHz
      Typ. -69 dBm @ MCS7 20 MHz
      Typ. -89 dBm @ MCS8 20 MHz
      Typ. -86 dBm @ MCS9 20 MHz
      Typ. -84 dBm @ MCS10 20 MHz
      Typ. -81 dBm @ MCS11 20 MHz
      Typ. -78 dBm @ MCS12 20 MHz
      Typ. -74 dBm @ MCS13 20 MHz
      Typ. -72 dBm @ MCS14 20 MHz
      Typ. -70 dBm @ MCS15 20 MHz
      Typ. -86 dBm @ MCS0 40 MHz
      Typ. -83 dBm @ MCS1 40 MHz
      Typ. -80 dBm @ MCS2 40 MHz
      Typ. -77 dBm @ MCS3 40 MHz
      Typ. -74 dBm @ MCS4 40 MHz
      Typ. -69 dBm @ MCS5 40 MHz
      Typ. -68 dBm @ MCS6 40 MHz
      Typ. -66 dBm @ MCS7 40 MHz
      Typ. -87 dBm @ MCS8 40 MHz
      Typ. -83 dBm @ MCS9 40 MHz
      Typ. -81 dBm @ MCS10 40 MHz
      Typ. -78 dBm @ MCS11 40 MHz
      Typ. -75 dBm @ MCS12 40 MHz
      Typ. -71 dBm @ MCS13 40 MHz
      Typ. -70 dBm @ MCS14 40 MHz
      Typ. -68 dBm @ MCS15 40 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -85 dBm @ MCS0 20 MHz
      Typ. -82 dBm @ MCS1 20 MHz
      Typ. -80 dBm @ MCS2 20 MHz
      Typ. -76 dBm @ MCS3 20 MHz
      Typ. -73 dBm @ MCS4 20 MHz
      Typ. -68 dBm @ MCS5 20 MHz
      Typ. -67 dBm @ MCS6 20 MHz
      Typ. -65 dBm @ MCS7 20 MHz
      Typ. -86 dBm @ MCS8 20 MHz
      Typ. -83 dBm @ MCS9 20 MHz
      Typ. -81 dBm @ MCS10 20 MHz
      Typ. -78 dBm @ MCS11 20 MHz
      Typ. -75 dBm @ MCS12 20 MHz
      Typ. -71 dBm @ MCS13 20 MHz
      Typ. -69 dBm @ MCS14 20 MHz
      Typ. -66 dBm @ MCS15 20 MHz
      Typ. -83 dBm @ MCS0 40 MHz
      Typ. -79 dBm @ MCS1 40 MHz
      Typ. -77 dBm @ MCS2 40 MHz
      Typ. -74 dBm @ MCS3 40 MHz
      Typ. -70 dBm @ MCS4 40 MHz
      Typ. -66 dBm @ MCS5 40 MHz
      Typ. -65 dBm @ MCS6 40 MHz
      Typ. -63 dBm @ MCS7 40 MHz
      Typ. -84 dBm @ MCS8 40 MHz
      Typ. -80 dBm @ MCS9 40 MHz
      Typ. -78 dBm @ MCS10 40 MHz
      Typ. -74 dBm @ MCS11 40 MHz
      Typ. -72 dBm @ MCS12 40 MHz
      Typ. -68 dBm @ MCS13 40 MHz
      Typ. -67 dBm @ MCS14 40 MHz
      Typ. -65 dBm @ MCS15 40 MHz

  • Receiver Sensitivity for 802.11ac (5 GHz)

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -89 dBm @ MCS0 20 MHz
      Typ. -86 dBm @ MCS1 20 MHz
      Typ. -83 dBm @ MCS2 20 MHz
      Typ. -80 dBm @ MCS3 20 MHz
      Typ. -78 dBm @ MCS4 20 MHz
      Typ. -73 dBm @ MCS5 20 MHz
      Typ. -72 dBm @ MCS6 20 MHz
      Typ. -70 dBm @ MCS7 20 MHz
      Typ. -66 dBm @ MCS8 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -83 dBm @ MCS1 40 MHz
      Typ. -81 dBm @ MCS2 40 MHz
      Typ. -78 dBm @ MCS3 40 MHz
      Typ. -75 dBm @ MCS4 40 MHz
      Typ. -71 dBm @ MCS5 40 MHz
      Typ. -70 dBm @ MCS6 40 MHz
      Typ. -68 dBm @ MCS7 40 MHz
      Typ. -64 dBm @ MCS8 40 MHz
      Typ. -62 dBm @ MCS9 40 MHz
      Typ. -84 dBm @ MCS0 80 MHz
      Typ. -81 dBm @ MCS1 80 MHz
      Typ. -78 dBm @ MCS2 80 MHz
      Typ. -75 dBm @ MCS3 80 MHz
      Typ. -72 dBm @ MCS4 80 MHz
      Typ. -68 dBm @ MCS5 80 MHz
      Typ. -66 dBm @ MCS6 80 MHz
      Typ. -64 dBm @ MCS7 80 MHz
      Typ. -61 dBm @ MCS8 80 MHz
      Typ. -59 dBm @ MCS9 80 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -86 dBm @ MCS0 20 MHz
      Typ. -82 dBm @ MCS1 20 MHz
      Typ. -80 dBm @ MCS2 20 MHz
      Typ. -77 dBm @ MCS3 20 MHz
      Typ. -74 dBm @ MCS4 20 MHz
      Typ. -70 dBm @ MCS5 20 MHz
      Typ. -68 dBm @ MCS6 20 MHz
      Typ. -67 dBm @ MCS7 20 MHz
      Typ. -63 dBm @ MCS8 20 MHz
      Typ. -83 dBm @ MCS0 40 MHz
      Typ. -80 dBm @ MCS1 40 MHz
      Typ. -78 dBm @ MCS2 40 MHz
      Typ. -74 dBm @ MCS3 40 MHz
      Typ. -72 dBm @ MCS4 40 MHz
      Typ. -68 dBm @ MCS5 40 MHz
      Typ. -66 dBm @ MCS6 40 MHz
      Typ. -65 dBm @ MCS7 40 MHz
      Typ. -61 dBm @ MCS8 40 MHz
      Typ. -59 dBm @ MCS9 40 MHz
      Typ. -81 dBm @ MCS0 80 MHz
      Typ. -77 dBm @ MCS1 80 MHz
      Typ. -75 dBm @ MCS2 80 MHz
      Typ. -71 dBm @ MCS3 80 MHz
      Typ. -68 dBm @ MCS4 80 MHz
      Typ. -65 dBm @ MCS5 80 MHz
      Typ. -63 dBm @ MCS6 80 MHz
      Typ. -61 dBm @ MCS7 80 MHz
      Typ. -57 dBm @ MCS8 80 MHz
      Typ. -56 dBm @ MCS9 80 MHz

  • Receiver Sensitivity for 802.11ax (5 GHz)

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -89 dBm @ MCS0 20 MHz
      Typ. -86 dBm @ MCS1 20 MHz
      Typ. -84 dBm @ MCS2 20 MHz
      Typ. -81 dBm @ MCS3 20 MHz
      Typ. -78 dBm @ MCS4 20 MHz
      Typ. -73 dBm @ MCS5 20 MHz
      Typ. -72 dBm @ MCS6 20 MHz
      Typ. -70 dBm @ MCS7 20 MHz
      Typ. -66 dBm @ MCS8 20 MHz
      Typ. -65 dBm @ MCS9 20 MHz
      Typ. -61 dBm @ MCS10 20 MHz
      Typ. -59 dBm @ MCS11 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -84 dBm @ MCS1 40 MHz
      Typ. -82 dBm @ MCS2 40 MHz
      Typ. -78 dBm @ MCS3 40 MHz
      Typ. -75 dBm @ MCS4 40 MHz
      Typ. -71 dBm @ MCS5 40 MHz
      Typ. -70 dBm @ MCS6 40 MHz
      Typ. -68 dBm @ MCS7 40 MHz
      Typ. -65 dBm @ MCS8 40 MHz
      Typ. -63 dBm @ MCS9 40 MHz
      Typ. -59 dBm @ MCS10 40 MHz
      Typ. -57 dBm @ MCS11 40 MHz
      Typ. -84 dBm @ MCS0 80 MHz
      Typ. -81 dBm @ MCS1 80 MHz
      Typ. -78 dBm @ MCS2 80 MHz
      Typ. -76 dBm @ MCS3 80 MHz
      Typ. -72 dBm @ MCS4 80 MHz
      Typ. -68 dBm @ MCS5 80 MHz
      Typ. -67 dBm @ MCS6 80 MHz
      Typ. -65 dBm @ MCS7 80 MHz
      Typ. -61 dBm @ MCS8 80 MHz
      Typ. -59 dBm @ MCS9 80 MHz
      Typ. -55 dBm @ MCS10 80 MHz
      Typ. -53 dBm @ MCS11 80 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -87 dBm @ MCS0 20 MHz
      Typ. -83 dBm @ MCS1 20 MHz
      Typ. -81 dBm @ MCS2 20 MHz
      Typ. -78 dBm @ MCS3 20 MHz
      Typ. -75 dBm @ MCS4 20 MHz
      Typ. -71 dBm @ MCS5 20 MHz
      Typ. -69 dBm @ MCS6 20 MHz
      Typ. -67 dBm @ MCS7 20 MHz
      Typ. -64 dBm @ MCS8 20 MHz
      Typ. -62 dBm @ MCS9 20 MHz
      Typ. -58 dBm @ MCS10 20 MHz
      Typ. -56 dBm @ MCS11 20 MHz
      Typ. -84 dBm @ MCS0 40 MHz
      Typ. -81 dBm @ MCS1 40 MHz
      Typ. -79 dBm @ MCS2 40 MHz
      Typ. -76 dBm @ MCS3 40 MHz
      Typ. -72 dBm @ MCS4 40 MHz
      Typ. -63 dBm @ MCS5 40 MHz
      Typ. -67 dBm @ MCS6 40 MHz
      Typ. -65 dBm @ MCS7 40 MHz
      Typ. -62 dBm @ MCS8 40 MHz
      Typ. -60 dBm @ MCS9 40 MHz
      Typ. -56 dBm @ MCS10 40 MHz
      Typ. -54 dBm @ MCS11 40 MHz
      Typ. -81 dBm @ MCS0 80 MHz
      Typ. -78 dBm @ MCS1 80 MHz
      Typ. -75 dBm @ MCS2 80 MHz
      Typ. -72 dBm @ MCS3 80 MHz
      Typ. -69 dBm @ MCS4 80 MHz
      Typ. -65 dBm @ MCS5 80 MHz
      Typ. -64 dBm @ MCS6 80 MHz
      Typ. -62 dBm @ MCS7 80 MHz
      Typ. -58 dBm @ MCS8 80 MHz
      Typ. -56 dBm @ MCS9 80 MHz
      Typ. -52 dBm @ MCS10 80 MHz
      Typ. -50 dBm @ MCS11 80 MHz

  • Receiver Sensitivity for 802.11b

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -94 dBm @ 1 Mbps
      Typ. -90 dBm @ 2 Mbps
      Typ. -88 dBm @ 5.5 Mbps
      Typ. -85 dBm @ 11 Mbps

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -91 dBm @ 1 Mbps
      Typ. -87 dBm @ 2 Mbps
      Typ. -85 dBm @ 5.5 Mbps
      Typ. -83 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -89 dBm @ 6 Mbps
      Typ. -87 dBm @ 9 Mbps
      Typ. -86 dBm @ 12 Mbps
      Typ. -84 dBm @ 18 Mbps
      Typ. -81 dBm @ 24 Mbps
      Typ. -78 dBm @ 36 Mbps
      Typ. -73 dBm @ 48 Mbps
      Typ. -72 dBm @ 54 Mbps

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -86 dBm @ 6 Mbps
      Typ. -84 dBm @ 9 Mbps
      Typ. -83 dBm @ 12 Mbps
      Typ. -81 dBm @ 18 Mbps
      Typ. -78 dBm @ 24 Mbps
      Typ. -74 dBm @ 36 Mbps
      Typ. -70 dBm @ 48 Mbps
      Typ. -69 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz)

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -88 dBm @ MCS0 20 MHz
      Typ. -86 dBm @ MCS1 20 MHz
      Typ. -83 dBm @ MCS2 20 MHz
      Typ. -80 dBm @ MCS3 20 MHz
      Typ. -77 dBm @ MCS4 20 MHz
      Typ. -72 dBm @ MCS5 20 MHz
      Typ. -71 dBm @ MCS6 20 MHz
      Typ. -69 dBm @ MCS7 20 MHz
      Typ. -90 dBm @ MCS8 20 MHz
      Typ. -87 dBm @ MCS9 20 MHz
      Typ. -85 dBm @ MCS10 20 MHz
      Typ. -82 dBm @ MCS11 20 MHz
      Typ. -78 dBm @ MCS12 20 MHz
      Typ. -74 dBm @ MCS13 20 MHz
      Typ. -73 dBm @ MCS14 20 MHz
      Typ. -71 dBm @ MCS15 20 MHz
      Typ. -86 dBm @ MCS0 40 MHz
      Typ. -84 dBm @ MCS1 40 MHz
      Typ. -81 dBm @ MCS2 40 MHz
      Typ. -78 dBm @ MCS3 40 MHz
      Typ. -74 dBm @ MCS4 40 MHz
      Typ. -70 dBm @ MCS5 40 MHz
      Typ. -68 dBm @ MCS6 40 MHz
      Typ. -67 dBm @ MCS7 40 MHz
      Typ. -88 dBm @ MCS8 40 MHz
      Typ. -85 dBm @ MCS9 40 MHz
      Typ. -83 dBm @ MCS10 40 MHz
      Typ. -79 dBm @ MCS11 40 MHz
      Typ. -76 dBm @ MCS12 40 MHz
      Typ. -72 dBm @ MCS13 40 MHz
      Typ. -70 dBm @ MCS14 40 MHz
      Typ. -68 dBm @ MCS15 40 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -85 dBm @ MCS0 20 MHz
      Typ. -82 dBm @ MCS1 20 MHz
      Typ. -80 dBm @ MCS2 20 MHz
      Typ. -77 dBm @ MCS3 20 MHz
      Typ. -73 dBm @ MCS4 20 MHz
      Typ. -69 dBm @ MCS5 20 MHz
      Typ. -68 dBm @ MCS6 20 MHz
      Typ. -66 dBm @ MCS7 20 MHz
      Typ. -87 dBm @ MCS8 20 MHz
      Typ. -84 dBm @ MCS9 20 MHz
      Typ. -82 dBm @ MCS10 20 MHz
      Typ. -79 dBm @ MCS11 20 MHz
      Typ. -75 dBm @ MCS12 20 MHz
      Typ. -71 dBm @ MCS13 20 MHz
      Typ. -70 dBm @ MCS14 20 MHz
      Typ. -68 dBm @ MCS15 20 MHz
      Typ. -83 dBm @ MCS0 40 MHz
      Typ. -80 dBm @ MCS1 40 MHz
      Typ. -78 dBm @ MCS2 40 MHz
      Typ. -74 dBm @ MCS3 40 MHz
      Typ. -71 dBm @ MCS4 40 MHz
      Typ. -67 dBm @ MCS5 40 MHz
      Typ. -65 dBm @ MCS6 40 MHz
      Typ. -64 dBm @ MCS7 40 MHz
      Typ. -85 dBm @ MCS8 40 MHz
      Typ. -81 dBm @ MCS9 40 MHz
      Typ. -79 dBm @ MCS10 40 MHz
      Typ. -75 dBm @ MCS11 40 MHz
      Typ. -72 dBm @ MCS12 40 MHz
      Typ. -69 dBm @ MCS13 40 MHz
      Typ. -67 dBm @ MCS14 40 MHz
      Typ. -65 dBm @ MCS15 40 MHz

  • Receiver Sensitivity for 802.11ac (2.4 GHz)

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -90 dBm @ MCS0 20 MHz
      Typ. -86 dBm @ MCS1 20 MHz
      Typ. -84 dBm @ MCS2 20 MHz
      Typ. -81 dBm @ MCS3 20 MHz
      Typ. -78 dBm @ MCS4 20 MHz
      Typ. -74 dBm @ MCS5 20 MHz
      Typ. -72 dBm @ MCS6 20 MHz
      Typ. -71 dBm @ MCS7 20 MHz
      Typ. -67 dBm @ MCS8 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -84 dBm @ MCS1 40 MHz
      Typ. -82 dBm @ MCS2 40 MHz
      Typ. -78 dBm @ MCS3 40 MHz
      Typ. -75 dBm @ MCS4 40 MHz
      Typ. -71 dBm @ MCS5 40 MHz
      Typ. -70 dBm @ MCS6 40 MHz
      Typ. -68 dBm @ MCS7 40 MHz
      Typ. -65 dBm @ MCS8 40 MHz
      Typ. -63 dBm @ MCS9 40 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -86 dBm @ MCS0 20 MHz
      Typ. -83 dBm @ MCS1 20 MHz
      Typ. -81 dBm @ MCS2 20 MHz
      Typ. -78 dBm @ MCS3 20 MHz
      Typ. -75 dBm @ MCS4 20 MHz
      Typ. -71 dBm @ MCS5 20 MHz
      Typ. -69 dBm @ MCS6 20 MHz
      Typ. -67 dBm @ MCS7 20 MHz
      Typ. -64 dBm @ MCS8 20 MHz
      Typ. -84 dBm @ MCS0 40 MHz
      Typ. -81 dBm @ MCS1 40 MHz
      Typ. -79 dBm @ MCS2 40 MHz
      Typ. -75 dBm @ MCS3 40 MHz
      Typ. -72 dBm @ MCS4 40 MHz
      Typ. -68 dBm @ MCS5 40 MHz
      Typ. -67 dBm @ MCS6 40 MHz
      Typ. -65 dBm @ MCS7 40 MHz
      Typ. -61 dBm @ MCS8 40 MHz
      Typ. -60 dBm @ MCS9 40 MHz

  • Receiver Sensitivity for 802.11ax (2.4 GHz)

    • TAP-M310R-NPS-1R and -1P1R models:
      Typ. -89 dBm @ MCS0 20 MHz
      Typ. -87 dBm @ MCS1 20 MHz
      Typ. -84 dBm @ MCS2 20 MHz
      Typ. -81 dBm @ MCS3 20 MHz
      Typ. -78 dBm @ MCS4 20 MHz
      Typ. -74 dBm @ MCS5 20 MHz
      Typ. -73 dBm @ MCS6 20 MHz
      Typ. -71 dBm @ MCS7 20 MHz
      Typ. -67 dBm @ MCS8 20 MHz
      Typ. -65 dBm @ MCS9 20 MHz
      Typ. -62 dBm @ MCS10 20 MHz
      Typ. -60 dBm @ MCS11 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -85 dBm @ MCS1 40 MHz
      Typ. -83 dBm @ MCS2 40 MHz
      Typ. -80 dBm @ MCS3 40 MHz
      Typ. -76 dBm @ MCS4 40 MHz
      Typ. -72 dBm @ MCS5 40 MHz
      Typ. -71 dBm @ MCS6 40 MHz
      Typ. -69 dBm @ MCS7 40 MHz
      Typ. -65 dBm @ MCS8 40 MHz
      Typ. -63 dBm @ MCS9 40 MHz
      Typ. -60 dBm @ MCS10 40 MHz
      Typ. -58 dBm @ MCS11 40 MHz

      TAP-M310R-1P1R1S and -1P2R1S models:
      Typ. -87 dBm @ MCS0 20 MHz
      Typ. -84 dBm @ MCS1 20 MHz
      Typ. -81 dBm @ MCS2 20 MHz
      Typ. -78 dBm @ MCS3 20 MHz
      Typ. -75 dBm @ MCS4 20 MHz
      Typ. -71 dBm @ MCS5 20 MHz
      Typ. -70 dBm @ MCS6 20 MHz
      Typ. -68 dBm @ MCS7 20 MHz
      Typ. -64 dBm @ MCS8 20 MHz
      Typ. -62 dBm @ MCS9 20 MHz
      Typ. -59 dBm @ MCS10 20 MHz
      Typ. -56 dBm @ MCS11 20 MHz
      Typ. -85 dBm @ MCS0 40 MHz
      Typ. -82 dBm @ MCS1 40 MHz
      Typ. -79 dBm @ MCS2 40 MHz
      Typ. -76 dBm @ MCS3 40 MHz
      Typ. -73 dBm @ MCS4 40 MHz
      Typ. -69 dBm @ MCS5 40 MHz
      Typ. -68 dBm @ MCS6 40 MHz
      Typ. -66 dBm @ MCS7 40 MHz
      Typ. -62 dBm @ MCS8 40 MHz
      Typ. -60 dBm @ MCS9 40 MHz
      Typ. -57 dBm @ MCS10 40 MHz
      Typ. -54 dBm @ MCS11 40 MHz
Ethernet Interface

  • Standards

    • All models:
      IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3bz for 2.5GBaseT
      IEEE 802.1Q for VLAN Tagging

      TAP-M310R-1P1R1S and -1P2R1S models only:
      IEEE 802.3z for 1000BaseX

  • 10/100/1000/2500BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 1

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 2
Ethernet Software Features

  • Management

    • DHCP Server
      DHCP Client
      DNS
      HTTP
      IPv4
      LLDP
      SMTP
      SNMPv1/v2c/v3
      Syslog
      TCP/IP
      Telnet
      UDP
      VLAN
      MXconfig

  • Security

    • HTTPS/SSL
      RADIUS
      SSH
      Certificate Management

  • Time Management

    • SNTP Client
Firewall

  • Filter

    • ICMP
      MAC address
      IP protocol
      Port-based
      Wi-Fi ACL
      Client Isolation
Serial Interface

  • Console Port

    • RS-232 (M12 A-coded 5-pin male connector)
LED Interface

  • LED Indicators

    • PWR, PWR R, PWR L, SYS, 2.4G, 5G, LAN 1, LAN 2, LAN 3, LAN 4, LAN 5, HEAD, TAIL
Input/Output Interface

  • Buttons

    • Reset button
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP67

  • Dimensions

    • 198.75 x 150 x 130 mm (7.83 x 5.91 x 5.12 in)

  • Weight

    • 4,508.5 g (9.94 lb)

  • Installation

    • DIN-rail mounting
Power Parameters

  • Input Current

    • 110 to 220 VAC, 50 to 60 Hz, 0.36 to 0.18 A (max.)

  • Input Voltage

    • 110 to 220 VAC

  • Power Connector

    • M12 K-coded 5-pin male connector

  • Power Consumption

    • 39.6 W (max.)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4
      EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V/m
      IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    • IEC 62368-1
      UL 62368-1

  • Railway

    • EN 50121-4
      EN 50155

  • Railway Fire Protection

    • EN 45545-2

  • Radio

    • EN 300 328, EN 301 489-1/17, EN 301 893, EN 300 440, FCC
MTBF

  • Time

    • 1,414,473 hrs

  • Standards

    • Telcordia Standard SR-332
Warranty

Do Not Share My Personal Information

To opt out of sharing your personal information for cross-context behavioral advertising, you can complete and submit the form provided below.


Please note that even if you choose to complete the form, you may still see our ads on other websites. However, these ads may not be as relevant to you as they would be if you had not opted out.



Added To Bag

View Bag
You have some items waiting in your bag; click here to finish your quote!

You are currently on the Global / English site.
Would you like to go to the site for your region?

Feedback
