AWK-1131A Series

Entry-level industrial IEEE 802.11a/b/g/n wireless AP/client

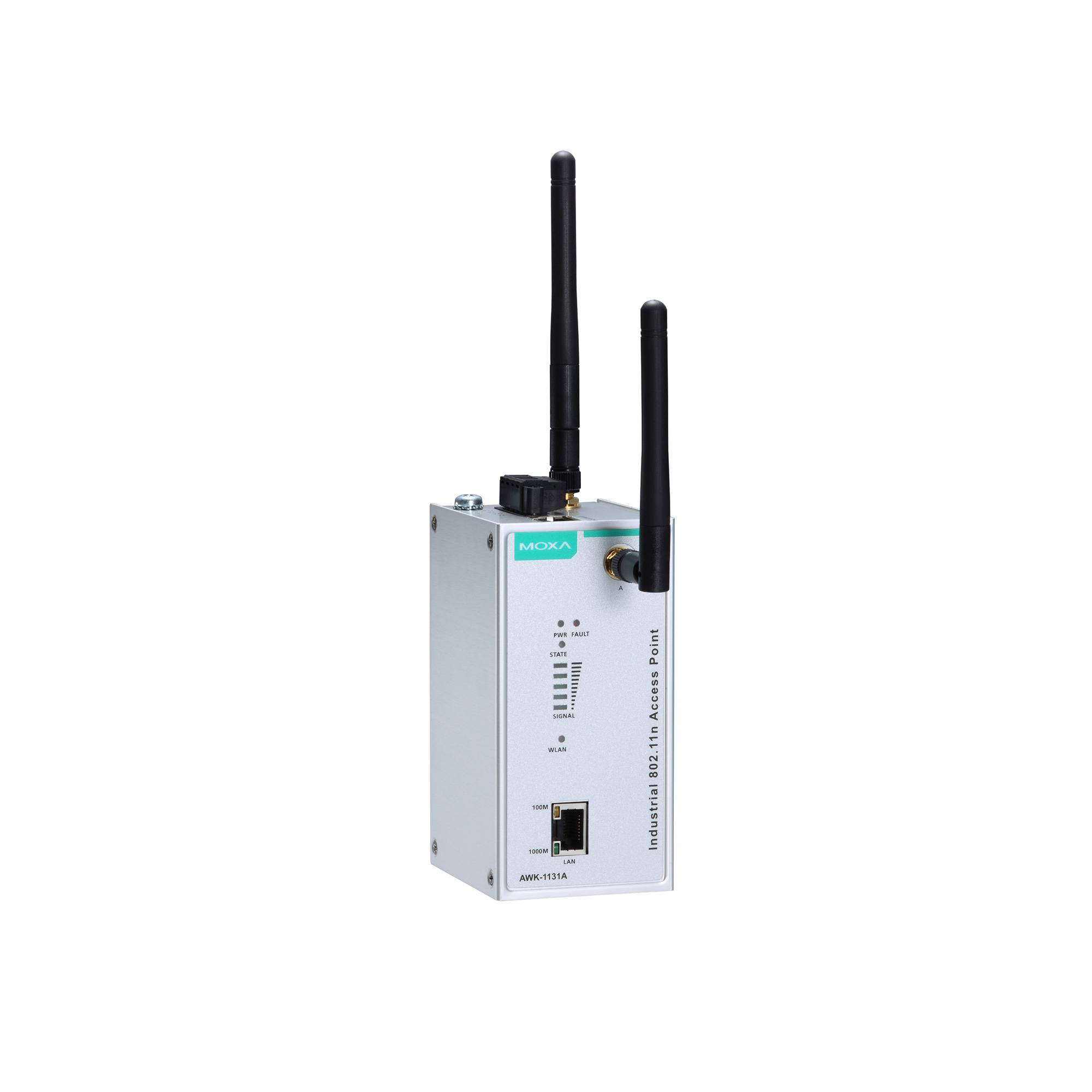

moxa-awk-1131a-series-image-1-(1).jpg | Moxa

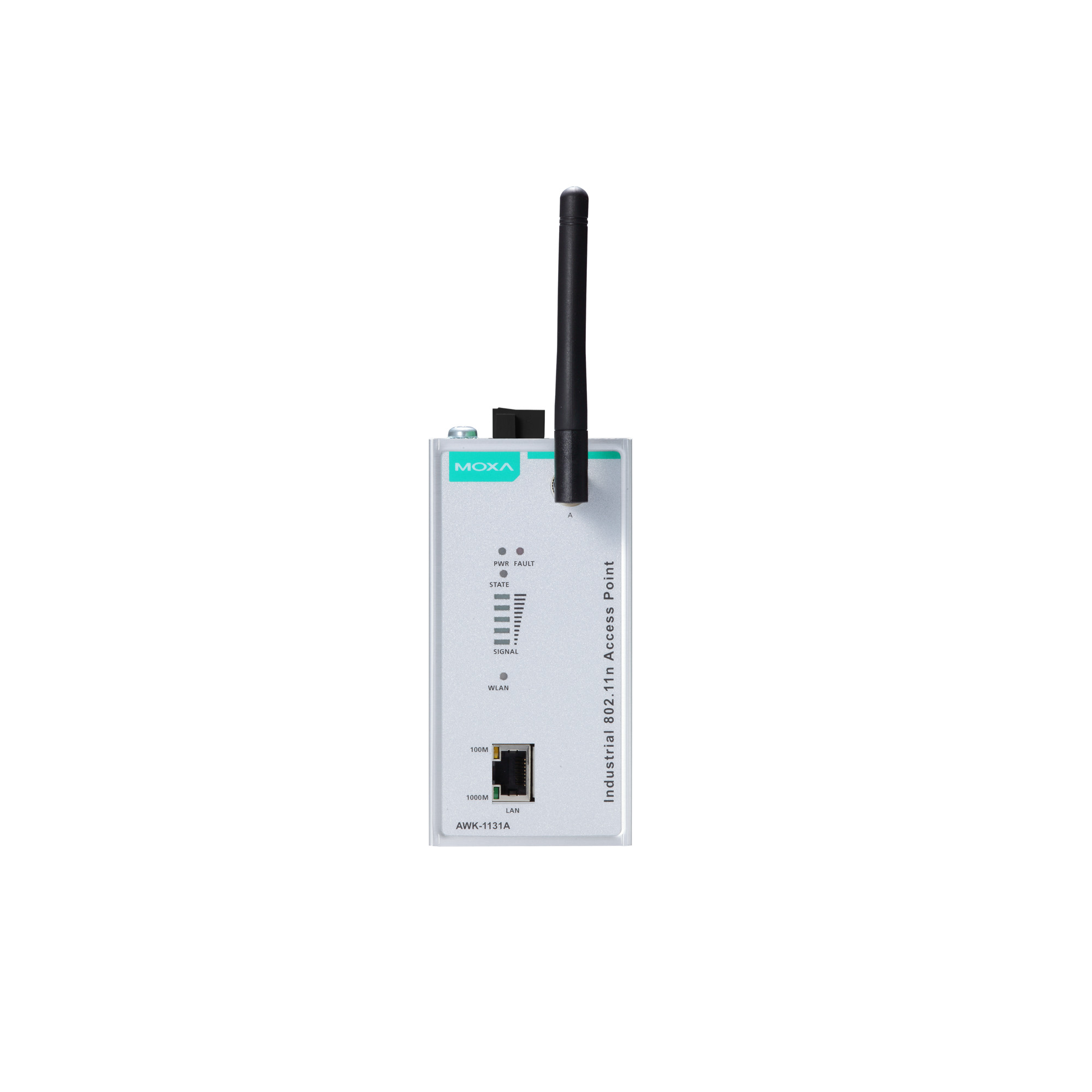

moxa-awk-1131a-series-image-2-(1).jpg | Moxa

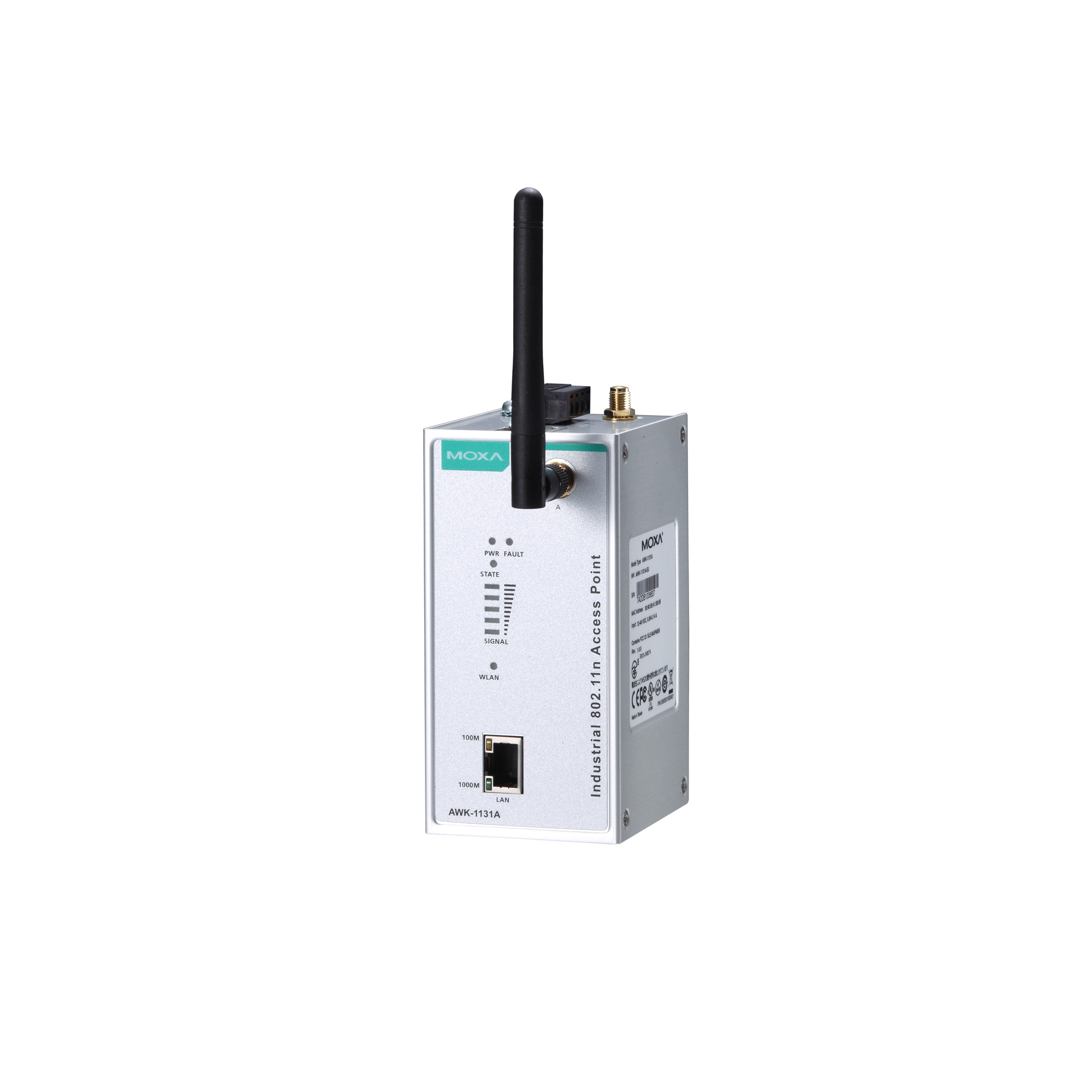

moxa-awk-1131a-series-image-3-(1).jpg | Moxa

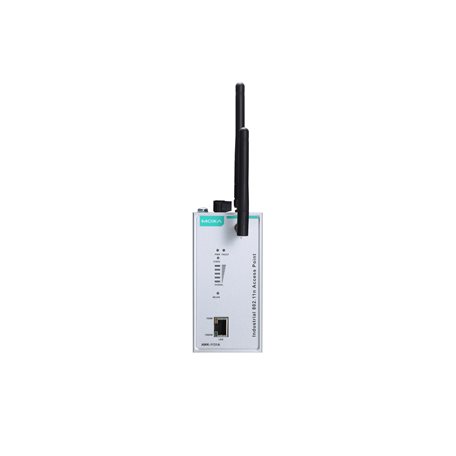

moxa-awk-1131a-series-image-4-(1).jpg | Moxa

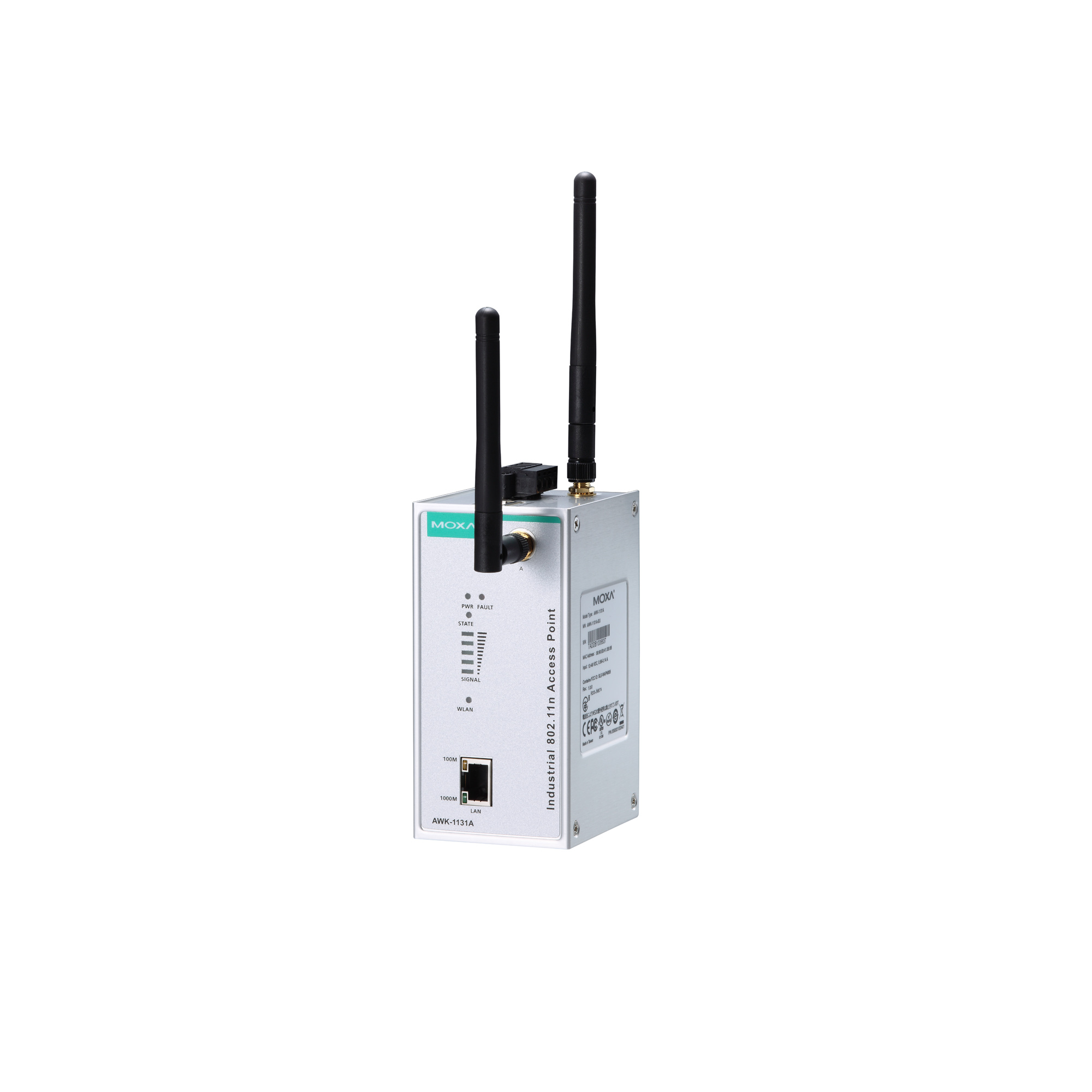

moxa-awk-1131a-series-image-5-(1).jpg | Moxa

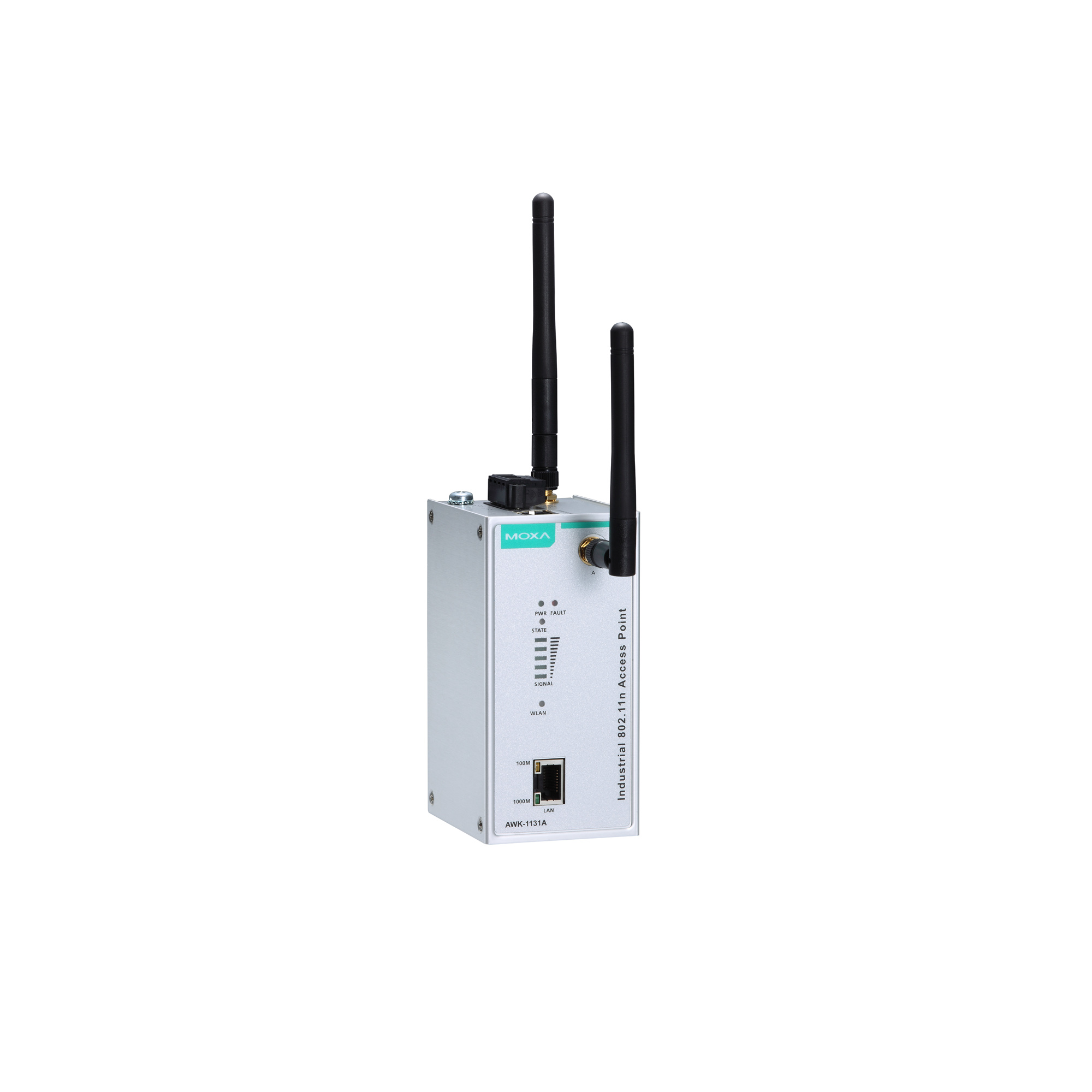

moxa-awk-1131a-series-image-6-(1).jpg | Moxa

Features and Benefits

  • IEEE 802.11a/b/g/n AP/client support
  • Millisecond-level Client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
  • Integrated antenna and power isolation
  • 5 GHz DFS channel support

Certifications

  • moxa-wi-fi-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The AWK-1131A industrial wireless AP/client meets the growing need for faster data transmission speeds by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. The AWK-1131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply. The AWK-1131A can operate on either the 2.4 or 5 GHz bands and is backwards-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments. The Wireless add-on for the MXview network management utility visualizes the AWK's invisible wireless connections to ensure wall-to-wall Wi-Fi connectivity.

Improved Higher Data Rate and Channel Capacity

  • High-speed wireless connectivity with up to 300 Mbps data rate

  • MIMO technology to improve the capability of transmitting and receiving multiple data streams

  • Increased channel width with channel bonding technology

  • Supports flexible channel selection to build up wireless communication system with DFS

Specifications for Industrial-grade Applications

  • Redundant DC power inputs

  • Integrated isolation design with enhanced protection against environmental interference

  • Compact aluminum housing, IP30-rated

Wireless Network Management With MXview Wireless

  • Dynamic topology view shows the status of wireless links and connection changes at a glance

  • Visual, interactive roaming playback function to review the roaming history of clients

  • Detailed device information and performance indicator charts for individual AP and client devices

  • WLAN Standards

    802.11a/b/g/n
    802.11i Wireless Security

  • Modulation Type

    DSSS
    OFDM
    MIMO-OFDM

  • Frequency Band for US (20 MHz operating channels)

    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)

  • Frequency Band for EU (20 MHz operating channels)

    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Frequency Band for JP (20 MHz operating channels)

    2.412 to 2.484 GHz (14 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Wireless Security

    WEP encryption (64-bit and 128-bit)
    WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
    WPA/WPA2-Personal

  • Transmission Rate

    802.11b: 1 to 11 Mbps
    802.11a/g: 6 to 54 Mbps
    802.11n: 6.5 to 300 Mbps

  • Transmitter Power for 802.11a

    23±1.5 dBm @ 6 to 24 Mbps
    21±1.5 dBm @ 36 Mbps
    20±1.5 dBm @ 48 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz)

    23±1.5 dBm @ MCS0/8 20 MHz
    18±1.5 dBm @ MCS7/15 20 MHz
    23±1.5 dBm @ MCS0/8 40 MHz
    17±1.5 dBm @ MCS7/15 40 MHz

  • Transmitter Power for 802.11b

    26±1.5 dBm @ 1 Mbps
    26±1.5 dBm @ 2 Mbps
    26±1.5 dBm @ 5.5 Mbps
    25±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    23±1.5 dBm @ 6 to 24 Mbps
    21±1.5 dBm @ 36 Mbps
    19±1.5 dBm @ 48 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    23±1.5 dBm @ MCS0/8 20 MHz
    18±1.5 dBm @ MCS7/15 20 MHz
    23±1.5 dBm @ MCS0/8 40 MHz
    17±1.5 dBm @ MCS7/15 40 MHz

  • Transmitter Power

    US EU JP
    2.4 GHz 26 dBm 18 dBm 18 dBm
    5 GHz (UNII-1) 23 dBm 21 dBm 21 dBm
    5 GHz (UNII-2) 23 dBm 21 dBm 21 dBm
    5 GHz (UNII-2e) 23 dBm 23 dBm 23 dBm
    5 GHz (UNII-3) 23 dBm – –
    Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    Typ. -90 @ 6 Mbps
    Typ. -88 @ 9 Mbps
    Typ. -88 @ 12 Mbps
    Typ. -85 @ 18 Mbps
    Typ. -81 @ 24 Mbps
    Typ. -78 @ 36 Mbps
    Typ. -74 @ 48 Mbps
    Typ. -72 @ 54 Mbps
    Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    Typ. -69 dBm @ MCS7 20 MHz
    Typ. -71 dBm @ MCS15 20 MHz
    Typ. -63 dBm @ MCS7 40 MHz
    Typ. -68 dBm @ MCS15 40 MHz
    Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    Typ. -93 dBm @ 1 Mbps
    Typ. -93 dBm @ 2 Mbps
    Typ. -93 dBm @ 5.5 Mbps
    Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    Typ. -88 dBm @ 6 Mbps
    Typ. -86 dBm @ 9 Mbps
    Typ. -85 dBm @ 12 Mbps
    Typ. -85 dBm @ 18 Mbps
    Typ. -85 dBm @ 24 Mbps
    Typ. -82 dBm @ 36 Mbps
    Typ. -78 dBm @ 48 Mbps
    Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    Typ. -70 dBm @ MCS7 20 MHz
    Typ. -69 dBm @ MCS15 20 MHz
    Typ. -67 dBm @ MCS7 40 MHz
    Typ. -67 dBm @ MCS15 40 MHz

  • WLAN Operation Mode

    Access point, Client, Sniffer

  • Antenna

    External, 2/2 dBi, Omni-directional

  • Antenna Connectors

    2 RP-SMA female

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.1X for authentication

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    1

  • Management

    DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig

  • Security

    HTTPS/SSL, RADIUS, SSH

  • Time Management

    SNTP Client

  • Filter

    ICMP, MAC address, IP protocol, Port-based

  • Console Port

    RS-232, 8-pin RJ45

  • LED Indicators

    PWR, FAULT, STATE, SIGNAL, WLAN, LAN

  • Buttons

    Reset button

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in)

  • Weight

    307 g (0.68 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Input Current

    0.56 A @ 12 VDC, 0.14 A @ 48 VDC

  • Input Voltage

    12 to 48 VDC

  • Power Connector

    1 removable 4-contact terminal block(s)

  • Power Consumption

    6.96 W (max.)

  • Reverse Polarity Protection

    Supported

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Radio

    EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, MIC, NCC, RCM, SRRC, WPC, KC, ANATEL

  • Safety

    EN 60950-1, UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Time

    749,476 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

All Firmware Library Software Package Utility
Name Type Checksum Version Operating System Release Date
Software Package for MXview One Series (Linux version)
404.8 MB 		Software Package
SHA-512
v1.4.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Sep 20, 2024 Sep 20, 2024 Release notes
Software Package for MXview One Series (Windows version)
300.8 MB 		Software Package
SHA-512
v1.4.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Sep 20, 2024 Sep 20, 2024 Release notes
Moxa Turbo Roaming Analyzer Utility
6.9 MB 		Utility
SHA-512
v2.0
  • Windows 10
 Aug 25, 2023 Aug 25, 2023 Release notes
Library for AWK-1131A Series
179.1 KB 		Library
SHA-512
v1.24
Mar 21, 2023 Mar 21, 2023 Release notes
Firmware for AWK-1131A Series
7.9 MB 		Firmware
SHA-512
v1.24
Mar 21, 2023 Mar 21, 2023 Release notes
Library for AWK-1131A Series (MXconfig v2.6 update installer)
1.1 MB 		Library
SHA-512
v2.6
Sep 23, 2020 Sep 23, 2020 Release notes
Utility for AWK-1131A Series (Wireless Search Utility)
1.8 MB 		Utility
SHA-512
v2.8
Sep 23, 2020 Sep 23, 2020 Release notes
Wireless Search Utility
1.8 MB 		Utility
SHA-512
v2.6
  • Windows 2000
  • Windows 7
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
 Nov 26, 2017 Nov 26, 2017 Release notes
Turbo Roaming Analyzer
5.8 MB 		Utility
SHA-512
v1.0
Oct 02, 2017 Oct 02, 2017 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Declaration Manual QIG
Name Type Version Release Date
Declaration of Conformity for AWK-1131A Series
1.0 MB 		Declaration v1.0 Dec 26, 2023 Dec 26, 2023
Manual for AWK-1131A Series
5.9 MB 		Manual v13.2 Mar 17, 2023 Mar 17, 2023
QIG for AWK-1131A Series
1.5 MB 		QIG v8.2 Oct 04, 2022 Oct 04, 2022
Datasheet for AWK-1131A Series
664.2 KB 		Datasheet v2.8 Aug 17, 2022 Aug 17, 2022
2D CAD for AWK-1131A
279.8 KB 		2D CAD Feb 28, 2019 Feb 28, 2019

Related Content

FILTER

All Application Note Article Case Study Solution Brochure Technology Guide Video White Paper

Available Models (6)

Show Images
Compare
moxa-awk-1131a-jp-t-image.jpg | MoxaAWK-1131A-JP-T
Compare
moxa-awk-1131a-jp-image.jpg | MoxaAWK-1131A-JP
Compare

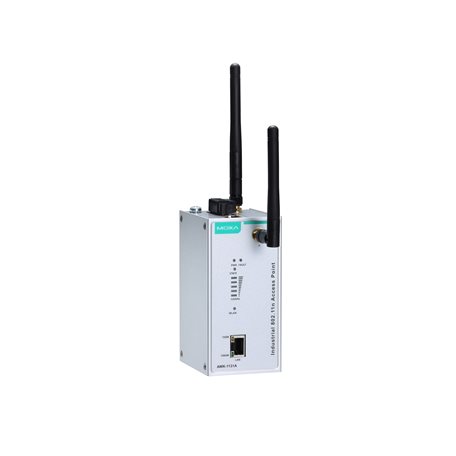

moxa-awk-1131a-eu-image.jpg | MoxaAWK-1131A-EU
