WLAN AP/Bridge/Client

Moxa’s extensive collection of industrial-grade wireless 3-in-1 AP/bridge/client products combine a rugged casing with high-performance Wi-Fi connectivity to deliver a secure and reliable wireless network connection that will not fail, even in environments with water, dust, and vibrations.

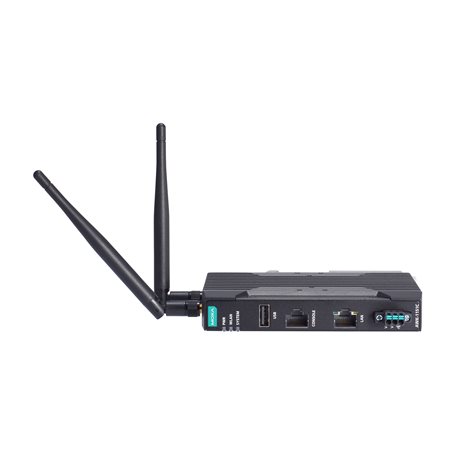

AWK-1151C-US-T
AWK-1151C Series

Industrial 802.11a/b/g/n/ac wireless client, IP30, US band, -40 to 75°C operating temperature

WLAN Interface
  • WLAN Standards

    • 2.4 GHz: 802.11b/g/n with 256 QAM support
      5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
  • Frequency Band for US (20 MHz operating channels)

    • 5.745 to 5.825 GHz (5 channels)
      2.412 to 2.462 GHz (11 channels)
      5.180 to 5.240 GHz (4 channels)
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.260 to 5.240 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Wireless Security

    • WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2/WPA3-Personal
  • Transmission Rate

    • 2.4 GHz:
      802.11b: 1 to 11 Mbps
      802.11g: 6 to 54 Mbps
      802.11n: 6.5 to 400 Mbps

      5 GHz:
      802.11a: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps
      802.11ac: 6.5 to 867 Mbps
  • Transmitter Power for 802.11a (Dual Chain)

    • 25±1.5 dBm @ 6 Mbps
      23±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (5 GHz, Dual Chain)

    • 25±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS7 20 MHz
      24±1.5 dBm @ MCS0 40 MHz
      22±1.5 dBm @ MCS7 40 MHz
  • Transmitter Power for 802.11ac (Dual Chain)

    • 25±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS8 20 MHz
      24±1.5 dBm @ MCS0 40 MHz
      21±1.5 dBm @ MCS9 40 MHz
      23±1.5 dBm @ MCS0 80 MHz
      20±1.5 dBm @ MCS9 80 MHz
  • Transmitter Power for 802.11b (Dual Chain)

    • 29±1.5 dBm @ 1 Mbps
      29±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g (Dual Chain)

    • 29±1.5 dBm @ 6 Mbps
      26±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

    • 28±1.5 dBm @ MCS0 20 MHz
      25±1.5 dBm @ MCS7 20 MHz
      28±1.5 dBm @ MCS0 40 MHz
      25±1.5 dBm @ MCS7 40 MHz
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    • Typ. -89 @ 6 Mbps
      Typ. -72 @ 54 Mbps
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    • Typ. -89 dBm @ MCS0 20 MHz
      Typ. -69 dBm @ MCS7 20 MHz
      Typ. -85 dBm @ MCS0 40 MHz
      Typ. -66 dBm @ MCS7 40 MHz
  • Receiver Sensitivity for 802.11ac

    • Typ. -88 dBm @ MCS0 20 MHz
      Typ. -65 dBm @ MCS8 20 MHz
      Typ. -85 dBm @ MCS0 40 MHz
      Typ. -60 dBm @ MCS9 40 MHz
      Typ. -81 dBm @ MCS0 80 MHz
      Typ. -55 dBm @ MCS9 80 MHz
  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    • Typ. -96 dBm @ 1 Mbps
      Typ. -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    • Typ. -90 dBm @ 6 Mbps
      Typ. -74 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    • Typ. -90 dBm @ MCS0 20 MHz
      Typ. -70 dBm @ MCS7 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -69 dBm @ MCS7 40 MHz
  • WLAN Operation Mode

    • Client
      Client-Router
      Slave
      Sniffer
  • Antenna

    • External, 2/2 dBi
      Omni-directional
  • Antenna Connectors

    • 2 RP-SMA female
Ethernet Interface
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3az for Energy-Efficient Ethernet
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 1
Ethernet Software Features
  • Management

    • DHCP Server
      DHCP Client
      DNS
      HTTP
      IPv4/IPv6
      LLDP
      SMTP
      SNMPv1/v2c/v3
      Syslog
      TCP/IP
      Telnet
      UDP
      VLAN
      MXconfig
  • Routing

    • Port forwarding
      Static Route
      NAT
  • Security

    • HTTPS/SSL
      RADIUS
      SSH
      Certificate Management
  • Time Management

    • SNTP Client
Firewall
  • Filter

    • ICMP
      MAC address
      IP protocol
      Port-based
      Client Isolation
      Wi-Fi ACL
Serial Interface
  • Console Port

    • RS-232
      8-pin RJ45
USB Interface
  • Storage Port

    • USB Type A
LED Interface
  • LED Indicators

    • PWR, WLAN, SYSTEM
Input/Output Interface
  • Buttons

    • Reset button
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 100 x 130 x 22 mm (3.94 x 5.12 x 0.87 in)
  • Weight

    • 436 g (0.96 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Power Parameters
  • Input Current

    • 9 to 30 VDC, 1.57 to 0.47 A
  • Input Voltage

    • 9 to 30 VDC
  • Power Connector

    • 1 removable 3-contact terminal block(s)
  • Power Consumption

    • 14 W (max.)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
      EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V/m
      IEC 61000-4-8 PFMF: 30 A/m
  • Road Vehicles

    • E mark E1
  • Safety

    • IEC 60950-1
      IEC 62368-1
      UL 62368-1
  • Vibration

    • IEC 60068-2-6
  • Radio

    • EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC
  • Industrial Cybersecurity

    • IEC 62443-4-1
      IEC 62443-4-2
MTBF
  • Time

    • 1,144,888 hrs
  • Standards

    • Telcordia SR332
Warranty
