AWK-1161C Series

Entry-level 1-port industrial IEEE 802.11ax wireless clients

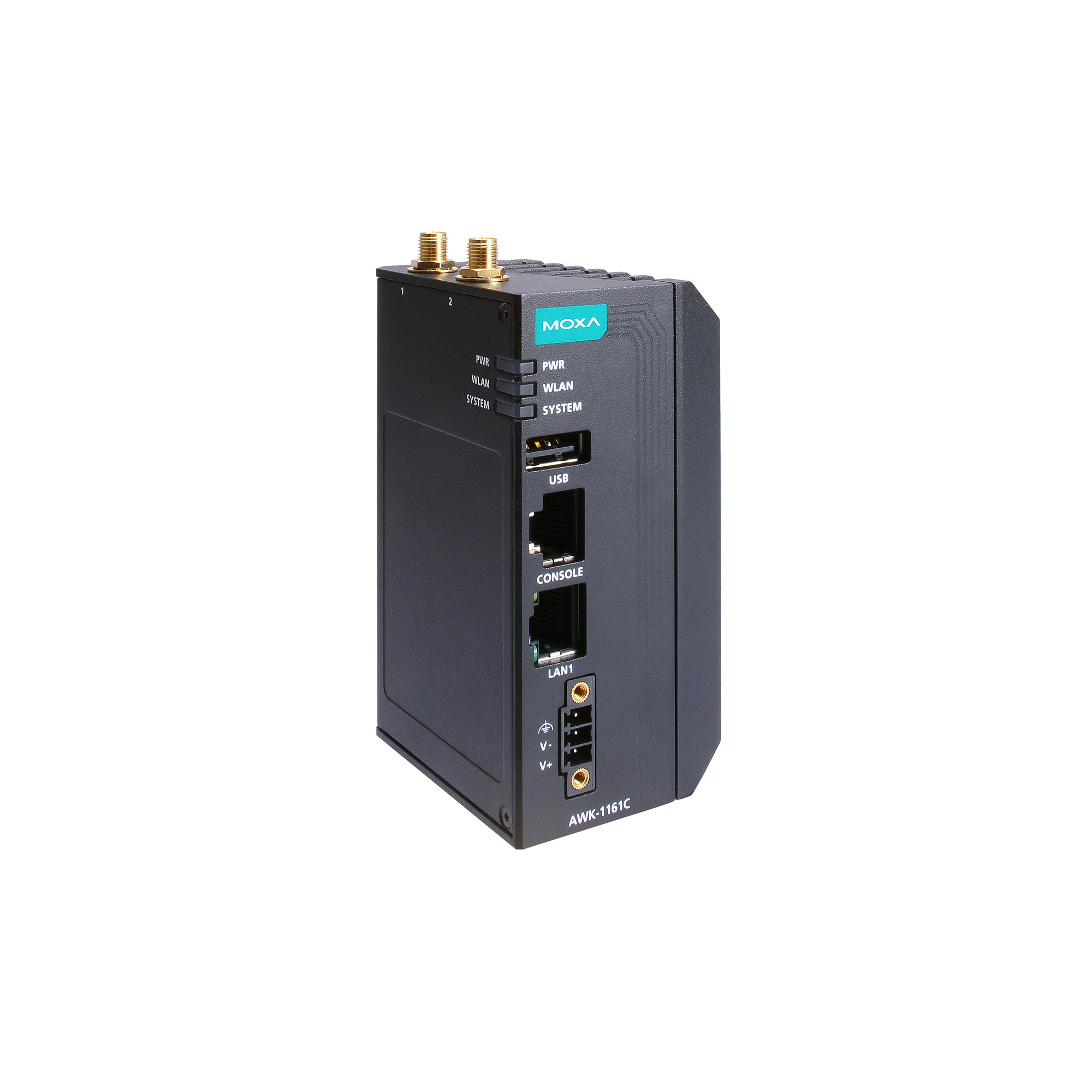

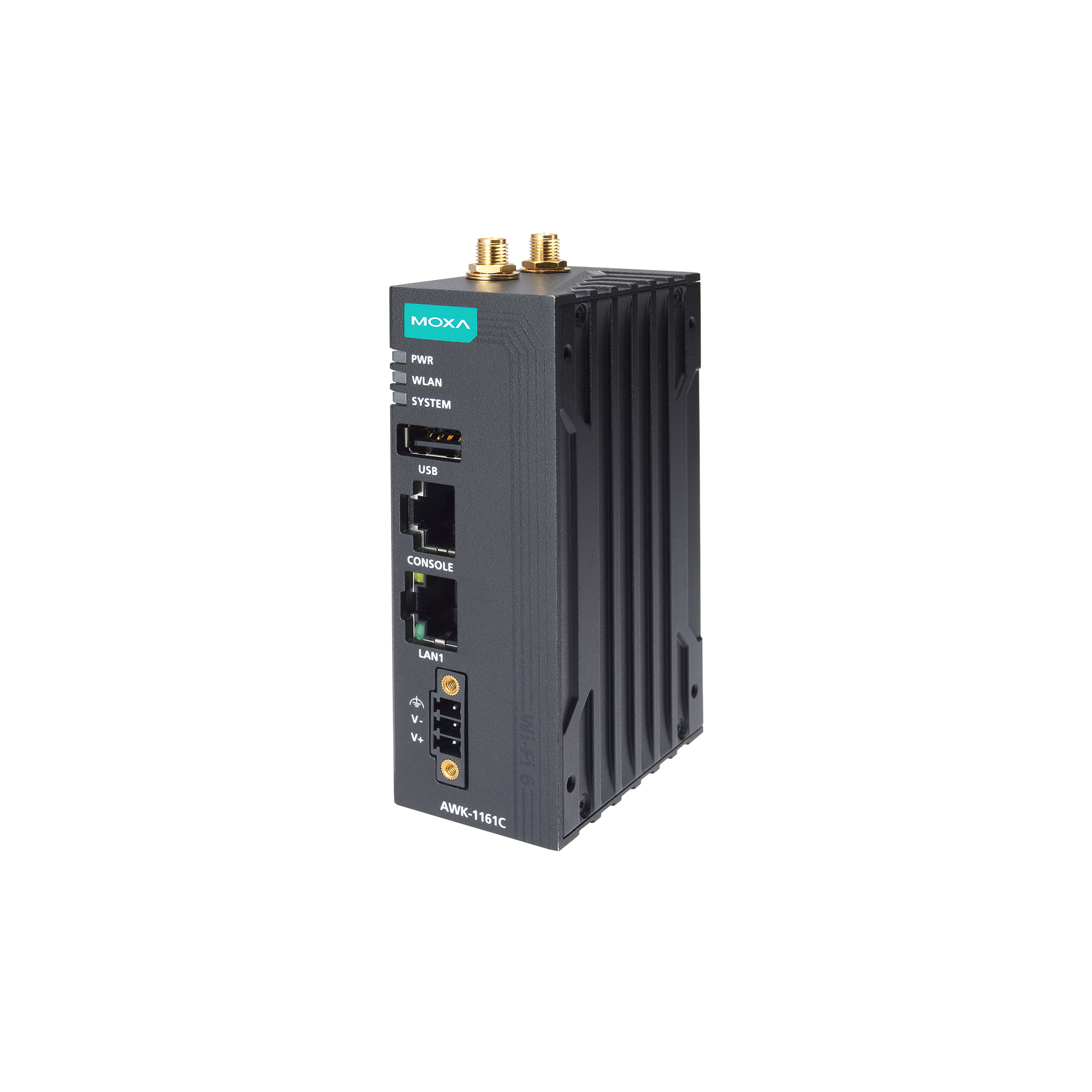

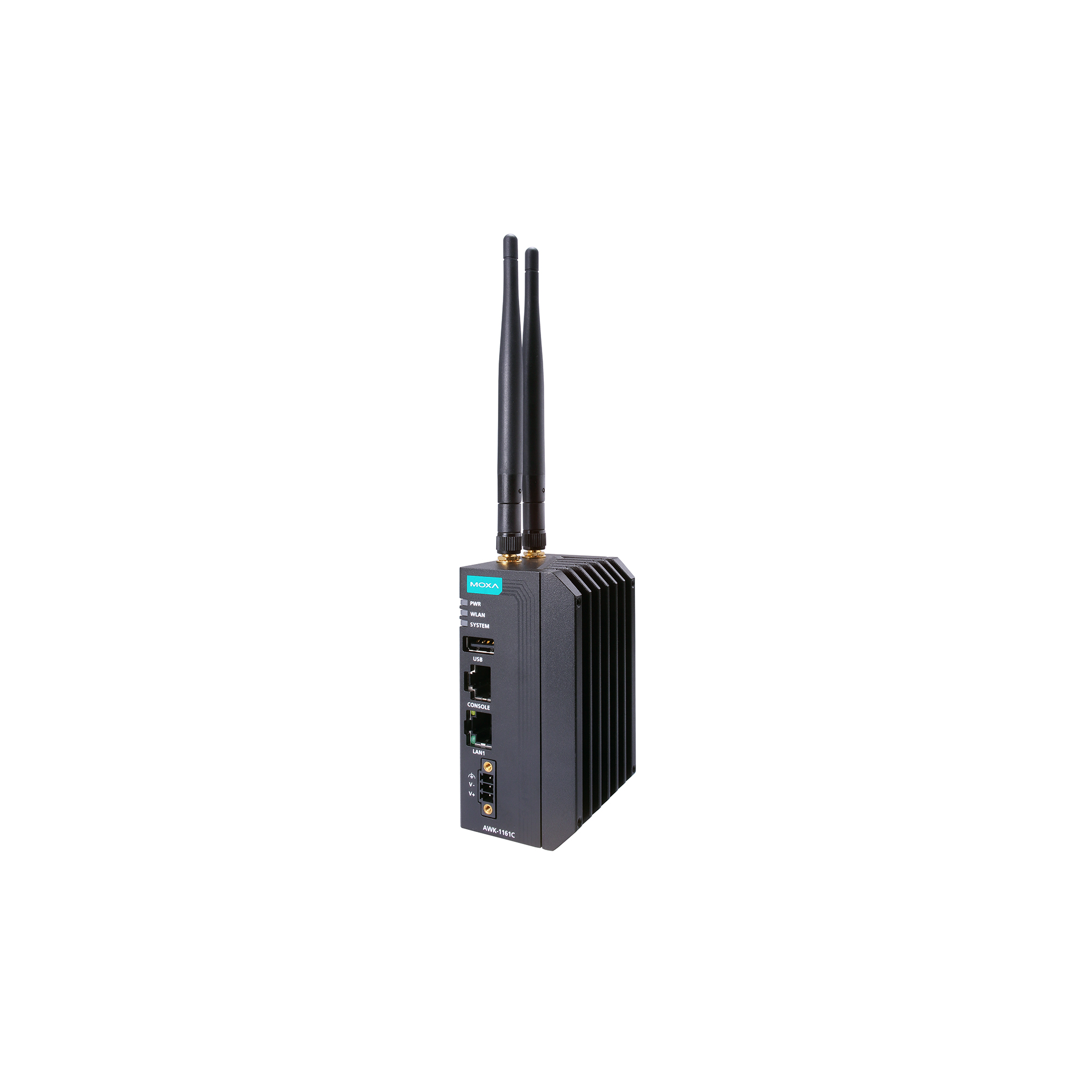

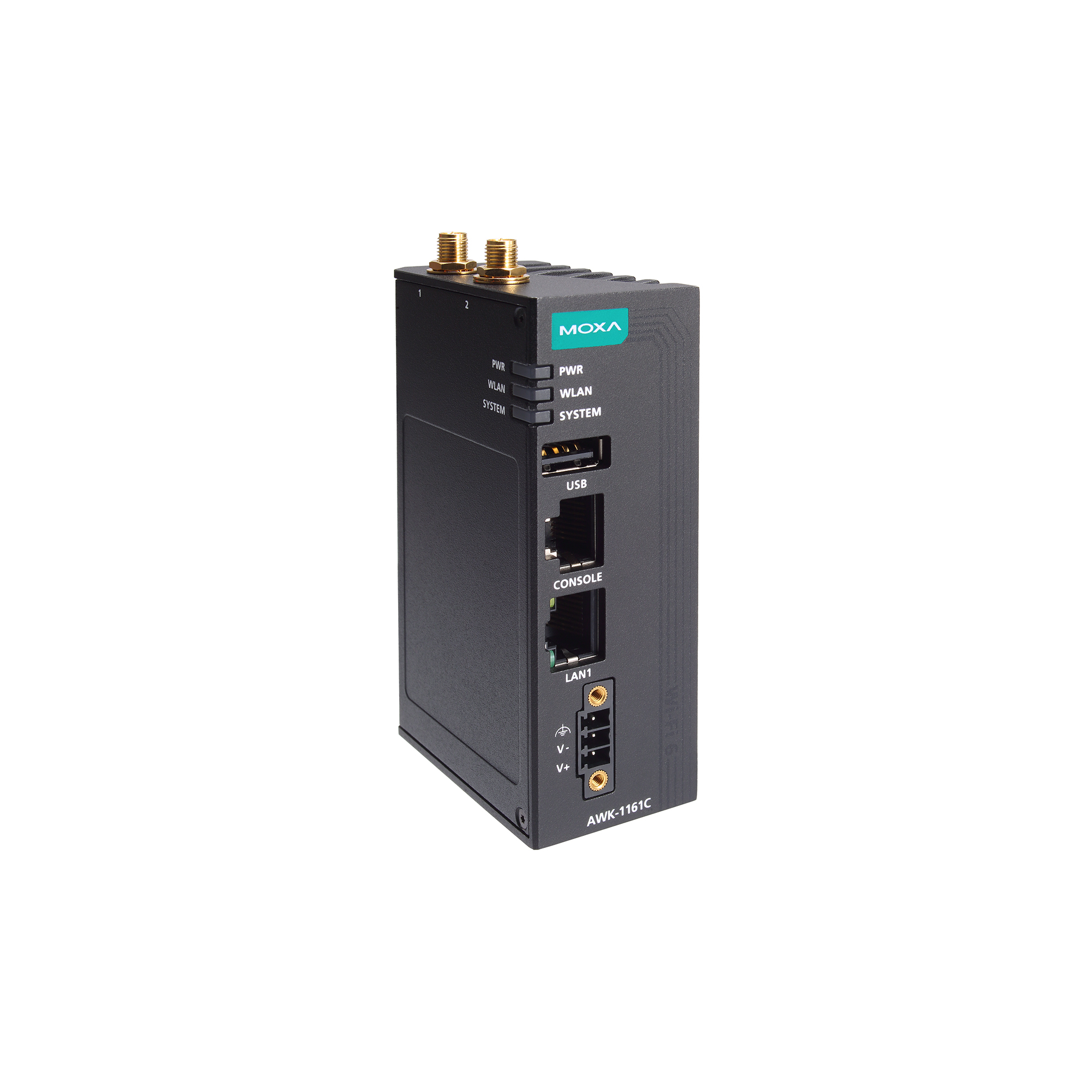

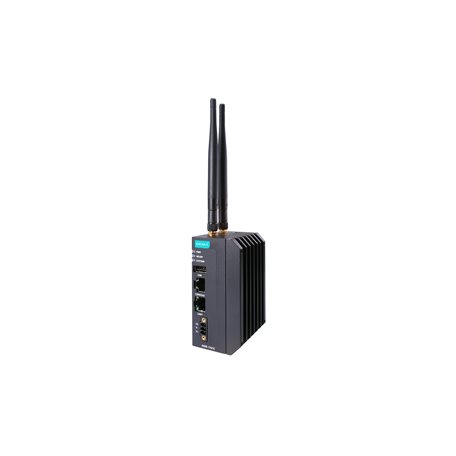

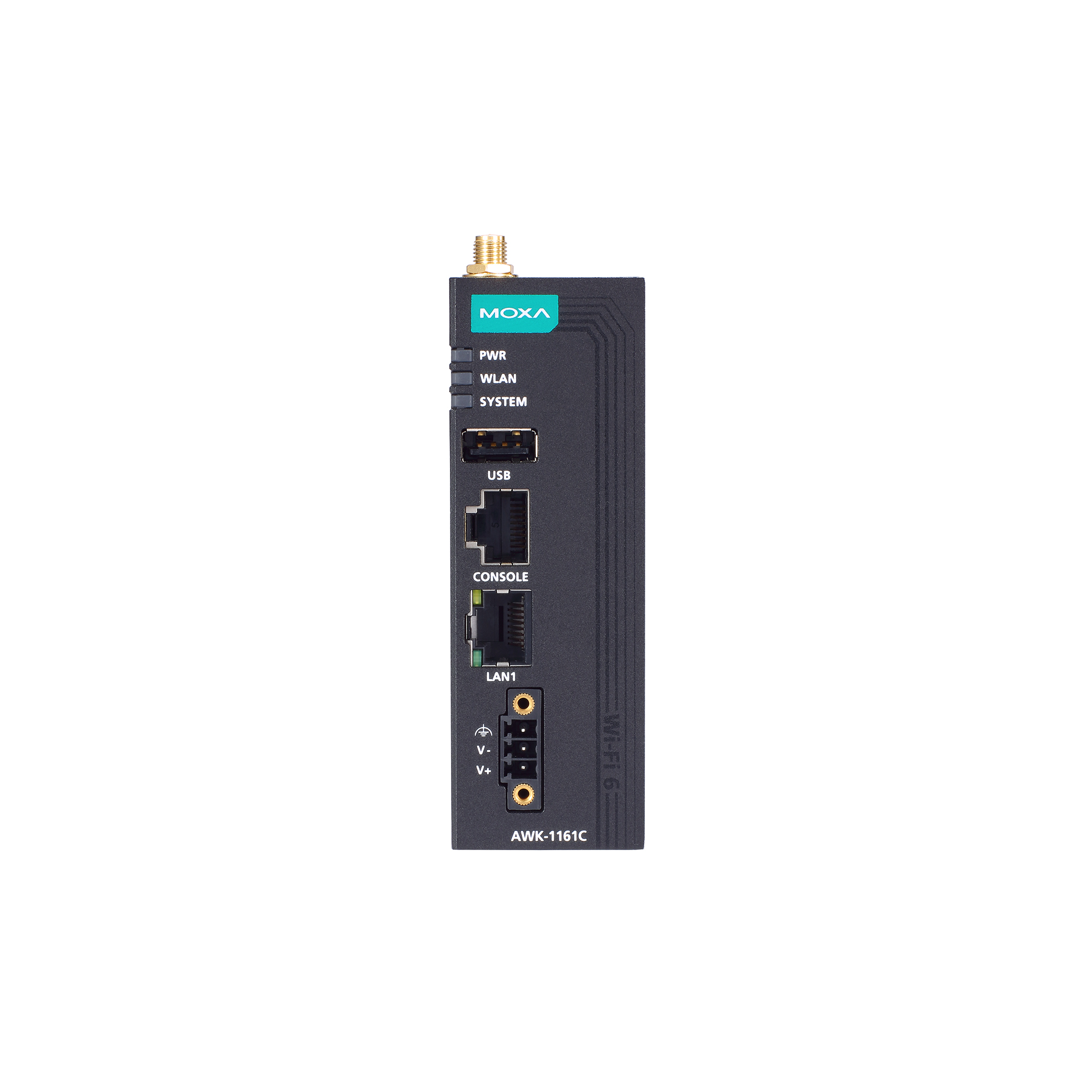

moxa-awk-1161c-series-image-(1).jpg | Moxa
moxa-awk-1161c-series-image-1-(1).jpg | Moxa
moxa-awk-1161c-series-image-2-(1).jpg | Moxa
moxa-awk-1161c-series-image-3-(1).jpg | Moxa
moxa-awk-1161c-series-image-4-(1).jpg | Moxa

Features and Benefits

  • High-speed IEEE 802.11ax Wi-Fi
  • Selectable dual-band Wi-Fi with data rates up to 1,201 Mbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Universal (UN) models with configurable country or region code for more flexible deployment
  • Easy network setup with Network Address Translation (NAT)
  • Millisecond-level Client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
  • Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
  • -40 to 75°C wide operating temperature range (-T models)
  • Integrated antenna isolation

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-e1-certification-logo-image.png | Moxa

Contact Sales

Introduction

The AWK-1161C Series industrial wireless client is designed to meet the growing need for efficient data transmissions in high-density deployments scenarios through IEEE 802.11ax (Wi-Fi 6) technology. The AWK-1161C is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless connectivity. The AWK-1161C can operate on the 2.4 or 5 GHz band and is backwards compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.

Advanced 802.11ax Industrial Wireless Solution

  • 802.11ax Wi-Fi 6 compliant client backwards compatible with Wi-Fi 4/ Wi-Fi 5 for flexible deployment

  • DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

  • Wi-Fi 6 OFDMA (Orthogonal Frequency-Division Multiple Access) technology enables concurrent communication with multiple clients for improved network efficiency

  • Wi-Fi 6 TWT (Target Wake Time) technology facilitates better scheduling and longer device battery life

Advanced Wireless Technology

  • Seamless roaming with client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual. for < 150 ms roaming recovery time between APs

Industrial Ruggedness

  • Integrated antenna isolation designed to provide protection against external electrical interference

  • -40 to 75°C wide operating temperature (-T) models for smooth wireless communication in harsh environments

  • WLAN Standards

    2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz
    5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz

  • Frequency Band for US (20 MHz operating channels)

    AWK-1161C-US models only:
    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)

  • Frequency Band for UN (20 MHz operating channels)

    AWK-1161C-UN models only:
    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)
    Available channels change depending on the selected country or region code.

  • Wireless Security

    WEP encryption (64-bit and 128-bit)
    WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
    WPA/WPA2/WPA3-Personal

  • Transmission Rate

    2.4 GHz:
    Up to 573.5 Mbps

    5 GHz:
    Up to 1,201 Mbps

  • Transmitter Power for 802.11a (Dual Chain)

    18±1.5 dBm @ 6 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz, Dual Chain)

    18±1.5 dBm @ MCS0 20 MHz
    18±1.5 dBm @ MCS7 20 MHz
    18±1.5 dBm @ MCS0 40 MHz
    18±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ac (Dual Chain)

    18±1.5 dBm @ MCS0 20 MHz
    18±1.5 dBm @ MCS8 20 MHz
    18±1.5 dBm @ MCS0 40 MHz
    18±1.5 dBm @ MCS9 40 MHz
    18±1.5 dBm @ MCS0 80 MHz
    18±1.5 dBm @ MCS9 80 MHz

  • Transmitter Power for 802.11ax (Dual Chain)

    18±1.5 dBm @ MCS0 20 MHz
    17±1.5 dBm @ MCS11 20 MHz
    18±1.5 dBm @ MCS0 40 MHz
    17±1,5 dBm @ MCS11 40 MHz
    18±1.5 dBm @ MCS0 80 MHz
    17±1.5 dBm @ MCS11 80 MHz

  • Transmitter Power for 802.11b (Dual Chain)

    18±1.5 dBm @ 1 Mbps
    18±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g (Dual Chain)

    18±1.5 dBm @ 6 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

    18±1.5 dBm @ MCS0 20 MHz
    18±1.5 dBm @ MCS7 20 MHz
    18±1.5 dBm @ MCS0 40 MHz
    18±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

    18±1.5 dBm @ MCS0 20 MHz
    18±1.5 dBm @ MCS8 20 MHz
    18±1.5 dBm @ MCS0 40 MHz
    18±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)

    18±1.5 dBm @ MCS0 20 MHz
    18±1.5 dBm @ MCS11 20 MHz
    18±1.5 dBm @ MCS0 40 MHz
    18±1.5 dBm @ MCS11 40 MHz

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    Typ. -88 @ 6 Mbps
    Typ. -72 @ 54 Mbps

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    Typ. -88 dBm @ MCS0 20 MHz
    Typ. -68 dBm @ MCS7 20 MHz
    Typ. -84 dBm @ MCS0 40 MHz
    Typ. -66 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11ac (5 GHz)

    Typ. -88 dBm @ MCS0 20 MHz
    Typ. -65 dBm @ MCS8 20 MHz
    Typ. -85 dBm @ MCS0 40 MHz
    Typ. -60 dBm @ MCS9 40 MHz
    Typ. -81 dBm @ MCS0 80 MHz
    Typ. -55 dBm @ MCS9 80 MHz

  • Receiver Sensitivity for 802.11ax (5 GHz)

    Typ. -88 dBm @ MCS0 20 MHz
    Typ. -59 dBm @ MCS11 20 MHz
    Typ. -85 dBm @ MCS0 40 MHz
    Typ. -56 dBm @ MCS11 40 MHz
    Typ. -81 dBm @ MCS0 80 MHz
    Typ. -52 dBm @ MCS11 80 MHz

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    Typ. -96 dBm @ 1 Mbps
    Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    Typ. -90 dBm @ 6 Mbps
    Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    Typ. -90 dBm @ MCS0 20 MHz
    Typ. -70 dBm @ MCS7 20 MHz
    Typ. -87 dBm @ MCS0 40 MHz
    Typ. -69 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11ac (2.4 GHz)

    Typ. -90 dBm @ MCS0 20 MHz
    Typ. -66 dBm @ MCS6 20 MHz
    Typ. -87 dBm @ MCS0 40 MHz
    Typ. -63 dBm @ MCS9 40 MHz

  • Receiver Sensitivity for 802.11ax (2.4 GHz)

    Typ. -90 dBm @ MCS0 20 MHz
    Typ. -59 dBm @ MCS11 20 MHz
    Typ. -87 dBm @ MCS0 40 MHz
    Typ. -56 dBm @ MCS11 40 MHz

  • WLAN Operation Mode

    Client
    Client-Router
    Slave
    Sniffer

  • Antenna

    External, 2/2 dBi
    Omni-directional

  • Antenna Connectors

    2 RP-SMA female

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3az for Energy-Efficient Ethernet
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1X for authentication

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    1

  • Management

    DHCP Server
    DHCP Client
    DNS
    HTTP
    IPv4
    LLDP
    SMTP
    SNMPv1/v2c/v3
    Syslog
    TCP/IP
    Telnet
    UDP
    VLAN
    MXconfig

  • Routing

    Port forwarding
    Static Route
    NAT

  • Security

    HTTPS/SSL
    RADIUS
    SSH
    Certificate Management

  • Time Management

    SNTP Client

  • Filter

    ICMP
    MAC address
    IP protocol
    Port-based
    Wi-Fi ACL

  • Console Port

    RS-232
    8-pin RJ45

  • Storage Port

    USB Type A

  • LED Indicators

    PWR, WLAN, SYSTEM

  • Buttons

    Reset button

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    AWK-1161C models: 60 x 100 x 34.2 mm (2.36 x 3.94 x 1.35 in)
    AWK-1161C-T models: 60 x 100 x 47.2 mm (2.36 x 3.94 x 1.86 in)

  • Weight

    AWK-1161C models: 330 g (0.73 lb)
    AWK-1161C-T models: 387.5 g (0.85 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Input Current

    9 to 30 VDC, 1.57 to 0.47 A

  • Input Voltage

    9 to 30 VDC

  • Power Connector

    1 removable 3-contact terminal block(s)

  • Power Consumption

    14 W (max.)

  • Operating Temperature

    Standard Models: -25 to 60°C (-13 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4
    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V/m
    IEC 61000-4-8 PFMF: 30 A/m

  • Road Vehicles

    E mark E1

  • Safety

    IEC 62368-1
    UL 62368-1

  • Vibration

    IEC 60068-2-6

  • Radio

    EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC

  • Time

    4,002,106 hrs

  • Standards

    Telcordia SR332
