MOXA

WLAN AP/Bridge/Client

Moxa’s extensive collection of industrial-grade wireless 3-in-1 AP/bridge/client products combine a rugged casing with high-performance Wi-Fi connectivity to deliver a secure and reliable wireless network connection that will not fail, even in environments with water, dust, and vibrations.

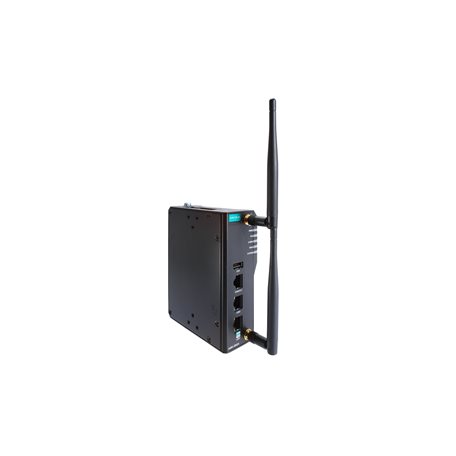

AWK-3262A-UN-T
AWK-3262A Series

Advanced industrial 802.11ax wireless AP/bridge/client with 1 10/100/1000/2500BaseT(X) and 1 10/100/1000BaseT(X) port, UN band, IP30, -40 to 75°C operating temperature

WLAN Interface

  • WLAN Standards

    • 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz
      5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz

  • Frequency Band for UN (20 MHz operating channels)

    • 2.412 to 2.472 GHz (13 channels)
      Available channels change depending on the selected country or region code.
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.745 to 5.825 GHz (5 channels)

  • Wireless Security

    • WEP encryption (64-bit and 128-bit)
      WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2/WPA3-Personal

  • Transmission Rate

    • 2.4 GHz:
      Up to 573.5 Mbps

      5 GHz:
      Up to 1,201 Mbps

  • Transmitter Power for 802.11a (Dual Chain)

    • 27 When the ambient operating temperature exceeds 70 Cdegrees, set the maximum Transmitter power as 24 dBm ±1.5 dBm @ 6 Mbps
      24.5 When the ambient operating temperature exceeds 70 Cdegrees, set the maximum Transmitter power as 24 dBm ±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz, Dual Chain)

    • 26±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS7 20 MHz
      26±1.5 dBm @ MCS0 40 MHz
      22±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ac (Dual Chain)

    • 26±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS8 20 MHz
      25±1.5 dBm @ MCS0 40 MHz
      21±1.5 dBm @ MCS9 40 MHz
      25±1.5 dBm @ MCS0 80 MHz
      21±1.5 dBm @ MCS9 80 MHz

  • Transmitter Power for 802.11ax (Dual Chain)

    • 25±1.5 dBm @ MCS0 20 MHz
      20±1.5 dBm @ MCS11 20 MHz
      25±1.5 dBm @ MCS0 40 MHz
      20±1.5 dBm @ MCS11 40 MHz
      25±1.5 dBm @ MCS0 80 MHz
      20±1.5 dBm @ MCS11 80 MHz

  • Transmitter Power for 802.11b (Dual Chain)

    • 29 When the ambient operating temperature exceeds 70 Cdegrees, set the maximum Transmitter power as 26 dBm ±1.5 dBm @ 1 Mbps
      29 When the ambient operating temperature exceeds 70 Cdegrees, set the maximum Transmitter power as 26 dBm ±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g (Dual Chain)

    • 27±1.5 dBm @ 6 Mbps
      26±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

    • 26±1.5 dBm @ MCS0 20 MHz
      24±1.5 dBm @ MCS7 20 MHz
      26±1.5 dBm @ MCS0 40 MHz
      24±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

    • 26±1.5 dBm @ MCS0 20 MHz
      24±1.5 dBm @ MCS8 20 MHz
      26±1.5 dBm @ MCS0 40 MHz
      23±1.5 dBm @ MCS9 40 MHz

  • Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)

    • 26±1.5 dBm @ MCS0 20 MHz
      21±1.5 dBm @ MCS11 20 MHz
      26±1.5 dBm @ MCS0 40 MHz
      21±1.5 dBm @ MCS11 40 MHz

  • Receiver Sensitivity for 802.11a

    • Typ. -90 dBm @ 6 Mbps
      Typ. -72 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (5 GHz)

    • Typ. -89 dBm @ MCS0 20 MHz
      Typ. -69 dBm @ MCS7 20 MHz
      Typ. -86 dBm @ MCS0 40 MHz
      Typ. -66 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11ac (5 GHz)

    • Typ. -89 dBm @ MCS0 20 MHz
      Typ. -66 dBm @ MCS8 20 MHz
      Typ. -86 dBm @ MCS0 40 MHz
      Typ. -62 dBm @ MCS9 40 MHz
      Typ. -83 dBm @ MCS0 80 MHz
      Typ. -58 dBm @ MCS9 80 MHz

  • Receiver Sensitivity for 802.11ax (5 GHz)

    • Typ. -90 dBm @ MCS0 20 MHz
      Typ. -59 dBm @ MCS11 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -56 dBm @ MCS11 40 MHz
      Typ. -84 dBm @ MCS0 80 MHz
      Typ. -53 dBm @ MCS11 80 MHz

  • Receiver Sensitivity for 802.11b

    • Typ. -96 dBm @ 1 Mbps
      Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g

    • Typ. -91 dBm @ 6 Mbps
      Typ. -75 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz)

    • Typ. -91 dBm @ MCS0 20 MHz
      Typ. -72 dBm @ MCS7 20 MHz
      Typ. -88 dBm @ MCS0 40 MHz
      Typ. -69 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11ac (2.4 GHz)

    • Typ. -91 dBm @ MCS0 20 MHz
      Typ. -68 dBm @ MCS8 20 MHz
      Typ. -88 dBm @ MCS0 40 MHz
      Typ. -64 dBm @ MCS9 40 MHz

  • Receiver Sensitivity for 802.11ax (2.4 GHz)

    • Typ. -91 dBm @ MCS0 20 MHz
      Typ. -59 dBm @ MCS11 20 MHz
      Typ. -88 dBm @ MCS0 40 MHz
      Typ. -56 dBm @ MCS11 40 MHz

  • WLAN Operation Mode

    • Access point
      Client
      Client-Router
      Master
      Slave
      Sniffer

  • Antenna

    • External, 2/2 dBi
      Omni-directional

  • Antenna Connectors

    • 2 RP-SMA female
Ethernet Interface

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3bz for 2.5GBaseT
      IEEE 802.3af for PoE
      IEEE 802.3at for PoE
      IEEE 802.3az for Energy-Efficient Ethernet
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 1

  • PoE Ports (10/100/1000/2500BaseT(X), RJ45 connector)

    • 1
Ethernet Software Features

  • Management

    • DHCP Server
      DHCP Client
      DNS
      HTTP
      IPv4/IPv6
      LLDP
      SMTP
      SNMPv1/v2c/v3
      Syslog
      TCP/IP
      UDP
      VLAN
      MXconfig

  • Routing

    • Port forwarding
      Static Route
      NAT

  • Security

    • HTTPS/SSL
      RADIUS
      SSH
      Certificate Management

  • Time Management

    • SNTP Client
Firewall

  • Filter

    • ICMP
      MAC address
      IP protocol
      Port-based
      Wi-Fi ACL
      Client Isolation
Serial Interface

  • Console Port

    • RS-232
      8-pin RJ45
USB Interface

  • Storage Port

    • USB Type A (for ABC-02 use only)
LED Interface

  • LED Indicators

    • PWR1, PWR2, PoE, SYS, 2.4G, 5G
Input/Output Interface

  • Digital Inputs

    • 2
      Max. input current: 8 mA
      +13 to +30 V for state 1
      +3 to -30 V for state 0

  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    • Reset button
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)

  • Weight

    • 755 g (1.7 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Power Parameters

  • Input Current

    • 12-48 VDC, 2-0.5 A

  • Input Voltage

    • 12 to 48 VDC
      Redundant dual inputs
      48 VDC Power-over-Ethernet

  • Power Connector

    • 1 removable 8-contact terminal block(s)

  • Power Consumption

    • 24 W (max.)
Environmental Limits

  • Operating Temperature

    • -25 to 60°C (-13 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4
      EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V/m
      IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    • IEC 62368-1
      UL 62368-1

  • Vibration

    • IEC 60068-2-6

  • Radio

    • EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, KC
MTBF

  • Time

    • 2,407,106 hrs

  • Standards

    • Telcordia Standard SR-332
Warranty
