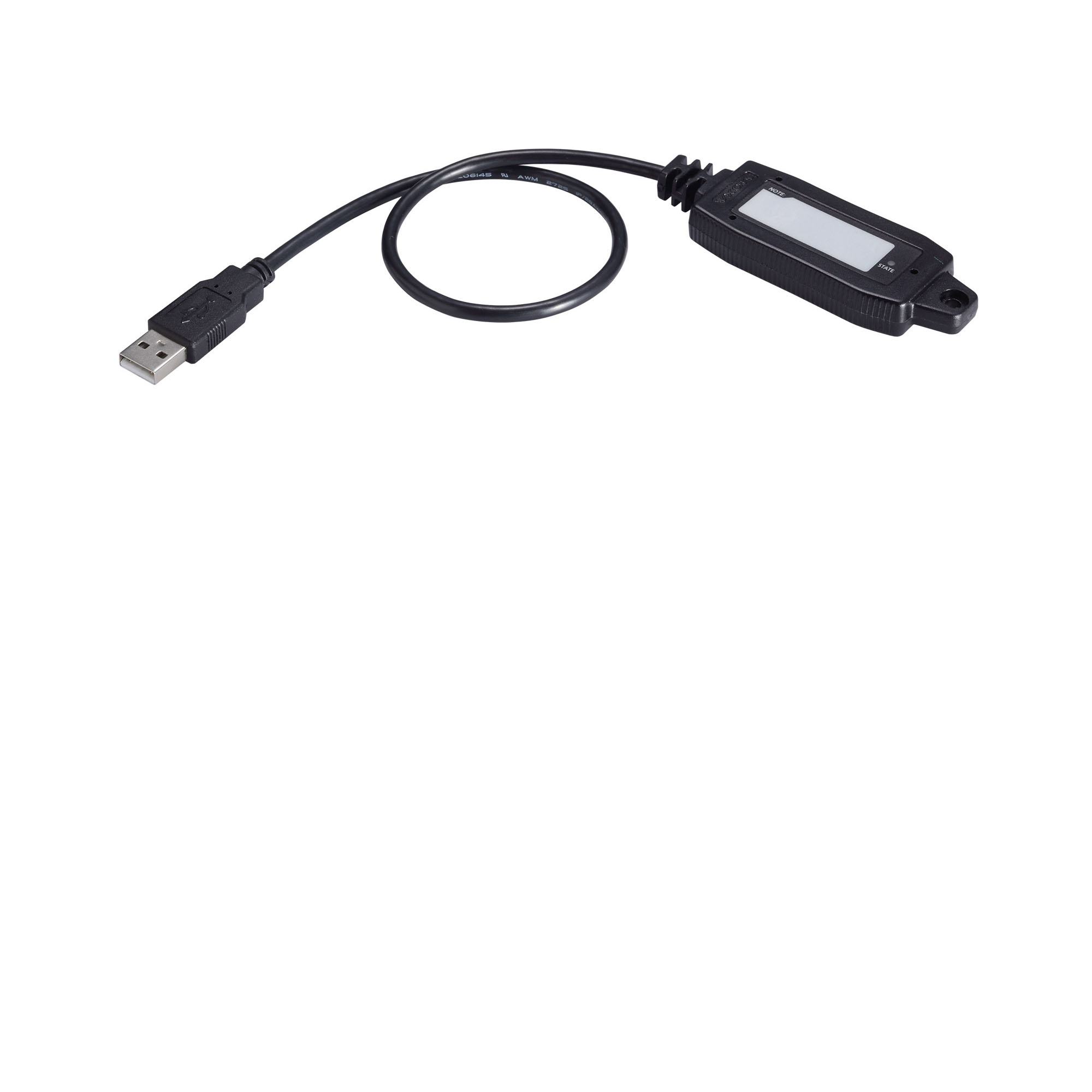

ABC-02 系列

適用於網管型交換器和 WLAN 產品的 USB 配置備份及還原工具

moxa-abc-02-series-image-(1).jpg | Moxa

特色與優點

  • 一鍵備份及自動載入技術,減少系統停機時間
  • 可記錄大量事件日誌的強大故障排除工具
  • 支援 Moxa 的網管型乙太網路交換器和無線 AP/橋接器/用戶端
  • 當變更任何設定時,自動備份交換器配置檔
  • 即插即用的系統配置備份與還原

認證

  • moxa-ce-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

ABC-02 系列 USB 自動備份設定裝置專為 Moxa 的產品所設計。ABC-02 系列可透過 USB 介面儲存並載入配置檔案、備份事件日誌,以及載入韌體。ABC-02 系列可讓您更輕鬆地管理系統參數備份並執行配置。

  • Connector

    USB 2.0 Type A

  • Storage Capacity

    1GB SLC type NAND Flash

  • Input Voltage

    5 VDC (through USB interface)

  • Housing

    PVC molding

  • IP Rating

    IP40

  • Dimensions

    32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)

  • Weight

    50 g (0.11 lb)

  • Installation

    M4 screws (<4 mm)

  • Operating Temperature

    ABC-02-USB: 0 to 60°C (32 to 140°F)
    ABC-02-USB-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032 Class A

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m

支援文件

名稱 類型 語言 版本 發布日期
QIG for ABC-02 Series
351.2 KB
QIG 英文 v2.2 2021年5月3日 2021年5月3日
ABC-02 系列產品資料表
2.0 MB
產品資料表 中文 v1.3 2020年5月22日 2020年5月22日
2D CAD for ABC-02 Series
414.9 KB
2D CAD 英文 2018年11月29日 2018年11月29日

可供選擇的機型 (2)

顯示圖片
moxa-abc-02-usb-image.jpg | MoxaABC-02-USBmoxa-abc-02-usb-t-image.jpg | MoxaABC-02-USB-T
ConnectorUSB 2.0 Type AUSB 2.0 Type A
Storage1 GB1 GB
Operating Temp.0 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細
