8 埠 RS-232 接線盒

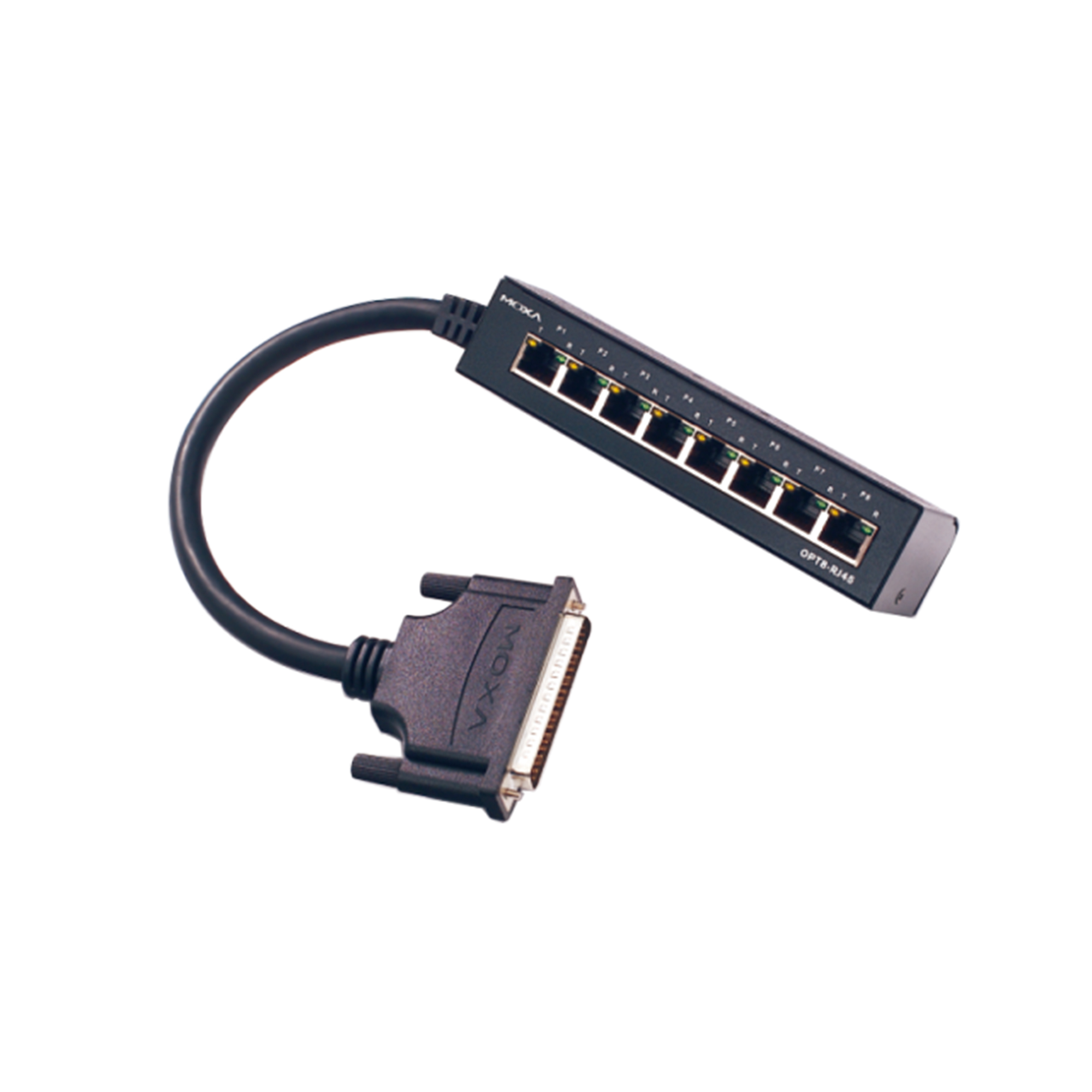

moxa-connection-boxes-image-(1).jpg | Moxa

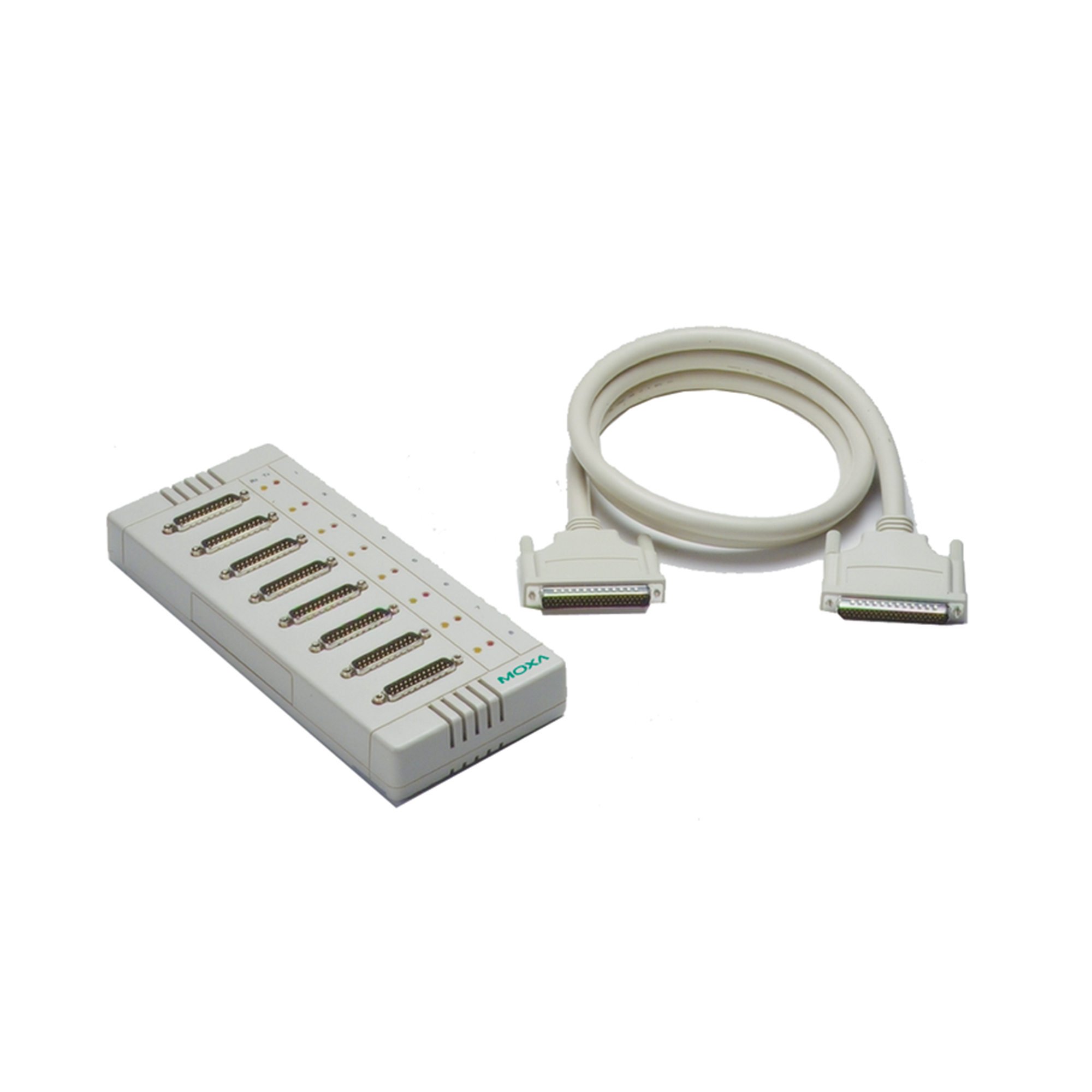

moxa-connection-boxes-image-1-(1).jpg | Moxa

特色與優點

  • 8 個 RS-232 序列埠的接線盒

聯絡銷售顧問

簡介

8 埠 RS-232 接線盒 提供 8 個常用連接埠,包括 DB9、8 針 RJ45 和 DB25,可將序列裝置連接至 序列擴充卡。

接腳安排

  • Board-side Connector

    OPT8-M9/RJ45, OPT 8A/S/B: DB62 (male) x 1
    OPT8-M9+/RJ45+, OPT 8A+/S+/B+: VHDCI 68 x 1

  • Device-side Connector

    OPT8-M9/M9+: DB9 (male) x 8
    OPT8-RJ45/RJ45+: 8-pin RJ45 x 8
    OPT 8A/A+: DB25 (female) x 8
    OPT 8S/S+: DB25 (female) x 8
    OPT 8B/B+: DB25 (male) x 8

  • Connection Cable

    OPT8-M9: DB62 (male) to DB62 (female) 1.5 m connection cable for connecting to the serial board
    OPT8-M9+: VHDCI 68 to DB62 (female) 1.5 m connection cable for connecting to the serial board
    OPT 8A: DB62 (male) to DB62 (male) 1.5 m connection cable for connecting to the serial board
    OPT 8A+: VHDCI 68 to DB62 (male) 1.5 m connection cable for connecting to the serial board
    OPT 8S: DB62 (male) to DB62 (male) 1.5 m connection cable for connecting to the serial board
    OPT 8S+: VHDCI 68 to DB62 (male) 1.5 m connection cable for connecting to the serial board
    OPT 8B: DB62 (male) to DB62 (male) 1.5 m connection cable for connecting to the serial board
    OPT 8B+: VHDCI 68 to DB62 (male) 1.5 m connection cable for connecting to the serial board

  • LED Indicators

    OPT8-M9, OPT 8A/S/B: TxD, RxD indicators for each device-side port
    OPT8-M9+, OPT 8A+/S+/B+: TxD, RxD indicators for each device-side port

  • Baudrate

    OPT 8A/S/B/A+/S+/B+: 50 bps to 921.6 kbps

  • Dimensions

    OPT8-M9/M9+: 90 x 111 x 27.5 mm (3.54 x 4.37 x 1.08 in)
    OPT8-RJ45/RJ45+: 152.8 x 32.8 x 32 mm (6.02 x 1.29 x 1.26 in)
    OPT 8A/B/S/A+/B+/S+: 247 x 108 x 35 mm (9.72 x 4.25 x 1.38 in)

  • Surge Protection

    OPT 8S: 25 kV ESD, 2 kV EFT surge protection

支援文件

名稱 類型 語言 版本 發布日期
接線盒產品資料表
3.7 MB
產品資料表 中文 v1.1 2019年12月25日 2019年12月25日

可供選擇的機型 (10)

顯示圖片

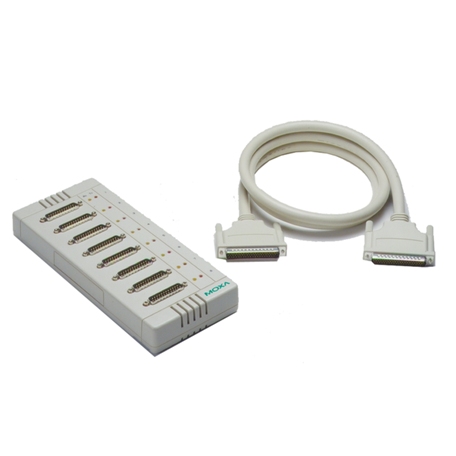

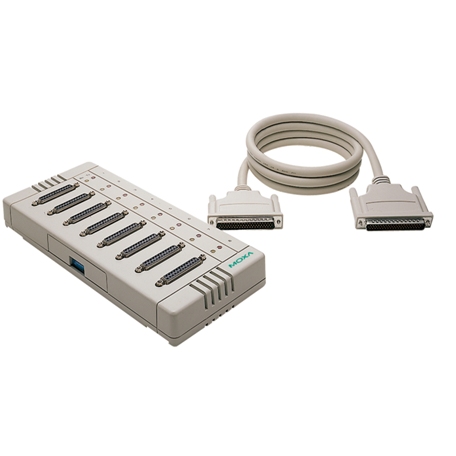

moxa-opt8b-image.jpg | MoxaOPT 8Bmoxa-opt8a-image.jpg | MoxaOPT 8AOPT 8A+OPT 8B+
Board-side ConnectorDB62 (male) x 1DB62 (male) x 1VHDCI 68 x 1VHDCI 68 x 1
Device-side ConnectorDB25 (male) x 8DB25 (female) x 8DB25 (female) x 8DB25 (male) x 8
Dimensions247 x 108 x 35 mm247 x 108 x 35 mm247 x 108 x 35 mm247 x 108 x 35 mm
Connection CableDB62 (male) to DB62 (male), 1.5 mDB62 (male) to DB62 (male), 1.5 mVHDCI 68 to DB62 (male), 1.5 mVHDCI 68 to DB62 (male), 1.5 m
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細

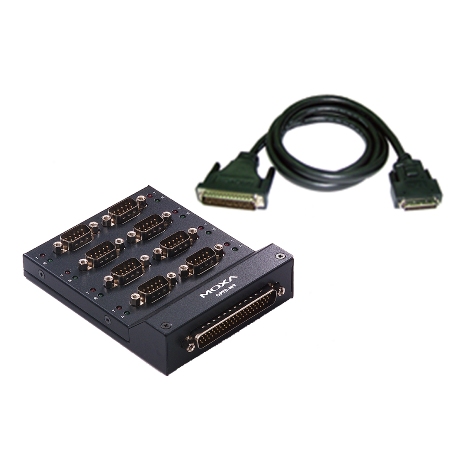

moxa-opt8s-image.jpg | MoxaOPT 8SOPT 8S+moxa-opt8-m9-image.jpg | MoxaOPT8-M9OPT8-M9+
Board-side ConnectorDB62 (male) x 1VHDCI 68 x 1DB62 (male) x 1VHDCI 68 x 1
Device-side ConnectorDB25 (female) x 8DB25 (female) x 8DB9 (male) x 8DB9 (male) x 8
Dimensions247 x 108 x 35 mm247 x 108 x 35 mm90 x 111 x 27.5 mm90 x 111 x 27.5 mm
Connection CableDB62 (male) to DB62 (male), 1.5 mVHDCI 68 to DB62 (male), 1.5 mDB62 (male) to DB62 (female), 1.5 mVHDCI 68 to DB62 (female), 1.5 m
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細

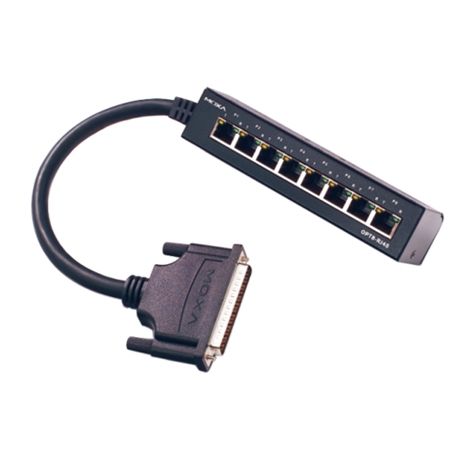

moxa-opt8-rj45-image.jpg | MoxaOPT8-RJ45OPT8-RJ45+
Board-side ConnectorDB62 (male) x 1VHDCI 68 x 1
Device-side Connector8-pin RJ45 x 88-pin RJ45 x 8
Dimensions152.8 x 32.8 x 32 mm152.8 x 32.8 x 32 mm
Connection Cable
加入詢價查看詢價明細加入詢價查看詢價明細
