串列纜線

串列連接纜線

moxa-serial-cables-image-(1).jpg | Moxa
moxa-serial-cables-image-1-(1).jpg | Moxa

特色與優點

  • 延長串列訊號的傳輸距離

聯絡銷售顧問

簡介

Moxa 的串列纜線可延長多埠串列擴充卡的傳輸距離。這也可擴充串列連接的串列通訊埠。

針腳分配

  • Board-side Connector

    CBL-M62M25x8-100: DB62 (male) x 1
    CBL-M62M9x8-100: DB62 (male) x 1
    CBL-M68M25x8-100: VHDCI 68 x 1
    CBL-M68M9x8-100: VHDCI 68 x 1
    CBL-M78M25x8-100: DB78 (male) x 1
    CBL-M78M9x8-100: DB78 (male) x 1
    CBL-M25M9x2-50: DB25 (male) x 1
    CBL-M44M25x4-50: DB44 (male) x 1

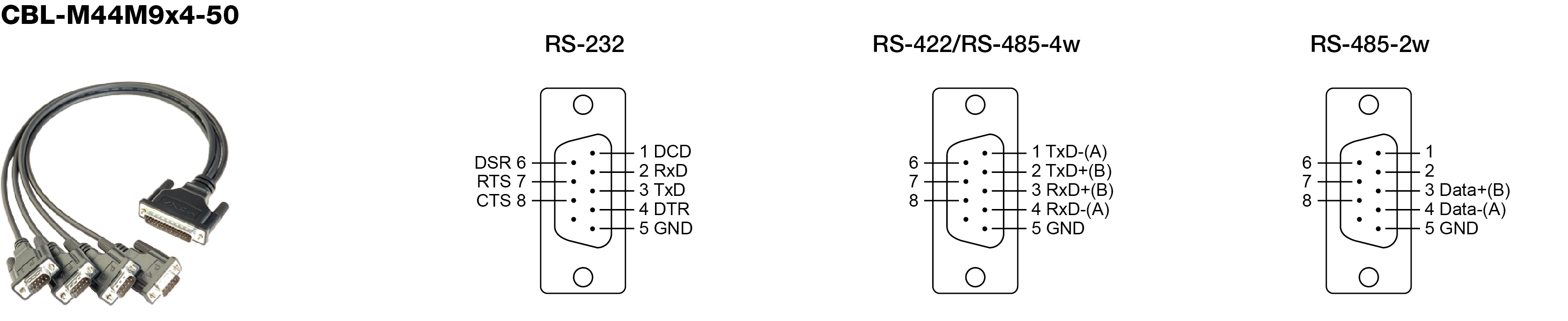

    CBL-M44M9x4-50: DB44 (male) x 1
    CBL-RJ45F25-150: 8-pin RJ45 x 1
    CBL-RJ45F9-150: 8-pin RJ45 x 1
    CBL-RJ45SM25-150: 8-pin RJ45 x 1
    CBL-RJ45SM9-150: 8-pin RJ45 x 1
    CBL-RJ45M25-150: 8-pin RJ45 x 1
    CBL-RJ45M9-150: 8-pin RJ45 x 1
    CBL-RJ45SF25-150: 8-pin RJ45 x 1
    CBL-RJ45SF9-150: 8-pin RJ45 x 1
    CN20030: 10-pin RJ45 x 1
    CN20040: 10-pin RJ45 x 1
    CN20060: 10-pin RJ45 x 1
    CN20070: 10-pin RJ45 x 1

  • Device-side Connector

    CBL-M62M25x8-100: DB25 (male) x 8
    CBL-M62M9x8-100: DB9 (male) x 8
    CBL-M68M25x8-100: DB25 (male) x 8
    CBL-M68M9x8-100: DB9 (male) x 8
    CBL-M78M25x8-100: DB25 (male) x 8
    CBL-M78M9x8-100: DB9 (male) x 8
    CBL-M44M25x4-50: DB25 (male) x 4
    CBL-M44M9x4-50: DB9 (male) x 4
    CBL-M25M9x2-50: DB9 (male) x 2
    CBL-RJ45M25-150: DB25 (male) x 1
    CBL-RJ45M9-150: DB9 (male) x 1
    CBL-RJ45F25-150: DB25 (female) x 1
    CBL-RJ45F9-150: DB9 (female) x 1
    CBL-RJ45SM25-150: DB25 (male) x 1
    CBL-RJ45SM9-150: DB9 (male) x 1
    CBL-RJ45SF25-150: DB25 (female) x 1
    CBL-RJ45SF9-150: DB9 (female) x 1
    CN20030: DB25 (female) x 1
    CN20040: DB25 (male) x 1
    CN20060: DB9 (male) x 1
    CN20070: DB9 (female) x 1

  • Cable Length

    CBL-M62M25x8-100: 1 m (3.3 ft)
    CBL-M62M9x8-100: 1 m (3.3 ft)
    CBL-M68M25x8-100: 1 m (3.3 ft)
    CBL-M68M9x8-100: 1 m (3.3 ft)
    CBL-M78M25x8-100: 1 m (3.3 ft)
    CBL-M78M9x8-100: 1 m (3.3 ft)
    CBL-M25M9x2-50: 50 cm (19.69 in)
    CBL-M44M25x4-50: 50 cm (19.69 in)
    CBL-M44M9x4-50: 50 cm (19.69 in)
    CBL-RJ45F25-150: 1.5 m (4.9 ft)
    CBL-RJ45F9-150: 1.5 m (4.9 ft)
    CBL-RJ45SM25-150: 1.5 m (4.9 ft)
    CBL-RJ45SM9-150: 1.5 m (4.9 ft)
    CBL-RJ45SF25-150: 1.5 m (4.9 ft)
    CBL-RJ45SF9-150: 1.5 m (4.9 ft)
    CBL-RJ45M25-150: 1.5 m (4.9 ft)
    CBL-RJ45M9-150: 1.5 m (4.9 ft)
    CN20030: 1.5 m (4.9 ft)
    CN20040: 1.5 m (4.9 ft)
    CN20060: 1.5 m (4.9 ft)
    CN20070: 1.5 m (4.9 ft)

支援文件

篩選

全部 產品資料表
名稱 類型 語言 版本 發布日期
串列纜線產品資料表
4.5 MB 		產品資料表 中文 v1.1 2020年5月5日 2020年5月5日

可供選擇的機型 (21)

顯示圖片
比較
moxa-cbl-rj45f25-150-image.jpg | MoxaCBL-RJ45F25-150
比較
moxa-cbl-m78m25x8-100-image.jpg | MoxaCBL-M78M25x8-100
比較
moxa-cbl-rj45m9-150-image.jpg | MoxaCBL-RJ45M9-150
比較
moxa-cbl-rj45m25-150-image.jpg | MoxaCBL-RJ45M25-150
Board-side Connector1 x 8-pin RJ45 1 x DB78 (male) 1 x 8-pin RJ45 1 x 8-pin RJ45
Device-side Connectors1 x DB25 (male) 8 x DB25 (male) 1 x DB9 (male) 1 x DB25 (male)
Cable Length150 cm100 cm150 cm150 cm
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-cn20030-image.jpg | MoxaCN20030
比較
moxa-cbl-m62m9x8-100-image.jpg | MoxaCBL-M62M9x8-100
比較
moxa-cbl-rj45sf9-150-image.jpg | MoxaCBL-RJ45SF9-150
比較
moxa-cn20070-image.jpg | MoxaCN20070
Board-side Connector1 x 10-pin RJ45 1 x DB62 (male) 1 x 8-pin RJ45 1 x 10-pin RJ45
Device-side Connectors1 x DB25 (female) 8 x DB9 (male) 1 x DB9 (male) 1 x DB9 (female)
Cable Length150 cm100 cm150 cm150 cm
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-cn20060-image.jpg | MoxaCN20060
比較
moxa-cbl-m44m9x4-50-image.jpg | MoxaCBL-M44M9x4-50
比較
moxa-cbl-m68m25x8-100-image.jpg | MoxaCBL-M68M25x8-100
比較
moxa-cbl-rj45f9-150-image.jpg | MoxaCBL-RJ45F9-150
Board-side Connector1 x 10-pin RJ45 1 x DB44 (male) 1 x VHDCI 68 1 x 8-pin RJ45
Device-side Connectors1 x DB9 (male) 4 x DB9 (male) 8 x DB25 (male) 1 x DB9 (male)
Cable Length150 cm50 cm100 cm150 cm
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-cbl-m78m9x8-100-image.jpg | MoxaCBL-M78M9x8-100
比較
moxa-cn20040-image.jpg | MoxaCN20040
比較
moxa-cbl-rj45sf25-150-image.jpg | MoxaCBL-RJ45SF25-150
比較
moxa-cbl-m25m9x2-50-image.jpg | MoxaCBL-M25M9x2-50
Board-side Connector1 x DB78 (male) 1 x 10-pin RJ45 1 x 8-pin RJ45 1 x DB25 (male)
Device-side Connectors8 x DB9 (male) 1 x DB25 (male) 1 x DB25 (male) 2 x DB9 (male)
Cable Length100 cm150 cm150 cm50 cm
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-cbl-m68m9x8-100-image.jpg | MoxaCBL-M68M9x8-100
比較
moxa-cbl-rj45sm25-150-image.jpg | MoxaCBL-RJ45SM25-150
比較
moxa-cbl-m44m25x4-50-image.jpg | MoxaCBL-M44M25x4-50
比較
moxa-cbl-rj45sm9-150-image.jpg | MoxaCBL-RJ45SM9-150
Board-side Connector1 x VHDCI 68 1 x 8-pin RJ45 1 x DB44 (male) 1 x 8-pin RJ45
Device-side Connectors8 x DB9 (male) 1 x DB25 (male) 4 x DB25 (male) 1 x DB9 (male)
Cable Length100 cm150 cm50 cm150 cm
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-cbl-m62m25x8-100-image.jpg | MoxaCBL-M62M25x8-100
Board-side Connector1 x DB62 (male)
Device-side Connectors8 x DB25 (male)
Cable Length100 cm
加入詢價查看詢價明細
