SFP-10G 系列

1 埠 10 Gigabit 乙太網路 SFP+ 模組

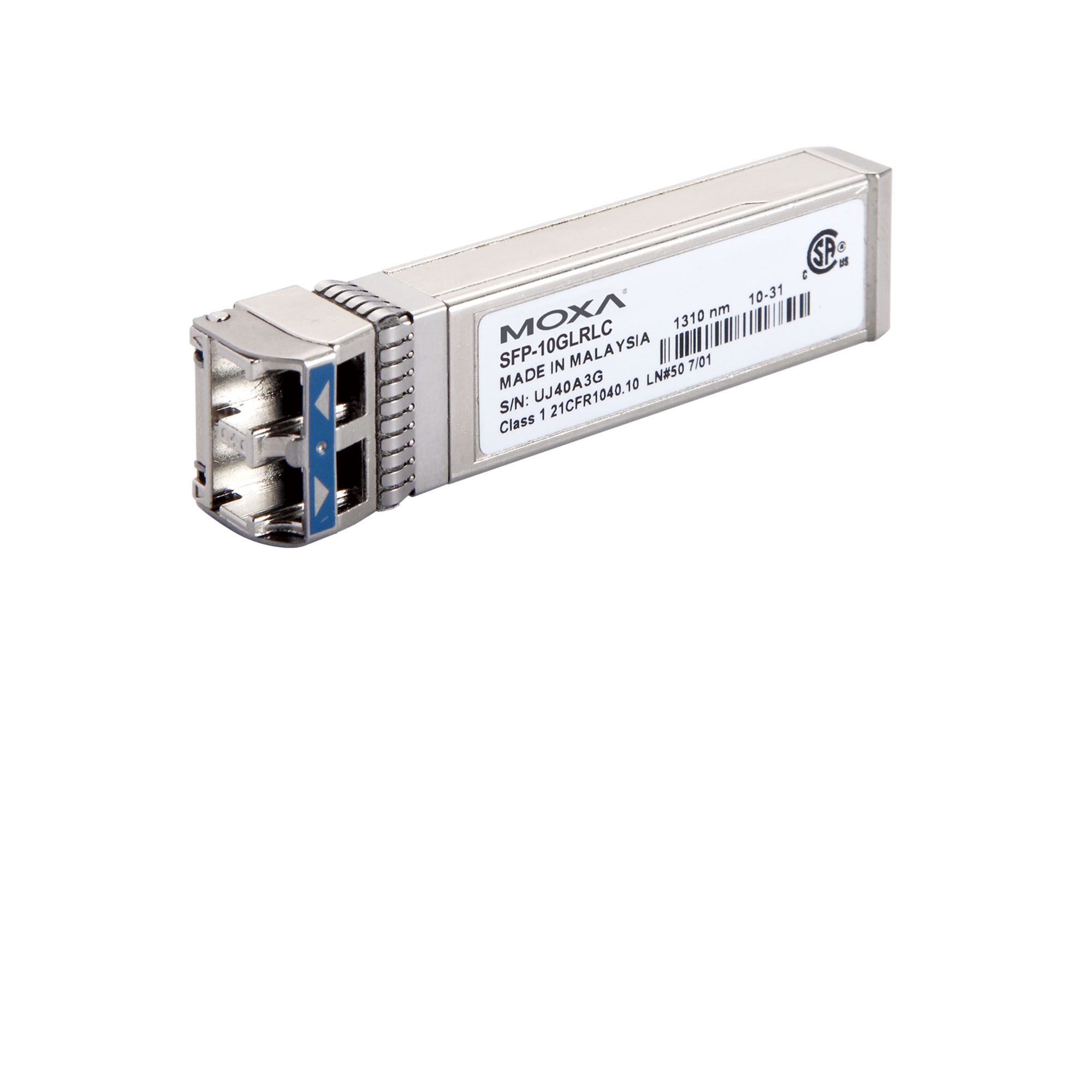

moxa-sfp-10g-series-image-(1).jpg | Moxa

特色與優點

  • 數位診斷監控功能
  • 符合 IEEE 802.3ae 標準
  • 符合 SFF-8432 SFP+ MSA 標準
  • 可熱插拔的 LC 雙工連接器
  • 符合 Class 1 Laser 國際安全標準 IEC 60825-1
  • 符合 RoHS 標準

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-rec-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

SFP-10G 系列 1 埠 10 Gigabit 乙太網路 SFP 模組可作為部分 Moxa 交換器的選配配件。



  • Connectors

    Duplex LC connector

  • Optical Fiber



  • Optical Fiber





  • Optical Fiber

    Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)

  • Power Consumption

    SFP-10GSRLC: Max. 1.5 W
    SFP-10GLRLC: Max. 1.5 W
    SFP-10GERLC: Max. 1.5 W
    SFP-10GSRLC-T: Max. 1 W
    SFP-10GLRLC-T: Max. 1 W
    SFP-10GERLC-T: Max. 2.2 W
    SFP-10GZRLC-T: Max. 2.5 W

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 176°F)
    Wide Temp.Models: -40 to 85°C (-40 to 185°F)
    Note: When the SFP-10GERLC is used with the ICS-G7750A/G7752A/G7850A/G7852A series, the operating temperature is 0 to 55°C (32 to 131°F)
    Note: Wide temperature SFP-10G can be used with ICS-G7526A/G7528A/G7826A/G7828A series only.When the SFP-10GZRLC-T used, the operating temperature is -40 to 60°C (-40 to 176°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    Standard Models: CE, FCC, TÜV, UL 60950-1, Wide Temp.Models: CE, FCC, IEC 60825-1, UL 62368-1, IEC 62368-1, EN 62368-1

支援文件

名稱 類型 語言 版本 發布日期
Moxa Ethernet SFP Transceiver Product Compatibility Matrix
579.4 KB
相容性指南 英文 v1.5 2023年9月28日 2023年9月28日
SFP-10G 系列產品資料表
2.4 MB
產品資料表 中文 v1.2 2020年4月29日 2020年4月29日

可供選擇的機型 (4)

顯示圖片

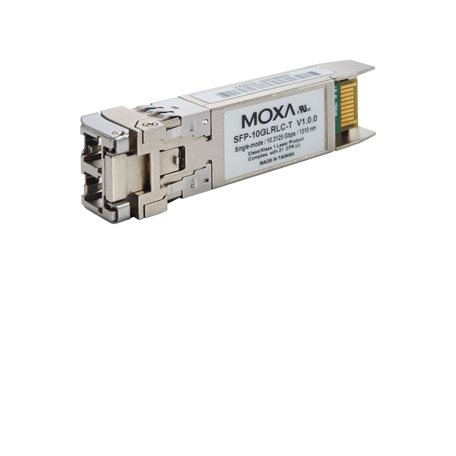

moxa-sfp-10glrlc-t-image.jpg | MoxaSFP-10GLRLC-Tmoxa-sfp-10gsrlc-t-image.jpg | MoxaSFP-10GSRLC-Tmoxa-sfp-10gerlc-t-image.jpg | MoxaSFP-10GERLC-Tmoxa-sfp-10gzrlc-t-image.jpg | MoxaSFP-10GZRLC-T
Ports1 x 10GBase-LR, single-mode1 x 10GBase-SR, multi-mode1 x 10GBase-ER, single-mode1 x 10GBase-ZR, single-mode
ConnectorLCLCLCLC
Transmission Distance10 km33 m/82 m/300 m/400 m40 km80 km
Operating Temp.-40 to 85°C-40 to 85°C-40 to 85°C-40 to 85°C
