MOXA

ARM 電腦

Moxa ARM 架構電腦系列提供支援無線功能的小型無風扇工業電腦，專為空間有限的自動化應用而設計。這些電腦採特殊設計，可穩定地長期運作。所有機型均提供 5 年硬體保固和 10 年 Moxa Industrial Linux 支援，是遠端監控和資料擷取應用的理想選擇。

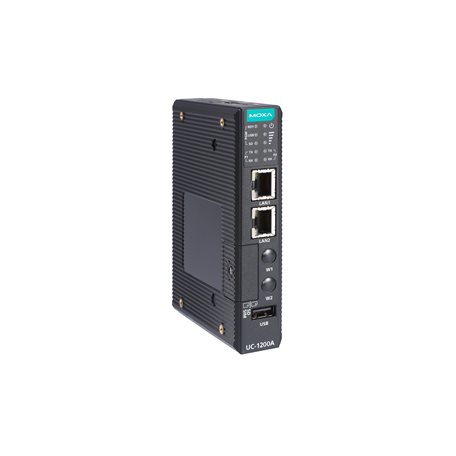

UC-1222A
UC-1200A 系列

Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 60°C operating temperature

Computer

  • CPU

    • Armv8 Cortex-A53 dual-core 1GHz

  • DRAM

    • 2 GB DDR4

  • Pre-installed OS

    • Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOL
      See www.moxa.com/MIL

  • Storage Pre-installed

    • 16 GB eMMC

  • Storage Slot

    • micro SD slots x 1
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (terminal block)

  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors

  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

  • Expansion Slots

    • mPCIe slots x 1

  • Number of SIMs

    • 1

  • SIM Format

    • Nano

  • Buttons

    • Reset button

  • TPM

    • TPM v2.0
Ethernet Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Baudrate

    • 300 bps to 921.6 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2

  • Flow Control

    • RTS/CTS
      XON/XOFF
      Automatic Data Direction Control (ADDC) for RS-485
      RTS Toggle (RS-232 only)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
LED Indicators

  • System

    • Power x 1
      SW ready (programmable)
      USB (programmable) x 1
      Micro SD slot (programmable) x 1
      Serial Port: TX x 2, RX x 2

  • Wireless Signal Strength

    • Cellular x 2; programmable
      Disconnected: None
      Very Poor Signal: 1 LED (blinking)
      Poor Signal: 1 LED
      Good Signal: 2 LEDs
Power Parameters

  • Input Current

    • 600 mA @ 12 VDC
      300 mA @ 24 VDC

  • Input Voltage

    • 12 to 24 VDC

  • Power Consumption

    • 4.5 W (minimum; without external USB device attached)
      7.2 W (maximum; with external USB device attached)
Reliability

  • Alert Tools

    • External RTC (real-time clock)
      External WDT (watchdog timer)
Physical Characteristics

  • Dimensions

    • 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)

  • Weight

    • 224 g (0.5 lb)

  • Housing

    • Polycarbonate (PC)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 60°C (-40 to 140°F)

  • Storage Temperature (package included)

    • -40 to 80°C (-40 to 176°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27

  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-5 L-PE: 1 kV ; L –L: 0.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • EN 62368-1
      UL 62368-1

  • International Approval

    • RCM
      KC
      BSMI

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 924,676 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
