UC-3400A 系列

具有無線擴充功能的 Arm Cortex-A53 四核心 64 位元電腦

moxa-uc-3400a-series-image-(1).jpg | Moxa
moxa-uc-3400a-series-image-1-(1).jpg | Moxa
moxa-uc-3400a-series-image-2-(1).jpg | Moxa
moxa-uc-3400a-series-image-3-(1).jpg | Moxa

特色與優點

  • Armv8 Cortex-A53 1.4 GHz 處理器
  • 整合式 4G LTE Cat.4 模組,含雙 SIM 並通過 AT&T 認證
  • 內建 Wi-Fi 6
  • 2 個自動感應 10/100/1000 Mbps 乙太網路連接埠
  • CAN 連接埠,提供 2-kV 隔離保護
  • Moxa 工業 Linux,提供 10 年超長期間支援
  • 符合 IEC 62443-4-2 安全等級 2 要求
  • 通過 CE/FCC/UL 認證
  • -40°C 至 70°C 操作溫度範圍

認證

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

Moxa 的 UC-3400A 系列電腦可作為資料預先處理與傳輸的現場邊緣閘道器使用,也可用於其他嵌入式資料擷取應用。該系列包含多種型號,每一個型號都支援不同的無線選項與通訊協定。UC-3400A 的進階散熱設計使其適用於從 -40 到 70°C 的溫度範圍。事實上,Wi-Fi 與 LTE 連線可同時在冷熱環境中使用,以最大化嚴苛環境應用中資料預先處理與傳輸的能力。

UC-3400A 不僅僅只是硬體解決方案。為了提供 Moxa Arm 架構電腦的最佳使用者體驗,UC-3400A 配備了 Moxa 工業 Linux 系統,這是一種由 Moxa 開發並長期支援的高效能工業等級Linux。

應用

  • 遠端終端裝置 (RTU)

  • 資料擷取

  • M2M 通訊(智慧閘道)

  • 數位看板

  • 工廠自動化

  • 車載監控/數據記錄器(交通運輸)

  • 可編程路由器

  • 能源使用最佳化

  • 預測性維護

  • 資產管理

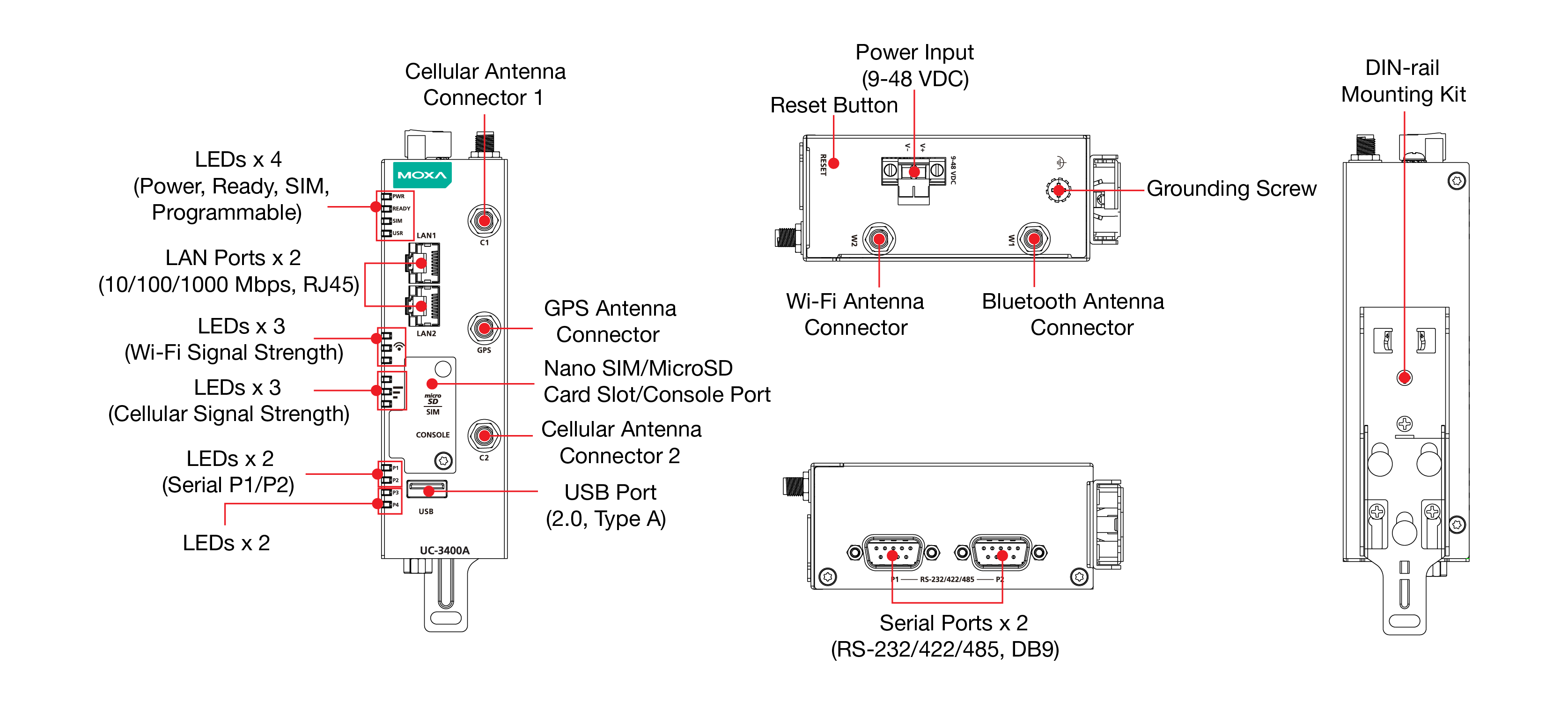

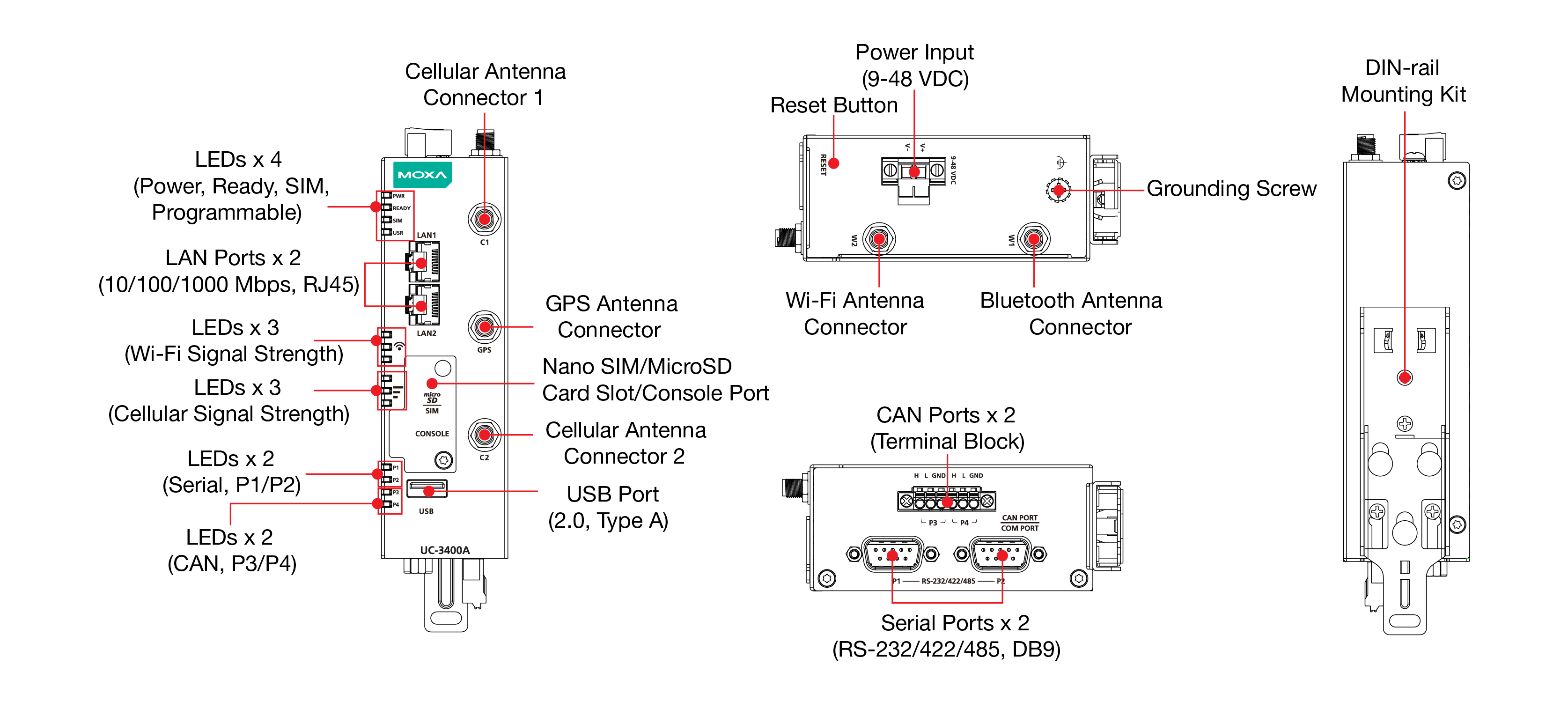

外觀

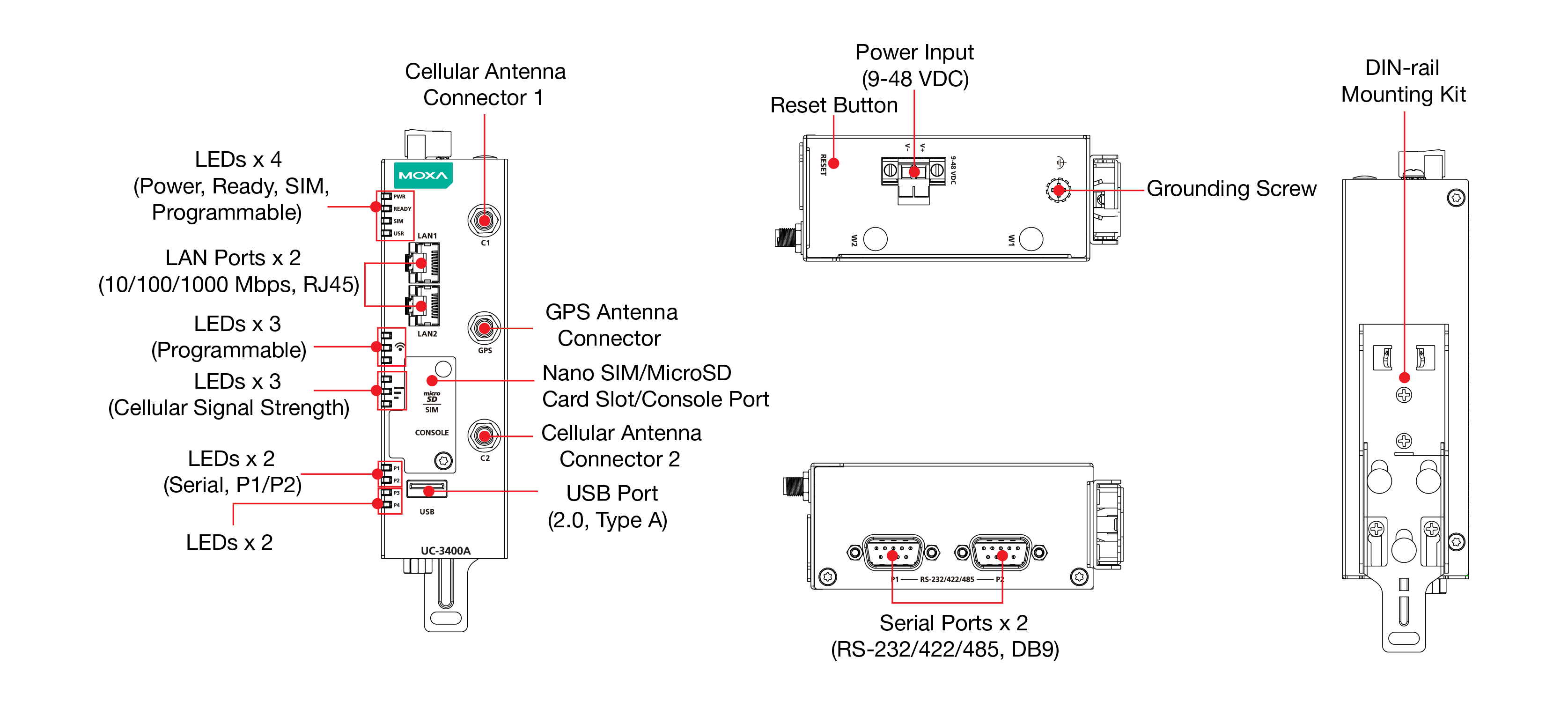

UC-3420A-T-LTE

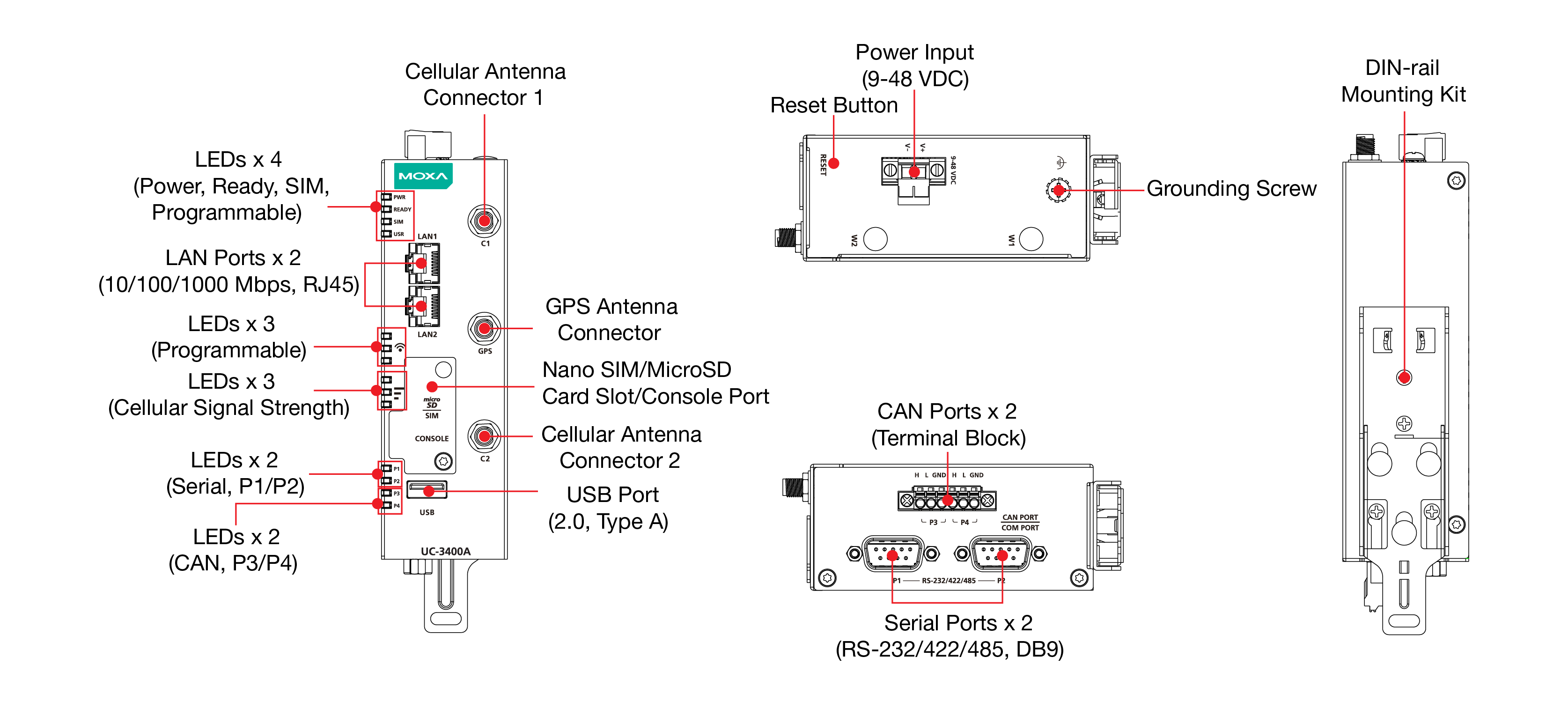

UC-3424A-T-LTE

  • CPU

    Arm Cortex-A53 quad-core 1.4 GHz

  • DRAM

    4 GB DDR4

  • Supported OS

    Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL
    See www.moxa.com/MIL

  • Storage Pre-installed

    16 GB eMMC

  • Expansion Slots

    microSD socket x 1

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • CAN Ports

    UC-3424A-T-LTE:
    CAN 2.0 A/B x 2 (DB9 male)

  • USB 2.0

    USB 2.0 hosts x 1, type-A connectors

  • Cellular Antenna Connector

    SMA x 2

  • SIM Format

    Nano

  • Number of SIMs

    2

  • GPS Antenna Connector

    SMA x 1

  • Wi-Fi Antenna Connector

    RP-SMA x 2

  • Console Port

    RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)

  • TPM

    TPM v2.0

  • No. of Ports

    2

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • No. of Ports

    2

  • Baudrate

    50 bps to 921.60 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS, XON/XOFF
    ADDC (automatic data direction control) for RS-485

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • No. of Ports

    UC-3424A-T-LTE: 2

  • Baudrate

    10 to 1000 kbps

  • Industrial Protocols

    CAN 2.0A
    CAN 2.0B

  • Connector

    6-pin terminal block

  • Isolation

    2 kV (built-in)

  • Signals

    CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND

  • Band Options

    LTE bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 4 (1700
    MHz) / Band 5 (850 MHz) / Band 7 (2600 MHz) / Band 8 (700 MHz) / Band 9 (1800 MHz) /
    Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 18 (850 MHz) /
    Band 19 (850 MHz) / Band 20 (800 MHz) / Band 25 (1900 MHz) / Band 26 (850 MHz) /
    Band 28 (700 MHz)
    3G bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850
    MHz) / Band 6 (800 MHz) / Band 8 (700 MHz) / Band 19 (850 MHz)
    2G bands: Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (700
    MHz)

  • Receiver Types

    GPS/GLONASS/BeiDou/Galileo/QZSS

  • Accuracy

    Position: < 2.0 m @CEP50

  • Time to First Fix (TTFF)

    Hot start: 1.1 s
    Warm start: 22.1 s
    Cold start: 29.9 s

  • Sensitivity

    Tracking: -160 dBm
    Acquisition: -147 dBm
    Cold starts: -145 dBm

  • Update Rate

    Minimum 1 Hz

  • WLAN Standards

    802.11a/b/g/n/ac/ax

  • Frequency Band

    2.4 GHz / 5 GHz

  • Hardware-based Security

    TPM 2.0
    Hardware Root of Trust Secure Boot

  • Intrusion Detection

    Host-based Intrusion Detection

  • Security Tools

    Security Diagnostic Tool
    Security Event Auditing
    Secure Update

  • Disk Protection

    LUKS Disk Encryption

  • Recovery

    One-step recovery to the last known secure state
    Dual-system design with automatic failback

  • Reliability

    Network Keep Alive
    Network Failover and Failback

  • System

    Power x 1
    READY (device bootup) x 1
    SIM card indicator x 1

  • User Programmable

    1

  • LAN

    P1, P2: TX, RX per port (10/100/1000 Mbps)

  • CAN

    UC-3424A-T-LTE:
    P3, P4: 1 per port for 2 CAN ports

  • Wireless Signal Strength

    UC-3420A-T-LTE/UC-3424A-T-LTE:
    Cellular x 3

  • Input Current

    1.09 A @ 9 VDC, 0.21 A @ 48 VDC

  • Input Voltage

    9 to 48 VDC

  • Power Consumption

    10.8 W (max.)

  • Automatic Reboot Trigger

    External RTC (real-time clock)

  • Alert Tools

    External WDT (watchdog timer)

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    130 x 92 x 41 mm (5.12 x 3.62 x 1.61 in)

  • Weight

    Product only: 550 g (1.22 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4
    UKCA
    RCM

  • EMI

    FCC Part 15B Class A
    ICES-003 Class A
    EN 55032 Class A
    EN 61000-6-4 Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV, Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF: 30 A/m

  • Radio Frequency

    All models:
    CE (RED)
    FCC
    ISED
    UKCA
    RCM
    NCC
    UC-342x models:
    TELEC

  • Safety

    EN 62368-1
    UL 62368-1

  • Vibration

    IEC 60068-2-64
    2 grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)

  • Shock

    IEC 60068-2-27

  • Carrier Approvals

    AT&T
    Verizon
    (approval expected in Q1 2025)
    PTCRB

  • International Approval

    CE (RED)
    FCC
    ISED
    UKCA
    RCM
    NCC
    UC-342x models:
    TELEC

  • Hazardous Locations

    Expected completion in Q1, 2025
    Class I Division 2
    ATEX

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    1,461,405 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
OS Image for UC-3400A Series
294.2 MB
韌體
SHA-512
v1.0
  • Moxa Industrial Linux 3 (Debian 11)
2025年2月10日 2025年2月10日 版本說明
Moxa Swift Utility (batch provisioning tool)
94.3 MB
工具程式
SHA-512
v1.0.1
  • Windows 10
  • Windows 11
2025年1月10日 2025年1月10日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
QIG for UC-3400A Series
2.0 MB
QIG 英文 v1.2 2025年5月21日 2025年5月21日
UC-3400A 系列產品資料表
4.2 MB
產品資料表 中文 v1.0 2025年2月26日 2025年2月26日
Moxa Industrial Linux 3.x (Debian 11) Arm-based Computers Manual (with Security Hardening Guide)
4.5 MB
使用者手冊 英文 v2.1 2025年2月12日 2025年2月12日
Manual for UC-3400A Series (hardware)
3.6 MB
使用者手冊 英文 v1.0 2025年2月10日 2025年2月10日
Declaration of Conformity for UC-3400A Series (MXEG3400)
364.6 KB
聲明書 英文 v1.0 2025年2月5日 2025年2月5日
