UC-4400A 系列

Arm Cortex-A53 四核心 64 位元電腦，具備 LTE/5G 與 Wi-Fi 6E 功能

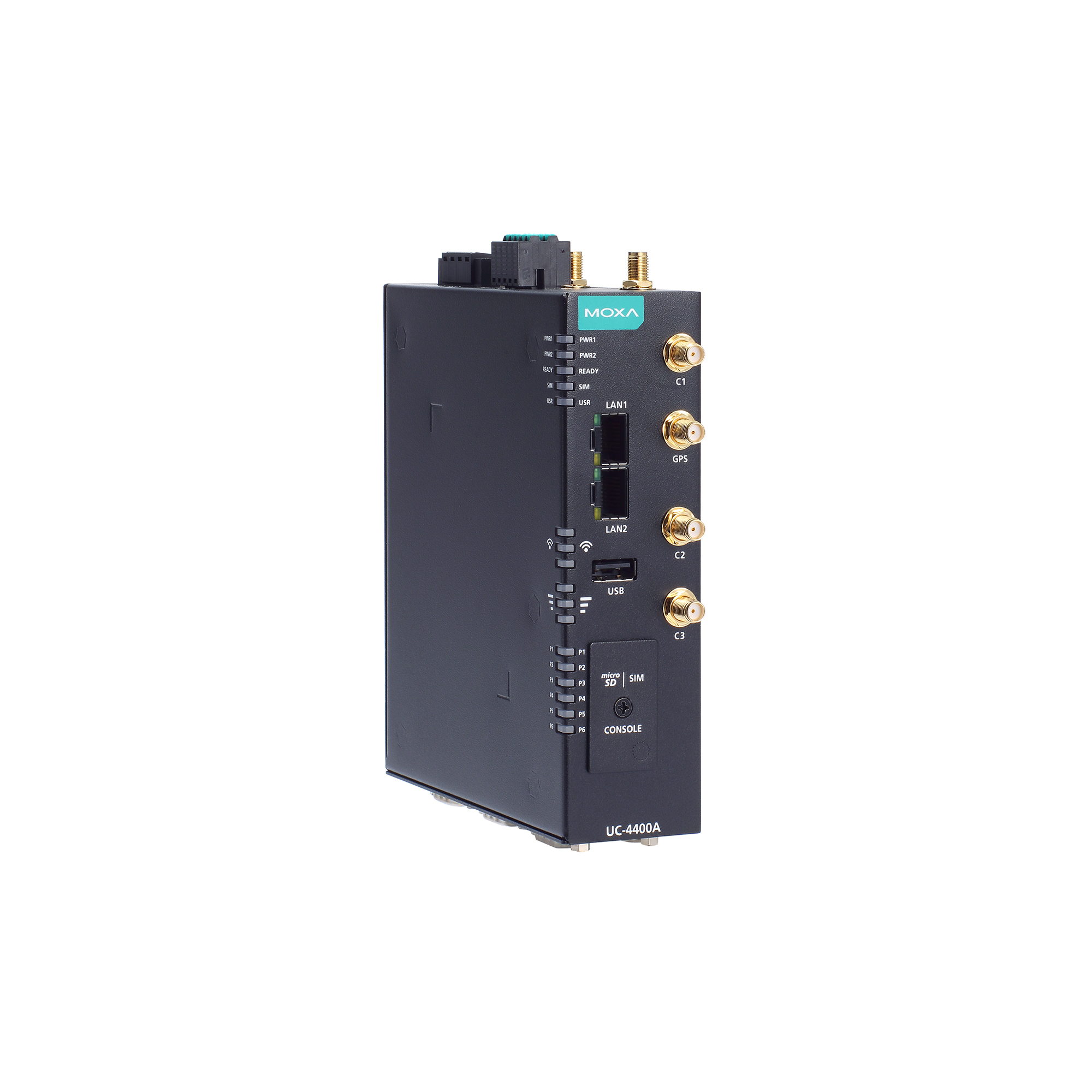

moxa-uc-4400a-series-image-(1).jpg | Moxa

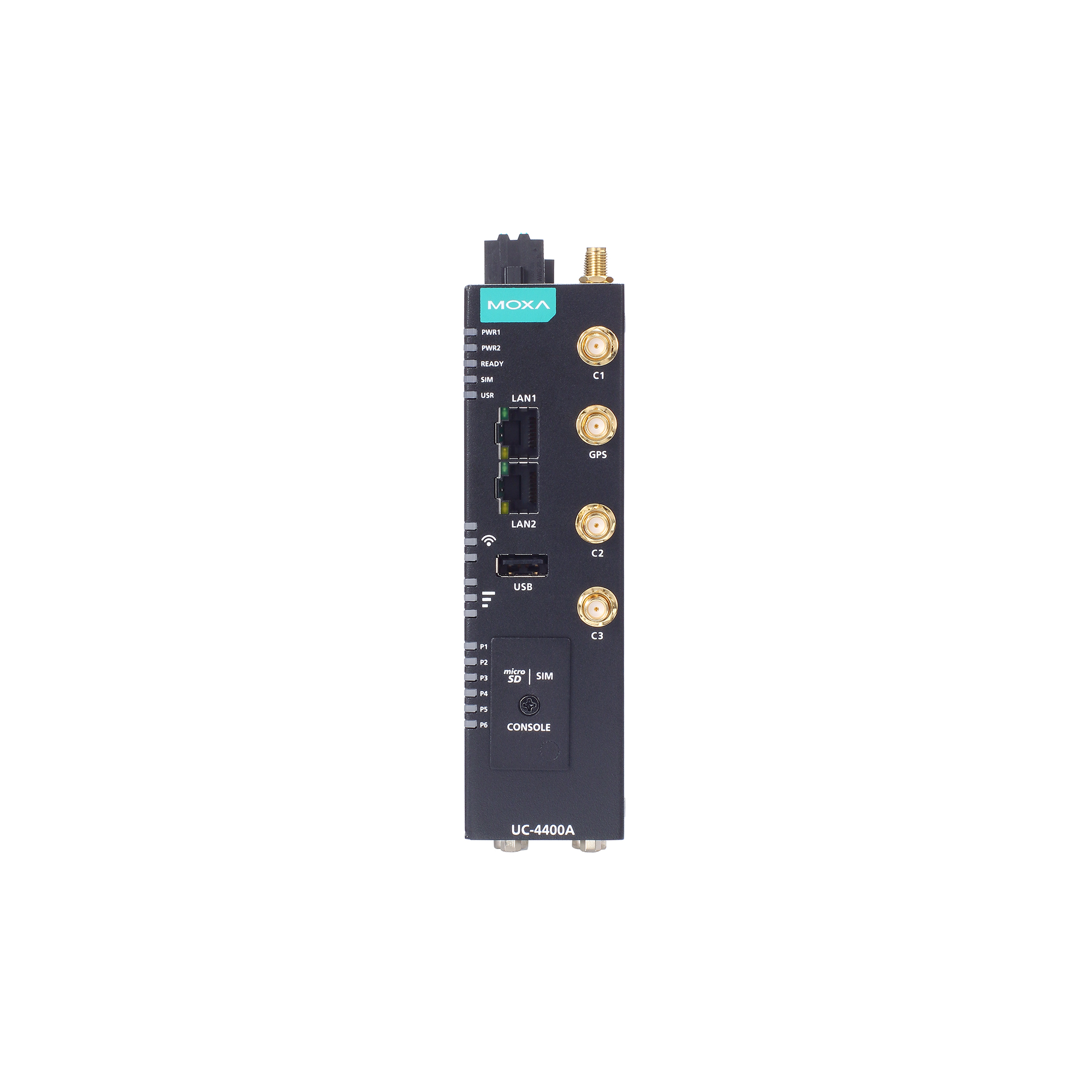

moxa-uc-4400a-series-image-1-(1).jpg | Moxa

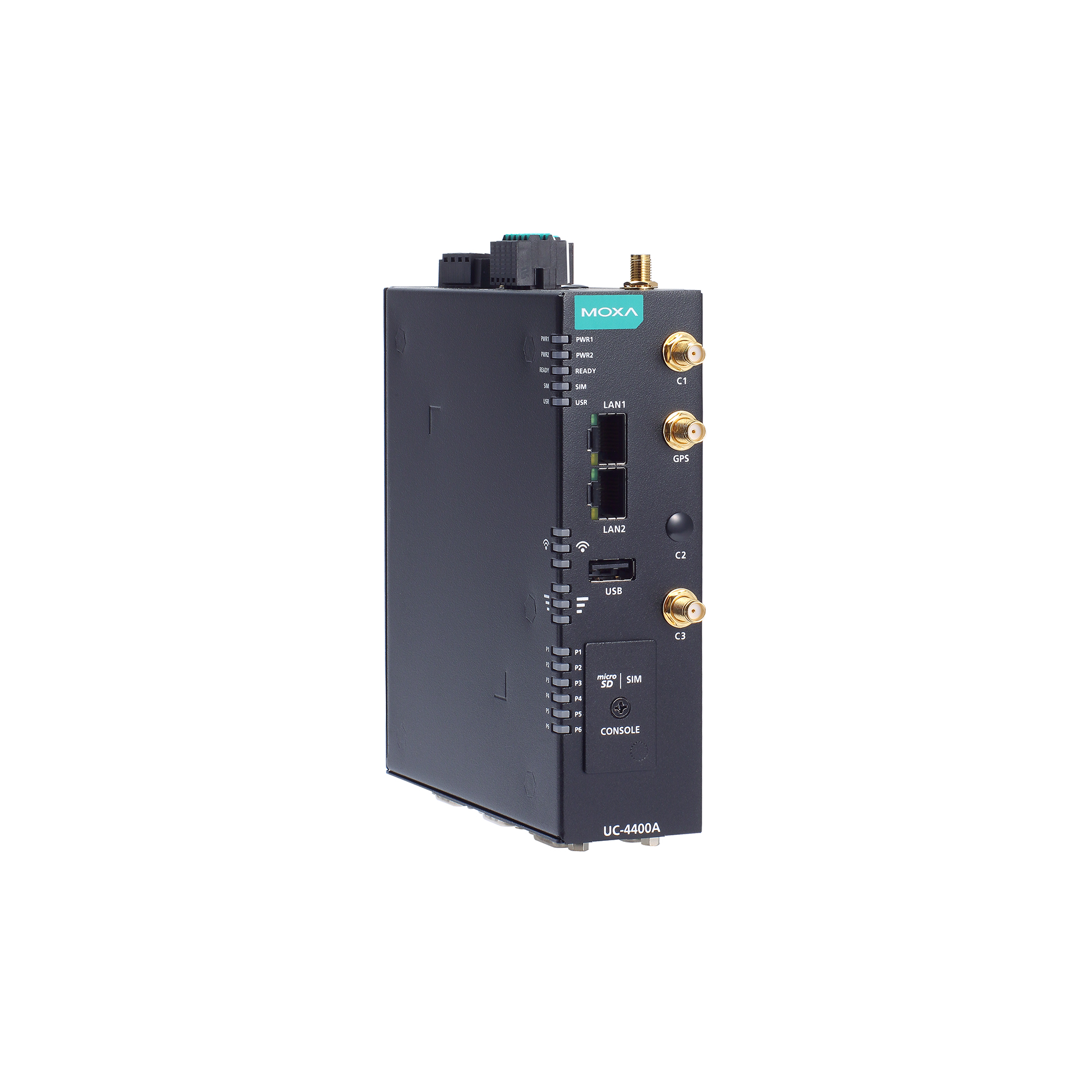

moxa-uc-4400a-series-image-2-(1).jpg | Moxa

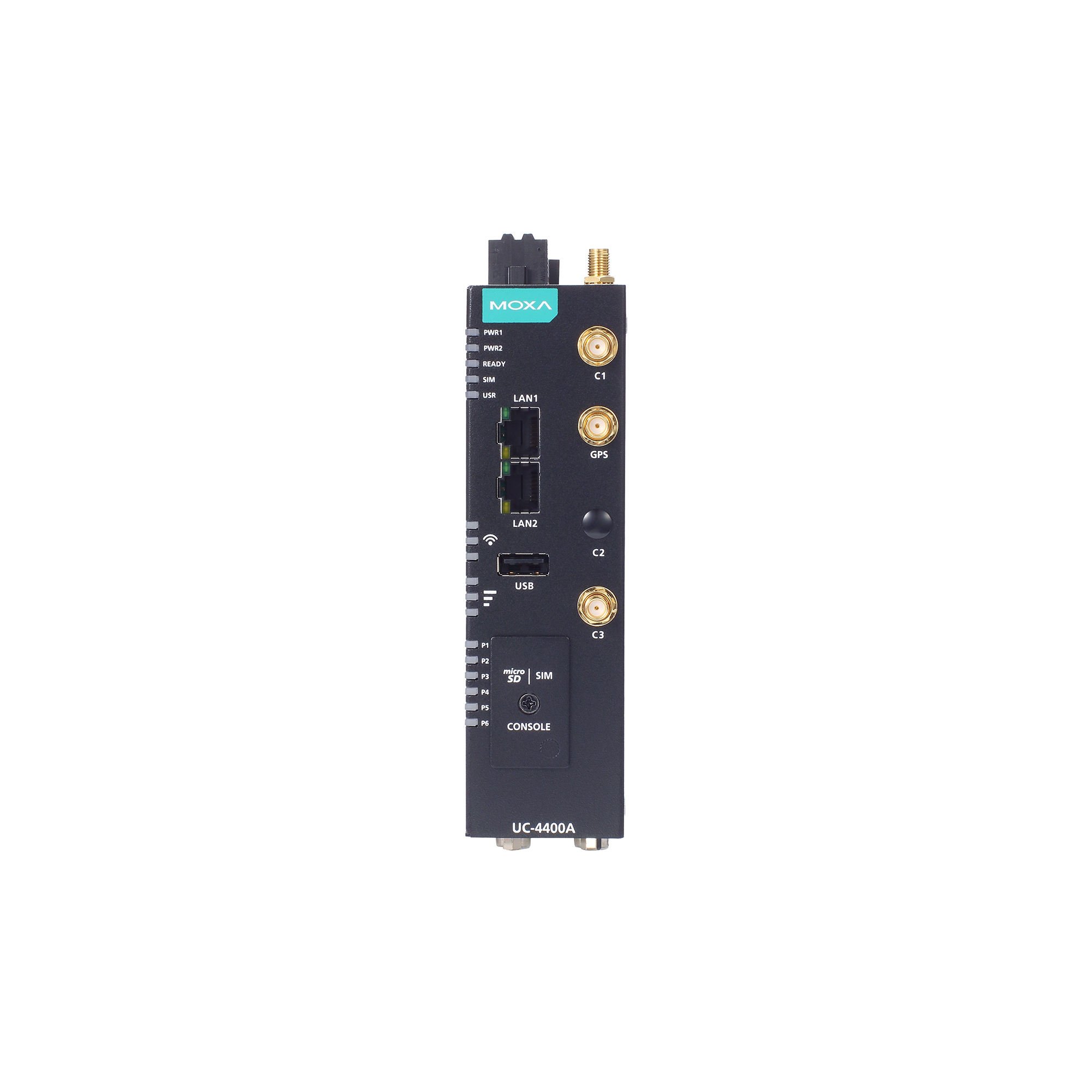

moxa-uc-4400a-series-image-3-(1).jpg | Moxa

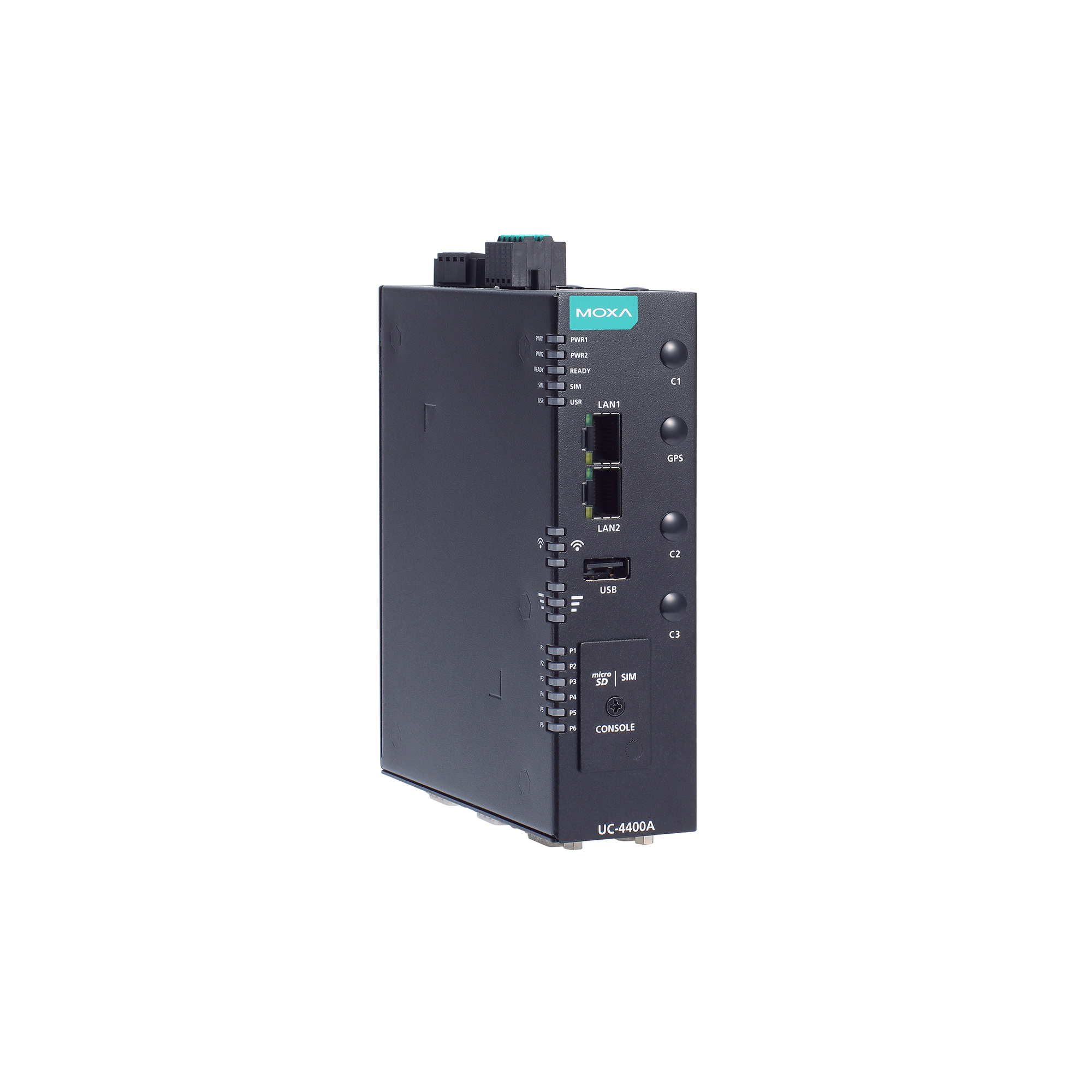

moxa-uc-4400a-series-image-4-(1).jpg | Moxa

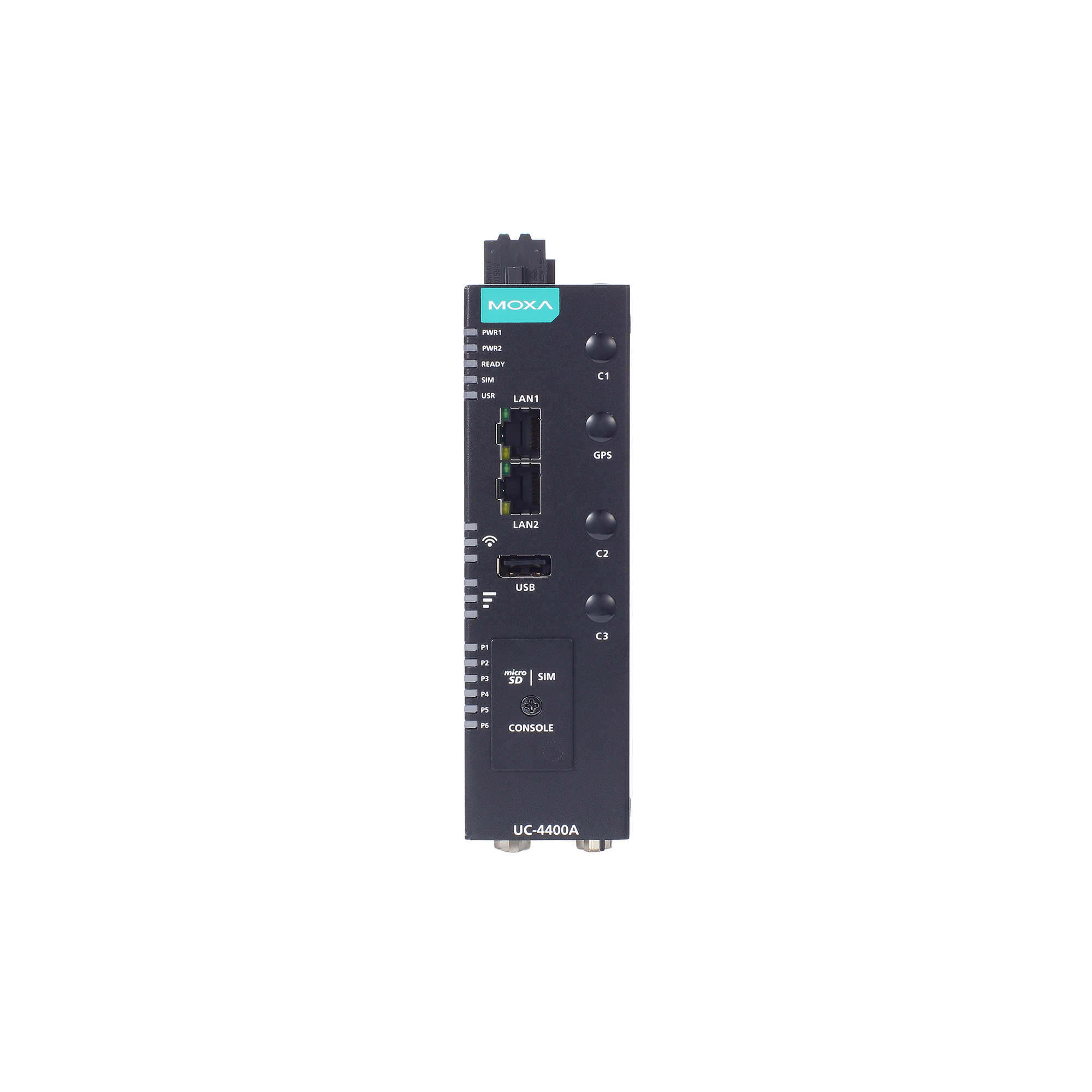

moxa-uc-4400a-series-image-5-(1).jpg | Moxa

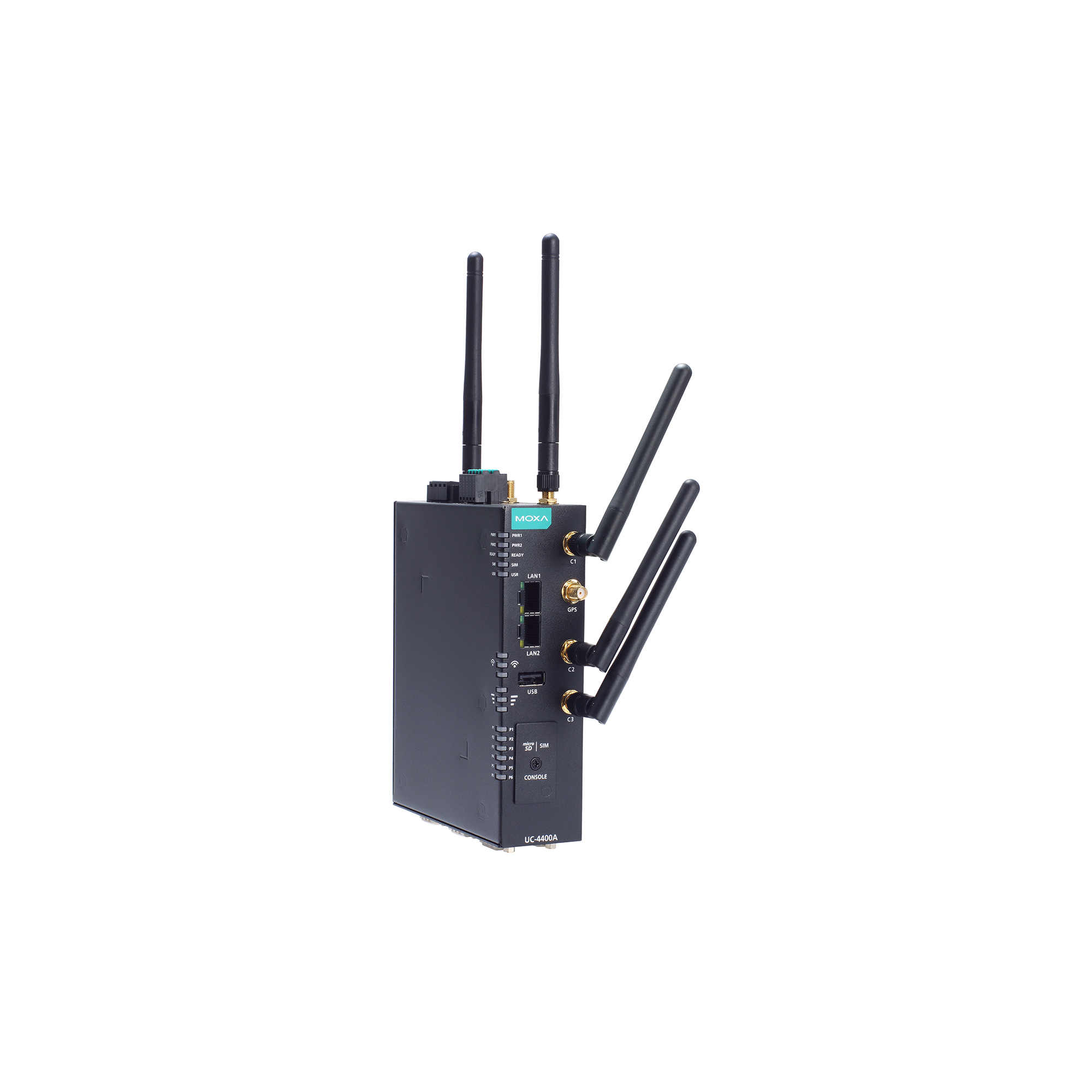

moxa-uc-4400a-series-image-6-(1).jpg | Moxa

特色與優點

Arm Cortex-A53 四核心 1.6 GHz 處理器
整合式 5G Sub-6GHz NR 模組，配備雙 SIM 並通過 AT&T 核准
2 個自動感應 10/100/1000 Mbps 乙太網路連接埠
內建 2-kV 隔離保護的 CANbus 和串列埠
Moxa 工業 Linux，提供 10 年超長期間支援
Wi-Fi 6E 與 4G LTE Cat.4 支援，並可選購配件
雙 SIM 插槽
CE/FCC/UL 認證
ISA/IEC 62443-4-2 SL2 認證就緒
-40 至 75°C 操作溫度範圍 (啟用行動通訊模組的情況下為 -40 至 70°C)

認證

您可在 My Moxa 查看已追蹤產品的更新資訊

聯絡銷售顧問

簡介

UC-4400A 運算平台是專為嵌入式資料擷取應用所設計。電腦配備最多四個 RS-232/422/485 串列埠、雙 10/100/1000 Mbps 乙太網路連接埠、最多 2 個 CAN 連接埠，以及 Mini PCIe 與 M.2 E 插槽以支援 LTE Cat.4 與 Wi-Fi 6E 模組。這些多元功能讓使用者能有效地調整 UC-4400A 以適應各種複雜通訊解決方案。

UC-4400A 採用的是專為能源監視系統進行最佳化的 Arm Cortex-A53 四核心處理器，但是該處理器目前已被廣泛地用於各種工業解決方案。這款輕薄的嵌入式電腦是可靠且安全的閘道，具備彈性的介面選項，可協助您在現場進行資料擷取並進行資料處理，同時也是適用於許多其他大規模部署的實用通訊平台。

已啟用行動通訊的寬溫度型號可用於延伸的溫度應用。所有裝置全都在試驗室中經過完整測試，保證已啟用行動通訊的運算平台適用於寬溫應用。

應用

太陽能/風力能源
電池能源儲存
EV 充電基礎設施
設施監控
機器監控

油氣
水與廢水
智慧運輸系統
各種 IIoT 閘道器應用

外觀

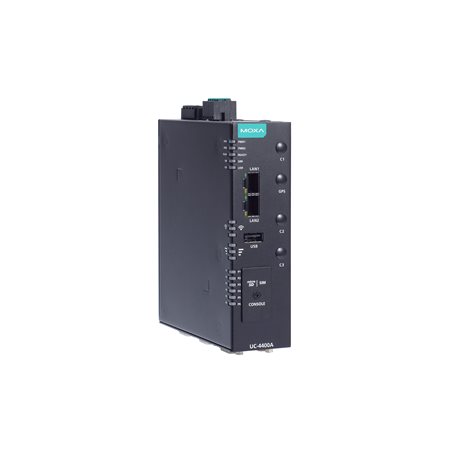

UC-4410A 型號

UC-4414A 型號

UC-4430A 型號

UC-4434A 型號

UC-4450A 型號

UC-4454A 型號

下載產品資料表
列印此頁
儲存至 My Moxa

您可管理並分享您儲存在 My Moxa 中的頁面清單

CPU

Arm Cortex-A53 quad-core 1.6 GHz
DRAM

4 GB LPDDR4
Supported OS

Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL
See www.moxa.com/MIL
Storage Pre-installed

16 GB eMMC
Expansion Slots

microSD socket x 1

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports

UC-4414/UC-4434/UC-4454 models:
RS-232/422/485 ports x 4 (software-selectable, DB9 male connector)
UC-4410/UC-4430/UC-4450 models:
RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
CAN Ports

UC-4414/UC-4434/UC-4454 models: CAN 2.0 A/B x 2 (DB9 male)
UC-4410/UC-4430/UC-4450 models: CAN 2.0 A/B x 1 (DB9 male)
Digital Input

DIs x 4
Digital Output

DOs x 4
USB 2.0

USB 2.0 hosts x 1, type-A connectors
Wi-Fi Antenna Connector

UC-4430/UC-4434/UC-4450/UC-4454 models:
RP-SMA x 2
Cellular Antenna Connector

UC-4450/UC-4454 models: SMA x 4
UC-4430/ UC-4434 models: SMA x 2
GPS Antenna Connector

UC-4430/UC-4434/UC-4450/UC-4454 models:
SMA x 1
Console Port

RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)
Expansion Slots

UC-4430/UC-4434/UC-4450/UC-4454 models:
M.2 E-key slot x 1 (for Wi-Fi)
UC-4430/UC-4434 models:
mPCIe slot x 1 (for LTE)
SIM Format

UC-4430/UC-4434/UC-4450/UC-4454 models: Nano
Number of SIMs

UC-4430/UC-4434/UC-4450/UC-4454 models: 2
Buttons

Programmable button
TPM

TPM v2.0

Magnetic Isolation Protection

1.5 kV (built-in)

No. of Ports

UC-4414/UC-4434/UC-4454 models: 4
UC-4410/UC-4430/UC-4450 models: 2
Baudrate

50 bps to 921.60 kbps
Data Bits

5, 6, 7, 8
Stop Bits

1, 1.5, 2
Parity

None, Even, Odd, Space, Mark
Flow Control

RTS/CTS, XON/XOFF
ADDC (automatic data direction control) for RS-485
RTS Toggle (RS-232 only)
Isolation

UC-4414/4434 models: 2 kV (P4 and P5 ports)
Console Port

1 x 3-pin header to DB9 console port

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

No. of Ports

UC-4414/UC-4434/UC-4454 models: 2
UC-4410/UC-4430/UC-4450 models: 1
Baudrate

10 to 1000 kbps
Connector

DB9 male
Industrial Protocols

CAN 2.0A
CAN 2.0B
Isolation

2 kV (built-in)
Signals

CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND

Digital Input Channels

DIs x 4
Connector

Screw-fastened Euroblock terminal
Sensor Type

Wet contact (NPN)
Dry contact
Dry Contact

Logic 1: Open
Logic 0: Close to GND
Wet Contact (COM to DI)

Logic 1: 0 to 3 VDC
Logic 0: 10 to 30 VDC
Isolation

3K VDC

Digital Output Channels

DOs x 4
Connector

Screw-fastened Euroblock terminal
Current Rating

200 mA per channel
I/O Type

Sink
Voltage

0 to 30 VDC

5G NR Bands

5G NSA and SA bands:
n1 (FDD 2100) MHz
n2 (FDD 1900) MHz
n3 (FDD 1800) MHz
n5 (FDD 850) MHz
n7 (FDD 2600) MHz
n8 (FDD 900) MHz
n20 (FDD 800) MHz
n25 (FDD 1900) MHz
n28 (FDD 700) MHz
n29 (SDL 700) MHz
n40 (TDD 2300) MHz
n41 (TDD 2500) MHz
n48 (TDD 3600) MHz
n66 (FDD 1700 / AWS-3) MHz
n71 (FDD 600) MHz
n75 (SDL 1500) MHz
n77 (TDD 3700) MHz
n78 (TDD 3500) MHz
n79 (TDD 4500) MHz
LTE Bands

B1 (FDD 2100) MHz
B2 (FDD 1900) MHz
B3 (FDD 1800) MHz
B4 (FDD 1700 / AWS) MHz
B5 (FDD 850) MHz
B7 (FDD 2600) MHz
B8 (FDD 900) MHz
B12 (FDD 700ac) MHz
B13 (FDD 700c) MHz
B14 (FDD 700PS) MHz
B17 (FDD 700bc) MHz
B18 (FDD 800) MHz
B19 (FDD 800) MHz
B20 (FDD 800DD) MHz
B25 (FDD 1900) MHz
B26 (FDD 850) MHz
B28 (FDD 700) MHz
B29 (SDL 700) MHz
B30 (FDD 2300) MHz
B32 (SDL 1500) MHz
B34 (TDD 2000) MHz
B38 (TDD 2600) MHz
B39 (TDD 1900) MHz
B40 (TDD 2300) MHz
B41 (TDD 2500) MHz
B42 (TDD 3500) MHz
B43 (TDD 3600) MHz
B46 (TDD 5200) MHz
B48 (TDD 3600) MHz
B66 (FDD 1700 / AWS-3) MHz
B71 (FDD 600) MHz
UMT Bands

B1 (2100) MHz
B2 (1900) MHz
B3 (1800) MHz
B4 (AWS)
B5 (850) MHz
B6 (800) MHz
B8 (900) MHz
B19 (800) MHz

Frequency Range

Wide-band GNSS: 1559 to 1606 MHz (recommended)
GPS: BW NB GPS 2.046 MHz (centered at 1575.42 MHz)
GLONASS: BW 8.3 MHz approx. (1597.05 to 1606 MHz)
BeiDou: 4.092 MHz BW (1559.05 to 1563.14 MHz)
Galileo: 4.092 MHz BW (centered at 1575.42 MHz)
Antenna Types Supported

Active antenna (default)
Passive antenna
Time to First Fix (TTFF)

Hot start: 1 s
Warm start: 27 s
Cold start: 28 s
Sensitivity

Cold starts: -146 dBm
Tracking: -161 dBm
Acquisition: -148 dBm
Update Rate

Minimum 1 Hz

WLAN Standards

802.11a/b/g/n/ac/ax (requires purchase of optional Wi-Fi accessory)
Frequency Band

2.4 GHz / 6 GHz
2.4 GHz / 5 GHz

Hardware-based Security

TPM 2.0
Hardware Root of Trust Secure Boot
Intrusion Detection

Host-based Intrusion Detection
Security Tools

Security Diagnostic Tool
Security Event Auditing
Secure Update
Disk Protection

LUKS Disk Encryption
Recovery

One-step recovery to the last known secure state
Dual-system design with automatic failback
Reliability

Network Keep Alive
Network Failover and Failback

System

Power x 2
READY (device bootup) x 1
SIM card indicator x 1
LAN

2 ports, 1 per port (10/100/1000 Mbps)
Serial

UC-4414/UC-4434/UC-4454 models:
1 LED per port for 4 serial ports
UC-4410/UC-4430/UC-4450 models:
1 LED per port for 2 serial ports
CAN

UC-4414/UC-4434/UC-4454 models:
1 LED per port for 2 CAN ports
UC-4410/UC-4430/UC-4450 models:
1 LED per port for 1 CAN port
Wireless Signal Strength

Cellular x 3
Wi-Fi x 3
User Programmable

1

No. of Power Inputs

Redundant dual inputs
Input Voltage

9 to 48 VDC
Input Current

UC-4410/UC-4414 models: 1.53 A @ 9 VDC, 0.21 A @ 48 VDC
UC-4430/UC-4434 models: 2.10 A @ 9 VDC, 0.27 A @ 48 VDC (with LTE accessory)
UC-4450/UC-4454 models: 2.13 A @ 9 VDC, 0.30 A @ 48 VDC
Power Consumption

UC-4410/UC-4414 models: 10 W @ 95% CPU loading
UC-4430/UC-4434 models: 13 W (with LTE) @ 95% CPU loading
UC-4450/UC-4454 models: 14.4 W @ 95% CPU loading
Power Connector

Screw-fastened Euroblock terminal
Reverse Polarity Protection

Supported

Automatic Reboot Trigger

External RTC (real-time clock)
Alert Tools

External WDT (watchdog timer)

Housing

Metal
SECC
IP Rating

IP30
Dimensions

141.5 x 120 x 41 mm (5.57 x 4.72 x 1.62 in)
Weight

750 g (1.7 lb)
Installation

DIN-rail mounting
Wall mounting (with optional kit)

Operating Temperature

With Wi-Fi: -30 to 70°C (-22 to 158°F)
With Cellular: -40 to 70°C (-40 to 158°F)
Non-wireless Operation:
-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35
EN 61000-6-2/-6-4
UKCA
RCM
UC-441/443 models:
KC
UC-441 models:
BSMI
EMI

FCC Part 15B Class A
ICES-003
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 4 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V
IEC 61000-4-8 PFMF
Radio Frequency

FCC
RCM
CE (RED)
ICID
UKCA
EN 62311
Carrier Approvals

UC-445 models:
AT&T
Verizon
Expected completion Q1, 2025
PTCRB
International Approval

FCC
CE
ISED
UKCA
RCM
UC-441/443 models:
KC
UC-441 models:
BSMI
UC-445 models:
NCC
(Q1, 2025)
Safety

IEC 62368-1
EN 62368-1
UL 62368-1
UC-441 models:
BSMI
Shock

IEC 60068-2-27
Vibration

IEC 60068-2-64
2 grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)
Green Product

RoHS, CRoHS, WEEE

Time

UC-4410A-T: 1,311,070 hrs
UC-4414A-I-T: 1,097,567 hrs
UC-4430A-T: 1,161,321 hrs
UC-4434A-I-T: 813,255 hrs
UC-4450A-T-5G: 982,234 hrs
UC-4454A-T-5G: 892,697 hrs
Standards

Telcordia (Bellcore) Standard TR/SR

Warranty Period

5 years
Details

See www.moxa.com/tw/warranty

下載產品資料表

軟體、韌體和驅動程式

名稱	類型	檔案校驗碼	版本	作業系統	發布日期
Moxa Swift Utility (batch provisioning tool for MIL 3.0 to 3.3) 95.3 MB	工具程式	BA8998CA922A8774554DCAB2A8BC82A7450A96DD4F29194408D596823FA11434DA3D139474F84D7C895F326D7BC4F5CB67D3AB149E38C06B764074F8FFD23336 SHA-512	v1.0.2	Windows 10 Windows 11	2025年8月19日 2025年8月19日版本說明
Software Package for MXview One Series (Windows version) 238.9 MB	軟體套件	4F26B8F232E2EFE7D788F717D32BF7339440DB0996C79F6FBC2563D7F6469D0B7C2B54B3C7D2FADE041ADA9FA61B83B593E17044E996761A52B6FAE4C59D8B9B SHA-512	v1.6.0	Windows 10 Windows 11 Windows Server 2016 Windows Server 2019 Windows Server 2022	2025年7月31日 2025年7月31日版本說明
Software Package for MXview One Series (Linux version) 336.8 MB	軟體套件	97347257D180769923C2E3344B00952F1C835DB43B77CCFBFB218450D6583AEAF4440CD49886C0CFA9F01ADC0F98BBF50DF22F0C8221AF1616169D758B3F0455 SHA-512	v1.6.0	Ubuntu 18.04 Ubuntu 20.04 Ubuntu 22.04	2025年7月31日 2025年7月31日版本說明
OS Image for UC-4400A Series 451.0 MB	韌體	5FBC6454AAD46A66A4EE86D5F3F2A84CA2F37F18EF246E537DA028F7AB957807D169D0C9CA696AD3BBF8BE93A2798CD611CC829B09B16C47D075B3A6EEF952AD SHA-512	v1.1	Moxa Industrial Linux 3 (Debian 11)	2025年2月19日 2025年2月19日版本說明
OS Image for UC-4400A Series 295.8 MB	韌體	414D594CAF509E4A7F680B995DF176B899D71A6323B57433488271446AA9DB9A27112005A954140DE6FD17F8EA34E06BD6C40FEB80330556449E82462E7FDCC8 SHA-512	v1.0	Moxa Industrial Linux 3 (Debian 11)	2024年10月18日 2024年10月18日版本說明

支援文件

名稱	類型	語言	版本	發布日期
Moxa Industrial Linux 3.x (Debian 11) Arm-based Computers Manual (with Security Hardening Guide) 4.5 MB	使用者手冊	英文	v2.1	2025年2月12日 2025年2月12日
QIG for UC-4400A Series 3.5 MB	QIG	英文	v1.1	2024年12月31日 2024年12月31日
FOSS Statement for Swift 122.3 KB	聲明書	英文	v1.0	2024年12月22日 2024年12月22日
UC-4400A 系列產品資料表 6.0 MB	產品資料表	中文	v1.1	2024年12月6日 2024年12月6日
FOSS Statement for Moxa Industrial Linux 3 331.7 KB	聲明書	英文	v1.0	2024年10月18日 2024年10月18日
Moxa Swift User Manual (for MIL 3.x) 2.4 MB	使用者手冊	英文	v1.0	2024年10月17日 2024年10月17日
Manual for UC-4400A Series (hardware) 4.4 MB	使用者手冊	英文	v1.0	2024年10月17日 2024年10月17日
Declaration of Conformity (EU/UK) for UC-4400A Series 370.7 KB	聲明書	英文	v1.0	2024年10月16日 2024年10月16日

可供選擇的機型 (6)

顯示圖片

	比較 UC-4454A-T-5G	比較 UC-4430A-T	比較 UC-4450A-T-5G	比較 UC-4434A-I-T
Operating System	Default: MIL3 Standard Order MIL3 Secure through UC-4400A (CTO)	Default: MIL3 Standard Order MIL3 Secure through UC-4400A (CTO)	Default: MIL3 Standard Order MIL3 Secure through UC-4400A (CTO)	Default: MIL3 Standard Order MIL3 Secure through UC-4400A (CTO)
CPU	Arm Cortex-A53 quad-core 1.6 GHz	Arm Cortex-A53 quad-core 1.6 GHz	Arm Cortex-A53 quad-core 1.6 GHz	Arm Cortex-A53 quad-core 1.6 GHz
Serial Ports	4	2	2	4 (2 with isolation protection)
CAN Ports	2	1	1	2
M.2 E-key Slot	Reserved for Wi-Fi 6E	Reserved for Wi-Fi 6E	Reserved for Wi-Fi 6E	Reserved for Wi-Fi 6E
M.2 B-key Slot	5G Sub-6GHz NR module	–	5G Sub-6GHz NR module	–
mPCIe	–	Reserved for LTE	–	Reserved for LTE
Operating Temperature	-40 to 70°C	-40 to 70°C	-40 to 70°C	-40 to 70°C
	加入詢價查看詢價明細	加入詢價查看詢價明細	加入詢價查看詢價明細	加入詢價查看詢價明細

	比較 UC-4414A-I-T	比較 UC-4410A-T
Operating System	Default: MIL3 Standard Order MIL3 Secure through UC-4400A (CTO)	Default: MIL3 Standard Order MIL3 Secure through UC-4400A (CTO)
CPU	Arm Cortex-A53 quad-core 1.6 GHz	Arm Cortex-A53 quad-core 1.6 GHz
Serial Ports	4 (2 with isolation protection)	2
CAN Ports	2	1
M.2 E-key Slot	–	–
M.2 B-key Slot	–	–
mPCIe	–	–
Operating Temperature	-40 to 75°C	-40 to 75°C
	加入詢價查看詢價明細	加入詢價查看詢價明細

UC-4400A 系列

Arm Cortex-A53 四核心 64 位元電腦，具備 LTE/5G 與 Wi-Fi 6E 功能

特色與優點

認證

簡介

應用

外觀

Computer

CPU

DRAM

Supported OS

Storage Pre-installed

Expansion Slots

Computer Interface

Ethernet Ports

Serial Ports

CAN Ports

Digital Input

Digital Output

USB 2.0

Wi-Fi Antenna Connector

Cellular Antenna Connector

GPS Antenna Connector

Console Port

Expansion Slots

SIM Format

Number of SIMs

Buttons

TPM

Ethernet Interface

Magnetic Isolation Protection

Serial Interface

No. of Ports

Baudrate

Data Bits

Stop Bits

Parity

Flow Control

Isolation

Console Port

Serial Signals

RS-232

RS-422

RS-485-2w

RS-485-4w

CAN Interface

No. of Ports

Baudrate

Connector

Industrial Protocols

Isolation

Signals

Digital Inputs

Digital Input Channels

Connector

Sensor Type

Dry Contact

Wet Contact (COM to DI)

Isolation

Digital Outputs

Digital Output Channels

Connector

Current Rating

I/O Type

Voltage

Cellular Interface

5G NR Bands

LTE Bands

UMT Bands

GPS Interface

Frequency Range

Antenna Types Supported

Time to First Fix (TTFF)

Sensitivity

Update Rate

WLAN Interface

WLAN Standards

Frequency Band

Security Functions

Hardware-based Security
