ARM 電腦

Moxa ARM 架構電腦系列提供支援無線功能的小型無風扇工業電腦,專為空間有限的自動化應用而設計。這些電腦採特殊設計,可穩定地長期運作。所有機型均提供 5 年硬體保固和 10 年 Moxa Industrial Linux 支援,是遠端監控和資料擷取應用的理想選擇。

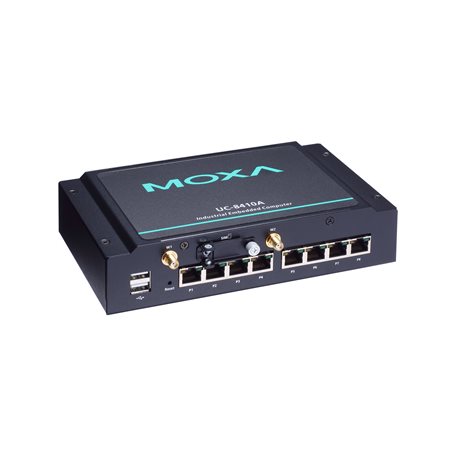

UC-8410A-NW-LX
UC-8410A 系列

Arm-based wireless-enabled wall-mount industrial computer with Cortext-A7 1 GHz dual-core, 1 GB DDR3L, serial ports x 8, DIs x 4, DOs x 4, LANs x 3, mSATA slots x 1, USB, Debian ARM8, -10 to 60°C operating temperature

Computer
  • CPU

    • Armv7 Cortex-A7 dual-core 1 GHz
  • System Memory Pre-installed

    • 1 GB DDR3L
  • Storage Pre-installed

    • 8 GB eMMC
  • Pre-installed OS

    • Linux Debian 8 (kernel 4.4)
  • Storage Slot

    • SD slots x 1
      mSATA slots x 1, internal mini-PCIe socket
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 3
  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • Console Port

    • 1 x 4-pin header to DB9 console port
  • Serial Ports

    • RS-232/422/485 ports x 8, software-selectable (RJ45)
Digital Inputs
  • Channel-to-Channel Isolation

    • 3000 VDC
  • Connector

    • Screw-fastened Euroblock terminal
  • Dry Contact

    • On: short to GND
      Off: open
  • Sensor Type

    • Dry contact
      Wet contact (NPN or PNP)
  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Current Rating

    • 200 mA per channel
  • I/O Type

    • Sink
  • Voltage

    • Open-drain to 30 VDC
LED Indicators
  • System

    • Power x 1
      System Ready x 1
      Storage x 1
      Programmable x 10
  • LAN

    • 2 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Parity

    • None, Even, Odd, Space, Mark
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
  • Power Connector

    • Terminal block (for DC models)
  • Input Current

    • 1.57A @ 12 VAC max.
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 19 W (max.)
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 200 x 120 x 48.6 mm (7.87 x 4.72 x 1.91 in)
  • Weight

    • 1,000 g (2.21 lb)
  • Installation

    • Wall mounting (standard)
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -20 to 75°C (-4 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Safety

    • UL/IEC 60950-1 & 62368-1
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-64
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
Warranty
