EXPC-F2120W 系列

通過 Zone 2 危險場所認證的 12.1 吋無風扇工業級觸控電腦

moxa-expc-f2120w-series-image-(1).jpg | Moxa
moxa-expc-f2120w-series-image-1-(1).jpg | Moxa
moxa-expc-f2120w-series-image-2-(1).jpg | Moxa
moxa-expc-f2120w-series-image-3-(1).jpg | Moxa
moxa-expc-f2120w-series-image-4-(1).jpg | Moxa
moxa-expc-f2120w-series-image-5-(1).jpg | Moxa
moxa-expc-f2120w-series-image-6-(1).jpg | Moxa

特色與優點

  • 12.1 吋 16:10 顯示器
  • 高效能 Tiger Lake Intel® Core™ i7/ Core™ i3 或 Intel® Celeron® 處理器
  • 內建光感測器,可自動調節螢幕亮度
  • 1200 尼特高亮防眩光顯示螢幕,於陽光下清晰可視
  • 採用光學貼合技術的顯示器,適用於惡劣環境部署
  • 無風扇散熱設計,可在高溫環境下實現高效散熱
  • 通過 UL C1D2/C2D2、ATEX 與 IECEx ZONE 2/Zone 22 認證
  • 前面板符合 IP66,背面達 IP42 防護等級
  • -40°C 至 70°C 操作溫度範圍
  • 可選配 5G 與 Wi-Fi 6 無線模組
  • 專為在危險場所及針對重要任務應用部署所設計

認證

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-iecex-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

EXPC-F2120W 系列包含 12.1 吋面板 PC 及第 11 代 Intel Core™ i 處理器,提供可靠、耐用及多樣化的平台,在工業、危險及關鍵應用環境中使用。EXPC-F2120W 面板 PC 隨附一組豐富的通訊介面,可滿足您所有的工業應用情境。面板 PC 也提供 DisplayPort 與 VGA 視訊輸出,以便於擴展顯示。

EXPC-F2120W 面板 PC 隨附無風扇設計,可在 -40 至 70°C 的溫度範圍內操作,並提供具充分散熱功能的流線型外殼,使其成為最可靠的工業平台,可用於嚴苛、高溫、室外環境,例如油田及天然氣田、探鑽平台與發電廠,以及智慧型暖氣解決方案。面板 PC 也專門設計了日光可讀功能,例如 1200 尼特 LCD 面板、可支援手套操作的投射式電容觸控螢幕、多點觸控熒幕、光學貼合及抗眩光設計,可為戶外應用提供絕佳使用者體驗。



外觀

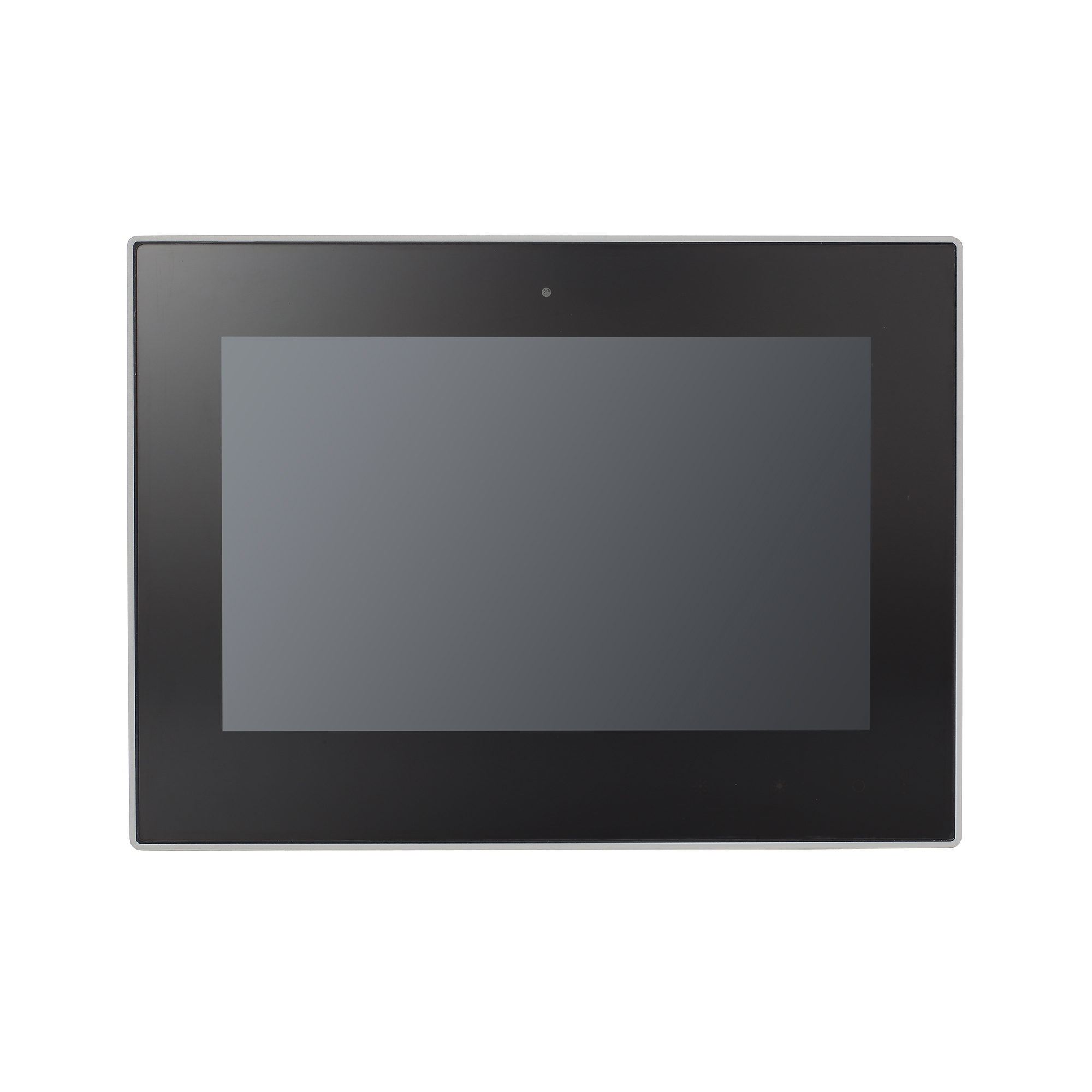

前視圖

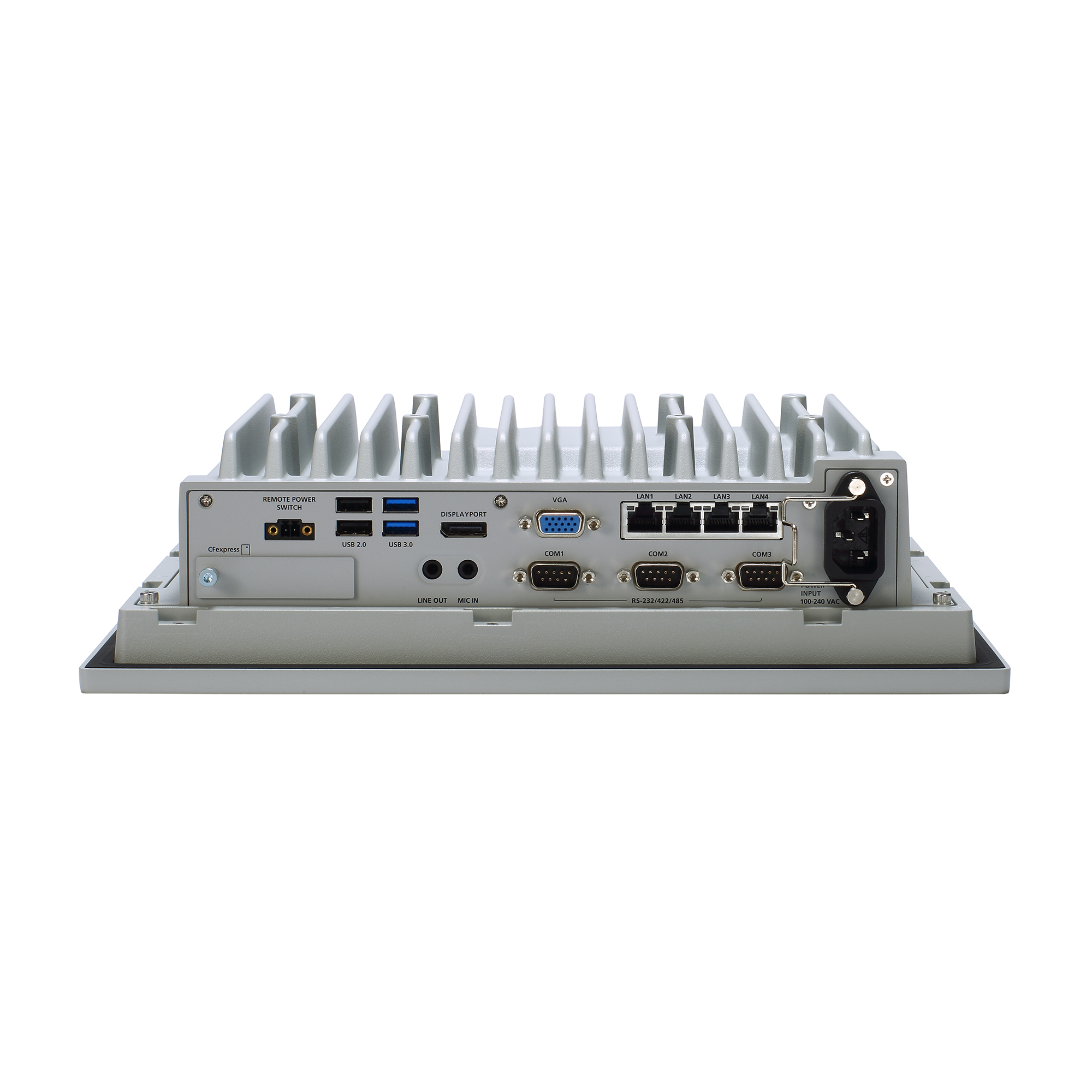

底視圖

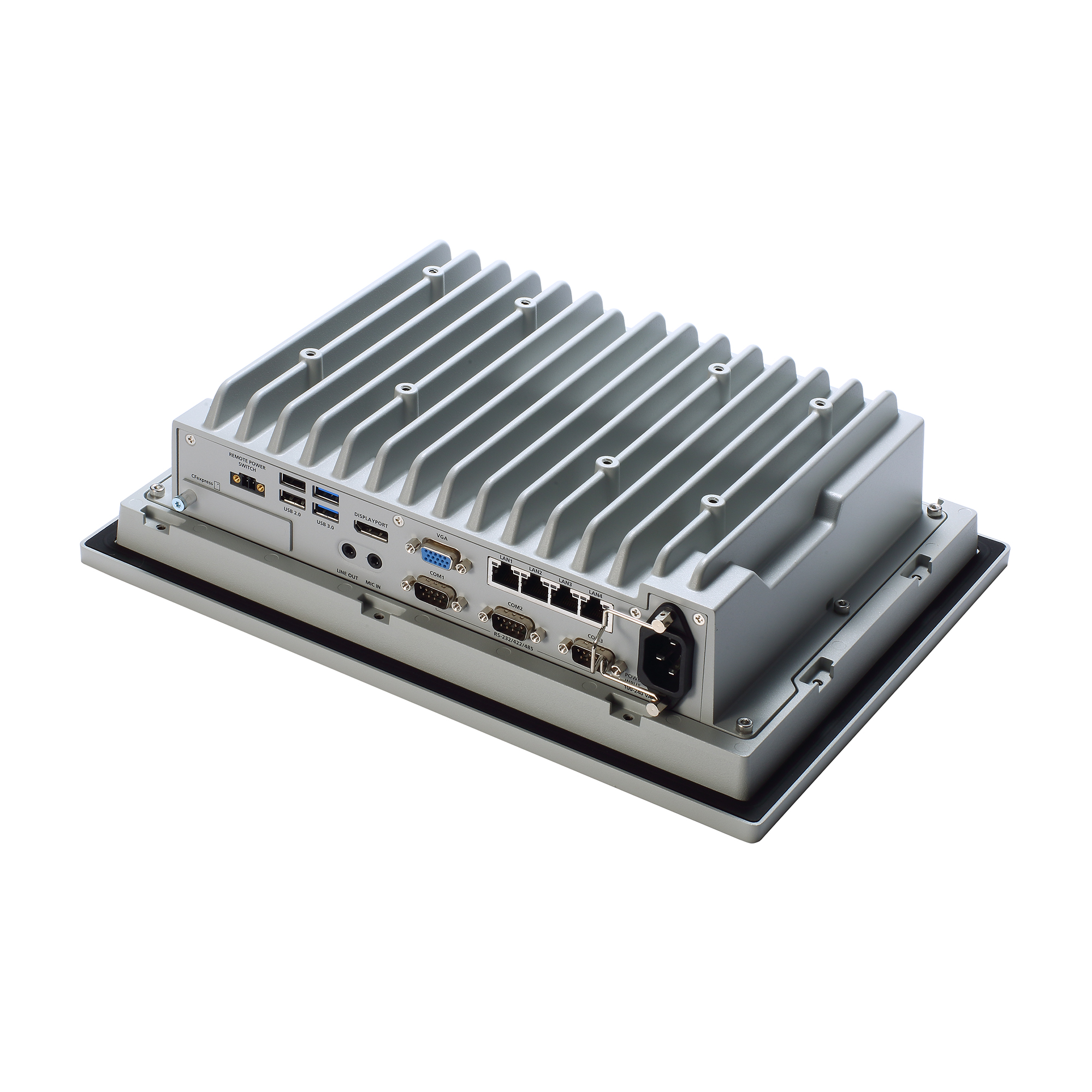

配備 AC 電源輸入的型號

配備 DC 電源輸入的型號

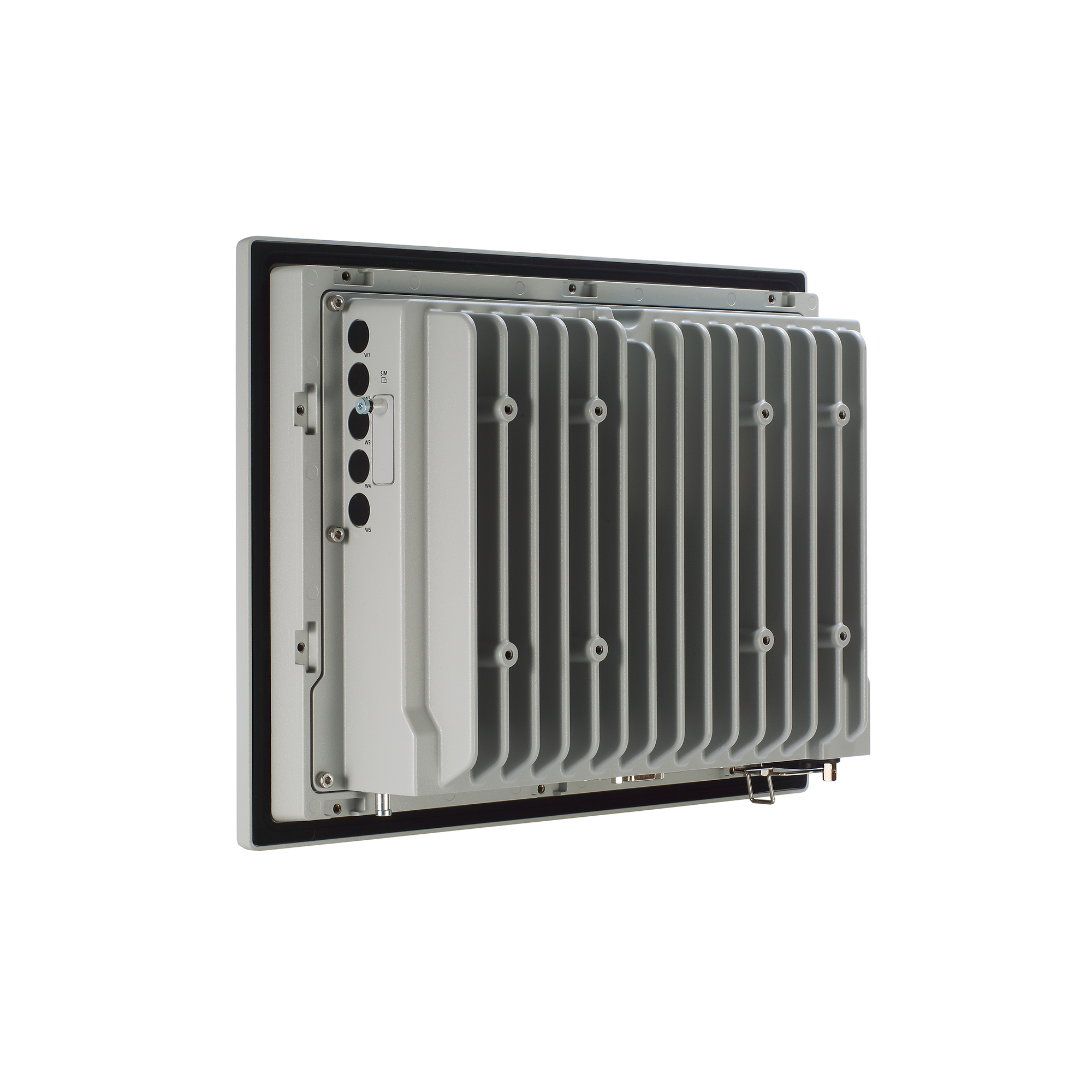

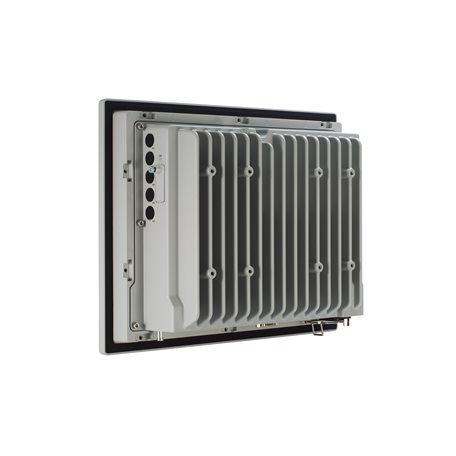

側視圖



  • CPU

    TL1 models: Intel® Celeron® 6305E
    TL3 models: Intel® Core™ i3-1115G4E
    TL7 models: Intel® Core™ i7-1185G7E

  • Graphics Controller

    Intel® Core™ i7 models: Intel® Iris® Xe Graphics
    Intel® Celeron®, Core™ i3 models: Intel® UHD Graphics

  • System Memory Pre-installed

    16 GB (64 GB max)

  • System Memory Slot

    SODIMM DDR4 slots x 2, up to 64 GB

  • Pre-installed OS

    OS is not pre-installed
    OS installation via CTOS

  • Supported OS

    Windows 10 Enterprise LTSC 21H2
    Windows 11 Professional 23H2 64-bit
    Debian 11 (driver)

  • Storage Slot

    M.2 B key x 1 for SSD (internal, optional)
    CFexpress slots x 1 (external, default)

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    RS-232/422/485 ports x 3 (software-selectable, DB9 male connector)

  • USB 3.0

    USB 3.0 hosts x 2, type-A connectors

  • USB 2.0

    USB 2.0 hosts x 2, type-A connectors

  • Audio Input/Output

    Line in x 1, mic-out x 1, 3.5 mm phone jack

  • Video Output

    DisplayPort x 1
    VGA x 1, 15-pin D-sub connector (female)

  • Expansion Slots

    M.2 B key slot x 1 for 5G module
    M.2 E key slot x 1 for Wi-Fi module

  • TPM

    TPM v2.0

  • Remote Management

    Intel® Active Management Technology (AMT) support

  • System

    Power x 1
    Storage x 1, SSD

  • LAN

    2 per port, configurable by BIOS settings or via a Moxa software utility

  • Serial

    2 per port, configurable by BIOS settings or via a Moxa software utility

  • Active Display Area

    304.128 (H) x 228.096 (V) mm

  • Aspect Ratio

    16:10

  • Contrast Ratio

    750:1

  • Light Intensity (Brightness)

    1200 nits

  • Max. No. of Colors

    16.7M (8-bit/color)

  • Panel Size

    12.1 in

  • Panel Type

    AWV

  • Pixel Pitch (RGB)

    0.294 (H) x 0.294 (V) mm

  • Pixels

    1280 x 800

  • Response Time

    18 ms (TR, gray to gray)
    12 ms (TD, gray to gray)

  • Viewing Angles

    Horizontal: 85°/85°
    Vertical: 85°/85°

  • Touch Type

    Projective Capacitive touchscreen (PCAP)
    GGG sensor with optical bonding

  • Touch Support Points

    4 points
    (max multi-touch points)
    1 point
    (glove-friendly design)

  • Baudrate

    50 bps to 115.2 kbps

  • Data Bits

    5, 6, 7, 8

  • Flow Control

    RTS/CTS, XON/XOFF
    ADDC (automatic data direction control) for RS-485
    RTS Toggle (RS-232 only)

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    DC models: 9 to 36 VDC
    AC models: 100 to 240 VAC

  • Power Consumption

    60 W (max)
    100 W (with thermal heater)

  • Housing

    Aluminum

  • IP Rating

    IP66 (front)
    IP42 (rear; with all IOs plugged in)

  • Dimensions

    336.69 x 255.17 x 94.05 mm (13.25 x 10.05 x 3.70 in)

  • Weight

    6,200 g (13.67 lb)

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -45 to 75°C (-49 to 167°F)

  • Altitude

    3000 m

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.8, 2.6, 3.5, 5 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV(AC), 1 kV(DC); Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV (AC), 0.5 kV (DC L-L), 1 kV (DC L-G); Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    EN / IEC 60079-0
    EN / IEC 60079-7
    EN / IEC 60079-15
    C1D2/C2D2, ATEX, and IECEx ZONE 2/Zone 22

  • Mechanical Protection Rating

    IEC 60529, IP code

  • Safety

    UL 62368-1
    EN 62368-1
    IEC 62368-1

  • Shock

    IEC 60068-2-27 compliant (with CFexpress card, 20G)

  • Vibration

    IEC 60068-2-27 compliant (with CFexpress card, 20G)

  • UV Protection

    IEC60068-2-5
    CIE85: 300 to 3000 nm (included UV, visible, IR); 1000 hrs (procedure C; continuously for 24 hrs)

  • Green Product

    RoHS, CRoHS, WEEE

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Driver for EXPC-F2000 Series (Windows 11 Professional 2023)
2.5 GB
驅動程式
SHA-512
v1.0
  • Windows 11 Professional 2023
2024年10月31日 2024年10月31日 版本說明
Software Package for EXPC-F2000 Series (Windows 11 Professional 2023 example code)
87.0 MB
軟體套件
SHA-512
v1.0
  • Windows 11 Professional 2023
2024年10月31日 2024年10月31日 版本說明
Software Package for EXPC-F2000 Series (Windows 10 IoT Enterprise LTSC 21H2 example code)
66.1 MB
軟體套件
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2024年10月31日 2024年10月31日 版本說明
Driver for EXPC-F2000 Series (Windows 10 IoT Enterprise LTSC 21H2)
2.2 GB
驅動程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2024年10月31日 2024年10月31日 版本說明
Utility for EXPC-F2000 Series (Windows 10 IoT Enterprise LTSC 21H2)
2.2 GB
工具程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2024年10月31日 2024年10月31日 版本說明
Utility for EXPC-F2000 Series (Windows 11 Professional 2023)
8.1 MB
工具程式
SHA-512
v1.0
  • Windows 11 Professional 2023
2024年10月31日 2024年10月31日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
EXPC-F2120W 系列產品資料表
3.8 MB
產品資料表 中文 v1.2 2025年5月2日 2025年5月2日
Manual for EXPC-F2000W Panel Computers (hardware)
5.8 MB
使用者手冊 英文 v1.1 2024年11月29日 2024年11月29日
QIG for EXPC-F2000W Panel Computers
2.6 MB
QIG 英文 v1.1 2024年11月29日 2024年11月29日
FOSS Statement for EXPC-F2000W Series
216.6 KB
聲明書 英文 v1.0 2024年10月10日 2024年10月10日
Declaration of Conformity for EXPC-F2120W/F2150W Series
264.7 KB
聲明書 英文 v1.0 2023年8月15日 2023年8月15日
