首頁 產品 工業電腦 x86 電腦 DRP-C100 系列 DRP-C100-C7-T-Win10
MOXA

x86 電腦

我們的工業級無風扇 x86 電腦通過嚴格的測試，並遵循嚴格的工業標準，確保它們即使在惡劣環境中，也能提供可靠持久的運作，是重工業、變電站、公用事業、交通運輸、石油和天然氣，以及海事等應用的理想選擇。

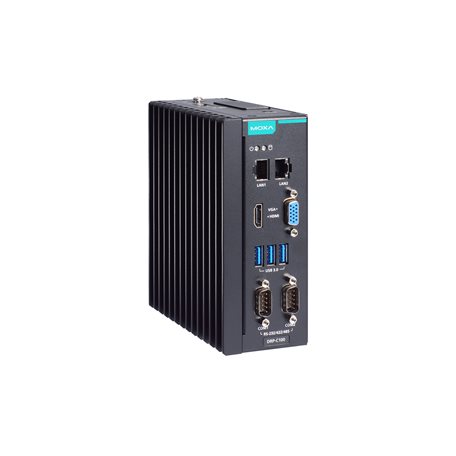

DRP-C100-C7-T-Win10
DRP-C100 系列

DIN-rail computer with Intel® Core™ i7-1185G7E processor, 2 LAN ports, 2 serial ports, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, Windows 10 LTSC 2021 preinstalled, -30 to 60°C operating temperature

Computer

  • CPU

    • DRP-C100-C1 Models: Intel® Celeron® 6305E (Dual core, 4M cache, 1.80 GHz)
      DRP-C100-C5 Models: Intel® Core™ Processor i5-1145G7E (Quad core, 8M cache,
      2.60 GHz, Base:1.50 GHz)
      DRP-C100-C7 Models: Intel® Core™ Processor i7-1185G7E (Quad core, 12M cache,
      2.80 GHz, Base:1.80 GHz)

  • System Memory Slot

    • SODIMM DDR4 slots x 1, up to 32 GB max.

  • System Memory Pre-installed

    • 8 GB DDR4

  • Storage Slot

    • CFast slot x 1 (SATAIII interface)
      SD slots x 1, SD 3.0 interface (SDHC/SDXC)

  • Storage Pre-installed

    • DRP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10 Models:
      64 GB CFast card

  • Supported OS

    • Windows Images and Drivers Supported:
      - Windows 10 IoT Enterprise LTSC 2021 64-bit
      - Windows 11 Professional 64-bit

      Linux Drivers Supported:
      - Debian 11 (kernel 5.10)
      - Ubuntu 22.04 LTS (kernel 5.15)
      - RHEL 9 (kernel 5.14)

  • Graphics Controller

    • Intel® UHD Graphics
Computer Interface

  • Ethernet Ports

    • DRP-C100-C1-8L-T/C5-8L-T/C7-8L-T:
      Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
      DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T:
      Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
      All Other Models:
      Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    • DRP-C100-C1-6C-T/C5-6C-T/C7-6C-T:
      RS-232/422/485 ports x 8, software selectable (DB9 male) x 8
      DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T:
      RS-232/422/485 ports x 6, software selectable (DB9 male) x 6
      All Other Models:
      RS-232/422/485 ports x 2, software selectable (DB9 male) x 2

  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors

  • TPM

    • TPM v2.0

  • Video Output

    • HDMI 2.0b x 1, (type A connector)
      VGA x 1, 15-pin D-sub connector (female)

  • Buttons

    • Reset button
      Power button
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Baudrate

    • 50 bps to 115.2 kbps

  • Connector

    • DB9 male

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2

  • Flow Control

    • RTS/CTS, XON/XOFF
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
LED Indicators

  • System

    • Power x 1
      Storage x 1

  • LAN

    • 2 per port (10/100/1000 Mbps)
Power Parameters

  • Input Voltage

    • 12/24 VDC

  • Power Connector

    • Screw-fastened Euroblock terminal

  • Power Consumption

    • 90 W
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP20

  • Dimensions

    • DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10:
      60 x 130 x 150 mm (2.36 x 5.12 x 5.91 in)
      All Other Models:
      94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in)

  • Weight

    • DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10:
      1,213 g (2.67 lb)
      All Other Models:
      1.612 g (3.55 lb)

  • Installation

    • DIN-rail mounting
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
Environmental Limits

  • Operating Temperature

    • -30 to 60°C (-22 to 140°F)

  • Storage Temperature

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A
      BSMI

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

  • Safety

    • UL 62368-1 (CB)
      BSMI

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-64

  • Package Drop Test

    • ISTA 1A

  • Package Vibration Test

    • ISTA 1A
Reliability

  • Time Source

    • Built-in RTC (real-time clock) with lithium-battery backup

  • Automatic Reboot Trigger

    • Built-in WDT
MTBF

  • Time

    • 584.337 hrs

  • Standards

    • Telcordia (Bellcore), GB
