V2403C 系列

搭載Intel® 第 7 代 Core™/Celeron® 工業物聯網內嵌式電腦,並配備電源Ignition開/關控制、2 個無線 Mini PCIe 擴充插槽、SMA 連接器

moxa-v2403c-series-image-(1).jpg | Moxa
moxa-v2403c-series-image-1-(1).jpg | Moxa
moxa-v2403c-series-image-2-(1).jpg | Moxa
moxa-v2403c-series-image-3-(1).jpg | Moxa
moxa-v2403c-series-image-4-(1).jpg | Moxa
moxa-v2403c-series-image-5-(1).jpg | Moxa

特色與優點

  • Intel® Celeron®/Intel® Core™ i3/i5/i7 高效能網路錄影機,適用於軌道沿線及車載應用
  • 多介面:雙顯示 (HDMI、DP)、4 個串列埠、4 個 GbE 連接埠、4 個 DI、4 個 DO、4 個 USB 及 2 個無線 Mini PCIe 插槽
  • 電源 Ignition 開/關延遲管理 (外部旋轉開關)
  • 符合 E1 標示、ISO 7637-2 與 MIL-STD-810G 標準
  • 符合 EN 50121-4 標準

認證

  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

V2403C 系列嵌入式電腦搭載 Intel® Core™ i7/i5/i3 或 Intel® Celeron® 高效能處理器,並且配備高達 32 GB 記憶體、一個 mSATA 插槽,以及兩個 HDD/SSD 以供儲存空間擴充。 電腦符合 EN 50121-4、E1 標示與 ISO- 7637-2 標準,是軌道沿線與車內 (火車 除外) 應用的理想之選。

V2403C 電腦配備有各種豐富介面,包括 4 個 gigabit 乙太網路連接埠、4 個 RS-232/422/485 串列埠、4 個 DI、2 個 DO 以及 4 個 USB 3.0 連接埠。此外,它們還提供 1 個 DisplayPort 輸出與 1 個 HDMI 輸出,以及 4K 解析度。

可靠的連接與良好的電源管理是車內應用的關鍵。電腦提供 2 個 mPCIe 無線擴充 插槽與 4 個 SIM 卡插槽來建立備援 LTE/Wi-Fi 連線能力。 在電源管理方面,開機與關機延遲機制可協助避免系統故障與損壞。



電源 Ignition 管理開關

V2403C 電腦提供電源管理功能,使用前面板上的外部旋轉開關。您可以針對車內應用,使用開關來設定電腦的電源 Ignition 開/關延遲。此功能對於保護電腦避免高/低脈衝與波形至關重要,可延長電池壽命,並在非計畫關機之前完成資料保存。



外觀

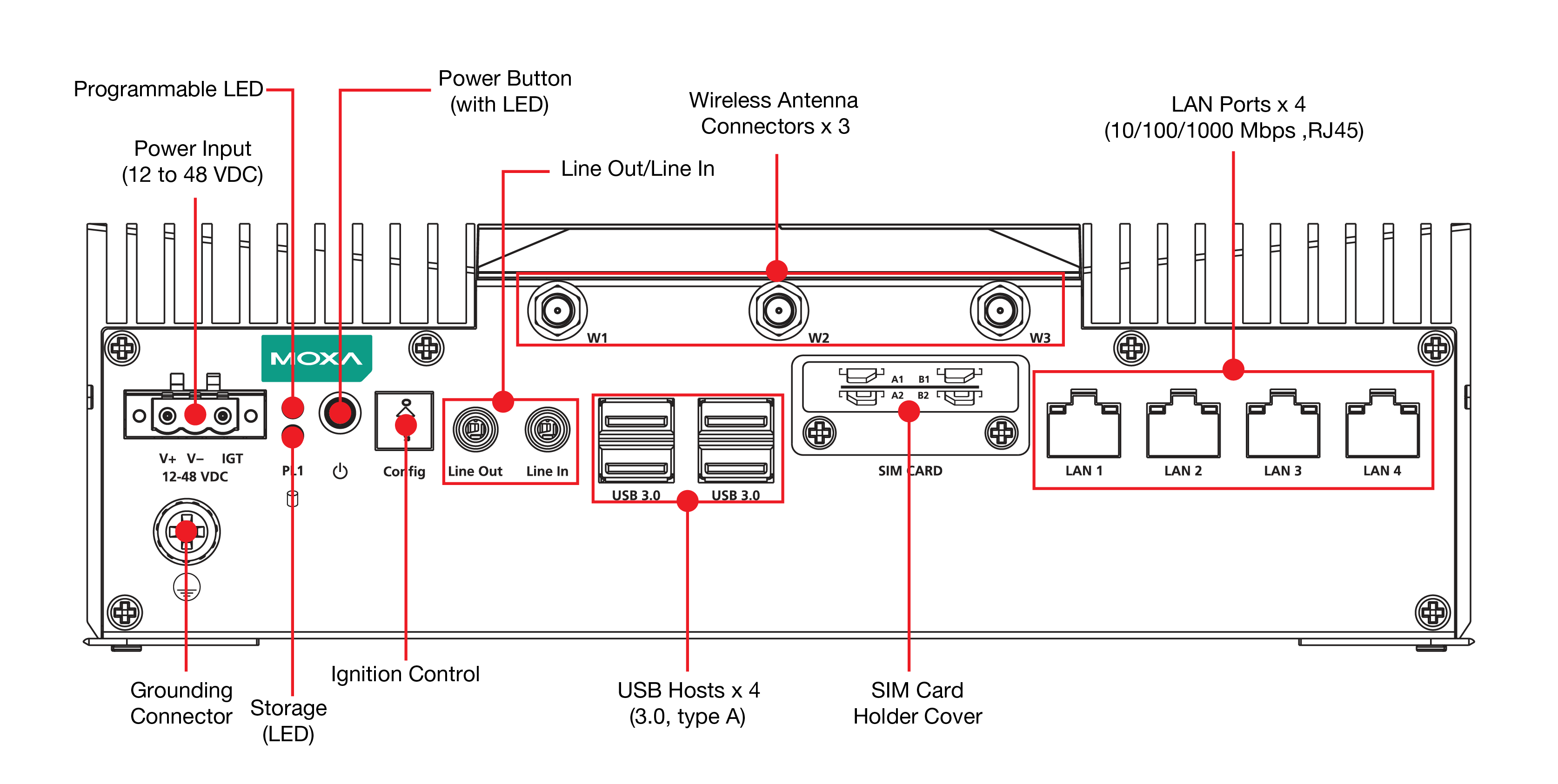

前視圖

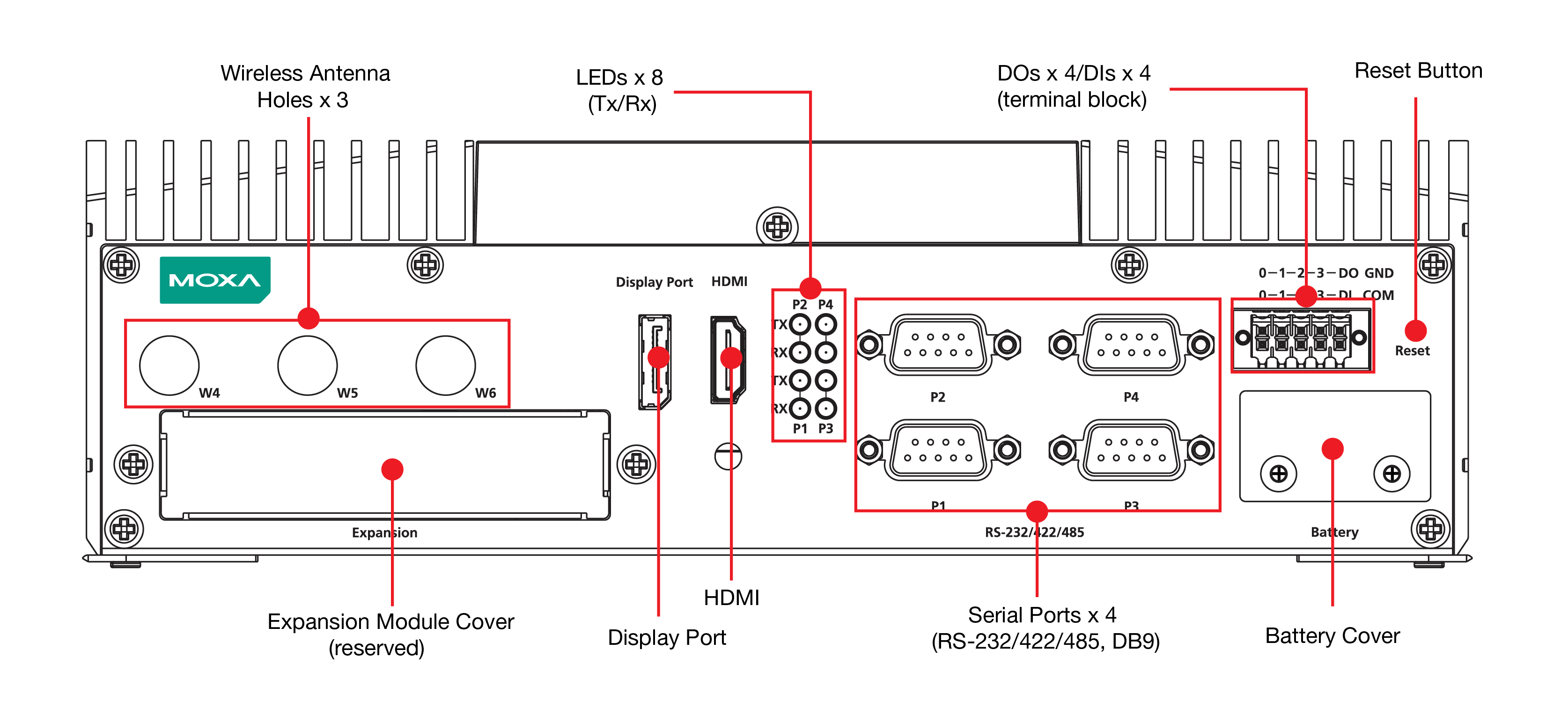

後視圖



  • CPU

    V2403C-KL1-T: Intel® Celeron® 3965U processor (2M Cache, 2.2 GHz)
    V2403C-KL3-T: Intel® Core™ i3-7100U processor (3M Cache, 2.4 GHz)
    V2403C-KL5-T: Intel® Core™ i5-7300U processor (3M Cache, 2.6 GHz)
    V2403C-KL7-T: Intel® Core™ i7-7600U processor (4M Cache, 2.8 GHz)

  • Storage Slot

    2.5-inch HDD/SSD slots x 2
    mSATA slots x 1

  • Supported OS

    Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
    Windows 10 Embedded IoT Ent 2021 LTSC 64-bit
    Linux Debian 9 image
    Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers

  • System Memory Slot

    SODIMM DDR4 slot x 2

  • DRAM

    32 GB max

  • Graphics Controller

    Celeron Model: Intel HD Graphics 610
    i3/i5/i7 Models: Intel HD Graphics 620

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    RS-232/422/485 ports x 4, software selectable (DB9 male)

  • Digital Output

    DOs x 4

  • Digital Input

    DIs x 4

  • USB 3.0

    USB 3.0 hosts x 4, type-A connectors

  • Audio Input/Output

    Line in x 1, Line out x 1, 3.5 mm phone jack

  • Video Output

    HDMI x 1, HDMI connector (standard)
    DP x 1, DisplayPort connector (standard)

  • Wi-Fi Antenna Connector

    RP-SMA x 3

  • Cellular Antenna Connector

    SMA x 2
    (optional)

  • GPS Antenna Connector

    SMA x 1
    (optional)

  • Expansion Slots

    mPCIe slots x 2

  • SIM Format

    Micro

  • Number of SIMs

    4

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    DI

  • Isolation

    3k VDC

  • Sensor Type

    Wet contact (NPN or PNP)
    Dry contact

  • Dry Contact

    Logic 0: Short to GND
    Logic 1: Open

  • Wet Contact (DI to COM)

    Logic 0: 0 to 3 VDC
    Logic 1: 10 to 30 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    0 to 30 VDC

  • Isolation

    3k VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Serial

    2 per port (Tx, Rx)

  • Baudrate

    50 bps to 115.2 kbps

  • Connector

    DB9 male

  • ESD

    Contact: 6 kV; Air: 8 kV (level 3)

  • Isolation

    2 kV

  • Data Bits

    5, 6, 7, 8

  • Flow Control

    RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    12 to 48 VDC

  • Power Connector

    Terminal block

  • Power Consumption (Max.)

    70 W (max.)

  • Switch Type

    Rotary (front panel)

  • Switch Settings

    Setting 0: IGT function disabled
    Setting 1: PWR ON delay: 0.5 sec; PWR OFF delay: 30 sec
    Setting 2: PWR ON delay: 1 sec; PWR OFF delay: 30 sec
    Setting 3: PWR ON delay: 1 sec; PWR OFF delay: 60 sec
    Setting 4: PWR ON delay: 2 sec; PWR OFF delay: 60 sec
    Setting 5: PWR ON delay: 2 sec; PWR OFF delay: 90 sec
    Setting 6: PWR ON delay: 3 sec; PWR OFF delay: 90 sec
    Setting 7: PWR ON delay: 3 sec; PWR OFF delay: 150 sec
    Setting 8: PWR ON delay: 4 sec; PWR OFF delay: 180 sec
    Setting 9: PWR ON delay: 5 sec; PWR OFF delay: 180 sec

  • Housing

    Aluminum

  • IP Rating

    IP20

  • Dimensions (without ears)

    250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)

  • Weight

    2,500 g (5.51 lb)

  • Installation

    Wall mounting (standard)

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    EN 62368-1
    IEC 62368-1
    UL 62368-1

  • Railway

    EN 50121-4

  • Shock

    IEC 60068-2-27, IEC 61373, MIL-STD-810G

  • Vibration

    IEC 60068-2-64, IEC 61373, MIL-STD-810G

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    464,506 hrs

  • Standards

    Telcordia (Bellcore), GB

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
x86 Computers (Linux drivers and SDK)
802.0 bytes
軟體套件
SHA-512
v1.1
  • CentOS 7.9
  • Debian 11.x
  • Ubuntu 20.04
2022年11月28日 2022年11月28日 版本說明
Software Package for V2403C Series (Windows 10 example code)
21.6 MB
軟體套件
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 1809
2022年2月25日 2022年2月25日 版本說明
Library for V2403C Series (Linux example code)
300.0 bytes
程式庫
SHA-512
v1.0
  • Debian 9.x
2022年2月25日 2022年2月25日 版本說明
Utility for V2403C Series (Windows 10)
1.8 MB
工具程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 1809
2022年2月25日 2022年2月25日 版本說明
Driver for V2403C Series (Windows 10)
900.6 MB
驅動程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 1809
2022年2月23日 2022年2月23日 版本說明
Firmware for V2403C Series (Linux)
472.6 MB
韌體
SHA-512
v1.0
  • Debian 9.x
2022年2月23日 2022年2月23日 版本說明
Proactive Monitoring Software Package
68.4 MB
軟體套件
SHA-512
v2.2
  • Windows 10 IoT Enterprise LTSC 2019
2021年7月28日 2021年7月28日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
FOSS Statement for V2403C Series
220.6 KB
聲明書 英文 v1.0 2024年10月28日 2024年10月28日
Declaration of Conformity for V2403C Series
302.2 KB
聲明書 英文 v1.0 2024年6月5日 2024年6月5日
Manual for V2403C Series (hardware)
10.2 MB
使用者手冊 英文 v1.1 2023年11月24日 2023年11月24日
V2403C 系列產品資料表
4.4 MB
產品資料表 中文 v2.2 2023年3月31日 2023年3月31日
Windows 10 IoT Enterprise LTSC 2021 (212H) User Manual for x86 Computers
9.4 MB
使用者手冊 英文 v1.2 2023年1月20日 2023年1月20日
QIG for V2403C Series
1.4 MB
QIG 英文 v1.2 2022年6月23日 2022年6月23日
Manual for V2403C Series (Linux)
1.9 MB
使用者手冊 英文 v1.0 2022年1月31日 2022年1月31日
Manual for V2403C Series (Windows)
8.5 MB
使用者手冊 英文 v1.0 2022年1月31日 2022年1月31日
