我們的工業級無風扇 x86 電腦通過嚴格的測試,並遵循嚴格的工業標準,確保它們即使在惡劣環境中,也能提供可靠持久的運作,是重工業、變電站、公用事業、交通運輸、石油和天然氣,以及海事等應用的理想選擇。

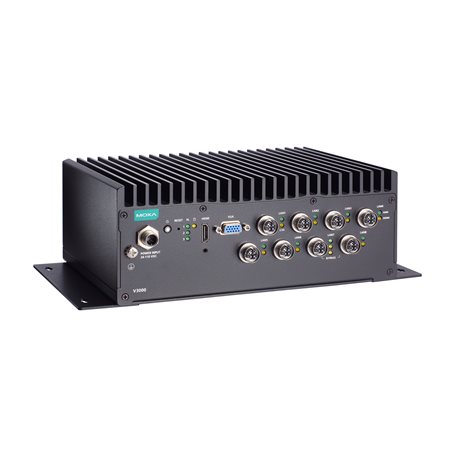

V3210-TL1-8L-CT-T
V3200 系列

x86 computer with Intel® Celeron® 6305E processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coating

Computer
  • CPU

    • Intel® Celeron® 6305E processor (2C/2T, 4M cache, 1.8 GHz)
  • System Memory Slot

    • SODIMM DDR4 slots x 2 (64 GB max)
  • System Memory Pre-installed

    • 16 GB DDR4
  • Storage Slot

    • 2.5-inch SSD slots x 2
      M.2 M key 2280 slot x 1 (NVMe; 128 GB preinstalled)
  • Supported OS

    • Windows 10 Embedded IoT Ent 2021 LTSC 64-bit
      Linux Debian 11/Ubuntu 20.04/CentOS 7.9 (driver)
  • Graphics Controller

    • Intel® UHD Graphics
Computer Interface
  • Ethernet Ports

    • Default: 4 ports (2.5 GbE x 1 and GbE x 3), can go up to 8 ports
      Auto-sensing 1000/2500 Mbps x 1
      Auto-sensing 10/100/1000 Mbps x up to 7

      LAN1: Intel® Ethernet Network Adapter I225 with Intel® AMT support
  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)
  • Digital Input

    • DIs x 2
  • Digital Output

    • DOs x 2
  • USB 3.0

    • USB 3.0 hosts x 2, type-A connectors
  • Video Output

    • VGA x 1, 15-pin D-sub connector (female)
      HDMI x 1, HDMI connector (type A)
  • Wi-Fi Antenna Connector

    • QMA x 8 (optional with accessory kit)
  • Expansion Slots

    • M.2 B key 3052/3050 slots x 2 (for 5G; 4 Micro SIMs)
      M.2 E key slots x 1 (for Wi-Fi 6)
      mPCIe slots x 1 (for cellular with 2 Micro SIMs, Wi-Fi 5, or I/O expansion)
  • SIM Format

    • Micro
  • Number of SIMs

    • 6
  • TPM

    • TPM v2.0
Digital Inputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Isolation

    • 3k VDC
  • Sensor Type

    • Dry contact
      Wet contact (NPN)
  • Dry Contact

    • Logic 0: Close to GND
      Logic 1: Open
  • Wet Contact (COM to DI)

    • Logic 0: 10 to 30 VDC
      Logic 1: 0 to 3 VDC
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Current Rating

    • 200 mA per channel
  • I/O Type

    • Sink
  • Voltage

    • 0 to 30 VDC
  • Isolation

    • 3k VDC
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (LAN1: 1000/2500 Mbps, LAN2 to LAN8: 100/1000 Mbps)
      1 per LAN bypass pair (LAN7 - LAN8)
  • Serial

    • 2 per port (Tx, Rx)
  • User Programmable

    • 3
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • DB9 male
  • ESD

    • Contact: 6 kV; Air: 8 kV (level 3)
  • Isolation

    • 2 kV
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS, XON/XOFF
      Automatic Data Direction Control (ADDC) for RS-485
      RTS Toggle (RS-232 only)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
  • Input Voltage

    • 24 to 110 VDC
  • Power Connector

    • M12 A-coded male connector
  • Power Consumption

    • 100 W (max.)
Physical Characteristics
  • Housing

    • Aluminum
  • Dimensions (without ears)

    • 249 x 88.9 x 180 mm (9.80 x 3.50 x 7.09 in)
  • Weight

    • Product Only: 3.86 kg (8.51 lb)
      Product With Package: 5.10 kg (11.24 lb)
  • IP Rating

    • IP30
  • Installation

    • Wall mounting
  • Protection

    • PCB conformal coating
      Available on request
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Safety

    • EN 62368-1
      IEC 62368-1
      UL 62368-1
  • Railway Fire Protection

    • EN 45545-2:2020
  • Railway

    • EN 50121-4
      EN 50121-3-2
      EN 50155:2017
  • Shock

    • IEC 60068-2-27, IEC 61373
  • Vibration

    • IEC 60068-2-64, IEC 61373
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 305,836 hrs
  • Standards

    • Telcordia (Bellcore), GB
