V3400 系列

搭載第 11 代 Intel® Core™ 處理器的鐵路無風扇 x86 電腦,支援 5G 與 Wi-Fi 6,配備 2 個可鎖的熱插拔 HDD/SSD 插槽,並可在 -40 至 70°C 的溫度範圍內運行 (符合 EN 50155 OT4)

moxa-v3400-series-image-(1).jpg | Moxa
moxa-v3400-series-image-1-(1).jpg | Moxa
moxa-v3400-series-image-2-(1).jpg | Moxa
moxa-v3400-series-image-3-(1).jpg | Moxa
moxa-v3400-series-image-4-(1).jpg | Moxa
moxa-v3400-series-image-5-(1).jpg | Moxa

特色與優點

  • 內嵌 Intel® Core™ i3/i7 電腦,適用於車內應用
  • 多個無線連線選項:最多兩個 5G、一個 4G、一個 Wi-Fi 6 及一個 Wi-Fi 5
  • 最多 8 個乙太網路連接埠,適合內建安全閘道應用
  • 兩個可熱插拔 HDD/SSD 插槽,配備鎖具,可提供增強的安全性
  • 內建 TPM 模組,提供增強的網路安全性
  • 低電壓監控支援 RTC 電池
  • 絕緣 24 至 110 VDC 電源輸入,符合軌道應用的多樣化電源需求
  • 符合 EN 50155 OT4 操作溫度 (啟用行動通訊與 Wi-Fi 模組的情況下為 -40 至 70°C)
  • Complies with EN 50121-4
  • 符合所有 EN 50155 規範強制性測試項目 此產品適用於符合 EN 50155 標準所定義的所有軌道車輛應用。按此處取得更詳細內容: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • 符合 EN 50121-4 標準
  • 符合 IEC 61373 防撞和抗震要求

認證

  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

V3400 系列嵌入式電腦搭載 Intel® Core™ i7/i3 高效能處理器,並且配備高達 64 GB 記憶體、一個 M.2 2280 M key 插槽,以及兩個可熱插拔的 HDD/SSD (含鎖具) 以供儲存空間擴充。本電腦符合 EN 50155 與 EN 50121-4 標準,涵蓋操作溫度、電源輸入電壓、突波、ESD 以及震動,使其適合軌道車載以及軌旁應用。

為連接車載以及軌旁系統與裝置,V3400 電腦配備有各種豐富介面,包括 4 至 8 個 Gigabit 乙太網路埠,其中 V3408 機型具備一組 LAN bypass 功能以確保資料傳輸不中斷、2 個 RS-232/422/485 串列埠、2 個 DI、2 個 DO 以及 2 個 USB 3.0 連接埠。內建 TPM 2.0 模組可確保平台完整性並提供硬體級安全防護。

V3400 電腦支援多種無線配置,例如 M.2 插槽中的兩個 5G 模組、mPCIe 插槽中的一個 LTE 或 Wi-Fi 5,以及 M.2 插槽中的一個 Wi-Fi 6。六個 SIM 卡插槽可協助建立備援 5G/LTE/Wi-Fi 連線。 最佳化機構與散熱設計可讓 V3400 符合 EN 50155 OT4 (-40 至 70°C) 要求,即使安裝了兩個 5G 模組與一個 WiFi 6 模組,也適合高要求車載運輸環境中的實際應用。

外觀

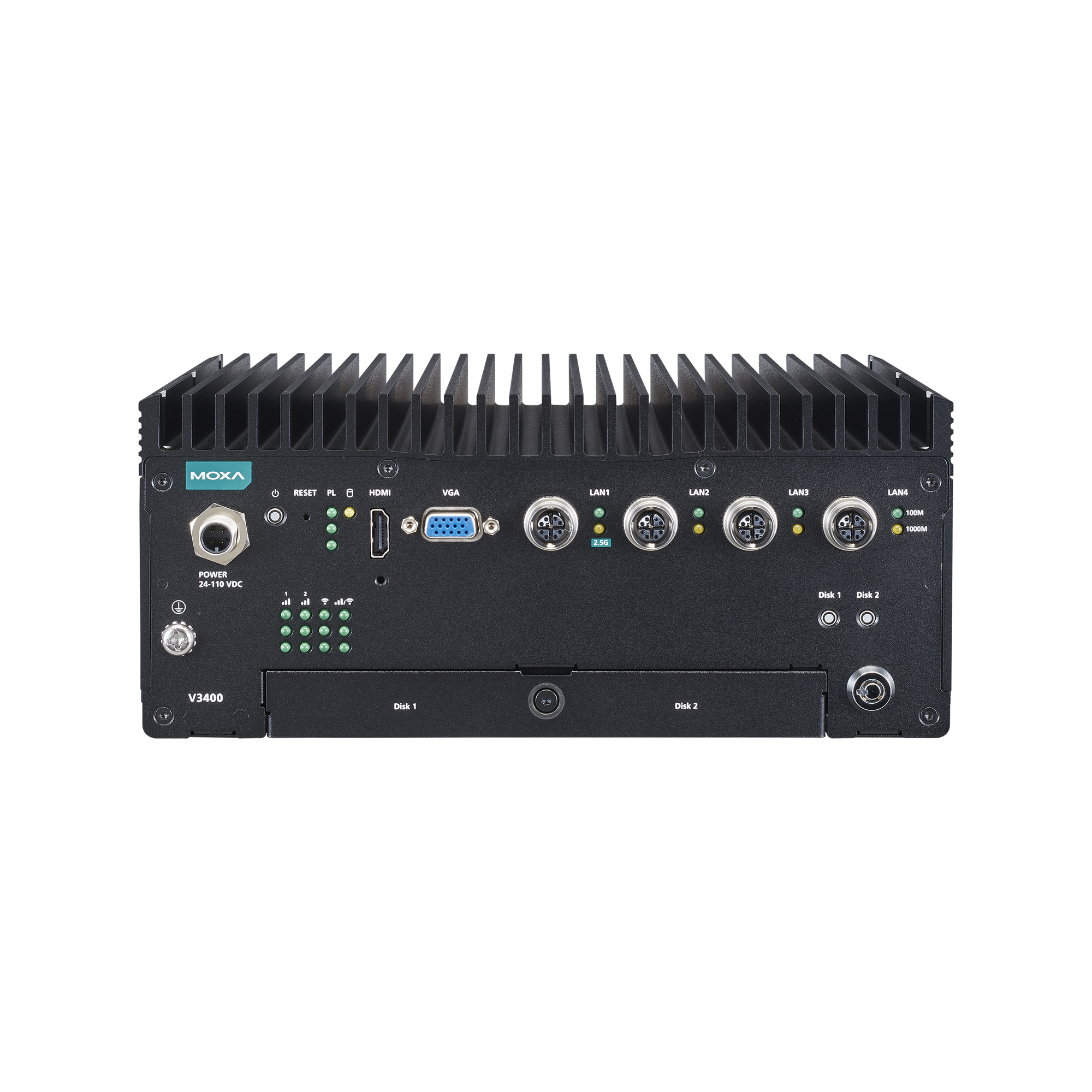

前視圖 V3404-TL 型號

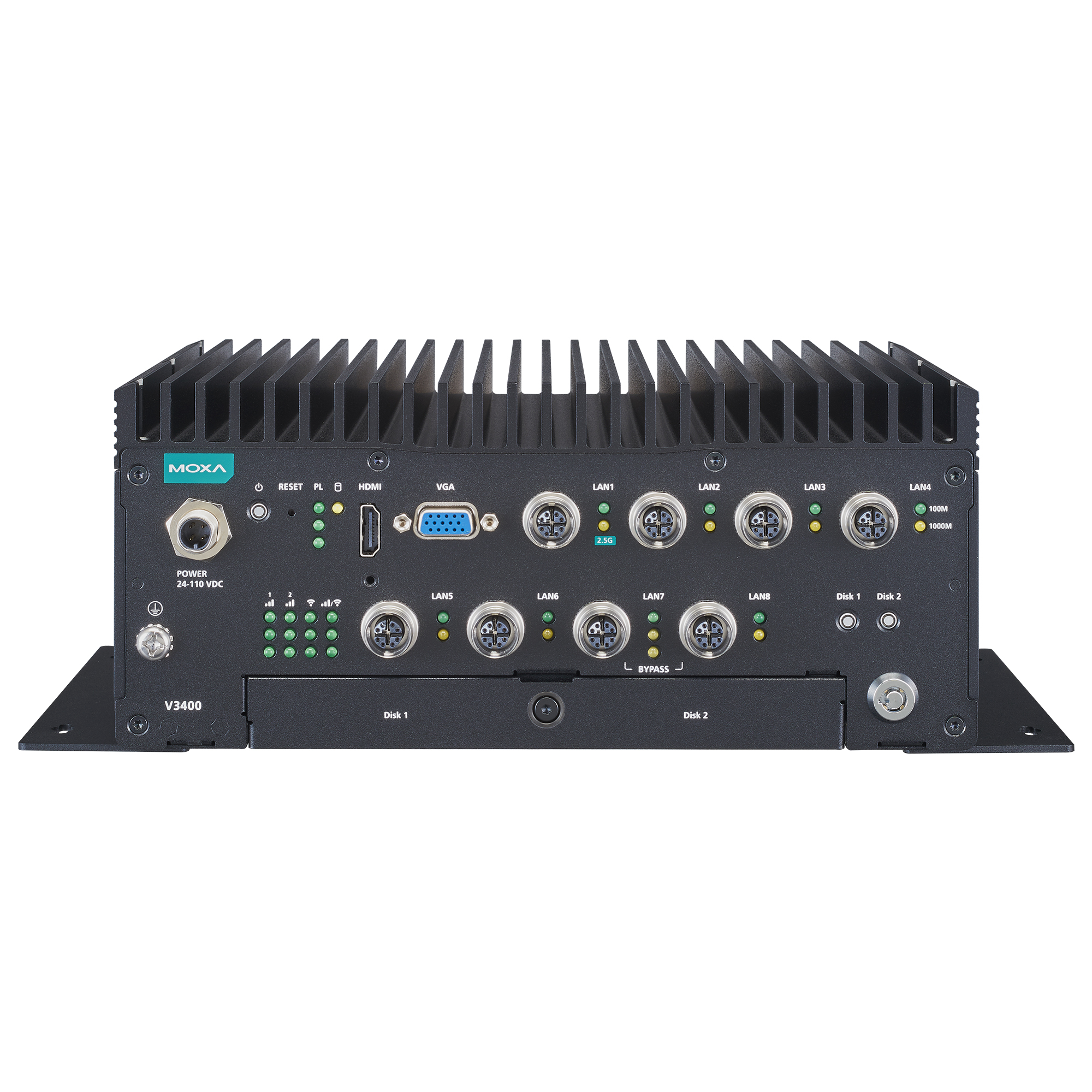

前視圖 V3408-TL 型號

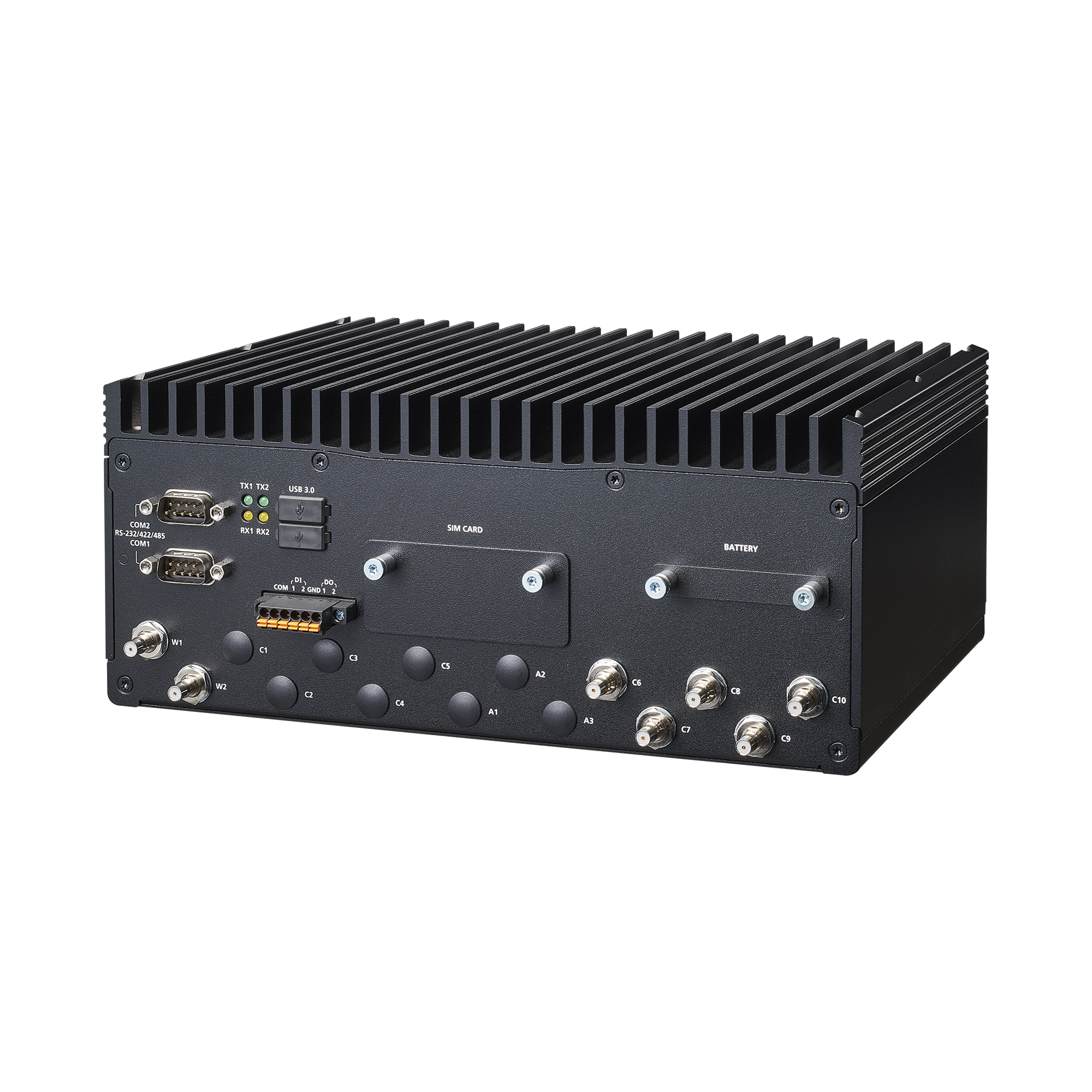

後視圖

  • CPU

    V3210-TL1-4L-T/8L-T/4L-CT-T/8L-CT-T:
    Intel® Celeron® 6305E processor (2C/2T, 4M cache, 1.8 GHz)
    V3210-TL3-4L-T/8L-T/4L-CT-T/8L-CT-T:
    Intel® Core™ i3-1115G4E processor (2C/4T, 6M cache, 2.2 GHz)
    V3210-TL5-4L-T/8L-T/4L-CT-T/8L-CT-T
    Intel® Core™ i5-1145G7E processor (4C/8T, 8M cache, 1.5 GHz)
    V3210-TL7-4L-T/8L-T/4L-CT-T/8L-CT-T:
    Intel® Core™ i7-1185G7E processor (4C/8T, 12M cache, 1.8 GHz)
    V3210-TL7-4L-TSN-CT-T/8L-TSN-CT-T:
    Intel® Core™ i7-1185GRE processor (4C/8T, 12M cache, 1.8 GHz)
    Intel® Core™ i7-1185G7E processor (4C/8T, 12M cache, 1.8 GHz)
    Intel® Celeron® 6305E processor (2C/2T, 4M cache, 1.8 GHz)
    Intel® Core™ i3-1115G4E processor (2C/4T, 6M cache, 2.2 GHz)
    Intel® Core™ i5-1145G7E processor (4C/8T, 8M cache, 1.5 GHz)

  • System Memory Slot

    SODIMM DDR4 slots x 2 (64 GB max)

  • System Memory Pre-installed

    16 GB DDR4

  • Storage Slot

    2.5-inch SSD slots x 2
    M.2 M key 2280 slot x 1 (NVMe; 128 GB preinstalled)

  • Supported OS

    Windows 10 IoT Enterprise LTSC 2021 LTSC 64-bit
    Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL

    Linux drivers supported:
    Debian 12
    Ubuntu 22.04 LTS (HWE)

  • Graphics Controller

    Intel® Celeron®/Core™ i3 Models: Intel® UHD Graphics
    Intel® Core™ i5/i7 Models: Intel® Iris® Xe Graphics

  • Ethernet Ports

    Default: 4 ports (2.5 GbE x 1 and GbE x 3), can go up to 8 ports
    Auto-sensing 1000/2500 Mbps x 1
    Auto-sensing 10/100/1000 Mbps x up to 7

    LAN1: Intel® Ethernet Network Adapter I225 with Intel® AMT support

  • Serial Ports

    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • Digital Input

    DIs x 2

  • Digital Output

    DOs x 2

  • USB 3.0

    USB 3.0 hosts x 2, type-A connectors

  • Video Output

    VGA x 1, 15-pin D-sub connector (female)
    HDMI x 1, HDMI connector (type A)

  • Wi-Fi Antenna Connector

    QMA x 8 (optional with accessory kit)

  • Expansion Slots

    M.2 B key 3052/3050 slots x 2
    M.2 E key slots x 1 (for Wi-Fi 6)
    mPCIe slots x 1 (for LTE with 2 Micro SIMs, Wi-Fi 5, or I/O expansion)

  • SIM Format

    Micro

  • Number of SIMs

    6

  • TPM

    TPM v2.0

  • Connector

    Screw-fastened Euroblock terminal

  • Isolation

    3k VDC

  • Sensor Type

    Dry contact
    Wet contact (NPN)

  • Dry Contact

    Logic 0: Close to GND
    Logic 1: Open

  • Wet Contact (COM to DI)

    Logic 0: 10 to 30 VDC
    Logic 1: 0 to 3 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    0 to 30 VDC

  • Isolation

    3k VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (LAN1: 1000/2500 Mbps, LAN2 to LAN8: 100/1000 Mbps)
    1 per LAN bypass pair (LAN7 - LAN8)

  • Serial

    2 per port (Tx, Rx)

  • User Programmable

    3

  • Baudrate

    50 bps to 115.2 kbps

  • Connector

    DB9 male

  • ESD

    Contact: 6 kV; Air: 8 kV (level 3)

  • Isolation

    2 kV

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS, XON/XOFF
    Automatic Data Direction Control (ADDC) for RS-485
    RTS Toggle (RS-232 only)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    24 to 110 VDC

  • Power Connector

    M12 A-coded male connector

  • Power Consumption

    100 W (max.)

  • Housing

    Aluminum

  • IP Rating

    IP30

  • Dimensions (without ears)

    250 x 96.7 x 180 mm (9.84 x 3.80 x 7.09 in)

  • Weight

    Product Only: 3.86 kg (8.51 lb)
    Product With Package: 5.10 kg (11.24 lb)

  • Installation

    Wall mounting

  • Protection

    PCB conformal coating
    Available on request

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)
    (with two 5G and one Wi-Fi 6 module)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    EN 62368-1
    IEC 62368-1
    UL 62368-1

  • Railway Fire Protection

    EN 45545-2:2020

  • Railway

    EN 50121-4
    EN 50121-3-2
    EN 50155:2017

  • Shock

    IEC 60068-2-27, IEC 61373

  • Vibration

    IEC 60068-2-64, IEC 61373

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    4L Models: 382,624 hrs
    8L Models: 305,836 hrs

  • Standards

    Telcordia (Bellcore), GB, GC

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
240.7 MB
軟體套件
SHA-512
v1.6.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2025年9月5日 2025年9月5日 版本說明
Software Package for MXview One Series (Linux version)
554.4 MB
軟體套件
SHA-512
v1.6.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2025年9月5日 2025年9月5日 版本說明
Software Package for V3400 Series (Windows 10 Enterprise LTSC 21H2 example code)
68.1 MB
軟體套件
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2025年7月7日 2025年7月7日 版本說明
Software Package for V3400 Series (Windows 11 Enterprise LTSC 24H2 example code)
68.1 MB
軟體套件
SHA-512
v1.0
  • Windows 11 IoT Enterprise LTSC 2024
2025年7月7日 2025年7月7日 版本說明
Driver for V3400 Series (Windows 10 Enterprise LTSC 21H2)
1.8 GB
驅動程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2025年7月7日 2025年7月7日 版本說明
Driver for V3400 Series (Windows 11 Enterprise LTSC 24H2)
1.7 GB
驅動程式
SHA-512
v1.0
  • Windows 11 IoT Enterprise LTSC 2024
2025年7月7日 2025年7月7日 版本說明
Utility for V3400 Series (Windows 10 Enterprise LTSC 21H2)
16.2 MB
工具程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2025年7月7日 2025年7月7日 版本說明
Utility for V3400 Series (Windows 11 Enterprise LTSC 24H2)
16.2 MB
工具程式
SHA-512
v1.0
  • Windows 11 IoT Enterprise LTSC 2024
2025年7月7日 2025年7月7日 版本說明
Software Package for V3400 Series (Linux drivers and SDK)
3.0 MB
軟體套件
SHA-512
v1.0
  • Debian 12.x
  • Ubuntu 22.04
2025年7月7日 2025年7月7日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
Declaration of Conformity (cybersecurity) for V3400 Series
208.8 KB
聲明書 英文 v1.0 2025年8月26日 2025年8月26日
Declaration of Conformity (EU/UK) for V3400 Series
549.5 KB
聲明書 英文 v1.0 2025年8月7日 2025年8月7日
V3400 系列產品資料表
5.9 MB
產品資料表 中文 v1.0 2025年7月4日 2025年7月4日
Moxa Industrial Linux 3.x (Debian 11) for V3000 Series Computers Manual
3.2 MB
使用者手冊 英文 v1.0 2025年7月4日 2025年7月4日
Manual for V3400 Series (hardware)
10.8 MB
使用者手冊 英文 v1.0 2025年7月4日 2025年7月4日
QIG for V3400 Series
2.9 MB
QIG 英文 v1.0 2025年7月4日 2025年7月4日
Manual for V3400 Series (Windows 10 Enterprise LTSC 21H2)
12.6 MB
使用者手冊 英文 v1.0 2025年7月4日 2025年7月4日
Manual for V3400 Series (Windows 11 Enterprise LTSC 24H2)
12.7 MB
使用者手冊 英文 v1.0 2025年7月4日 2025年7月4日

可供選擇的機型 (4)

顯示圖片

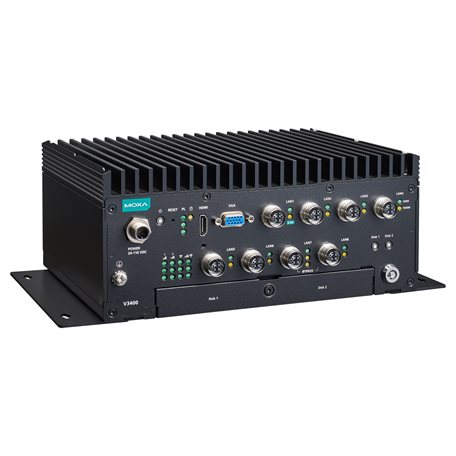

moxa-v3404-tl3-w-ct-t-image.jpg | MoxaV3404-TL3-W-CT-Tmoxa-v3408-tl3-w-ct-t-image.jpg | MoxaV3408-TL3-W-CT-Tmoxa-v3404-tl7-w-ct-t-image.jpg | MoxaV3404-TL7-W-CT-Tmoxa-v3408-tl7-w-ct-t-image.jpg | MoxaV3408-TL7-W-CT-T
CPUIntel® Core™
i3-1115G4E
Intel® Core™
i3-1115G4E
Intel® Core™
i7-1185G7E
Intel® Core™
i7-1185G7E
Memory16 GB16 GB16 GB16 GB
OS Storage (M.2 M Key)128 GB128 GB128 GB128 GB
2.5" SSD Slots (2)OptionalOptionalOptionalOptional
GbE Ports4848
5G
(up to 2)
1 preinstalled,
1 optional
1 preinstalled,
1 optional
1 preinstalled,
1 optional
1 preinstalled,
1 optional
LTE/
Wi-Fi 5
OptionalOptionalOptionalOptional
Wi-Fi 6PreinstalledPreinstalledPreinstalledPreinstalled
Operating Temp.-40 to 70°C-40 to 70°C-40 to 70°C-40 to 70°C
