ioThinx 4500 系列 (45MR) 模組

ioThinx 4500 系列的 I/O 和電源模組

moxa-iothinx-4500-series-45mr-modules-image-(1).jpg | Moxa
moxa-iothinx-4500-series-45mr-modules-image-1-(1).jpg | Moxa
moxa-iothinx-4500-series-45mr-modules-image-2-(1).jpg | Moxa

特色與優點

  • I/O 模組包括 DI/O、AI/O、繼電器和其他 I/O 類型
  • 系統電源輸入和現場電源輸入的電源模組
  • 免工具輕鬆安裝和拆卸
  • IO 通道內建 LED 指示燈
  • 寬操作溫度範圍-40 至 75°C (-40 至 167°F)
  • Class I Division 2 和 ATEX Zone 2 認證

認證

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

Moxa 的 ioThinx 4500 系列 (45MR) 模組提供 DI/O、AI、繼電器、RTD 和其他 I/O 類型,為使用者提供多種選擇,並且讓使用者選擇最適合目標應用的 I/O 組合。藉由獨特的機械設計,不需要工具即可輕鬆完成硬體安裝和拆卸,大幅減少設定和更換模組所需的時間。

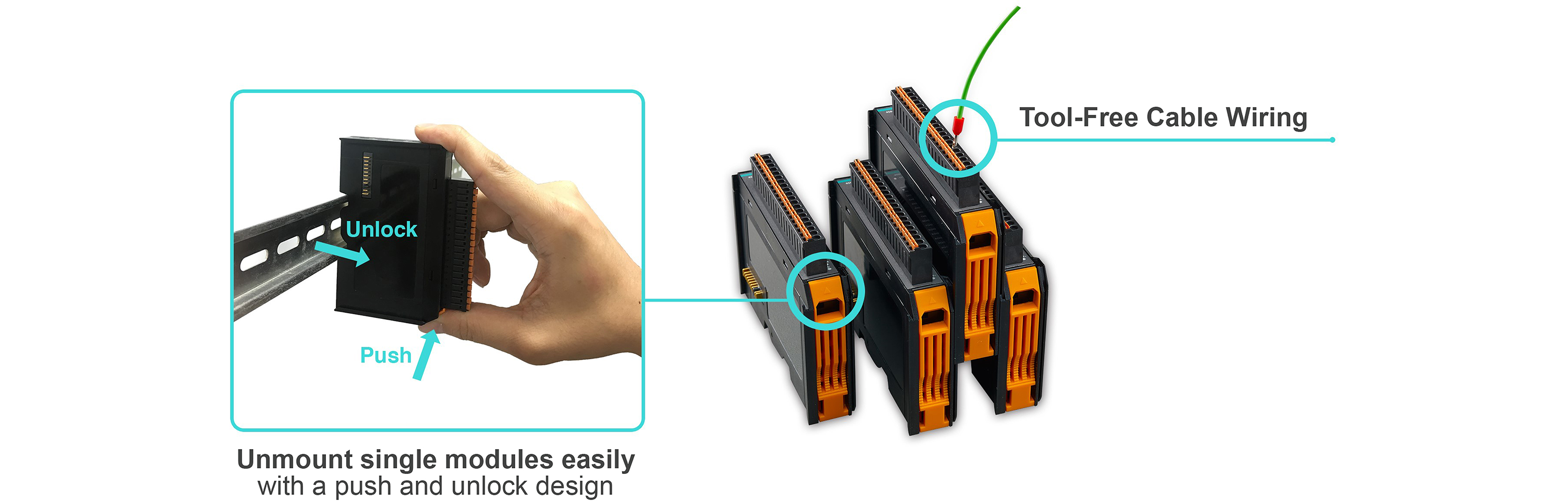

輕鬆免工具安裝和拆卸

ioThinx 4500 系列採用獨特的機構設計,可減少安裝和拆卸所需的時間。事實上,硬體安裝的任何部分都不需要螺絲起子和其他工具,包括將裝置安裝在 DIN 導軌上,以及連接用於通訊和 I/O 訊號擷取的接線。此外,從 DIN 導軌上拆卸 ioThinx 不需要任何工具。您可輕鬆使用閂鎖和解鎖片,將模組自 DIN 導軌移除。



  • Digital Input Channels

    45MR-1600: 16
    45MR-1601: 16
    45MR-2606: 8

  • Digital Output Channels

    45MR-2600: 16
    45MR-2601: 16
    45MR-2606: 8

  • Analog Input Channels

    45MR-3800: 8
    45MR-3810: 8

  • Relay Channels

    45MR-2404: 4

  • Analog Output Channels

    45MR-4420: 4

  • RTD Channels

    45MR-6600: 6

  • Thermocouple Channels

    45MR-6810: 8

  • System Power Input Channels

    45MR-7210: 1

  • Field Power Input Channels

    45MR-7210: 1

  • Field Potential Output Channels

    45MR-7820: 8

  • Isolation

    3k VDC or 2k Vrms

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • I/O Mode

    45MR-1600/1601: DI or event counter (only supports the first 4 channels)
    45MR-2606: DI or event counter (only supports the first 2 channels)

  • Dry Contact

    On: short to FP+/FP-
    Off: open

  • Wet Contact (DI to FP-)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Wet Contact (DI to FP+)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Counter Frequency

    1 kHz

  • Digital Filtering Time Interval

    Software configurable

  • Connector

    Spring-type Euroblock terminal

  • I/O Type

    45MR-2600: Sink
    45MR-2601/2606: Source

  • I/O Mode

    45MR-2600/2601: DO or pulse output (only supports the first 4 channels)
    45MR-2606: DO or pulse output (only supports the first 2 channels)

  • External Power

    12/24 VDC

  • Pulse Output Frequency

    1 kHz

  • Over-Voltage Protection

    45 VDC

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Current Rating

    500 mA per channel

  • Connector

    Spring-type Euroblock terminal

  • Type

    Form A (N.O.) power relay

  • I/O Mode

    DO

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC
    Resistive load: 2 A @ 250 VAC

  • Relay On/Off Time

    10 ms (max.)

  • Initial Insulation Resistance

    1000 mega-ohms (min.) @ 500 VDC

  • Mechanical Endurance

    5,000,000 operations

  • Electrical Endurance

    400,000 operations @ 2 A resistive load

  • Contact Resistance

    100 milli-ohms (max.)

  • Connector

    Spring-type Euroblock terminal

  • I/O Mode

    Voltage/Current

  • I/O Type

    Differential

  • Resolution

    16 bits

  • Input Range

    45MR-3800: 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection)
    45MR-3810: 0 to 10 VDC or -10 to 10 VDC

  • Over-Voltage Protection

    -25 to +30 VDC (power on)
    -35 to +35 VDC (power off)

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 and 75°C

  • Sampling Rate

    All channels: 100 samples/sec
    Per channel: 12.5 samples/sec
    Single channel: 100 samples/sec

  • Input Impedance

    45MR-3800: 120 ohms
    45MR-3810: 10 mega-ohms (min.)

  • Connector

    Spring-type Euroblock terminal

  • I/O Mode

    Voltage/Current

  • Output Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA

  • Resolution

    12-bit

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Load (Current Mode)

    Internal power: 500 ohms (max.)

  • Load (Voltage Mode)

    1000 ohms (min.)

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    PT50, PT100, PT200, PT500 (-200 to 850°C)
    PT1000 (-200 to 350°C)
    JPT100, JPT200, JPT500 (-200 to 640°C)
    JPT1000 (-200 to 350°C)
    NI100, NI200, NI500 (-60 to 250°C)
    NI1000 (-60 to 150°C)
    NI120 (-80 to 260°C)

  • Resistance Type

    310, 620, 1250, and 2200 ohms

  • Input Connection

    2- or 3-wire

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 2 samples/sec

  • Resolution

    0.1°C or 0.1 ohms

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 and 75°C

  • Input Impedance

    625 kilo-ohms (min.)

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    J, K, T, E, R, S, B, N

  • Millivolt Type

    ±19.532 mV
    ±39.062 mV
    ±78.126 mV

  • Resolution

    16 bits

  • Millivolt Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 and 75°C

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 1.5 samples/sec

  • Input Impedance

    1 mega-ohms (min.)

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 48 VDC

  • Output Current

    1 A (max.)

  • Power Consumption

    800 mA @ 12 VDC

  • Over-Voltage Protection

    55 VDC

  • Over-Current Protection

    1 A @ 25°C

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12/24 VDC

  • Output Current

    2 A (max.)

  • Over-Current Protection

    2.5 A @ 25°C

  • Over-Voltage Protection

    33 VDC

  • Potential Output Mode

    45MR-7820: 0 VDC, 12/24 VDC

  • System Power

    45MR-1600: 59.4 mA @ 3.3 VDC
    45MR-1601: 59.4 mA @ 3.3 VDC
    45MR-2404: 44 mA @ 3.3 VDC
    45MR-2600: 57.2 mA @ 3.3 VDC
    45MR-2601: 63.8 mA @ 3.3 VDC
    45MR-2606: 62.7 mA @ 3.3 VDC
    45MR-3800: 197.3 mA @ 3.3 VDC
    45MR-3810: 187 mA @ 3.3 VDC
    45MR-4420: 44 mA @ 3.3 VDC
    45MR-6600: 131.7 mA @ 3.3 VDC
    45MR-6810: 148.1 mA @ 3.3 VDC
    45MR-7210: 45m A @ 24 VDC

  • Field Power

    45MR-1600: 19.3 mA @ 12 VDC, 25.3 mA @ 24 VDC
    45MR-1601: 19.3 mA @ 12 VDC, 25.3 mA @ 24 VDC
    45MR-2404: 31.2 mA @ 12 VDC, 24.7 mA @ 24 VDC
    45MR-2606: 15.4 mA @ 12 VDC, 18.7 mA @ 24 VDC
    45MR-4420: 220.2 mA @ 12 VDC, 122.3 mA @ 24 VDC

  • Housing

    Plastic

  • Dimensions

    19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)

  • Weight

    45MR-1600: 77 g (0.17 lb)
    45MR-1601: 77.6 g (0.171 lb)
    45MR-2404: 88.4 g (0.195 lb)
    45MR-2600: 77.4 g (0.171 lb)
    45MR-2601: 77 g (0.17 lb)
    45MR-2606: 77.4 g (0.171 lb)
    45MR-3800: 79.8 g (0.176 lb)
    45MR-3810: 79 g (0.175 lb)
    45MR-4420: 79 g (0.175 lb)
    45MR-6600: 78.7 g (0.174 lb)
    45MR-6810: 78.4 g (0.173 lb)
    45MR-7210: 77 g (0.17 lb)
    45MR-7820: 73.6 g (0.163 lb)

  • Installation

    DIN-rail mounting

  • Strip Length

    I/O cable, 9 to 10 mm

  • Wiring

    45MR-2404: 18 AWG
    45MR-7210: 12 to 18 AWG
    45MR-2600/45MR-2601/45MR-2606: 18 to 22 AWG
    All Other 45MR Models: 18 to 24 AWG

  • Operating Temperature

    Standard Models: -20 to 60°C (-4 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing) 45MR-2404 的繼電器在低於 0°C 的高冷凝環境中運作時可能會發生故障。

  • Altitude

    Up to 4000 meters 如果您需要產品能在高海拔地區正常運作,請與 Moxa 聯繫。

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Safety

    UL 61010-2-201

  • Hazardous Locations

    ATEX, Class I Division 2

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    45MR-1600: 661,247 hrs
    45MR-1601: 661,247 hrs
    45MR-2404: 1,955,805 hrs
    45MR-2600: 647,334 hrs
    45MR-2601: 660,179 hrs
    45MR-2606: 638,652 hrs
    45MR-3800: 2,085,426 hrs
    45MR-3810: 2,478,459 hrs
    45MR-4420: 1,450,453 hrs
    45MR-6600: 2,291,755 hrs
    45MR-6810: 1,649,892 hrs
    45MR-7210: 2,550,077 hrs
    45MR-7820: 256,886,914 hrs

  • Standards

    Telcordia SR332

  • Warranty Period

    All models except 45MR-2404: 5 years
    45MR-2404: 2 years 由於功率繼電器的使用壽命有限,使用此元件的產品享有 2 年保固。

  • Details

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
IOxpress Configuration Utility
5.0 MB
工具程式
SHA-512
v2.4.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2012
2019年6月4日 2019年6月4日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
Manual for ioThinx 4500 Series (45MR) Modules
8.3 MB
使用者手冊 英文 v3.1 2022年9月22日 2022年9月22日
ioThinx 4500 系列(45MR) 模組產品資料表
6.1 MB
產品資料表 中文 v5.0 2021年10月14日 2021年10月14日
QIG for ioThinx 4500 Series (45MR) Modules
691.8 KB
QIG 英文 v1.6 2021年7月30日 2021年7月30日
2D CAD for ioThinx 4500 Series (45MR) Modules (45MR_7210)
427.0 KB
2D CAD 英文 2019年4月8日 2019年4月8日
2D CAD for ioThinx 4500 Series (45MR) Modules
410.2 KB
2D CAD 英文 2018年11月28日 2018年11月28日

可供選擇的機型 (26)

顯示圖片
moxa-45mr-1600-t-image.jpg | Moxa45MR-1600-Tmoxa-45mr-2600-t-image.jpg | Moxa45MR-2600-Tmoxa-45mr-2606-t-image.jpg | Moxa45MR-2606-Tmoxa-45mr-7820-t-image.jpg | Moxa45MR-7820-T
Input/Output Interface16 x DI16 x DO8 x DI, 8 x DO8 x field power output
Digital InputPNP
12/24VDC
PNP
12/24VDC
Digital OutputSink
12/24 VDC
Source
12/24 VDC
Relay
Analog Input Type
Analog Output Type
Power8 x FP+
8 x FP-
Operating Temp.-40 to 75°C-40 to 75°C-40 to 75°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-45mr-1600-image.jpg | Moxa45MR-1600moxa-45mr-2600-image.jpg | Moxa45MR-2600moxa-45mr-3810-t-image.jpg | Moxa45MR-3810-Tmoxa-45mr-6810-t-image.jpg | Moxa45MR-6810-T
Input/Output Interface16 x DI16 x DO8 x AI8 x TC
Digital InputPNP
12/24VDC
Digital OutputSink
12/24 VDC
Relay
Analog Input Type-10 to 10 VDC
0 to 10 VDC
TC
Analog Output Type
Power
Operating Temp.-20 to 60°C-20 to 60°C-40 to 75°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-45mr-2606-image.jpg | Moxa45MR-2606moxa-45mr-7820-image.jpg | Moxa45MR-7820moxa-45mr-3810-image.jpg | Moxa45MR-3810moxa-45mr-6810-image.jpg | Moxa45MR-6810
Input/Output Interface8 x DI, 8 x DO8 x field power output8 x AI8 x TC
Digital InputPNP
12/24VDC
Digital OutputSource
12/24 VDC
Relay
Analog Input Type-10 to 10 VDC
0 to 10 VDC
TC
Analog Output Type
Power8 x FP+
8 x FP-
Operating Temp.-20 to 60°C-20 to 60°C-20 to 60°C-20 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-45mr-1601-t-image.jpg | Moxa45MR-1601-Tmoxa-45mr-2601-t-image.jpg | Moxa45MR-2601-Tmoxa-45mr-1601-image.jpg | Moxa45MR-1601moxa-45mr-2601-image.jpg | Moxa45MR-2601
Input/Output Interface16 x DI16 x DO16 x DI16 x DO
Digital InputNPN
12/24 VDC
NPN
12/24 VDC
Digital OutputSource
12/24 VDC
Source
12/24 VDC
Relay
Analog Input Type
Analog Output Type
Power
Operating Temp.-40 to 75°C-40 to 75°C-20 to 60°C-20 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-45mr-2404-t-image.jpg | Moxa45MR-2404-Tmoxa-45mr-3800-t-image.jpg | Moxa45MR-3800-Tmoxa-45mr-2404-image.jpg | Moxa45MR-2404moxa-45mr-3800-image.jpg | Moxa45MR-3800
Input/Output Interface4 x Relay8 x AI4 x Relay8 x AI
Digital Input
Digital Output
RelayForm A
30 VDC/250 VAC, 2 A
Form A
30 VDC/250 VAC, 2 A
Analog Input Type0 to 20 mA
4 to 20 mA
0 to 20 mA
4 to 20 mA
Analog Output Type
Power
Operating Temp.-40 to 75°C-40 to 75°C-20 to 60°C-20 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-45mr-6600-t-image.jpg | Moxa45MR-6600-Tmoxa-45mr-7210-t-image.jpg | Moxa45MR-7210-Tmoxa-45mr-6600-image.jpg | Moxa45MR-6600moxa-45mr-7210-image.jpg | Moxa45MR-7210
Input/Output Interface6 x RTD1 x system power input
1 x field power input
6 x RTD1 x system power input
1 x field power input
Digital Input
Digital Output
Relay
Analog Input TypeRTDRTD
Analog Output Type
Power1 x SP+
1 x SP-
1 x FP+
1 x FP-
1 x FP GND
1 x SP+
1 x SP-
1 x FP+
1 x FP-
1 x FP GND
Operating Temp.-40 to 75°C-40 to 75°C-20 to 60°C-20 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-45mr-4420-image.jpg | Moxa45MR-4420moxa-45mr-4420-t-image.jpg | Moxa45MR-4420-T
Input/Output Interface4 x AO4 x AO
Digital Input
Digital Output
Relay
Analog Input Type
Analog Output Type0 to 10 V
0 to 20 mA
4 to 20 mA
0 to 10 V
0 to 20 mA
4 to 20 mA
Power
Operating Temp.-20 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細

product image

Buy online from distributors

已加入詢價列表
