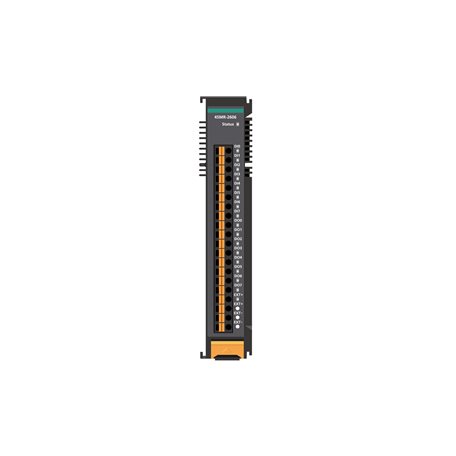

45MR-2606
ioThinx 4500 系列 (45MR) 模組

Module for the ioThinx 4500 Series, 8 DIs, 24 VDC, PNP, 8 DOs, 24 VDC, source, -20 to 60°C operating temperature

Input/Output Interface
  • Digital Input Channels

    • 8
  • Digital Output Channels

    • 8
  • Isolation

    • 3k VDC or 2k Vrms
Digital Inputs
  • Connector

    • Spring-type Euroblock terminal
  • Sensor Type

    • Dry contact
      Wet contact (PNP)
  • I/O Mode

    • DI or event counter (only supports the first 2 channels)
  • Dry Contact

    • On: short to FP+
      Off: open
  • Wet Contact (DI to FP-)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
  • Counter Frequency

    • 1 kHz
  • Digital Filtering Time Interval

    • Software configurable
Digital Outputs
  • Connector

    • Spring-type Euroblock terminal
  • I/O Type

    • Source
  • I/O Mode

    • DO or pulse output (only supports the first 2 channels)
  • External Power

    • 12/24 VDC
  • Pulse Output Frequency

    • 1 kHz
  • Over-Temperature Shutdown

    • 175°C (typical), 150°C (min.)
  • Current Rating

    • 500 mA per channel
Power Consumption
  • System Power

    • 62.7 mA @ 3.3 VDC
  • Field Power

    • 15.4 mA @ 12 VDC
      18.7 mA @ 24 VDC
Physical Characteristics
  • Housing

    • Plastic
  • Dimensions

    • 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
  • Weight

    • 77.4 g (0.171 lb)
  • Installation

    • DIN-rail mounting
  • Wiring

    • I/O cable, 18 to 24 AWG
  • Strip Length

    • I/O cable, 9 to 10 mm
Environmental Limits
  • Operating Temperature

    • -20 to 60°C (-4 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
  • Safety

    • UL 61010-2-201
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 638,652 hrs
  • Standards

    • Telcordia SR332
Warranty
