8
Auto MDI/MDI-X connection
Auto negotiation speed
Full/Half duplex mode

2

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication

IPv4/IPv6
Flow control
Back Pressure Flow Control
DHCP Server/Client
ARP
RARP
LLDP
Port Mirroring
Linkup Delay
SMTP
SNMP Trap
SNMP Inform
SNMPv1/v2c/v3
RMON
TFTP
SFTP
HTTP
HTTPS
Telnet
Syslog
Private MIB
Fiber check

GMRP
GVRP
GARP
802.1Q VLAN
IGMP Snooping v1/v2/v3
IGMP Querier

STP
RSTP

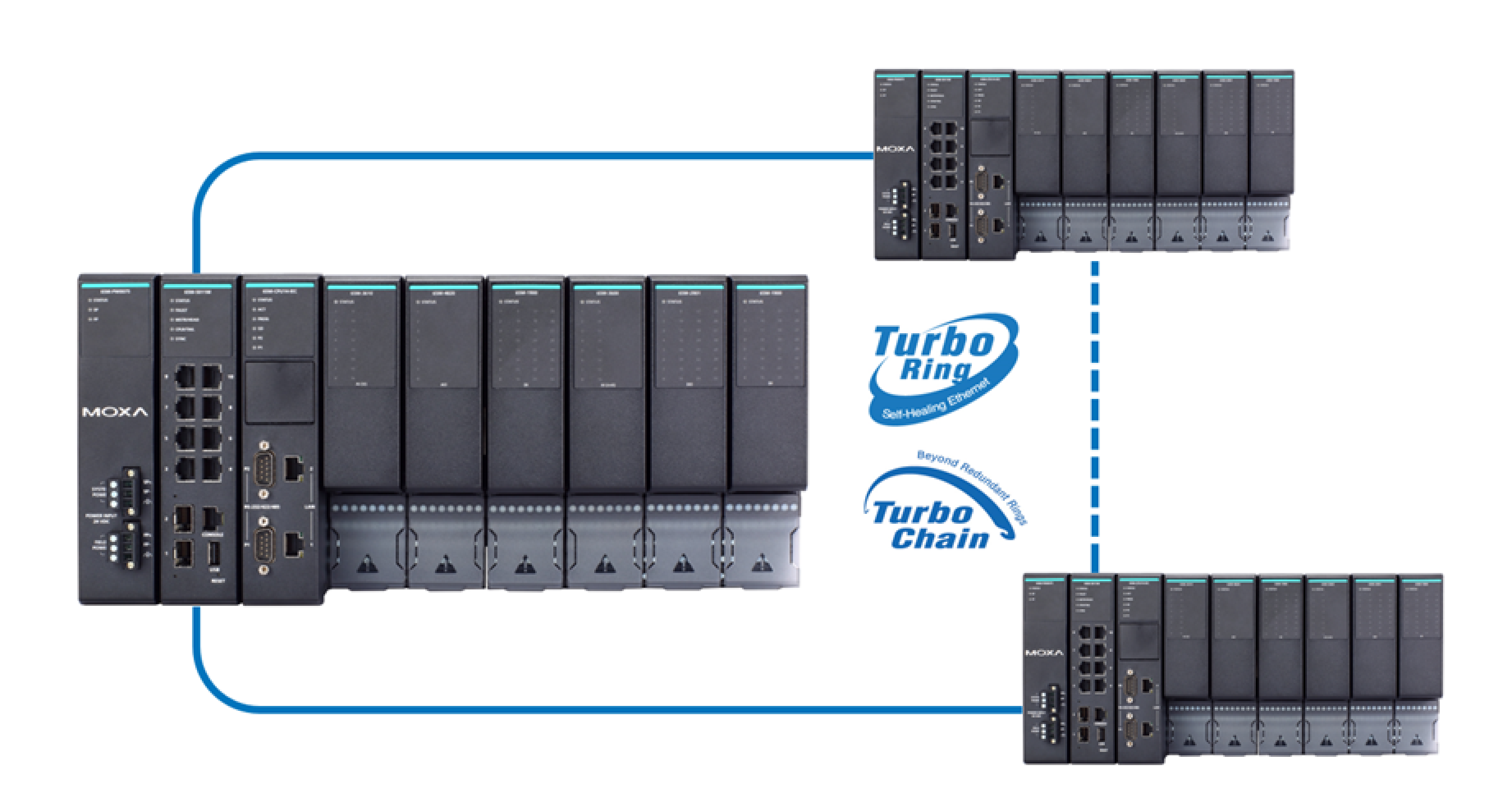

Turbo Ring v2
Turbo Chain
Ring Coupling
Dual Homing
Link Aggregation

Broadcast storm protection
Rate Limit
Trust access control
Static Port Lock
Sticky MAC
HTTPS/SSL
SSH
RADIUS
TACACS+
Login and Password Policy

SNTP
NTP Server/Client
NTP Authentication

IPv4/IPv6
TCP/IP
UDP
ICMP
ARP
RARP
TFTP
DNS
NTP Client
DHCP Server
DHCP Client
802.1X
QoS
HTTPS
HTTP
Telnet
SMTP
SNMPv1/v2c/v3
RMON
Syslog

P-BRIDGE MIB
Q-BRIDGE MIB
IEEE8021-SPANNING-TREE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
SNMPv2-MIB
RMON MIB Groups 1, 2, 3, 9

16 K

9.216 KB

256

VID 1 to 4094

512

4

1 MB

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Reset button

USB 2.0 Type A
(only supports Moxa's ABC-02-USB backup and storage device)

0.9 A @ 12 VDC

Plastic

42 x 177 x 131.5 mm (1.65 x 6.97 x 5.18 in)

660 g (1.46 lb)

DIN-rail mounting
Rack mounting (with optional kit)

-40 to 75°C (-40 to 167°F)
(with SFP module installed)
Note: Proper airflow is required in an environment with temperature > 65°C

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

2000 m 如果您需要產品能在高海拔地區正常運作，請與 Moxa 聯繫。

EN 55032/35
EN 61000-6-2/-6-4

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV
IEC 61000-4-6 CS: Power: (DC) 10 V
IEC 61000-4-8 PFMF: 30 A/m

UL 61010-2-201
UL 61010-1

IEC 60068-2-27
Half sine wave; acceleration: 15 g; time: 11 ms

IEC 60068-2-6
DIN-rail mounted:
7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz)
Rack mounted (with optional kit):
7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)

ISTA 1A

ISTA 1A

3,104,403 hrs

Telcordia Standard SR-332

5 years

See www.moxa.com/tw/warranty
