VPort 06-2 系列

EN 50155，1080P 視訊影像，輕巧型網路攝影機

moxa-vport-06-2-series-image-1-(1).jpg | Moxa

moxa-vport-06-2-series-image-2-(1).jpg | Moxa

moxa-vport-06-2-series-image-3-(1).jpg | Moxa

moxa-vport-06-2-series-image-4-(1).jpg | Moxa

moxa-vport-06-2-series-image-5-(1).jpg | Moxa

特色與優點

1/3 吋逐行掃描攝影機，30 fps 時可達到 1920 x 1080 之解析度
以 DNR 和 WDR 提供高畫質影像
可同時支援高達 4 組 H.264 或 MJPEG 獨立影像串流
DynaStream™ 可優化網路效能
CBR Pro™ 在有限頻寬傳輸更高畫質的影像
支援 SDXC（最高支援 1 TB SD 卡），進行本機儲存
內建 1 組音源輸入或是麥克風
符合 ONVIF 中標準化和互操作性

認證

您可在 My Moxa 查看已追蹤產品的更新資訊

聯絡銷售顧問

簡介

VPort 06-2 攝影機為精巧型 1080P (1920 x 1080)、H.264/MJPEG 半球型網路攝影機，專為行動視訊監控應用所設計。此系列攝影機符合 EN 62262 IK8、EN 50155 強制部份，本產品適用於符合 EN 50155 標準所定義的軌道車輛應用。如需更詳細的說明，請參閱：www.moxa.com/doc/specs/EN_50155_Compliance.pdf 並支援 -25 至 55°C 或 -40 至 70°C 的操作溫度範圍。 VPort 06-2 攝影機採用堅固耐用的 M12 乙太網路連接埠、可裝載 SD 卡 (可達 1 TB) 的 SDXC 插槽、ONVIF Profile S 標準化、內建音源線路連接埠或麥克風、PoE 或 24 VDC 電源輸入、IP66 防護等級，以及可更換的鏡頭，VPort 06-2 攝影機在各種極端環境條件下能可靠地運作，因此適用於各種行動視訊監控應用。

下載產品資料表
列印此頁
儲存至 My Moxa

您可管理並分享您儲存在 My Moxa 中的頁面清單

microSD Slot

SDXC

Digital Input Channels

1
Digital Inputs

+13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
Connector

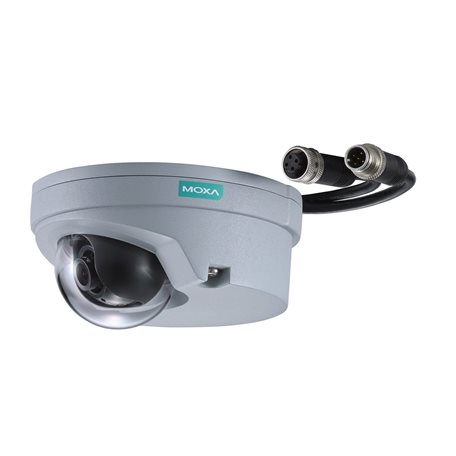

VPort P06-2 Series: 5-pin male M12 connector with 20 cm cable

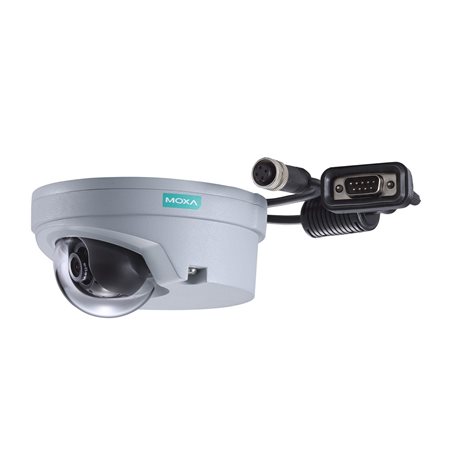

VPort 06-2 Series: DB9 male

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

VPort P06-2 Series: 1
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

VPort 06-2 Series: 1

Protocols

TCP/IP
IPv4/IPv6
UDP
HTTP
RTP/RTSP
ARP
UPnP
FTP
TFTP
NTP Client
DNS
QoS
IGMP v3
ICMP
SNMPv1/v2c/v3
DHCP Opt66/67
HTTPS
SIP

Password

User-level password protection
Filter

IP address
Encryption

HTTPS
SSH

No. of Power Inputs

1
Source of Input Power

VPort P06-2 Series: PoE (IEEE 802.3af)
Input Voltage

VPort 06-2 Series: 12/24 VDC
Input Current

VPort 06-2 Series: 0.86 A @ 12 VDC; 0.35 A @ 24 VDC
VPort P06-2 Series: 0.17 A @ 48 VDC
Power Connector

VPort 06-2 Series: DB9 connector

Sensor

1/3-in 1080P progressive scan CMOS
Lens

VPort 06/P06-2x28M Series: f=2.8 mm, F2.0, Diagonal 94°, Horizontal 85°, Vertical 45°
VPort 06/P06-2x36M Series: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39°
VPort 06/P06-2x42M Series: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34°
VPort 06/P06-2x60M Series: f=6.0 mm, F1.8, Diagonal 62°, Horizontal 43°, Vertical 24°
VPort 06/P06-2x80M Series: f=8.0 mm, F1.6, Diagonal 42°, Horizontal 33°, Vertical 17°
Minimum Illumination

Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Synchronization

Internal
White Balance

ATW/AWB
Electronic Shutter

Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio

Maximum 50 dB (AGC off; DNR on)
DNR (digital noise reduction)

Built-in 2D/3D DNR
WDR (wide dynamic range)

100 dB
AGC (auto gain control)

2X, 4X, 8X, 16X
Flickerless Control

Automatic, 50 Hz, 60 Hz modes
Image Rotation

Flip, Mirror, 90°, 180°, 270° rotation
Image Setting

Manual tuning with saturation, sharpness, and contrast
Camera Angle

Pan: ±15°, Tilt: 0° to 90° (controlled manually)

Video Compression

H.264 (ISO/IEC 14496-10) or MJPEG
Video Output

via Ethernet
Video Streams

4 independent H.264 or MJPEG video streams

Video Resolution and FPS (frames per second)

	NTSC		PAL
	Size	Max. FPS	Size	Max. FPS
QCIF	176 x 112	30	176 x 144	25
CIF	352 x 240	30	352 x 288	25
VGA	640 x 480	30	640 x 480	25
4CIF	704 x 480	30	704 x 576	25
Full D1	720 x 480	30	720 x 576	25
SVGA	800 x 600	30	800 x 600	25
HD	1280 x 720	30	1280 x 720	25
WXGA	1280 x 800	30	1280 x 800	25
Full HD	1920 x 1080	30	1920 x 1080	30

Video Viewing

DynaStream™ support for changing the video frame rate automatically
CBR Pro™ for good image quality in limited bandwidth transmissions
3 privacy mask areas provided
Adjustable image size and quality
Timestamp and text overlay
OSD (On Screen Display) position adjustable
Maximum of 10 simultaneous unicast connections, 50 multicast clients

Audio Format

Mono, PCM (G.711)
AAC
Audio Inputs

VPort 06/P06-2MxxM Series: 1 x built-in microphone
VPort 06-2LxxM Series: 1 x line-in, with DB9 connector
VPort P06-2LxxM Series: 1 x line-in, with M12 connector

Video Standards

ONVIF Profile S

Intelligent Video

Camera tampering detection
Video Motion Detection

3 independently configurable areas
Scheduling

Daily repeat timing schedule
Imaging

JPEG snapshots for pre/trigger/post alarm images
Custom Alarms

HTTP event servers for setting customized alarm actions
FTP Messaging

Automatic transfer of stored images via FTP as event-triggered actions
Pre-Alarm Buffer

50 MB video buffer for JPEG snapshot images
Video Recording

Event recordings stored on the SD card

Memory Size

2 GB
Operating System

Windows 7 or above
Browser

Internet Explorer 9.x or above
Multimedia

DirectX 9.0C or above

Housing

IP66 rain and dust protection
Metal housing, PC dome cover
IK8 vandal resistant protection
Dimensions

110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in)
Weight

620 g (1.37 lb)
Installation

Panel mounting
Protection

PCB conformal coating is optional and provided on request. If conformal coating is required, please contact Moxa.

Operating Temperature

Standard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)
Ingress Protection

IEC 60529, IP66
Vandal Resistance

EN 62262, IK8
Altitude

2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Freefall

IEC 60068-2-31
Railway Fire Protection

EN 45545-2
Safety

UL 62368-1
Shock

IEC 60068-2-27, IEC 61373, EN 50155
Vibration

IEC 60068-2-64, IEC 61373, EN 50155
Railway

EN 50155 (complies with a portion of EN 50155 specifications)

Time

VPort 06-2LXXM Series: 1,063,089 hrs
VPort 06-2MXXM Series: 1,039,008 hrs
VPort P06-2LXXM Series: 1,075,216 hrs
VPort P06-2MXXM Series: 1,050,590 hrs
Standards

Telcordia SR332

Warranty Period

5 years
Details

See www.moxa.com/tw/warranty
