CP-168EL-A

8 埠 RS-232 PCI Express 串列擴充卡

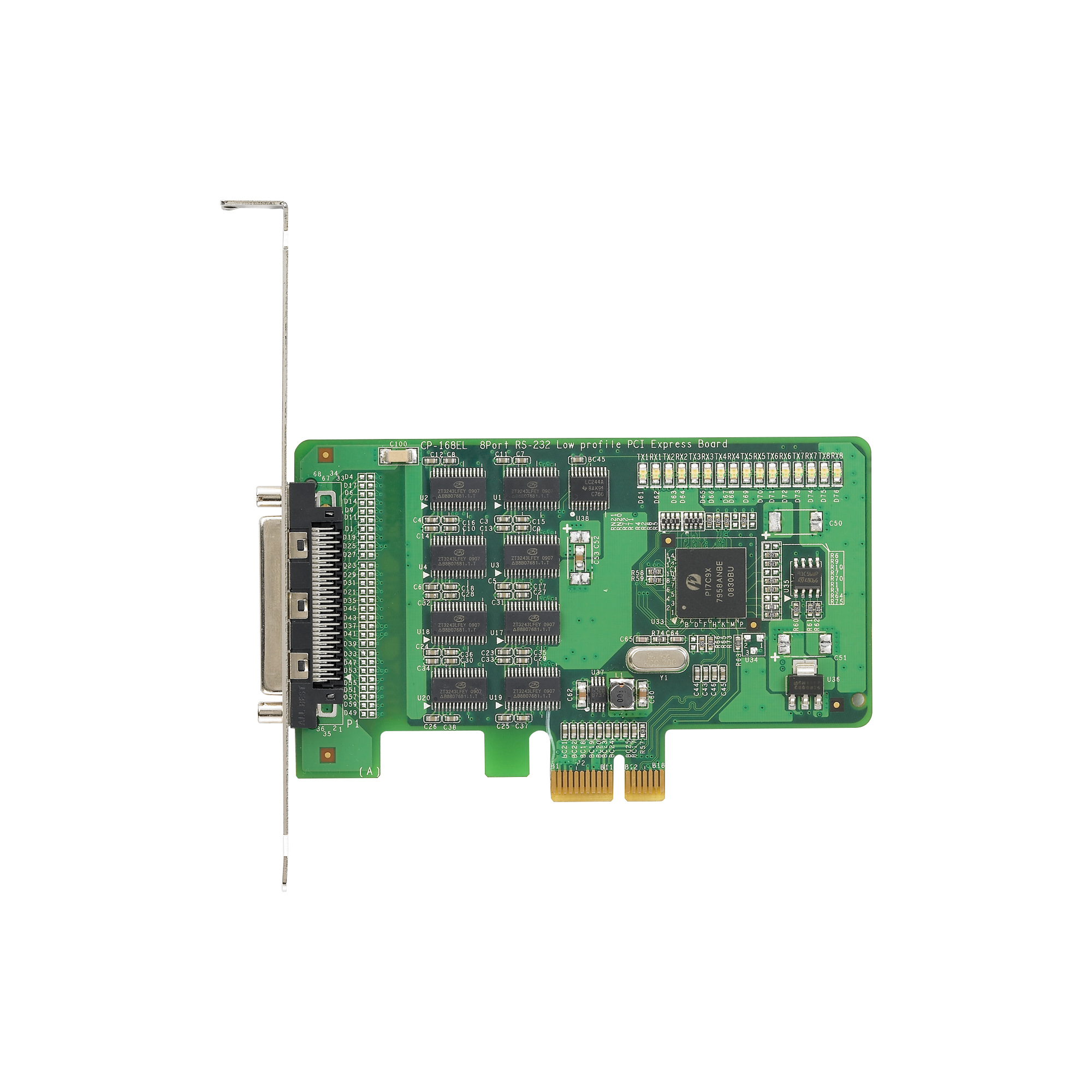

moxa-cp-168el-a-image-1-(1).jpg | Moxa

特色與優點

  • PCI Express 1.0 相容
  • 快速資料傳輸,最高傳輸率達 921.6 Kbps
  • 128 位元 FIFO 和晶片內建軟硬體流量控制
  • RS-232/422/485 可選用各種不同的連接線與連接盒
  • 短版形狀設計可安裝於小型尺寸的 PC
  • 為多種作業系統提供的驅動程式,包括 Windows、Linux 和 UNIX
  • 內建 LED 與管理軟體,可輕鬆維護

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

CP-168EL-A 是一款智慧型 8 埠 PCI Express 擴充卡,專為 POS 和 ATM 應用所設計。它是工業自動化工程師和系統整合商的頂級選擇,並且可支援許多不同的作業系統,包括 Windows、Linux 甚至是 UNIX。此外,每個擴充卡的八個 RS-232 串列擴充卡可支援快速 921.6 kbps 傳輸率。CP-168EL-A 可提供完整數據機控制訊號以確保與廣泛串列週邊設備的相容性,而其 PCI Express x1 分類使其能夠安裝於任何 PCI Express 插槽。



外型更小

CP-168EL-A 是短版擴充卡,可與任何 PCI Express 插槽相容。擴充卡僅需 3.3 VDC 電源供應器,這表示擴充卡可以安裝到從 Shoebox 到標準型 PC 的任何主機電腦。



為 Windows、Linux 和 UNIX 提供的驅動程式

Moxa 持續為各種不同的作業系統提供支援,CP-168EL-A 擴充卡也不例外。我們提供適用於所有 Moxa 擴充卡並且極為可靠的 Windows 和 Linux/UNIX 驅動程式,而其他作業系統(例如 WEPOS)也支援嵌入式整合。



  • Comm. Controller

    16C550C compatible

  • Bus

    PCI Express 1.0

  • Connector

    VHDCI 68

  • FIFO

    128 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    8

  • Serial Standards

    RS-232

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • UNIX Drivers

    Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

  • Input Current

    1,225 mA @ 3.3 VDC

  • Dimensions

    64.42 x 102 mm (2.54 x 4.02 in)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -20 to 85°C (-4 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    2,351,336 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Linux Kernel 6.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
181.9 KB
驅動程式
SHA-512
v6.0
  • Linux Kernel 6.x
2023年7月31日 2023年7月31日 版本說明
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
驅動程式
SHA-512
v4.2
  • Linux Kernel 4.x
2023年1月17日 2023年1月17日 版本說明
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
驅動程式
SHA-512
v5.2
  • Linux Kernel 5.x
2023年1月17日 2023年1月17日 版本說明
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
驅動程式
SHA-512
v3.1
  • Windows 10
  • Windows 10
  • Windows 7
  • Windows 7
  • Windows 8
  • Windows 8
  • Windows 8.1
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2022
2022年9月6日 2022年9月6日 版本說明
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 11 and Windows Server 2022, WHQL certified)
4.1 MB
驅動程式
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
2022年9月2日 2022年9月2日 版本說明
MSB Linux kernel 5.x.x driver
160.1 KB
驅動程式
SHA-512
v5.1
  • Linux Kernel 5.x
2021年10月25日 2021年10月25日 版本說明
MSB Linux kernel 4.x.x driver
161.9 KB
驅動程式
SHA-512
v4.1
  • Linux Kernel 4.x
2021年10月25日 2021年10月25日 版本說明
Driver for Linux kernel 2.x.x
161.3 KB
驅動程式
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2019年12月31日 2019年12月31日 版本說明
Driver for Linux kernel 3.x.x
161.1 KB
驅動程式
SHA-512
v3.0
  • Linux Kernel 3.x
2019年12月31日 2019年12月31日 版本說明
Driver for CP-168EL-A (Windows XP, 2008 or earlier)
759.9 KB
驅動程式
SHA-512
v1.24
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2017年10月17日 2017年10月17日 版本說明
Driver for CP-168EL-A (DOS)
634.2 KB
驅動程式
SHA-512
v1.12
  • DOS
2014年3月31日 2014年3月31日 版本說明
Driver for CP-168EL-A (SCO 5)
649.5 KB
驅動程式
SHA-512
v1.13
  • SCO OpenServer 5
2014年3月30日 2014年3月30日 版本說明
Driver for CP-168EL-A (SCO 6)
322.0 KB
驅動程式
SHA-512
v1.13
  • SCO OpenServer 6
2014年3月30日 2014年3月30日 版本說明
Driver for CP-168EL-A (Sun Solaris)
118.0 KB
驅動程式
SHA-512
v1.1
  • Solaris 10
2014年3月30日 2014年3月30日 版本說明
Driver for CP-168EL-A (UnixWare)
330.0 KB
驅動程式
SHA-512
v1.13
  • SCO UnixWare 7
2014年3月30日 2014年3月30日 版本說明
PComm Lite - Serial Communication Tool for Windows
1.6 MB
工具程式
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012年5月13日 2012年5月13日 版本說明
Driver for CP-168EL-A (Windows ME or prior)
341.1 KB
驅動程式
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
2010年7月12日 2010年7月12日 版本說明
Viewcom
434.6 KB
工具程式
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2010年7月11日 2010年7月11日 版本說明
Driver for CP-168EL-A (QNX6)
120.8 KB
驅動程式
SHA-512
v1.1
  • QNX 6.x
2010年2月10日 2010年2月10日 版本說明
Driver for CP-168EL-A (WinXP Embedded)
289.1 KB
驅動程式
SHA-512
v1.16
  • Windows XP Embedded
2010年2月8日 2010年2月8日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
QIG for PCI Express Multiport Serial Board Series
495.4 KB
QIG 英文 v2.4 2023年4月17日 2023年4月17日
Manual for Multiport Serial PCI Express Boards
16.1 MB
使用者手冊 英文 v12.1 2022年9月16日 2022年9月16日
CP-168EL-A 產品資料表
3.6 MB
產品資料表 中文 v1.4 2020年3月9日 2020年3月9日
2D CAD for CP-168EL-A
841.1 KB
2D CAD 英文 2012年5月14日 2012年5月14日

可供選擇的機型 (1)

顯示圖片

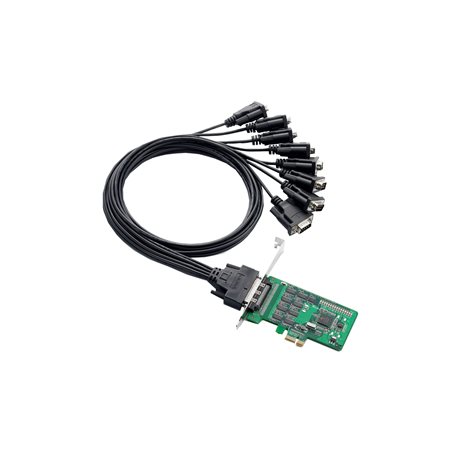

moxa-cp-168el-a-image.jpg | MoxaCP-168EL-A w/o Cable
