MGate 5118 系列

1 埠 CAN-J1939 轉 Modbus/PROFINET/EtherNet/IP 閘道器

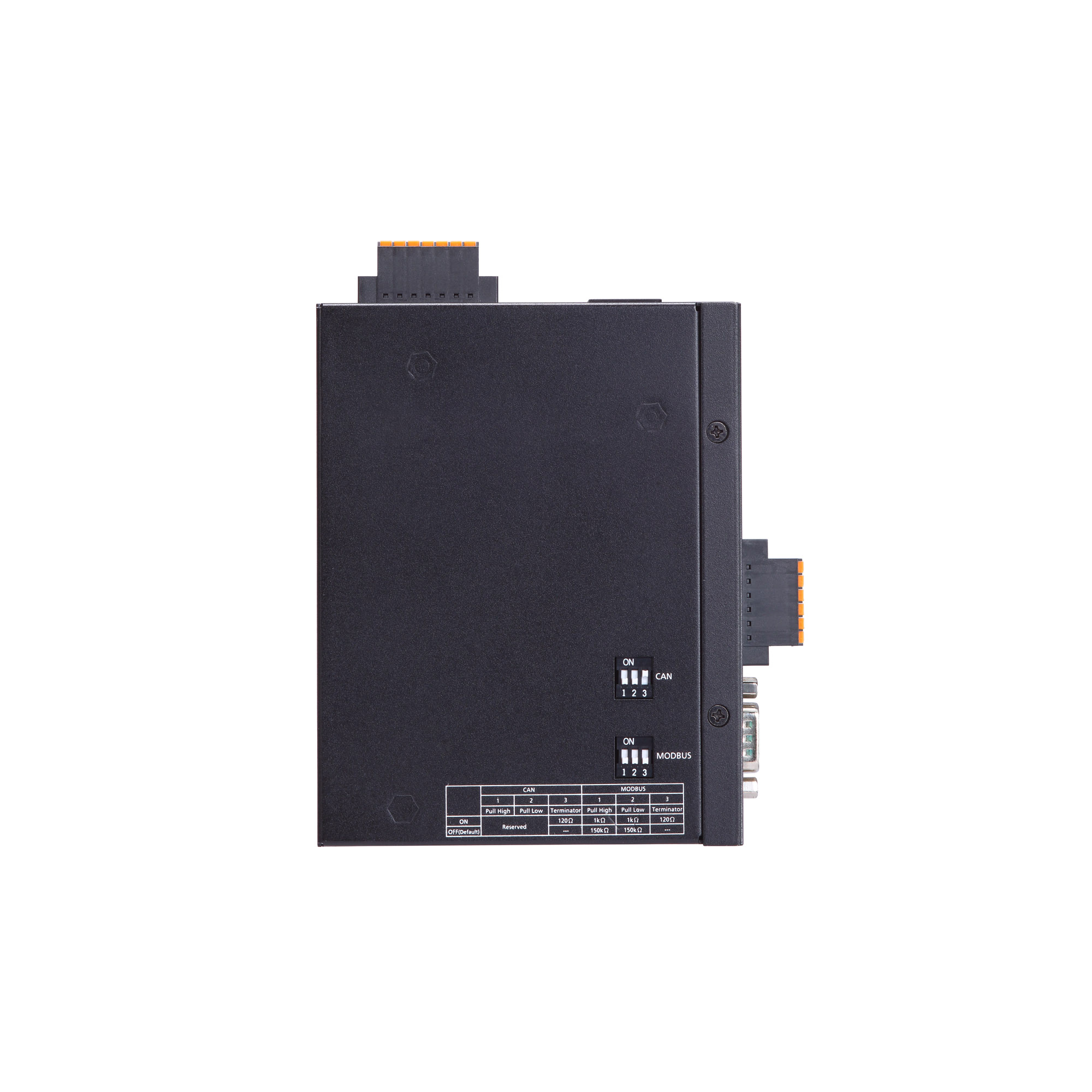

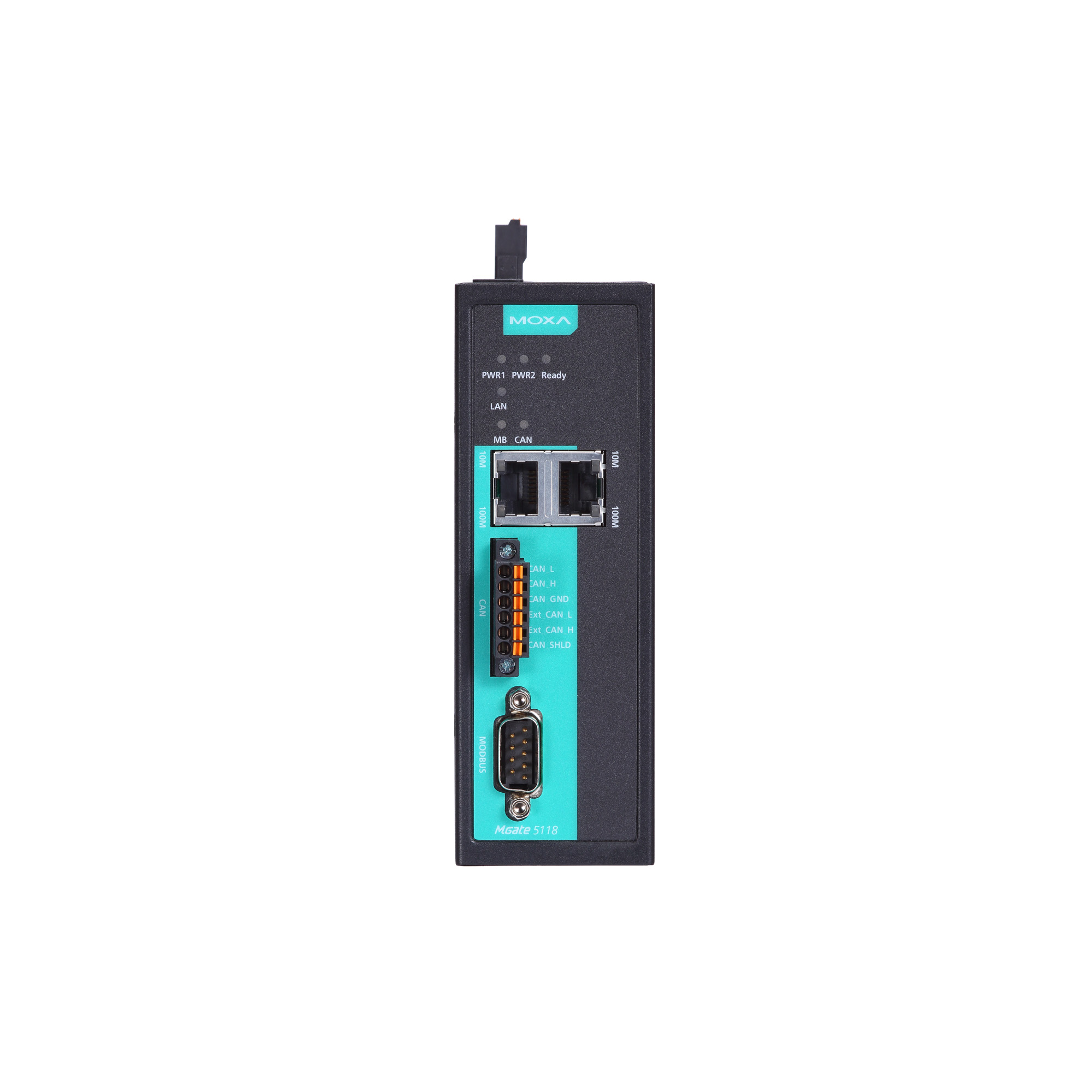

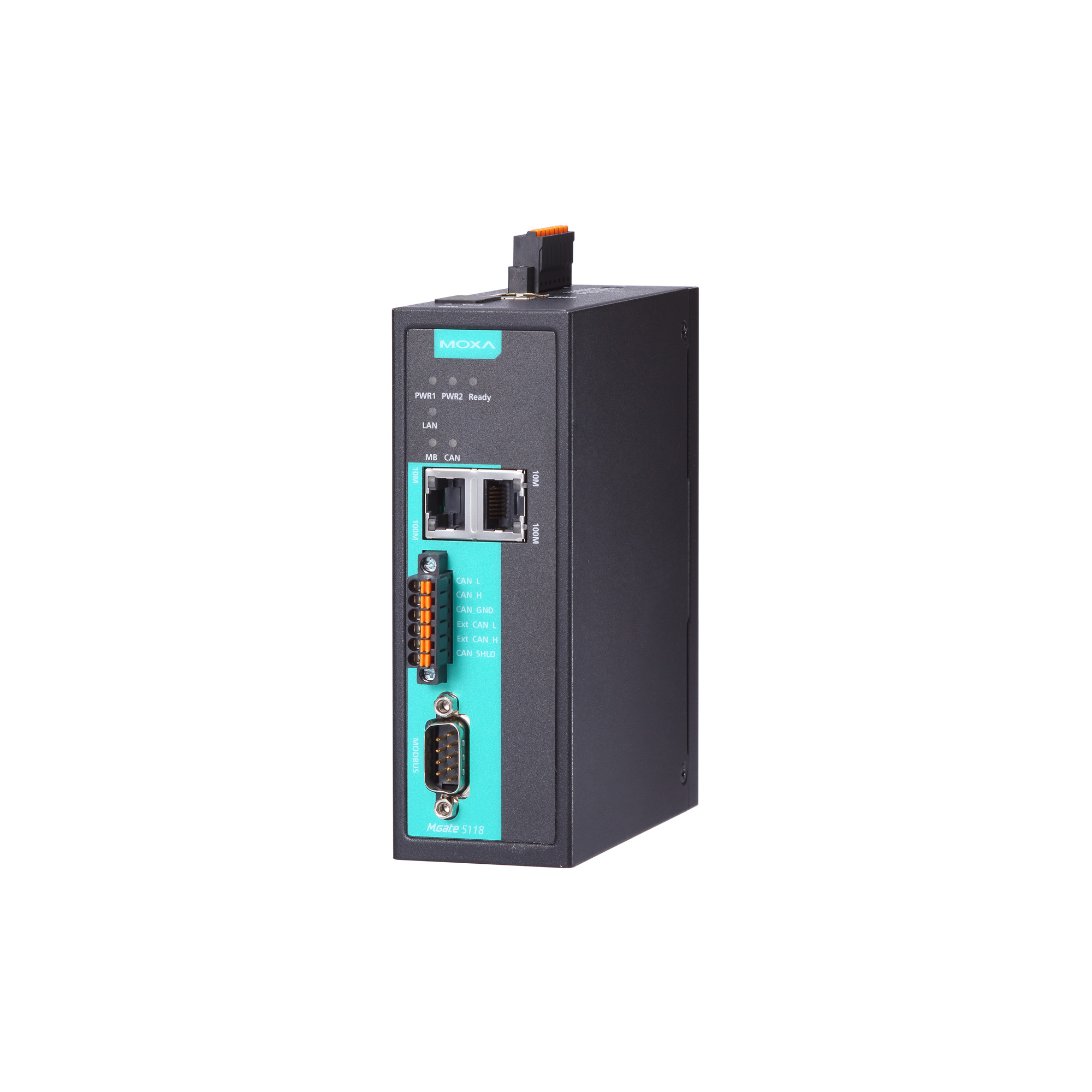

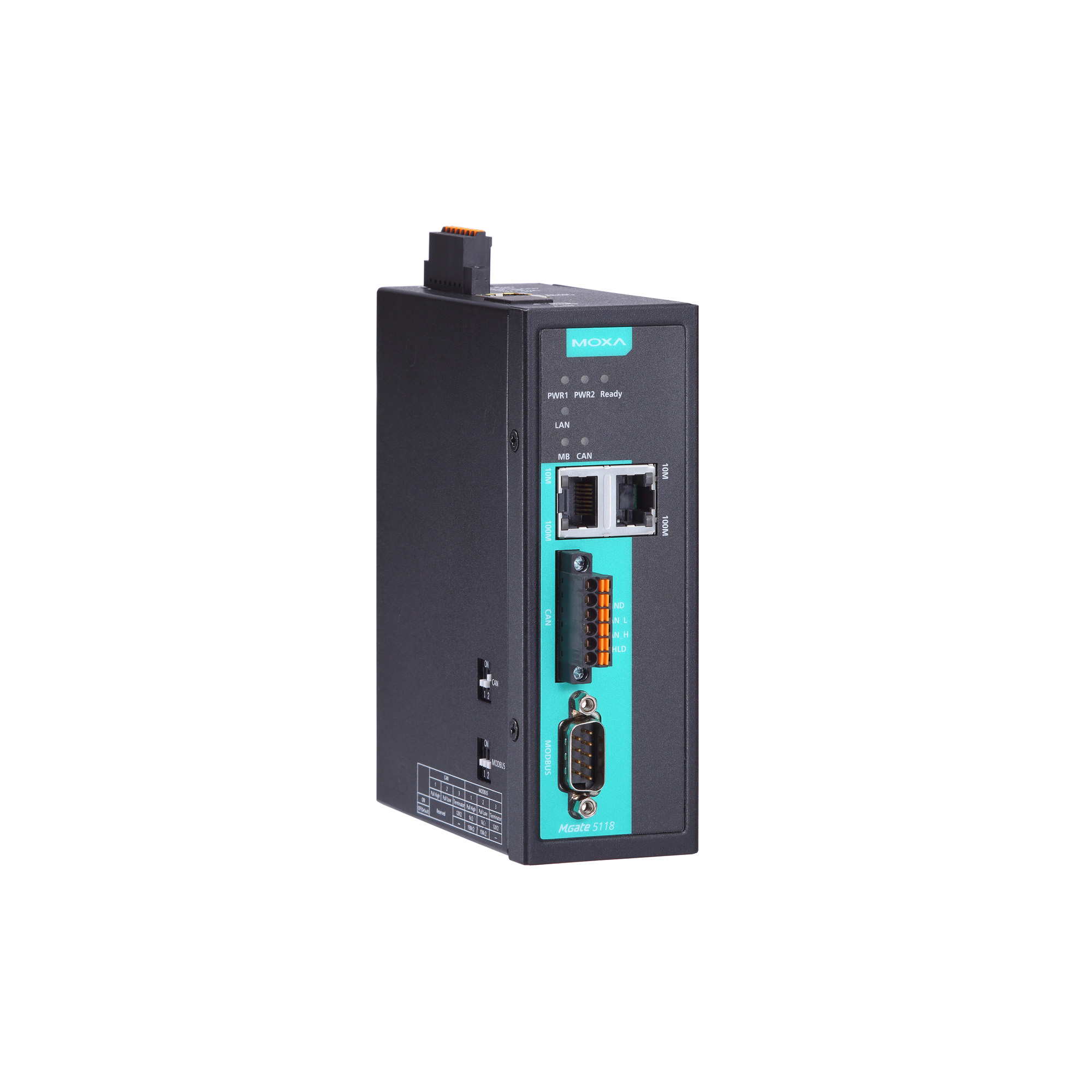

moxa-mgate-5118-series-image-1-(1).jpg | Moxa
moxa-mgate-5118-series-image-2-(1).jpg | Moxa
moxa-mgate-5118-series-image-3-(1).jpg | Moxa
moxa-mgate-5118-series-image-4-(1).jpg | Moxa

特色與優點

  • 將 J1939 轉換為 Modbus、PROFINET 或 EtherNet/IP
  • 支援 Modbus RTU/ASCII/TCP master/client and slave/server
  • 支援 EtherNet/IP 接頭
  • 支援 PROFINET IO 裝置
  • 支援 J1939 通訊協定
  • 透過網頁式設定精靈輕鬆配置
  • 輕鬆佈線的內建乙太網路串接
  • 嵌入式流量監控/診斷資訊,便於故障排除
  • microSD 卡可用於備份/複製配置與儲存事件日誌
  • 狀態監控和故障保護,可輕鬆維護
  • 內建 2 kV 隔離保護的 CAN 匯流排和串列埠
  • 提供 -40 至 75°C 寬溫度操作型號可供選用
  • 基於 IEC 62443 的資安防護功能

認證

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-iecex-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MGate 5118 工業通訊協定閘道器支援基於 CAN 匯流排(控制器區域網路)的 SAE J1939 通訊協定。SAE J1939 可用於車輛零組件、柴油發電機和壓縮機之間的通訊和診斷,適合重型卡車產業和備援電源系統。現在普遍使用引擎控制單元 (ECU) 控制這些類型的裝置,而且愈來愈多應用都使用 PLC 進行製程自動化,監控在 ECU 後端連線的 J1939 裝置狀態。

MGate 5118 閘道器支援將 J1939 數據轉換為 Modbus RTU/ASCII/TCP、EtherNet/IP 或 PROFINET 通訊協定,適用於大多數 PLC 應用程式。支援 J1939 通訊協定的裝置可由使用 Modbus RTU/ASCII/TCP、EtherNet/IP 和 PROFINET 通訊協定的 PLC 和 SCADA 系統監控和控制。藉由 MGate 5118,可在各種 PLC 環境中使用相同的閘道器。

免輸入 J1939 命令

J1939 通訊協定能夠從 CAN-J1939 裝置擷取各種數據。為了消除手動將所有 J1939 命令輸入閘道器的需要,MGate 5118 閘道器可以自動偵測 CAN 裝置所使用的輸出命令。

只需在 Web 主控台中按一下,閘道器就會自動偵測來自 CAN 裝置的所有輸出命令。這些命令將在 Web 主控台的命令清單中顯示,然後使用者可以根據需要進一步修改。MGate 5118 閘道器可讓使用者以更輕鬆的方式連接 PLC 與 CAN 裝置。

多種維護功能

MGate 5118 閘道器支援 Web 主控台,方便配置和維護,而且內建流量監控功能會監控 J1939 通訊協定流量,因此使用者可以監控所連接的 CAN 裝置的狀態,其中包括錯誤計數、數據封包計數和匯流排離線。流量監控功能也可用於對 CAN 裝置進行故障排除。診斷工具可協助使用者檢查 CAN 裝置設定,並透過讀取 J1939 網路位址指示 CAN 裝置可用性。此外,兩個或多個 J1939 裝置連接到同一個 CAN 匯流排時,MGate 5118 閘道器會發揮內建的即時清單功能。此項功能會對於從每個裝置傳輸的數據封包顯示 PGN 和位址,因此使用者能夠測量 CAN 匯流排的負載。

為了偵測鬆動的纜線,MGate 5118 閘道器支援狀態監控和故障保護功能。閘道器和 CAN 裝置之間的纜線鬆動時,狀態監控功能會通知 PLC。此外,閘道器和 PLC 之間的纜線鬆動時,故障保護功能會執行使用者預先定義的操作。

  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master), Modbus TCP Server (Slave), PROFINET IO Device, EtherNet/IP Scanner, EtherNet/IP Adapter

  • Configuration Options

    Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console

  • Management

    ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • No. of Ports

    1

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only), RTS/CTS

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    2 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Configuration Options

    Serial Console

  • Industrial Protocols

    J1939, Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave

  • Mode

    Master, Slave

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    128

  • Mode

    Client (Master), Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    16

  • Max. No. of Server Connections

    32

  • Max. No. of Commands

    128

  • Mode

    IO Device

  • Max. No. of IO Controller Connections

    1 (for read/write)

  • Input Data Size

    512 bytes

  • Output Data Size

    512 bytes

  • Mode

    Scanner, Adapter

  • CIP Objects Supported

    Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port

  • Max. No. of Scanner Connections

    1 (for read-only), 1 (for read/write)

  • Max. No. of Adapter Connections

    4

  • Input Data Size

    496 bytes

  • Output Data Size

    496 bytes

  • Industrial Protocols

    J1939

  • No. of Ports

    1

  • Connector

    Spring-type Euroblock terminal

  • Baudrate

    250 kbps, 500 kbps

  • Terminator

    120 ohms

  • Isolation

    2 kV (built-in)

  • Max. No. of Commands

    256

  • Input Data Size

    2048 bytes

  • Output Data Size

    2048 bytes

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    416 mA @ 12 VDC

  • Power Connector

    Spring-type Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)

  • Weight

    589 g (1.30 lb)

  • Operating Temperature

    MGate 5118: 0 to 60°C (32 to 140°F)
    MGate 5118-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 60950-1, UL 61010-2-201

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX, Class I Division 2, IECEx

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6, IEC 60068-2-64

  • Time

    727,873 hrs

  • Standards

    Telcordia SR332
