MGate 5122 系列

1 埠 CAN 轉 EtherNet/IP 閘道器

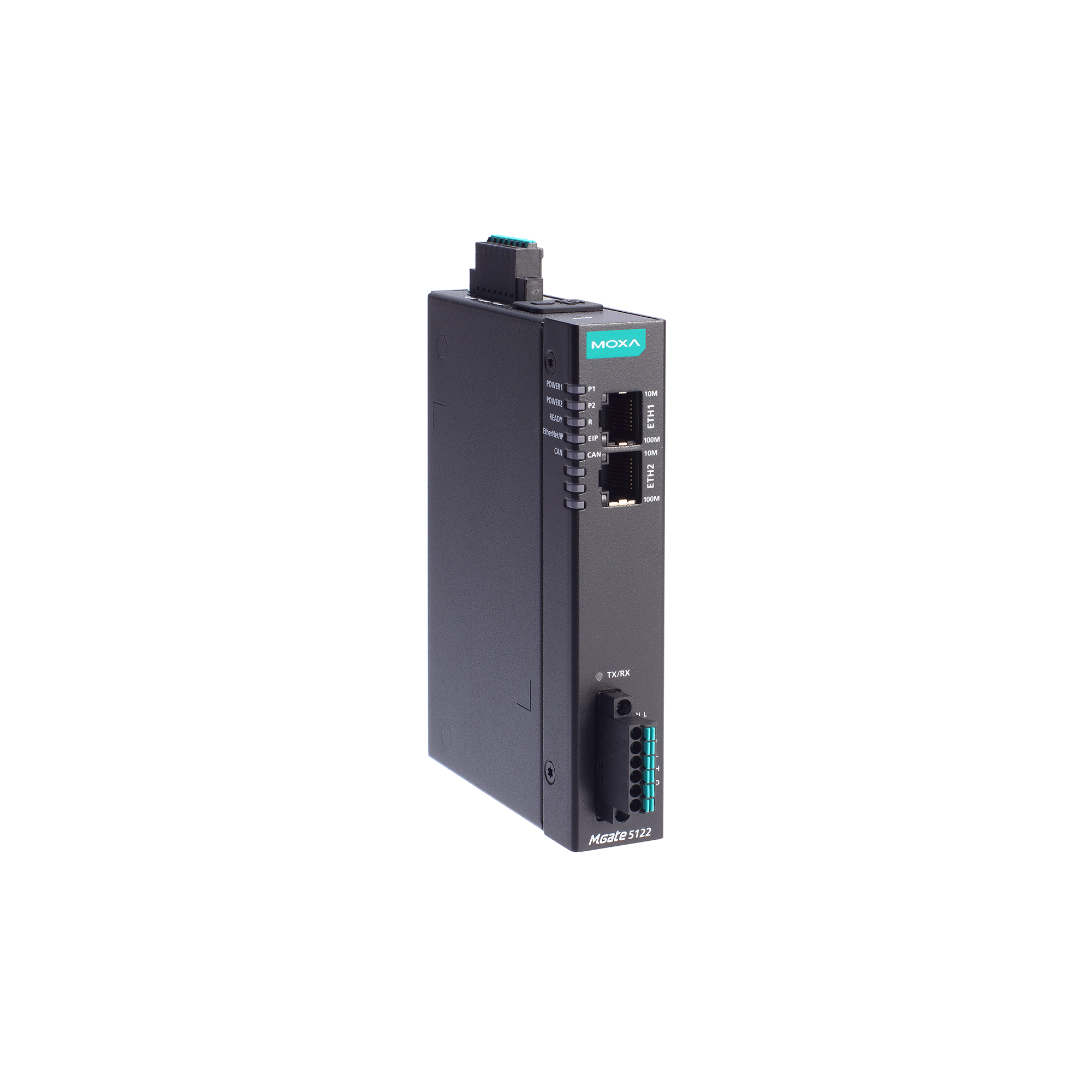

moxa-mgate-5122-series-image-(1).jpg | Moxa

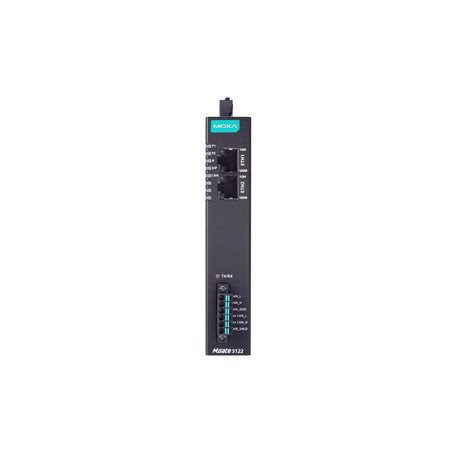

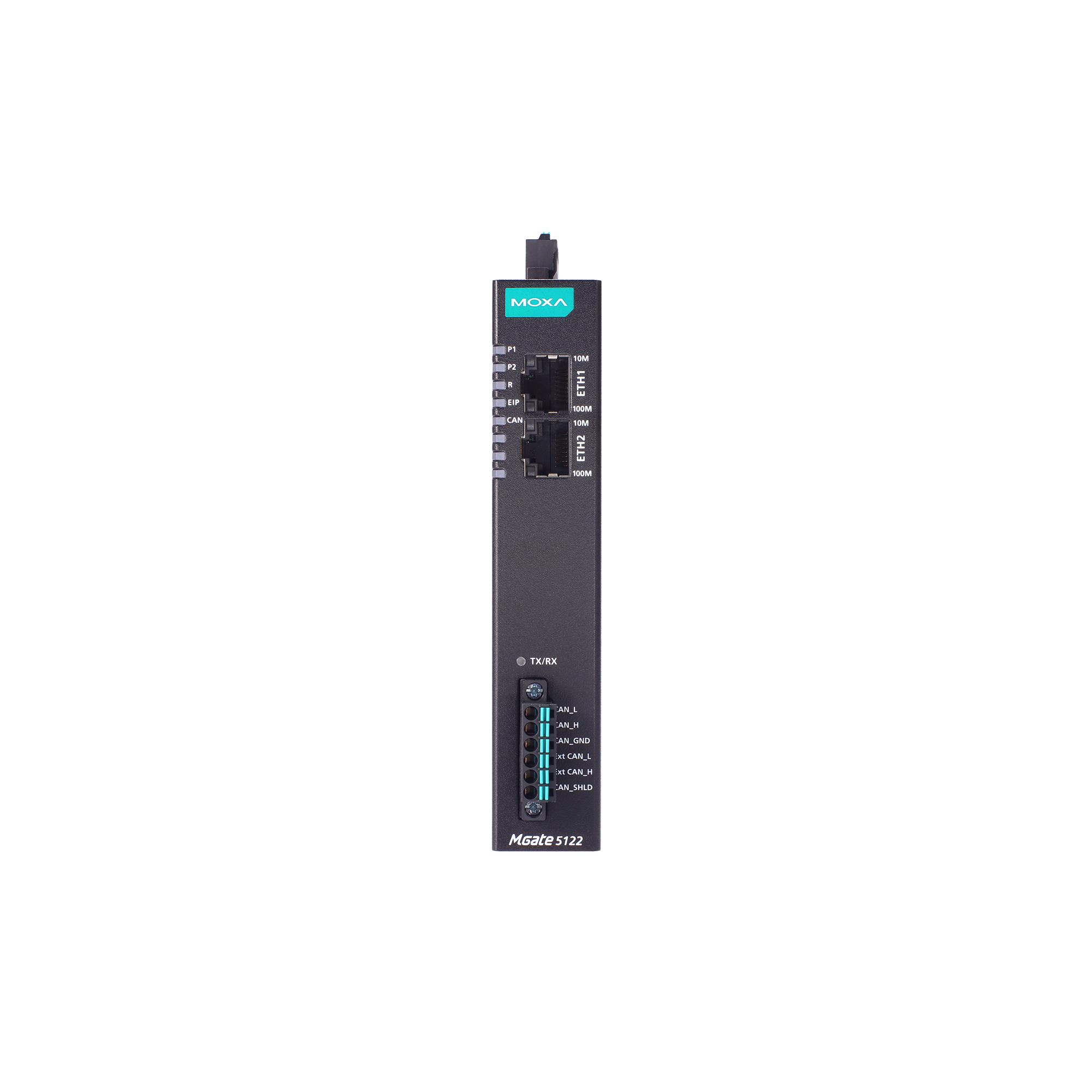

moxa-mgate-5122-series-image-1-(1).jpg | Moxa

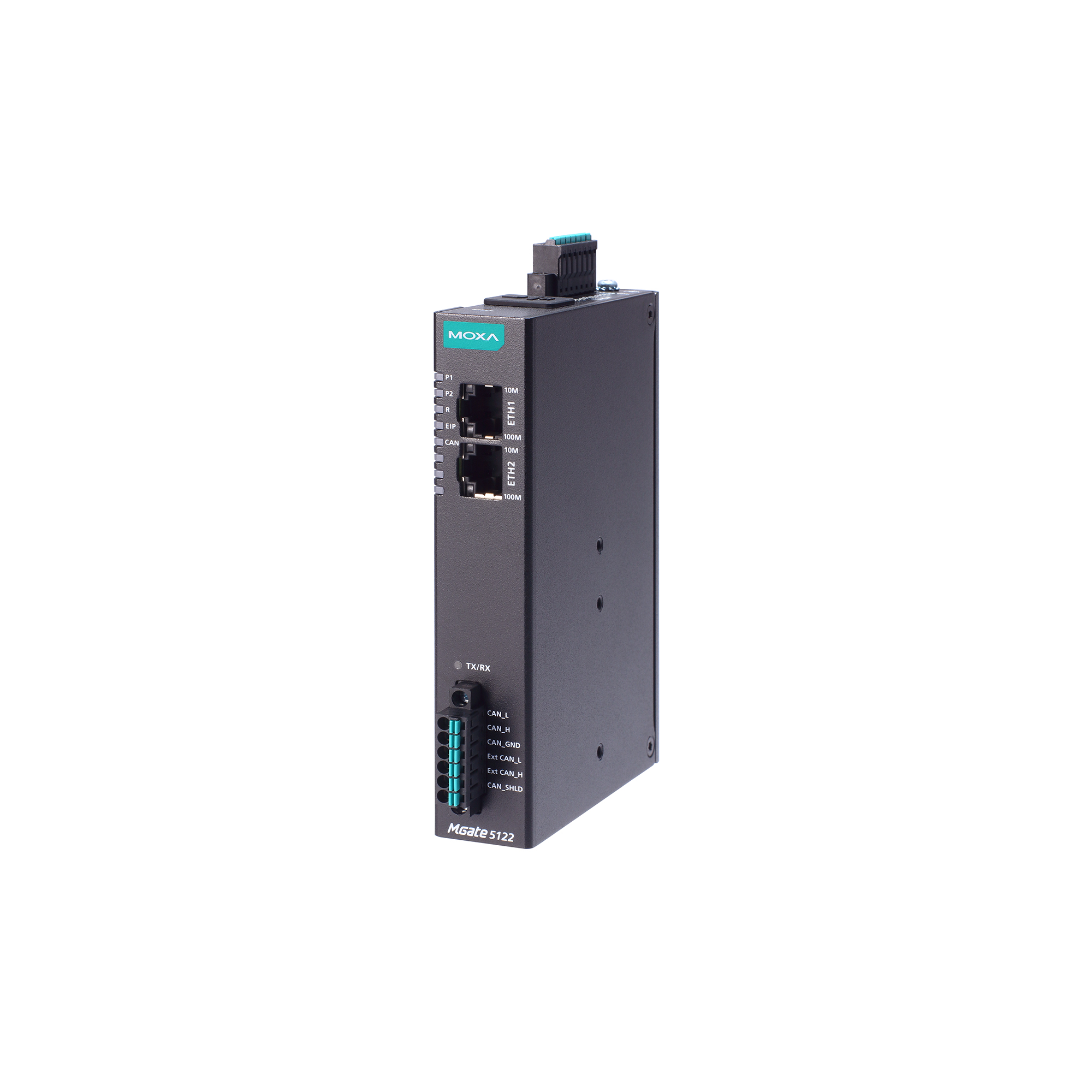

moxa-mgate-5122-series-image-2-(1).jpg | Moxa

特色與優點

  • 從 CANopen、J1939 與私有 CAN (CAN 2.0A/B) 到 EtherNet/IP 與 SNMP 的同時通訊協定轉換
  • 支援 EtherNet/IP 轉接頭與 SNMP 代理程式
  • 支援 CANopen 主控裝置、J1939 與私有 CAN (CAN 2.0A/B)
  • 透過乙太網路串聯與雙子網路彈性部署
  • 嵌入式流量監控/診斷資訊,便於故障排除
  • 透過網頁式主控台輕鬆配置裝置
  • microSD 卡可用於備份/複製配置
  • 支援雙備援 DC 電源輸入與 1 個繼電器輸出
  • CAN 埠內建 2-kV 隔離保護
  • 提供 -40 至 75°C 寬溫度操作型號可供選用

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MGate 5122 是一款工業乙太網路閘道器,可將 CANopen、J1939 及私有 CAN (CAN 2.0A/B) 轉換為 EtherNet/IP 網路通訊。若要將現有的 CAN 裝置整合於 EtherNet/IP 網路,可使用 MGate 5122 做為 CAN 主控裝置,藉以收集數據並與 EtherNet/IP 掃描器交換數據。所有型號均採用堅固緊湊的金屬外殼加以保護,並支援 DIN 軌道安裝。堅固設計適用於各種工業應用,例如工廠自動化、程序自動化及電力應用。



輕鬆配置

MGate 5122 閘道器提供 Web 主控台,無需安裝額外的公用程式即可輕鬆配置。 此外,HTTPS 通訊加密還可確保更高的網路安全性。

在大多數資料擷取應用中,CANopen 裝置的設定過程可能既耗時又會增加成本。MGate 5122 閘道器支援 EDS 檔案匯入功能,使用者可自動掃描 CANopen 裝置,協助快速完成設定。MGate 閘道器提供軟體設定的 CANbus 終端電阻功能,無需開啟機箱即可完成設定,大幅減少操作負擔。



輕鬆排除故障

MGate 5122 閘道器提供多種維護功能,包括 LED 狀態指示燈、通訊協定診斷、流量監控及標籤檢視等,可縮短故障排除時間並降低維護成本。這些工具可協助您擷取與檢查資料,輕鬆找出問題的根本原因,尤其在安裝階段特別實用。MGate 閘道器也提供狀態監控和失效防護功能。CAN 裝置中斷連線或無回應時,狀態監控功能會通知 PLC/DCS/SCADA 系統,此時程序 PLC/DCS 會取得每部終端裝置的狀態,並發出警報通知操作員。當主機中斷連線時,失效防護功能會執行使用者預先定義的動作,以防止終端裝置長時間離線。



  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    EtherNet/IP Adapter

  • Configuration Options

    Web Console (HTTPS)
    Device Search Utility (DSU)

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    UDP

  • MIB

    RFC1213

  • Time Management

    NTP Client

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    SNMPv2c Trap
    HTTPS (TLS 1.3)

  • No. of Ports

    1

  • Connector

    Spring-type Euroblock terminal

  • Standards

    ISO 11898-2

  • Baudrate

    CANopen, proprietary CAN:
    10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps
    J1939:
    250 kbps, 500 kbps, 1 Mbps

  • Terminator

    120 ohms
    software configurable

  • Signals

    CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield

  • Industrial Protocols

    CANopen
    J1939
    Proprietary CAN (CAN 2.0A/B)

  • Mode

    Master

  • Max No. of Nodes

    64

  • Max No. of Receive PDOs

    256

  • Max No. of Transmit PDOs

    256

  • SDOs

    Supported

  • Input Data Size

    2048 bytes

  • Output Data Size

    2048 bytes

  • Max. No. of Commands

    256

  • Total Input Data Size

    2048 bytes

  • Total Output Data Size

    2048 bytes

  • Frame Format

    CAN 2.0A
    CAN 2.0B

  • Max. No. of Transactions

    256

  • Input Data Size

    2048 bytes

  • Output Data Size

    2048 bytes

  • Mode

    Adapter

  • CIP Objects Supported

    Identity
    Message Router
    Assembly
    Connection Manager
    TCP/IP interface
    Ethernet link
    Port

  • Max. No. of Scanner Connections

    4

  • Total Input Data Size

    496 bytes
    (bytes/connection, total: 1984 bytes)

  • Total Output Data Size

    496 bytes
    (bytes/connection, total: 1984 bytes)

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    455 mA (max)

  • Power Connector

    Spring-type Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)

  • Weight

    294 g (0.65 lb)

  • Operating Temperature

    MGate 5122: -10 to 60°C (14 to 140°F)
    MGate 5122-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 61010-2-201
    UL 61010-2-201

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Time

    1,408,984 hrs

  • Standards

    Telcordia Standard SR-332
