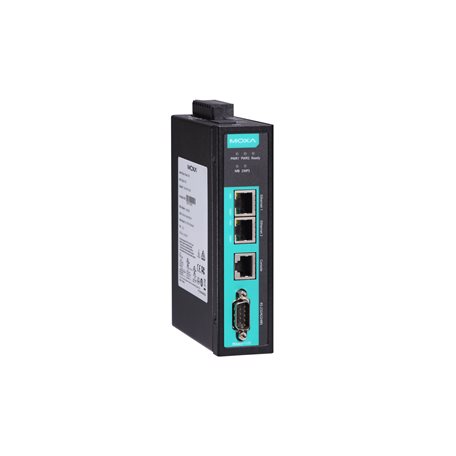

MGate 5109-T
MGate 5109 系列

1-port Modbus-to-DNP3 gateway, -40 to 75°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
      Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Industrial Protocols

    • Modbus TCP Client (Master), Modbus TCP Server (Slave), DNP3 TCP Master, DNP3 TCP Outstation

  • Configuration Options

    • Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console

  • Management

    • ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client

  • MIB

    • RFC1213, RFC1317

  • Time Management

    • NTP Client
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • No. of Ports

    • 1

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232/422/485

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 2

  • Flow Control

    • RTS Toggle (RS-232 only), RTS/CTS

  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • Isolation

    • 2 kV (built-in)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features

  • Configuration Options

    • Serial Console

  • Industrial Protocols

    • Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, DNP3 Serial Master, DNP3 Serial Outstation
Modbus RTU/ASCII

  • Mode

    • Master, Slave

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    • 100
Modbus TCP

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Mode

    • Client (Master), Server (Slave)

  • Max. No. of Client Connections

    • 16

  • Max. No. of Server Connections

    • 32

  • Max. No. of Commands

    • 100
DNP3 (Transparent)

  • Max. No. of Master Connections

    • 16

  • Max. No. of Outstation Connections

    • 32
DNP3 Serial

  • Mode

    • Master, Outstation

  • Max. No. of Master Connections

    • 1

  • Max. No. of Outstation Connections

    • 31

  • Internal Master Database (each Master)

    • Binary Inputs: 8192 points
      Analog Inputs: 2048 points
      Counters: 2048 points
      Binary Outputs: 8192 points
      Analog Outputs: 2048 points

  • Internal Outstation Database

    • Binary Inputs: 8192 points
      Analog Inputs: 2048 points
      Counters: 2048 points
      Binary Outputs: 8192 points
      Analog Outputs: 2048 points
      Binary Input Events: 1024
      Analog Input Events: 1024
      Counter Events: 1024
DNP3 TCP/UDP

  • Mode

    • Master, Outstation

  • Max. No. of Master Connections

    • 1

  • Max. No. of Outstation Connections

    • 32

  • Internal Master Database (each Master)

    • Binary Inputs: 8192 points
      Analog Inputs: 2048 points
      Counters: 2048 points
      Binary Outputs: 8192 points
      Analog Outputs: 2048 points

  • Internal Outstation Database

    • Binary Inputs: 8192 points
      Analog Inputs: 2048 points
      Counters: 2048 points
      Binary Outputs: 8192 points
      Analog Outputs: 2048 points
      Binary Input Events: 1024
      Analog Input Events: 1024
      Counter Events: 1024
Memory

  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
Power Parameters

  • Input Voltage

    • 12 to 48 VDC

  • Input Current

    • 455 mA @ 12 VDC

  • Power Connector

    • Screw-fastened Euroblock terminal
Relays

  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

  • Weight

    • 507 g (1.12 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • EN 60950-1, UL 508

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class B

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx

  • Freefall

    • IEC 60068-2-32

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
MTBF

  • Time

    • 888,926 hrs

  • Standards

    • Telcordia SR332
Warranty
