MGate 5121 系列

1 埠 CAN 轉 Modbus TCP 閘道器

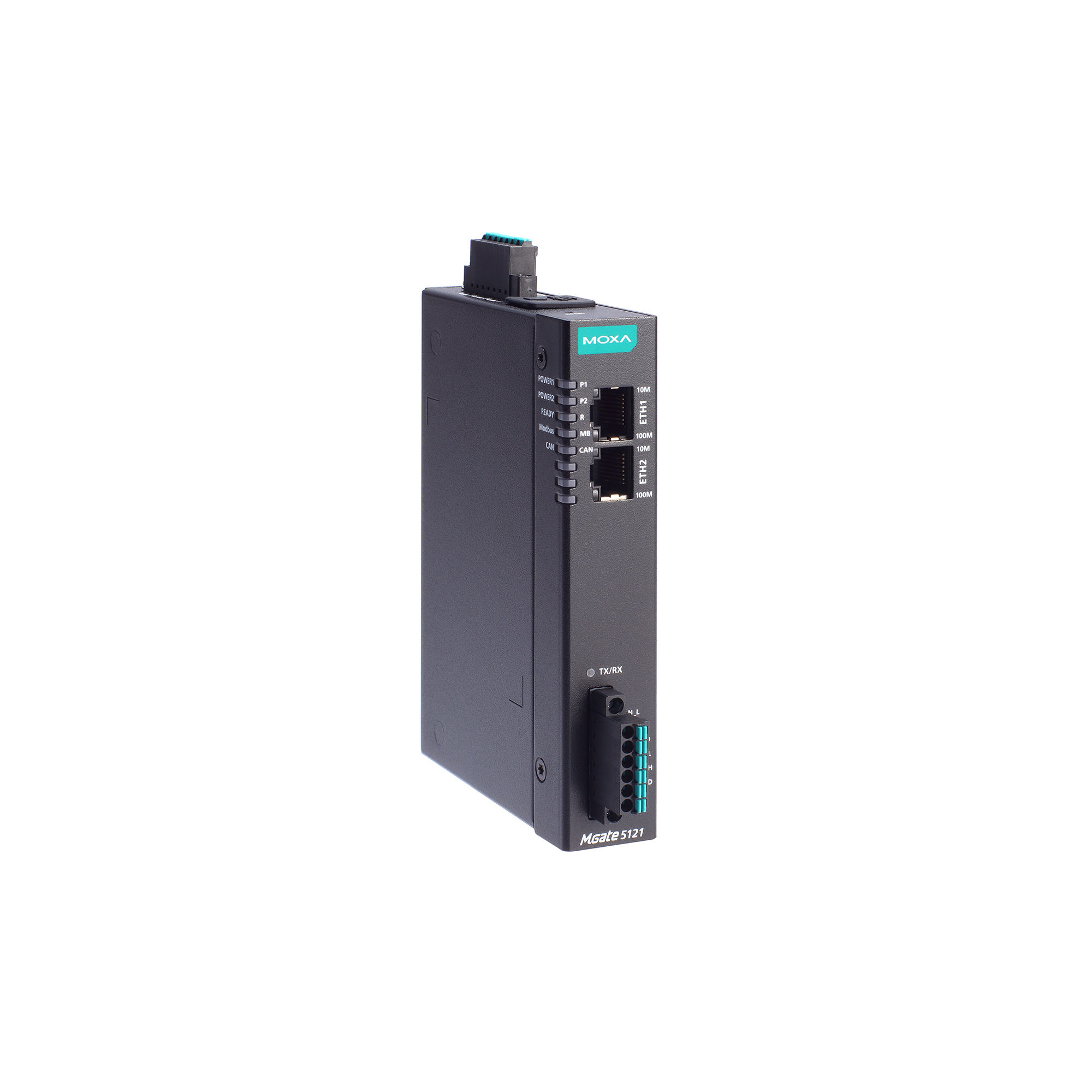

moxa-mgate-5121-series-image-(1).jpg | Moxa

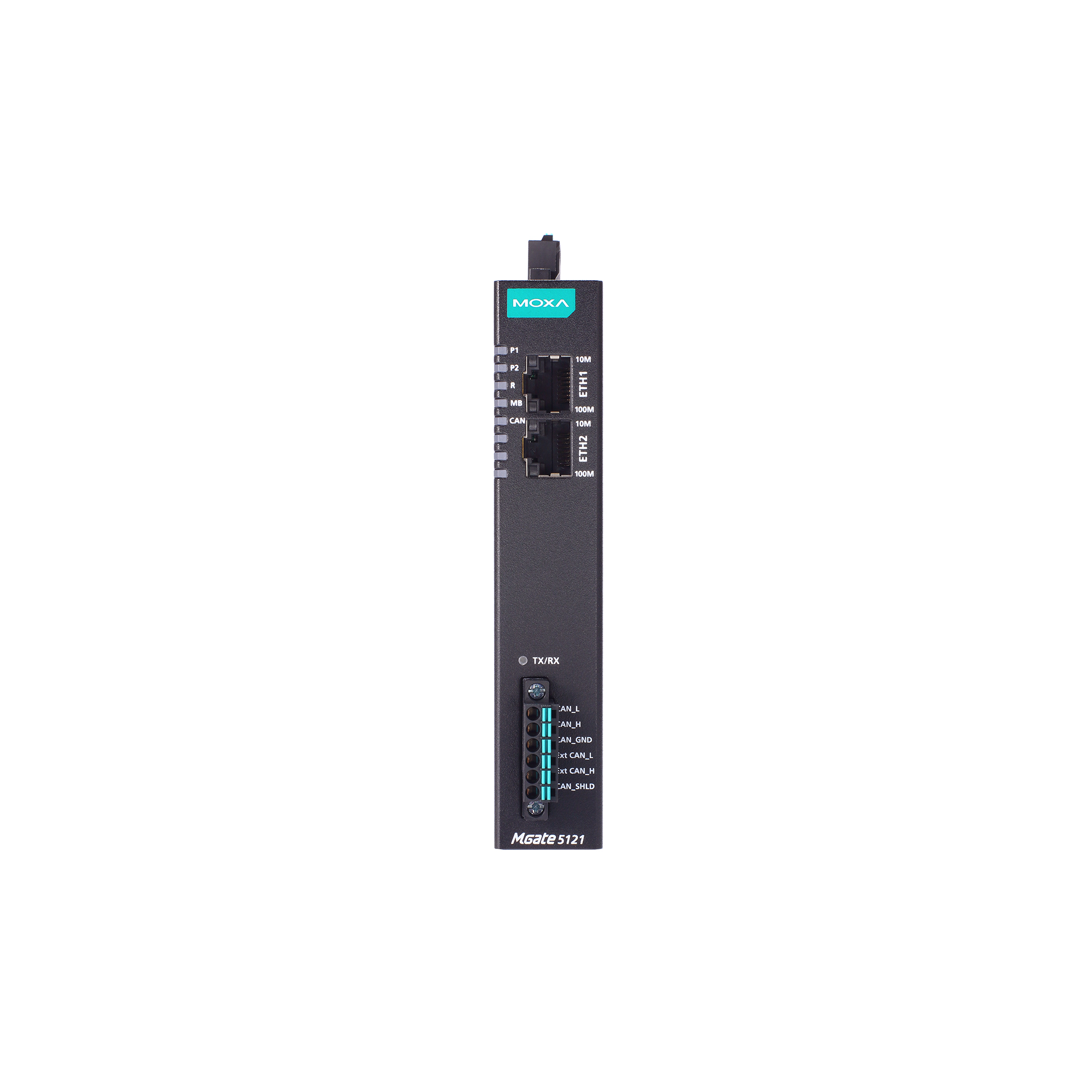

moxa-mgate-5121-series-image-1-(1).jpg | Moxa

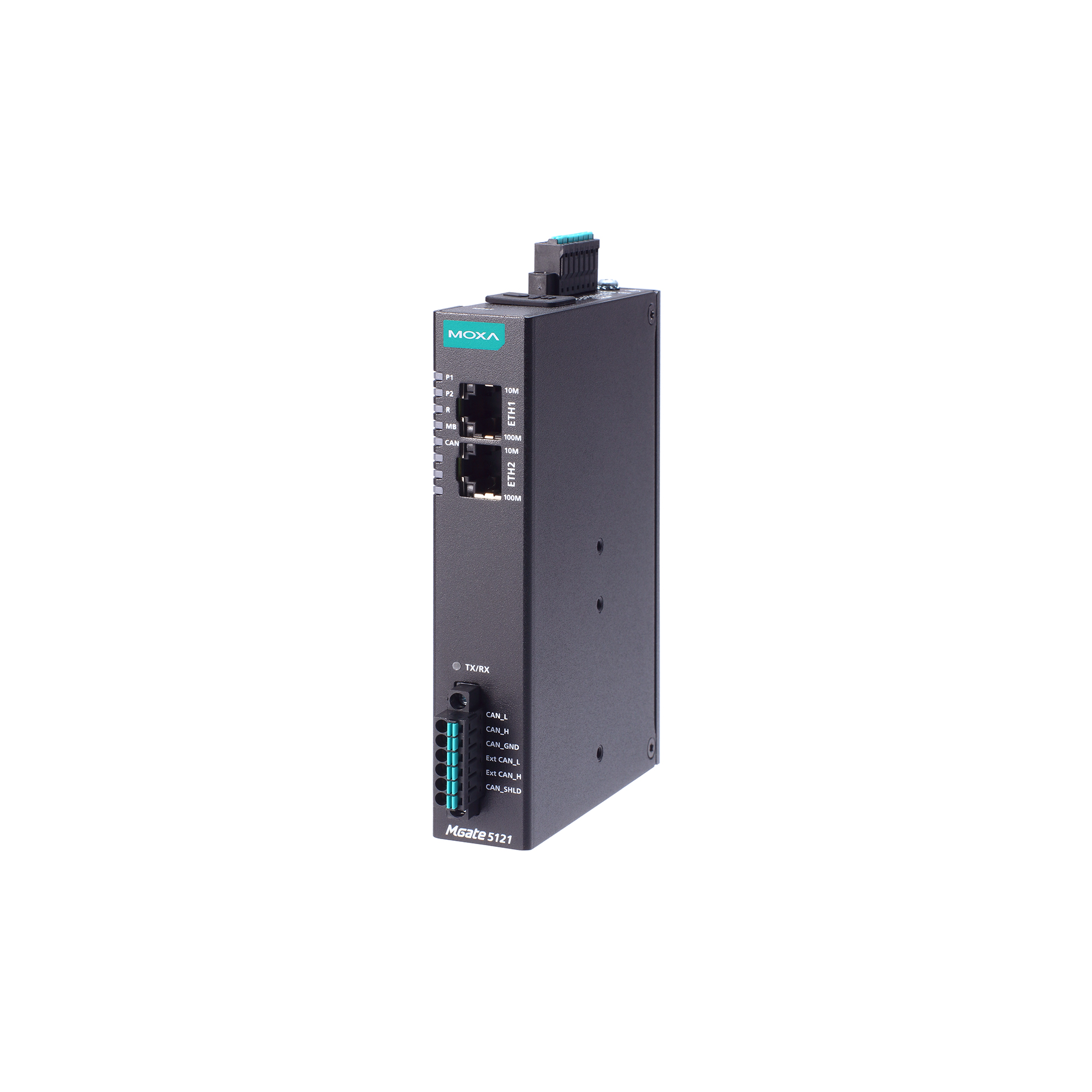

moxa-mgate-5121-series-image-2-(1).jpg | Moxa

特色與優點

  • 將通訊協定從 CANopen、J1939 與私有 CAN (CAN 2.0A/B) 同時轉換為 Modbus TCP 與 SNMP
  • 支援 Modbus TCP 伺服器 (從屬裝置) 與 SNMP Agent
  • 支援 CANopen 主控裝置、J1939 與私有 CAN (CAN 2.0A/B)
  • 使用乙太網路串聯與雙子網路進行彈性部署
  • 嵌入式流量監控/診斷資訊,便於故障排除
  • 透過網頁式主控台輕鬆配置裝置
  • microSD 卡可用於備份/複製配置
  • 支援雙備援 DC 電源輸入與 1 點繼電器輸出
  • 內建 2-kV 隔離保護的 CAN 連接埠
  • 提供 -40 至 75°C 寬溫運作型號可供選用

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MGate 5121 是將 CANopen、J1939 與私有 CAN (CAN 2.0A/B) 轉換為 Modbus TCP 網路通訊的工業乙太網路閘道器。若要將現有的 CAN 裝置整合於 Modbus TCP 網路,可使用 MGate 5121 做為 CAN 主控裝置,藉以收集資料並與 Modbus TCP 主機交換資料。所有型號均受到堅固耐用且輕巧的金屬外殼保護,並可安裝到 DIN 導軌。 堅固設計適用於各種工業應用,例如工廠自動化、程序自動化及電力應用。



輕鬆配置

MGate 5121閘道器提供 Web 主控台,無需安裝額外的公用程式即可輕鬆配置。 此外,HTTPS 通訊加密還可確保更高的網路安全性。

在大多數資料擷取應用中,CANopen 裝置的配置往往耗時且增加成本。MGate 5121 閘道器提供 EDS 檔案匯入功能,使用者可自動掃描 CANopen 裝置,協助快速完成設定。MGate 閘道器提供 CANbus 終端電阻的軟體可配置設定,無需開啟機箱即可調整,大幅節省作業時間。



輕鬆排除故障

MGate 5121 閘道器提供多種維護功能,可縮短故障排除時間並降低成本,包括 LED 指示燈、通訊協定診斷、流量監視器與標籤檢視功能。這些工具可協助您擷取及檢查資料,輕鬆找出問題根源,尤其是在安裝階段。MGate 閘道器也隨附狀態監控和故障保護功能。CAN 裝置中斷連線或無回應時,狀態監控功能會通知 PLC/DCS/SCADA 系統,在此情況下,程序 PLC/DCS 會取得每部終端裝置的狀態,並發出警報通知操作員。故障保護功能會在主機中斷連線時執行使用者預先定義的動作,防止終端裝置長期處於離線狀態。



  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client

  • Configuration Options

    Web Console (HTTPS)
    Device Search Utility (DSU)

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    UDP

  • MIB

    RFC1213

  • Time Management

    NTP Client

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    SNMPv2c Trap
    HTTPS (TLS 1.3)

  • No. of Ports

    1

  • Connector

    Spring-type Euroblock terminal

  • Standards

    ISO 11898-2

  • Baudrate

    CANopen, proprietary CAN:
    10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps
    J1939:
    250 kbps, 500 kbps, 1 Mbps

  • Terminator

    120 ohms
    software configurable

  • Signals

    CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield

  • Industrial Protocols

    CANopen
    J1939
    Proprietary CAN (CAN 2.0A/B)

  • Mode

    Master

  • Max No. of Nodes

    64

  • Max No. of Receive PDOs

    256

  • Max No. of Transmit PDOs

    256

  • SDOs

    Supported

  • Input Data Size

    2048 bytes

  • Output Data Size

    2048 bytes

  • Max. No. of Commands

    256

  • Total Input Data Size

    2048 bytes

  • Total Output Data Size

    2048 bytes

  • Frame Format

    CAN 2.0A
    CAN 2.0B

  • Max. No. of Transactions

    256

  • Input Data Size

    2048 bytes

  • Output Data Size

    2048 bytes

  • Mode

    Server

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    16

  • Total Input Data Size

    2048 bytes

  • Total Output Data Size

    2048 bytes

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    455 mA (max)

  • Power Connector

    Spring-type Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)

  • Weight

    294 g (0.65 lb)

  • Operating Temperature

    MGate 5121: -10 to 60°C (14 to 140°F)
    MGate 5121-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 61010-2-201
    UL 61010-2-201

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Time

    1,408,984 hrs

  • Standards

    Telcordia Standard SR-332
