MGate 5217 系列

2 埠 Modbus RTU/ASCII/TCP 轉 BACnet/IP 閘道器

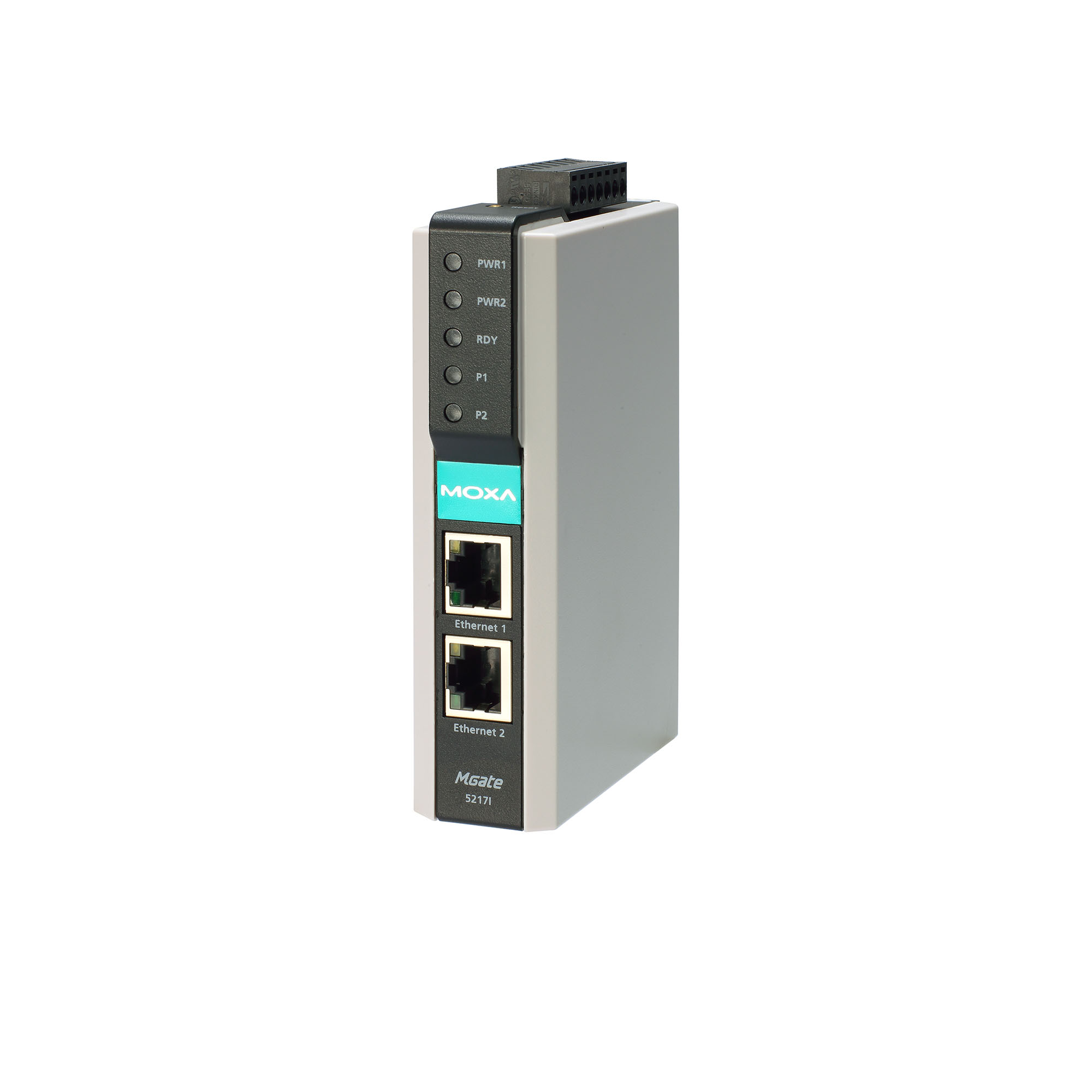

moxa-mgate-5217-series-image-(1).jpg | Moxa

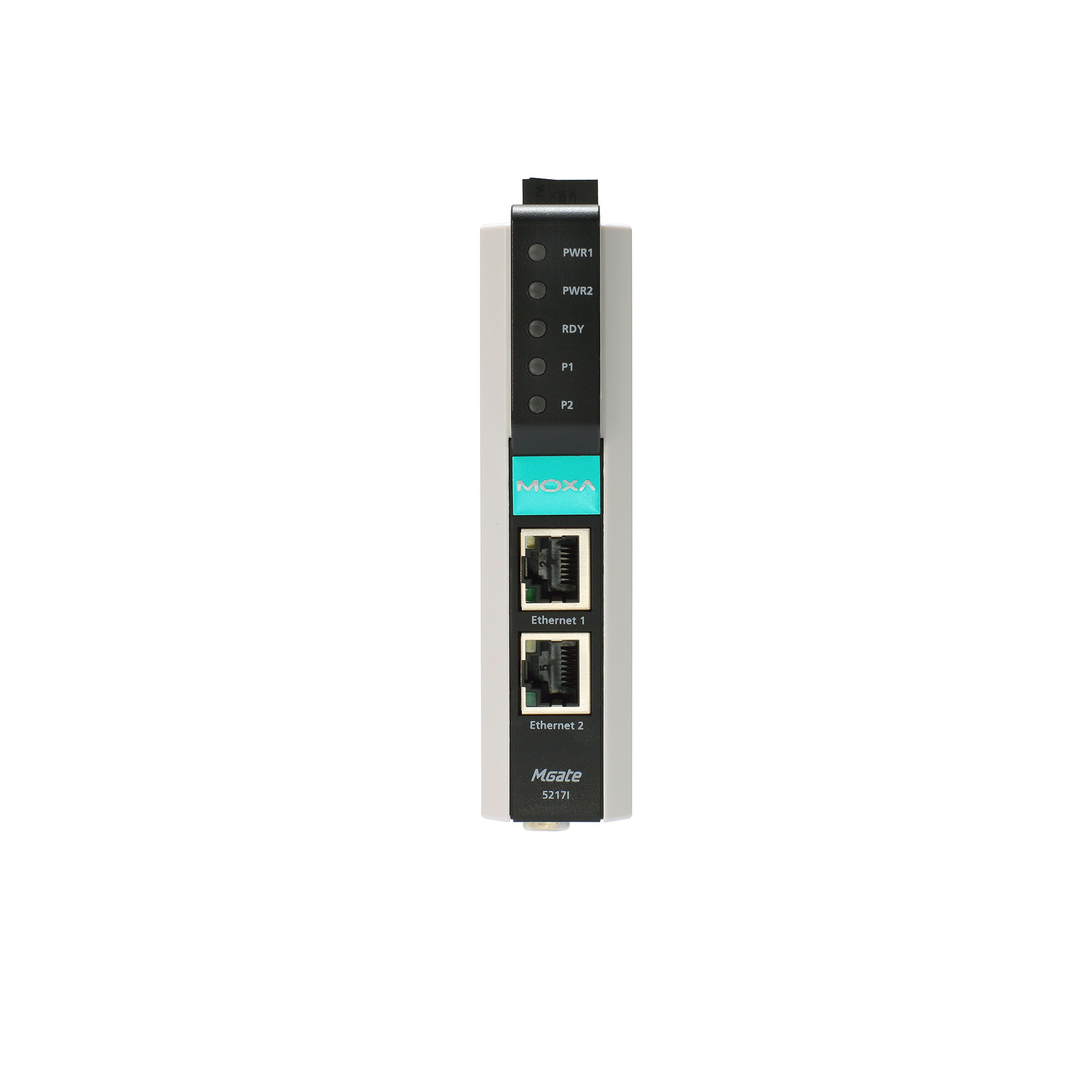

moxa-mgate-5217-series-image-1-(1).jpg | Moxa

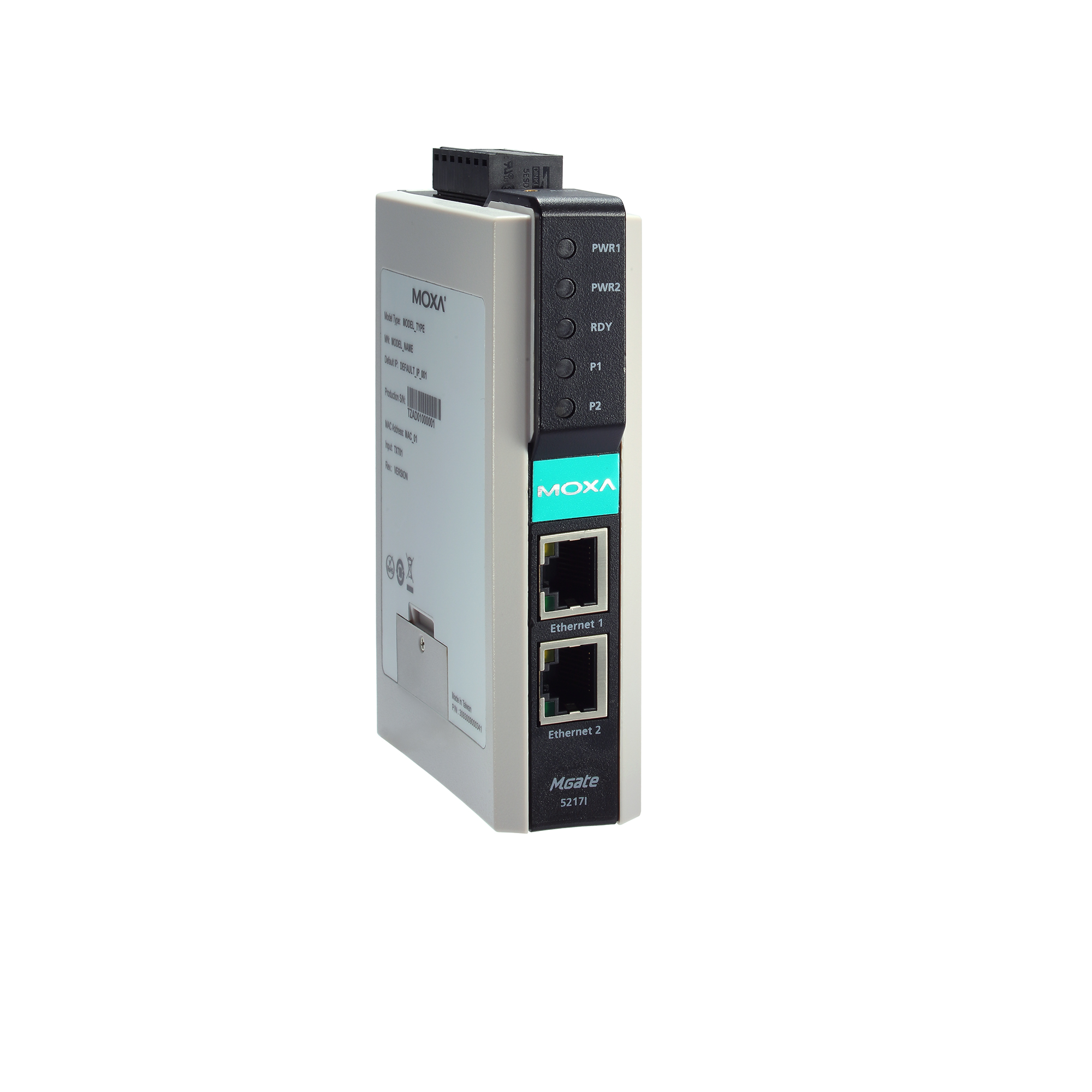

moxa-mgate-5217-series-image-2-(1).jpg | Moxa

特色與優點

  • 支援 Modbus RTU/ASCII/TCP 用戶端(主控裝置) / 伺服器(從屬裝置)
  • 支援 BACnet/IP 伺服器 / 用戶端
  • 支援 600 個點和 1200 個點型號
  • 支援快速數據通訊的 COV
  • 支援使得每個 Modbus 裝置成為個別 BACnet/IP 裝置的虛擬節點
  • 支援透過編輯 Excel 試算表來快速設定 Modbus 命令與 BACnet/IP 物件
  • 嵌入式流量和診斷資訊,便於故障排除
  • 輕鬆佈線的內建乙太網路串接
  • 工業設計,-40 至 75°C 操作溫度範圍
  • 串列內建埠 2kV 隔離保護
  • 雙交流/直流電源
  • 5 年保固

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-btl-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MGate 5217 系列包含 2 埠 BACnet 閘道器, 可將 Modbus RTU/ACSII/TCP 伺服器(從屬裝置)裝置轉換為 BACnet/IP 用戶端系統或將 BACnet/IP 伺服器裝置轉換為 Modbus RTU/ACSII/TCP 用戶端(主控裝置)系統。根據網路的規模,您可以使用 600 個點或 1200 個點的閘道器型號。所有型號都堅固耐用,可安裝在 DIN 軌道上,可在寬溫度範圍內運作,並為串列訊號提供內建 2-kV 隔離。



透過 Web 主控台和 Excel 電子表格輕鬆配置

MGate 5217 系列採用直覺式 UI 設計,配置更便利。如此一來,您可以輕鬆存取通訊協定轉換模式並透過一些步驟完成配置,不需要在電腦中安裝其他的工程公用程式。 此外,MGate 可以匯入 Excel 試算表來產生 Modbus 命令與 BACnet/IP 物件,因此編輯起來相當容易。



Modbus 和 BACnet/IP 通訊協定流量監控和診斷

MGate 5217 閘道器支援 Modbus 和 BACnet/IP 通訊協定流量監控和診斷,故障排除更容易,尤其在安裝階段。不正確的軟體參數(例如錯誤的從屬裝置 ID 和暫存器位址)或不正確的命令配置會造成通訊問題。透過診斷,您可以檢查通訊狀態並查看值,完全一目瞭然。 有了 Modbus/BACnet 通訊協定流量監控,您可以檢查所擷取的數據,並輕鬆判斷問題根本原因。



  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master) / Server (Slave)
    BACnet/IP Server / Client

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Device Search Utility (DSU)
    Telnet Console

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    Telnet
    UDP
    NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • No. of Ports

    2

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only)
    RTS/CTS
    DTR/DSR

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    2 kV (built-in)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Client (Master)
    Modbus RTU/ASCII Server (Slave)

  • Mode

    Client (Master)
    Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 16

  • Max. No. of Commands

    MGate 5217I-600-T: 600
    MGate 5217I-1200-T: 1200

  • Mode

    Client (Master)
    Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 16

  • Max. No. of Server Connections

    32

  • Max. No. of Commands

    MGate 5217I-600-T: 600
    MGate 5217I-1200-T: 1200

  • Mode

    Client
    Server

  • Memory Size

    MGate 5217I-600-T: 600 points
    MGate 5217I-1200-T: 1200 points

  • Supported BACnet Object

    Binary Input
    Binary Output
    Binary Value
    Analog Input
    Analog Output
    Analog Value
    Multi-state Input
    Multi-state Output
    Multi-state Value
    Integer Value
    Positive Integer Value

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    SNMPv2c Trap
    HTTPS (TLS 1.2)

  • Input Voltage

    24 VAC
    12 to 48 VDC

  • Input Current

    300 mA @ 24 VAC
    510 mA @ 12 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Contact Current Rating

    Resistive load: 1 A @ 30 VDC

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions (without ears)

    29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)

  • Dimensions (with ears)

    29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

  • Weight

    380 g (0.84 lb)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    UL 60950-1
    UL 62368-1
    IEC 60950-1
    IEC 62368-1

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • International Approval

    KC

  • Time

    1,277,500 hrs

  • Standards

    Telcordia Standard SR-332
