MGate 5134 系列

1 埠 Modbus RTU/ASCII/TCP 轉 PROFINET 閘道器

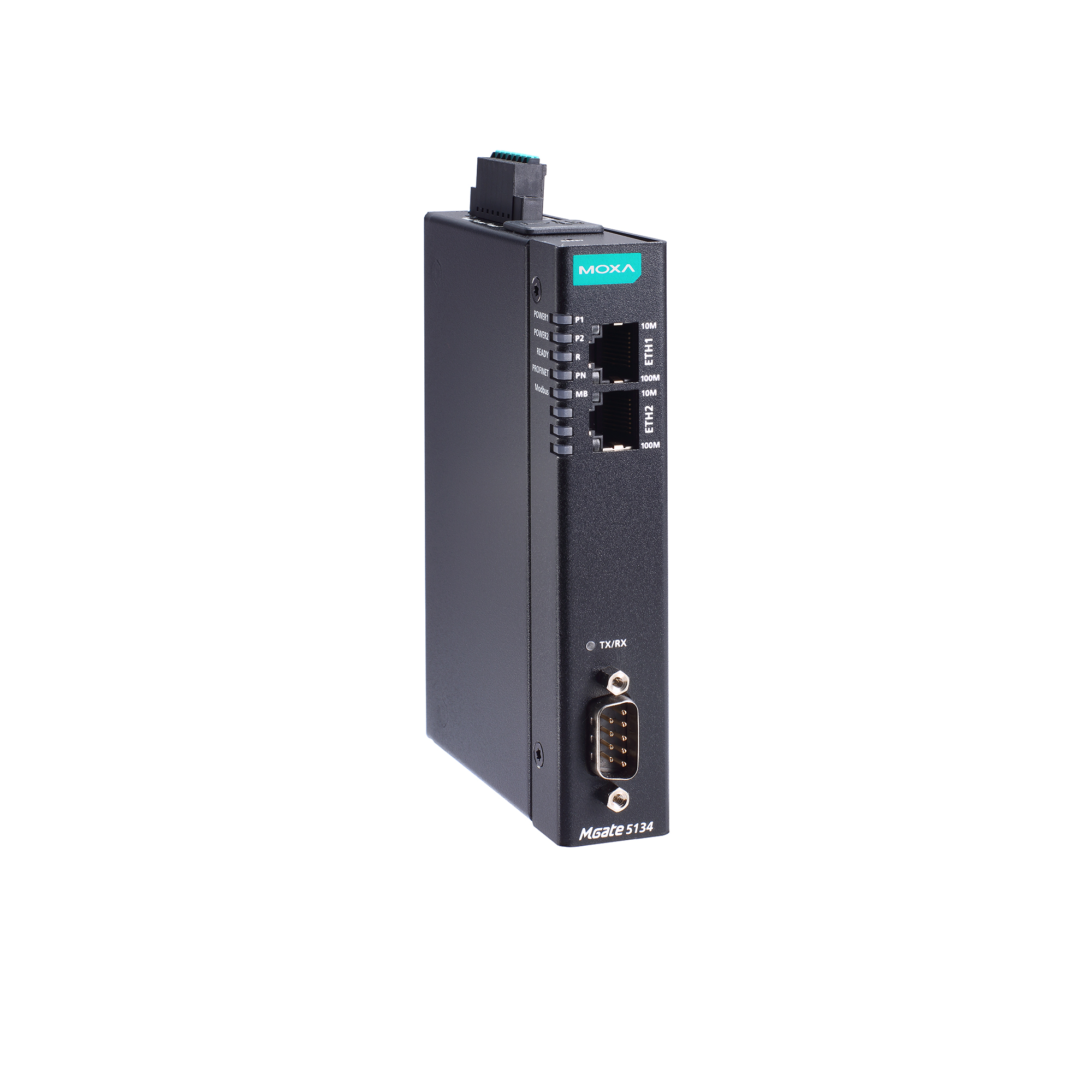

moxa-mgate-5134-series-image-(1).jpg | Moxa

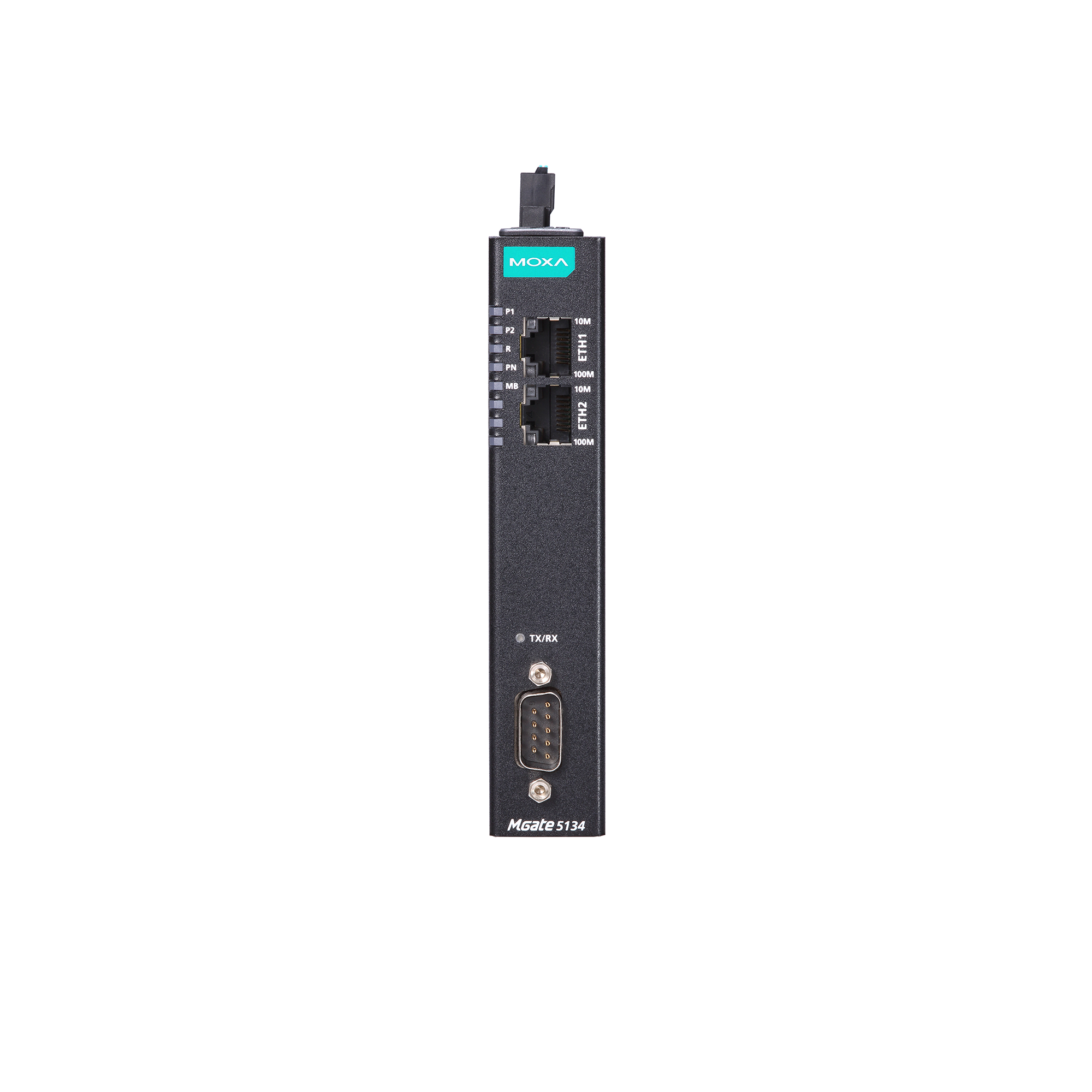

moxa-mgate-5134-series-image-1-(1).jpg | Moxa

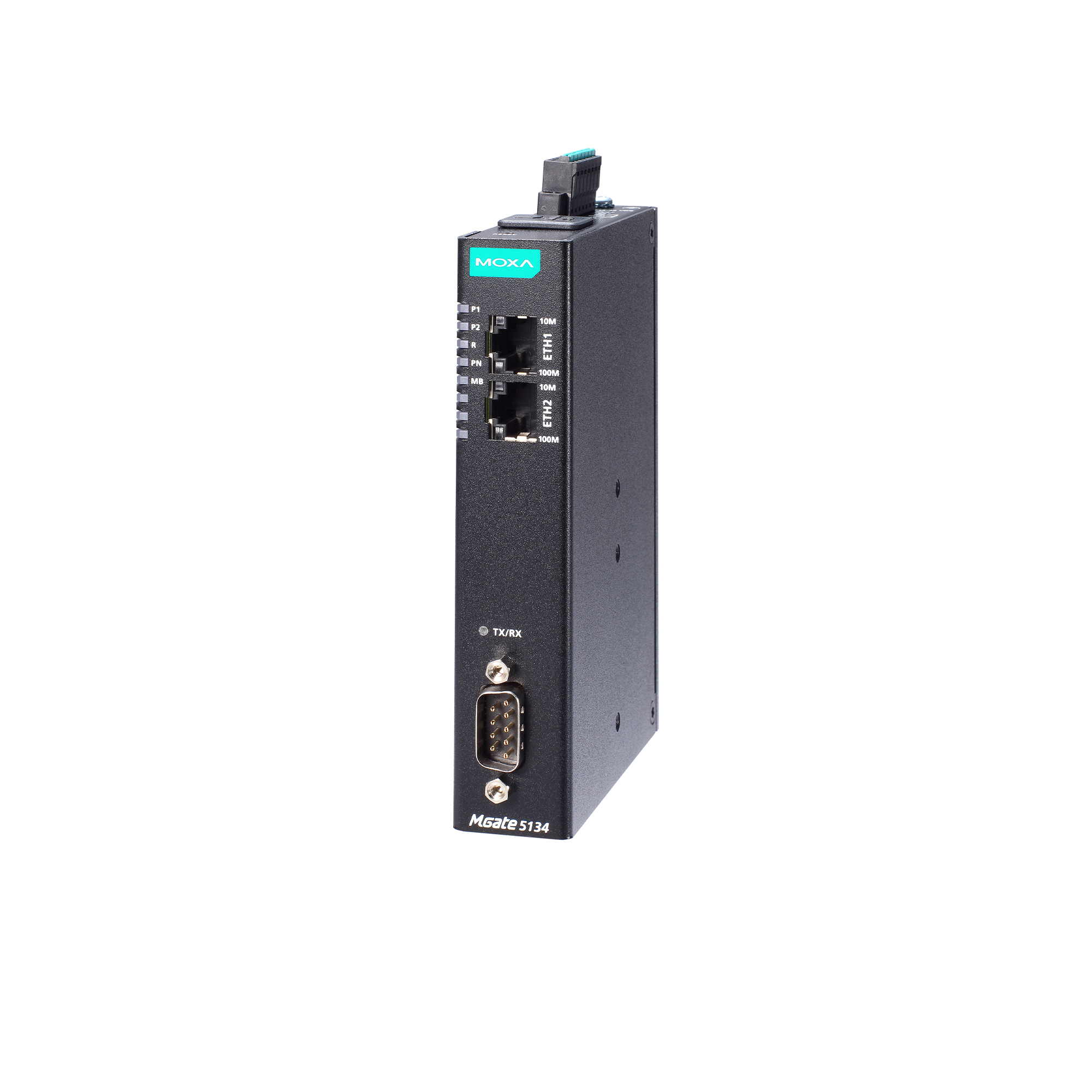

moxa-mgate-5134-series-image-2-(1).jpg | Moxa

特色與優點

  • 從 Modbus 到 PROFINET 的通訊協定轉換
  • 支援 PROFINET IO 裝置
  • 支援 Modbus RTU/ASCII/TCP 用戶端(主控裝置)
  • 透過乙太網路串聯與雙子網路彈性部署
  • 嵌入式流量監控/診斷資訊,便於故障排除
  • 透過網頁式主控台輕鬆配置裝置
  • microSD 卡可用於備份/複製配置
  • 支援雙備援 DC 電源輸入與 1 個繼電器輸出
  • 串列內建埠 2kV 隔離保護
  • 提供 -40 至 75°C 寬溫度操作型號可供選用

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MGate 5134 是將 Modbus RTU/ASCII/TCP 轉換為 PROFINET 網路通訊的工業乙太網路閘道器。 若要將現有的 Modbus 裝置整合於 PROFINET 網路,可使用 MGate 5134 做為 Modbus 用戶端,藉以收集數據並與 PROFINET 主機交換數據。所有型號均有強固緊湊的金屬外殼加以保護,可使用 DIN 軌道安裝,而且提供內建串列隔離。 堅固設計適合工業應用,例如工廠自動化、電力、石油與天然氣、水資源與廢水,以及其他製程自動化工業。



輕鬆配置

MGate 5134 閘道器提供 Web 主控台,無需安裝額外的公用程式即可輕鬆配置。 此外,HTTPS 通訊加密還可確保更高的網路安全性。在大多數資料擷取應用中,使用 Modbus 命令設定裝置的過程可能既耗時又會增加成本。 MGate 5134 閘道器提供透過 CSV 檔案離線設定的功能,可協助快速完成 Modbus 設定。閘道器也提供 GSDML 匯出功能,可匯出這些檔案,以便使其能夠匯入至 PROFINET PLC。MGate 閘道器提供可透過軟體設定的 RS485 兩線式上拉/下拉與終端電阻功能,無需開啟機箱即可完成設定,大幅減少操作負擔。



輕鬆排除故障

MGate 5134 閘道器提供多種維護功能,包括 LED 狀態指示燈、通訊協定診斷、流量監控及標籤檢視等,可縮短故障排除時間並降低維護成本。這些工具可協助您擷取與檢查資料,輕鬆找出問題的根本原因,尤其在安裝階段特別實用。MGate 閘道器也提供狀態監控和失效防護功能。Modbus 設備中斷連線或無回應時,狀態監控功能會通知 PLC/DCS/SCADA 系統,程序 PLC/DCS 取得每台終端設備的狀態,並發出警報通知操作員。當主機中斷連線時,失效防護功能會執行使用者預先定義的動作,以防止終端裝置長時間離線。



外觀



  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client
    PROFINET IO Device

  • Configuration Options

    Web Console (HTTPS)
    Device Search Utility (DSU)

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    UDP

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    SNMPv2c Trap
    HTTPS (TLS 1.3)

  • No. of Ports

    1

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    300 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only)
    RTS/CTS

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms
    software configurable

  • Terminator for RS-485

    120 ohms
    software configurable

  • Isolation

    2 kV (built-in)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Client

  • Mode

    Client

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Server Connections

    31

  • Max. No. of Commands

    128 per serial port

  • Mode

    Client

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Server Connections

    32

  • Max. No. of Commands

    128

  • Total Output Data Size

    2048 bytes

  • Total Input Data Size

    2048 bytes

  • Mode

    IO Device class B

  • Max. No. of Master Connections

    2 IO Controllers (shared devices)

  • Input Data Size

    1440 bytes per IO Controller (total: 2880 bytes)

  • Output Data Size

    1440 bytes per IO Controller (total: 2880 bytes)

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    455 mA (max)

  • Power Connector

    Spring-type Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)

  • Weight

    294 g (0.65 lb)

  • Operating Temperature

    MGate 5134: -10 to 60°C (14 to 140°F)
    MGate 5134-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 61010-2-201
    UL 61010-2-201

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Time

    1,240,821 hrs

  • Standards

    Telcordia SR332
