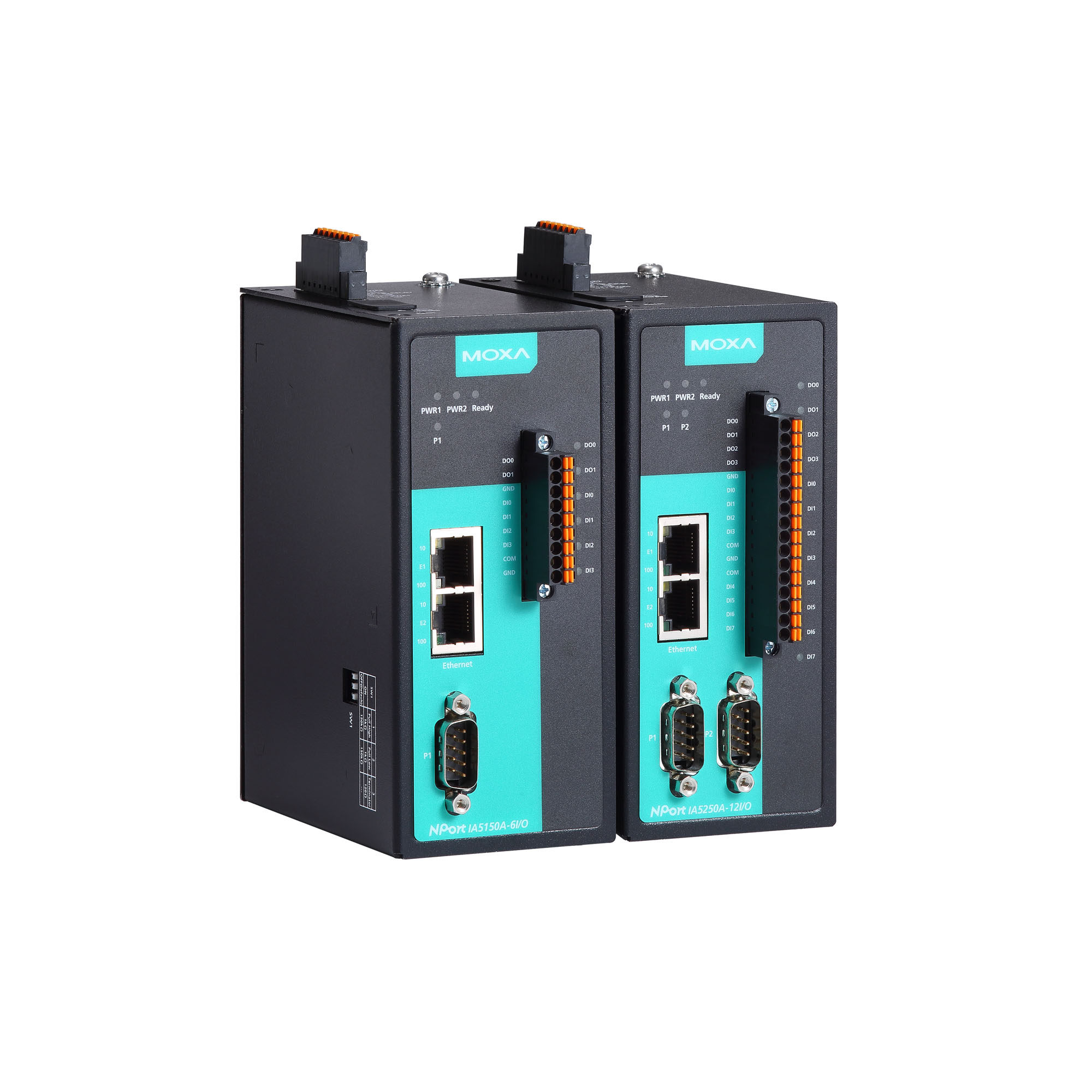

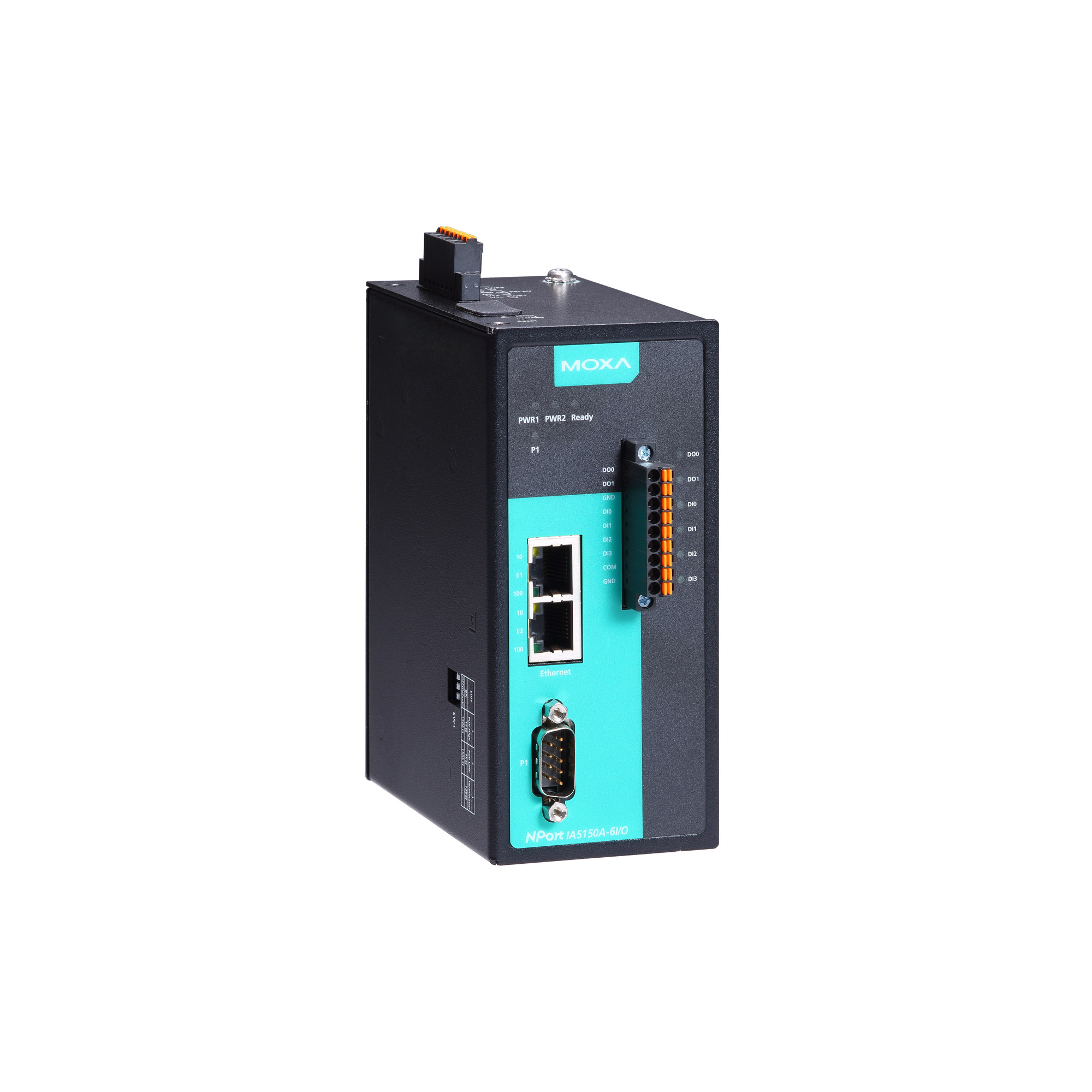

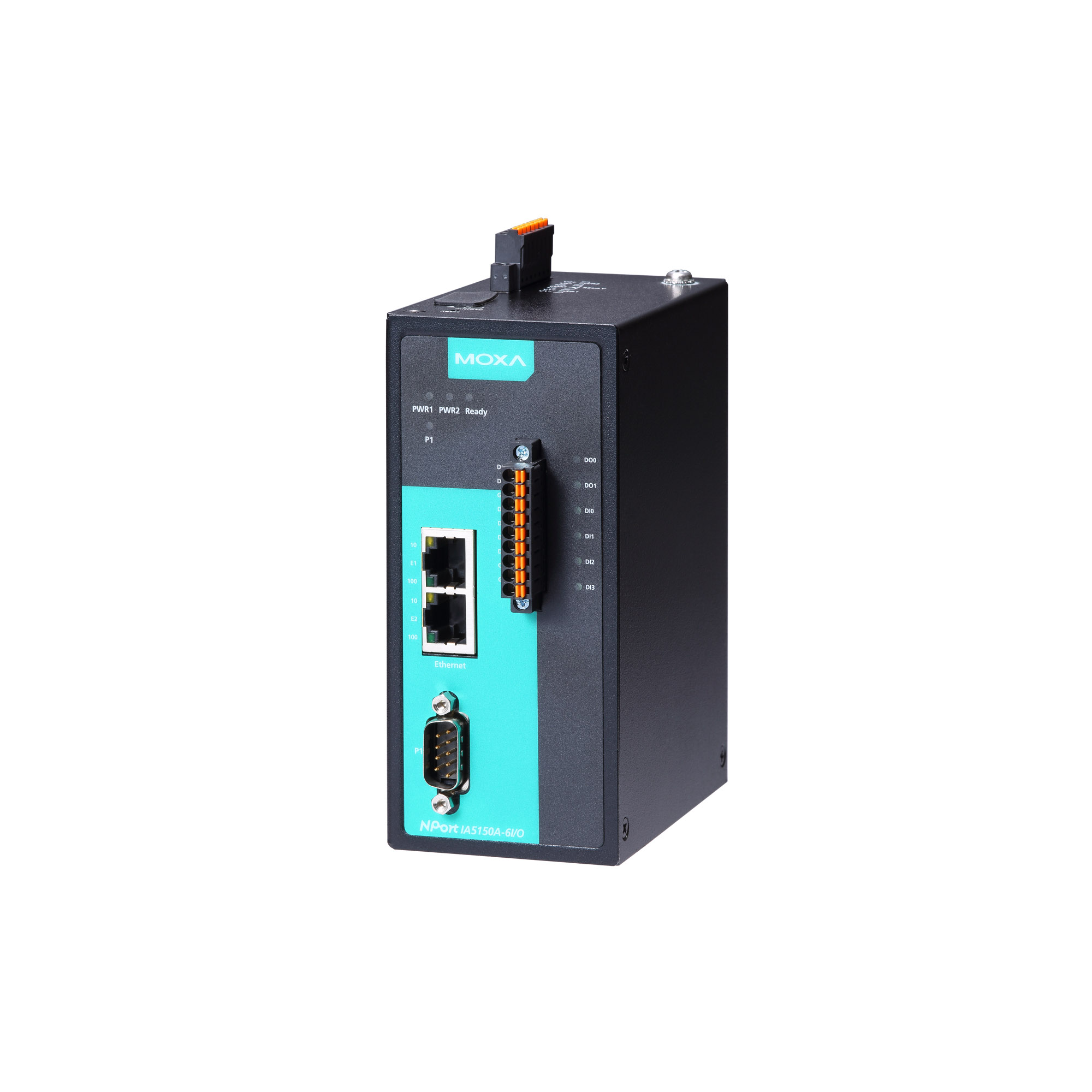

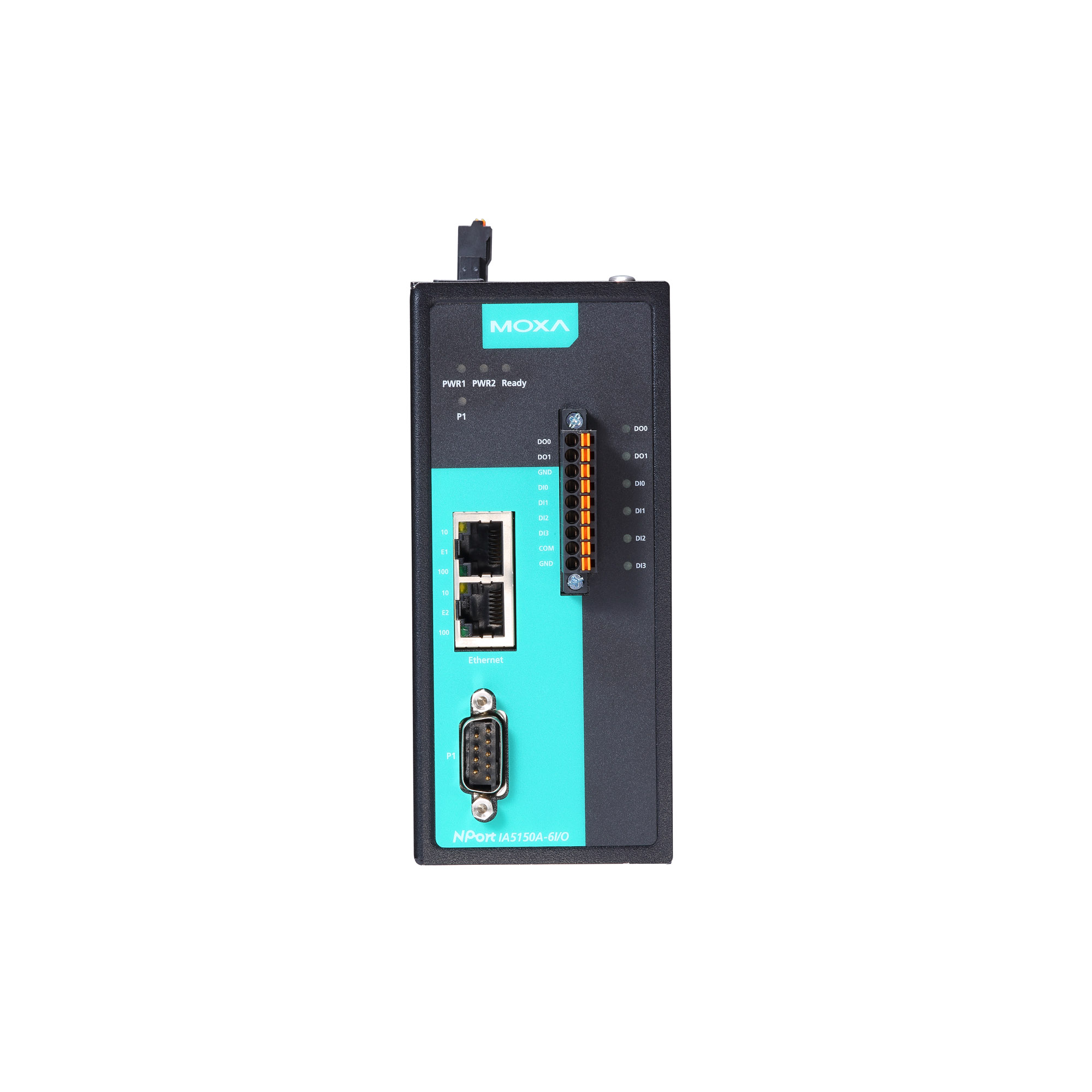

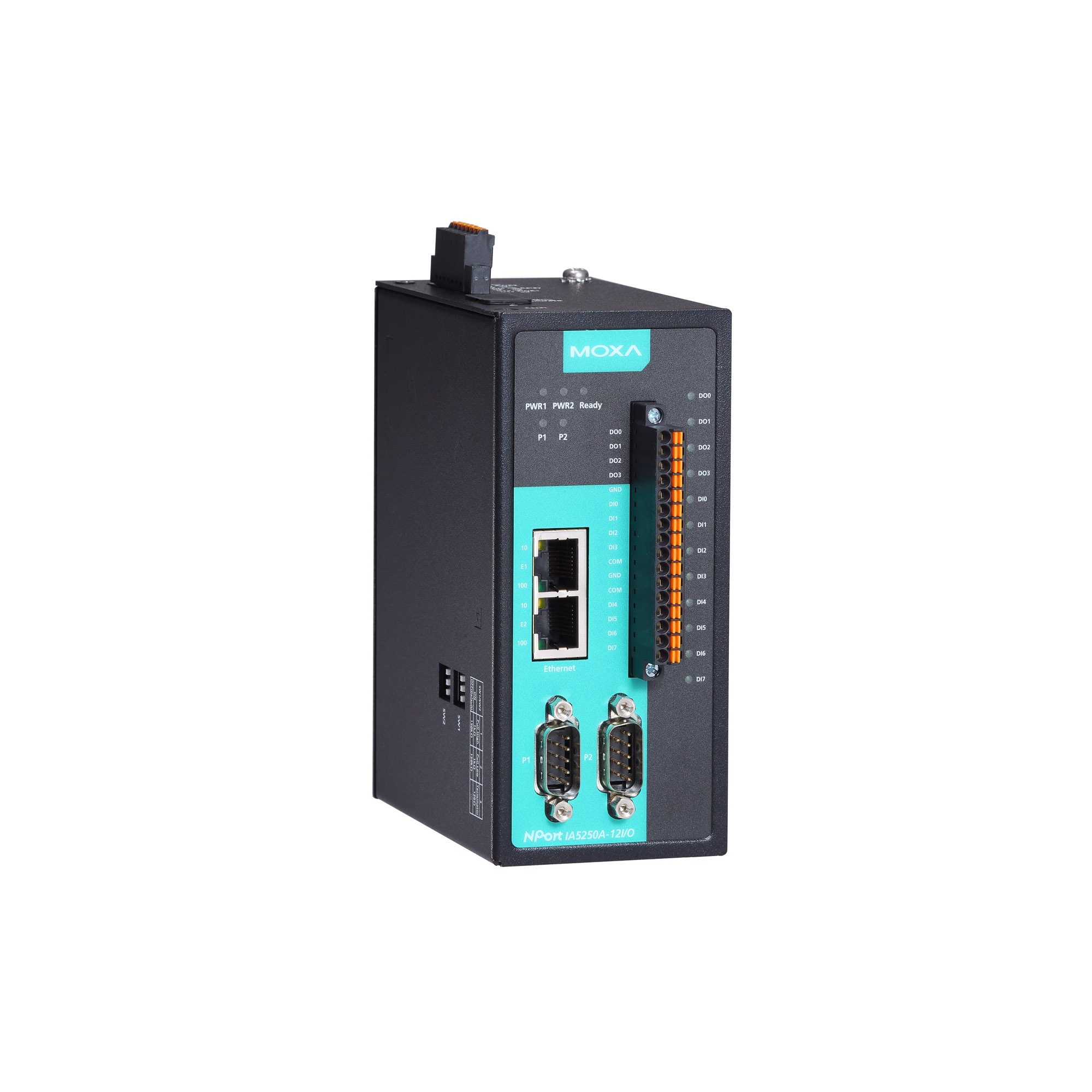

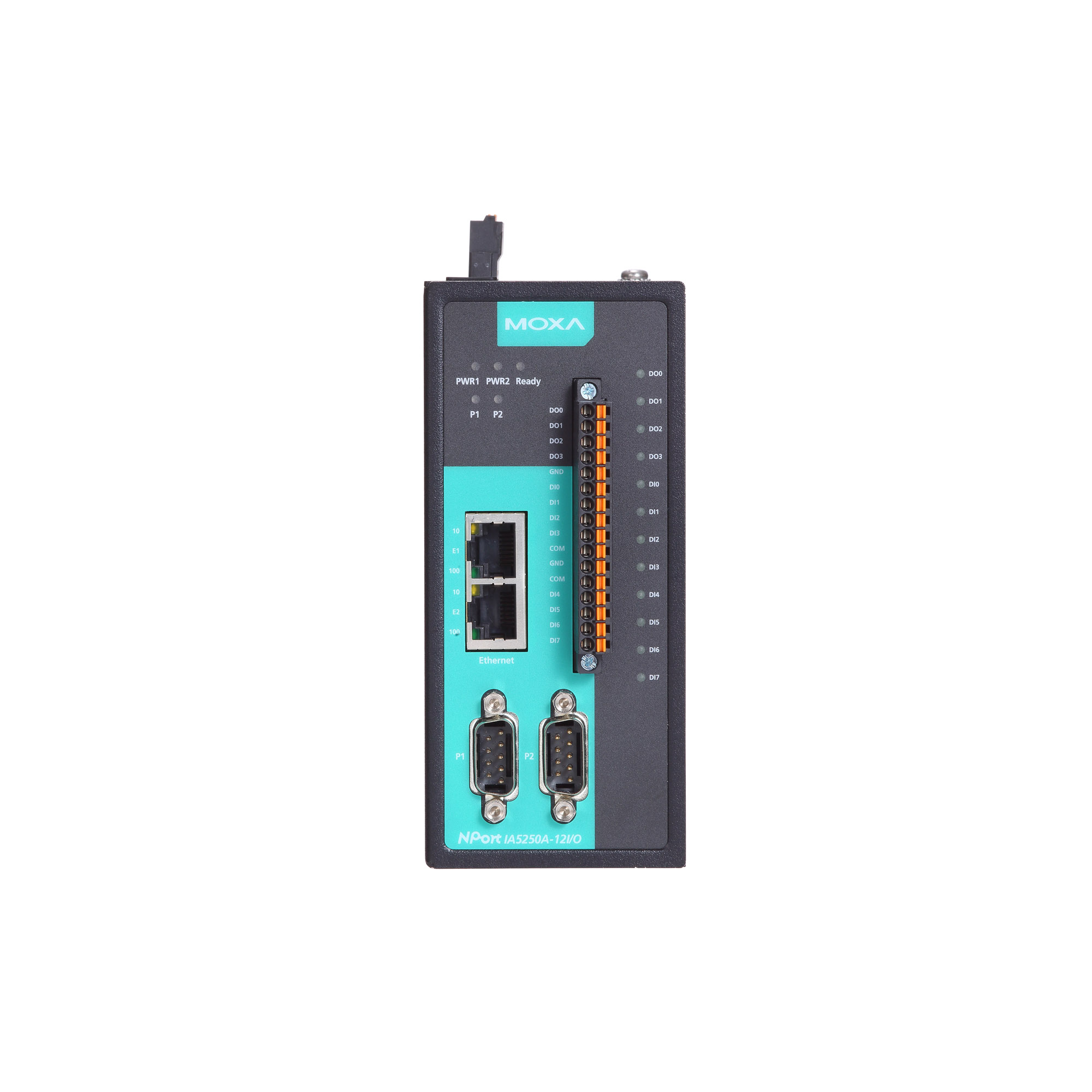

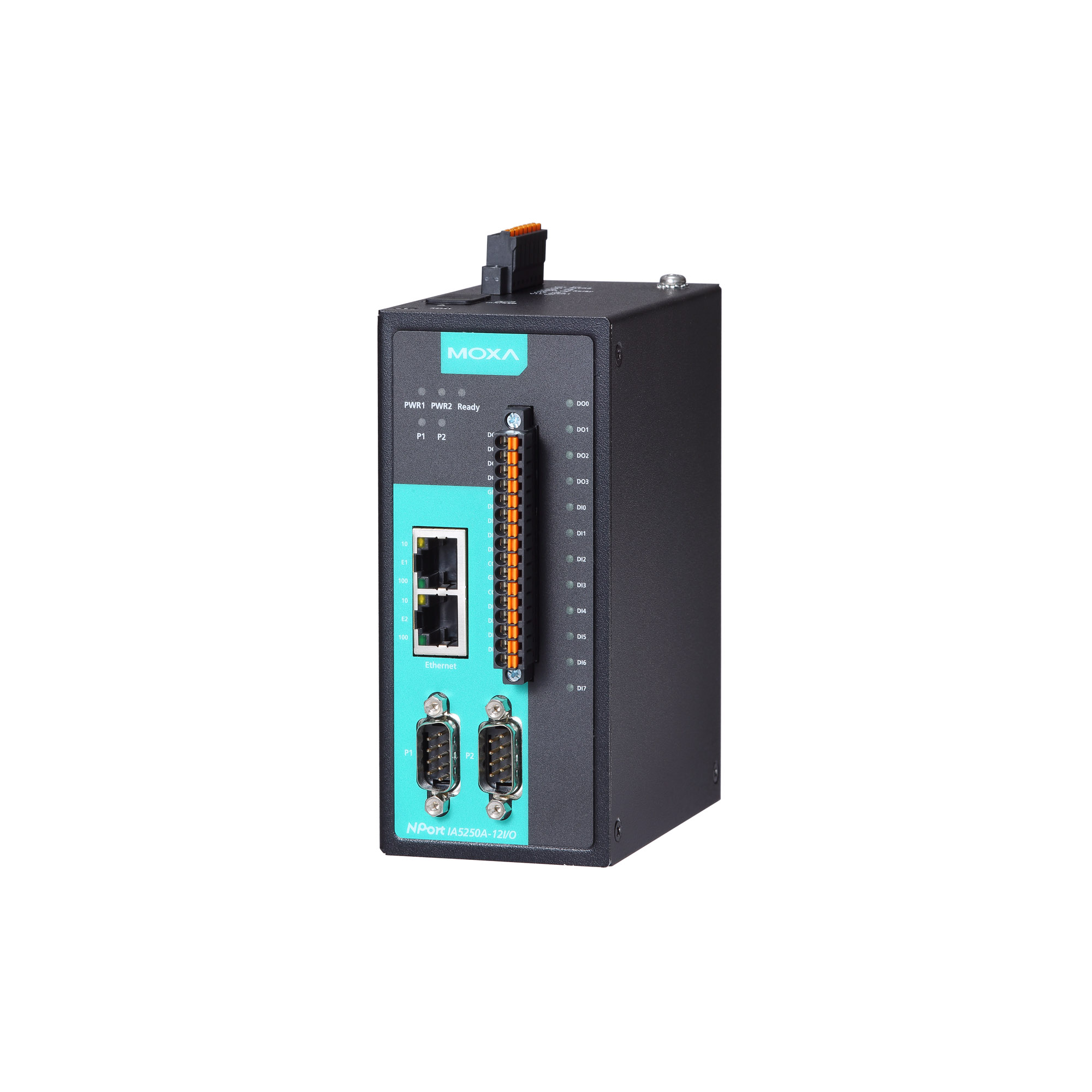

NPort IA5000A-I/O 系列

1/2 埠 RS-232/422/485 設備伺服器,配備 6 或 12 個數位 I/O

moxa-nport-ia5000a-i-o-series-image-1-(1).jpg | Moxa
moxa-nport-ia5000a-i-o-series-image-2-(1).jpg | Moxa
moxa-nport-ia5000a-i-o-series-image-3-(1).jpg | Moxa
moxa-nport-ia5000a-i-o-series-image-4-(1).jpg | Moxa
moxa-nport-ia5000a-i-o-series-image-5-(1).jpg | Moxa
moxa-nport-ia5000a-i-o-series-image-6-(1).jpg | Moxa
moxa-nport-ia5000a-i-o-series-image-7-(1).jpg | Moxa

特色與優點

  • 6 或 12 個數位 I/O,用於收集本機資料進行狀態監控
  • 透過通用 MQTT 將串列/I/O 資料連接至雲端
  • 透過內建設備 SDK 支援 MQTT 連線至 Azure/Alibaba Cloud
  • 透過 TLS 和 JSON 及 Raw 資料格式憑證支援 MQTT 連線
  • 可使用 microSD 卡來進行配置備份/複製、事件記錄檔,以及雲端連線中斷時的資料緩衝
  • 支援重新封裝串列資料大小(最大到 4K),以減少需傳送到雲端平台的封包數
  • 備援雙直流電源輸入和繼電器輸出
  • 串聯乙太網路埠,方便佈線
  • 透過繼電器輸出和電子郵件發出雙重告警
  • 4 kV 串列突波保護

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

NPort IA5000A-I/O 串列設備伺服器內建數位 I/O,可在您需要將現場串列裝置與乙太網路或雲端平台整合時,達到最大彈性。此雲端設備伺服器可以使用通用的 MQTT 或第三方雲端服務(例如:Azure 和 Alibaba Cloud)與工業物聯網(IIoT)應用進行通訊。NPort IA5000A-I/O 配有數位 I/O,因此非常適合用於各種工業資料擷取應用。您可使用 Modbus TCP 協定透過 TCP/IP 來控制裝置上的 DI/O,也可從網路瀏覽器對其進行配置並確保其安全性。此外,此裝置也可當作 Windows/Linux PC 上的 COM 埠(使用 Moxa 專利的 Real COM 技術),使其相容於傳統的應用。

所有型號均採用堅固耐用的結構,可安裝在 DIN 導軌上,並具有備援電源輸入,以確保工業應用時運作不中斷。

串聯乙太網路埠可簡化佈線

NPort IA5000A-I/O 設備伺服器配備兩個乙太網路連接埠,可做為乙太網路交換器連接埠。其中一個連接埠可直接連接至網路或伺服器,另一個可以連接至另一台 NPort IA 設備伺服器或另一個乙太網路裝置。雙乙太網路埠您毋須將每個裝置單獨連接到一台乙太網路交換機,因此可降低佈線成本。

支援 MTConnect 協定,以監控數位輸入

MTConnect 專為現場資訊應用設計,能夠將現場資料轉換成任何 MTConnect 相容的軟體應用都可以瞭解的標準格式。只要透過 MTConnect 的介面(名稱、類型、描述等)定義資料之後,就不需要在各個應用程式中重新定義。對於不支援 MTConnect 的傳統機械工具,常用的做法是透過感測器連接和 I/O,來取得與機器有關的資料。Moxa NPort IA5000A-I/O 為裝置上所有數位輸入提供 MTConnect 功能,並為使用者提供可配置的介面,以定義那些資料和合適的 MTConnect 標籤需與數位輸入相連結。

透過 SSH/HTTPS 確保安全的遠端管理和配置

未經授權的存取是系統管理員最棘手的問題之一。除了 IP 過濾和密碼保護,NPort IA5000A-I/O 也支援 SSH 和 HTTPS,可保護裝置免於遭受駭客攻擊。若要安全地傳輸控制訊息,只需使用支援 HTTPS 的網頁瀏覽器(例如:Internet Explorer)開啟網路控制台即可。您也可以使用支援 SSH 的終端模擬器開啟串列或 Telnet 主控台(例如:PuTTY)。

任選 50 bps 到 921.6 kbps 之間的傳輸速率

大多數設備伺服器僅支援固定的串列傳輸速率。不過,某些應用需要特殊的傳輸速率,例如 250 kbps 或 500 kbps。使用 NPort IA5000A-I/O,您可以選擇 50 到 921.6 kbps 之間的任何傳輸速率。如果您裝置的傳輸速率不是標準傳輸速率,請從下拉式清單中選擇「其他」,然後輸入傳輸速率。

  • Digital Input Channels

    -6I/O models: 4
    -12I/O models: 8

  • Digital Output Channels

    -6I/O models: 2
    -12I/O models: 4

  • Isolation

    3k VDC or 2k Vrms

  • Alarm Contact Channels

    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • Dry Contact

    On: short to GND
    Off: open

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • I/O Mode

    DI or event counter

  • Counter Frequency

    20 Hz

  • Digital Filtering Time Interval

    Software configurable

  • I/O Mode

    DO or pulse output

  • I/O Type

    Sink

  • Over-Current Protection

    2.6 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    45 VDC

  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    MQTT, MTConnect

  • Configuration Options

    Web Console (HTTP/HTTPS), Windows Utility, Telnet Console, Serial Console

  • Management

    DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • MIB

    MIB-II

  • Connector

    DB9 male

  • No. of Ports

    NPort IA5150A models: 1
    NPort IA5250A models: 2

  • Serial Standards

    RS-232, RS-422, RS-485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Surge

    4 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Mode

    Alibaba IoT Platform Device, Azure IoT Hub Device, Publisher/Subscriber of MQTT

  • Version Supported

    v3.1.1

  • QoS Level

    QoS 0, 1, 2

  • Secure Transmission

    TLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private key

  • MQTT General Features

    Retain Message, Clean Session, Keep Alive, Last Will Message

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Connection

    Removable terminal block

  • Input Current

    300 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions

    59.6 x 101.4 x 134 mm (2.35 x 4 x 5.28 in)

  • Weight

    NPort IA5150A-6I/O: 740 g (1.63 lb)
    NPort IA5150A-12I/O: 750 g (1.65 lb)
    NPort IA5250A-6I/O: 750 g (1.65 lb)
    NPort IA5250A-12I/O: 760 g (1.68 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: Ethernet: 2 kV, Serial: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    EN 60950-1, UL 60950-1

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort IA5150A-6I/O: 456,558 hrs
    NPort IA5150A-12I/O: 337,987 hrs
    NPort IA5250A-6I/O: 433,352 hrs
    NPort IA5250A-12I/O: 325,408 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR
