多功能設備伺服器

Moxa 整合式串列設備伺服器解決方案將網管型乙太網路交換器、遠端 I/O 和無線用戶端設備整合於一機，讓您能在有限的空間內，透過單一設備滿足多個專案的需求，如此可簡化設備配置，並降低運作與維護成本。

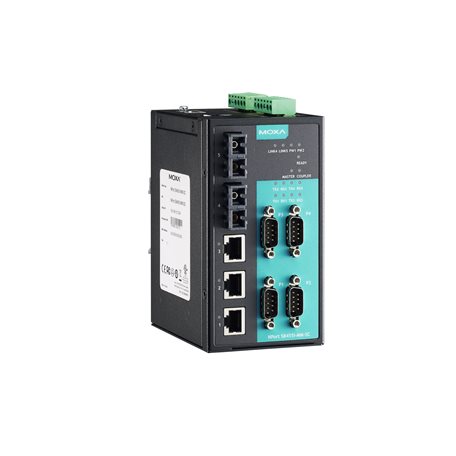

NPort S8455I-MM-SC-T
NPort S8000 系列

4 RS-232/422/485 ports, 3 10/100M Ethernet ports, 2 100M multi-mode fiber ports with SC connector, 15 KV ESD, 12-48 VDC, -40 to 75°C

Input/Output Interface

  • Alarm Contact Channels

    • 2, Resistive load: 1 A @ 24 VDC

  • Digital Input Channels

    • 2

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +1 V for state 0
      Max. input current: 8 mA
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 3

  • 100BaseFX Ports (multi-mode SC connector)

    • 2

  • Optical Fiber

    •

  • Optical Fiber

    •   100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
Switch Properties

  • IGMP Groups

    • 256

  • Max. No. of VLANs

    • 64

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP/HTTPS), Windows Utility, Serial Console, Telnet Console

  • Management

    • BOOTP, Device Search Utility (DSU), DHCP Client, DHCP Option 82, HTTP, IPv4, LLDP, Port Mirror, RMON, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, Web Console

  • Filter

    • 802.1Q, GVRP, IGMP v1/v2

  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15

  • Android API

    • Android 3.1.x and later

  • Time Management

    • SNTP

  • MIB

    • Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2

  • Security

    • HTTPS, SSL, SSH

  • Authentication

    • Local Account Accessibility, RADIUS
Serial Interface

  • Connector

    • DB9 male

  • No. of Ports

    • 4

  • Operation Modes

    • Disabled, Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None, RTS/CTS, XON/XOFF

  • Isolation

    • 2 kV

  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

  • Serial Standards

    • RS-232/422/485
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
DIP Switch Configuration

  • Ethernet Interface

    • Coupler, Master, Reserved, Turbo Ring
Power Parameters

  • No. of Power Inputs

    • 2

  • Power Connector

    • 2 removable 6-contact terminal block(s)

  • Input Current

    • 935 mA @ 12 VDC

  • Input Voltage

    • 12 to 48 VDC
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 73.1 x 134 x 125 mm (2.88 x 5.27 x 4.92 in)

  • Weight

    • 578 g (1.27 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.25 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF

  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-3

  • Hazardous Locations

    • Class I Division 2

  • Safety

    • EN 60950-1, IEC 60950-1, UL 508, UL 60950-1

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 200,951 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
