NPort 5600-DT-G2 系列

8/16 埠 RS-232/422/485 精巧桌上型電腦串列設備伺服器

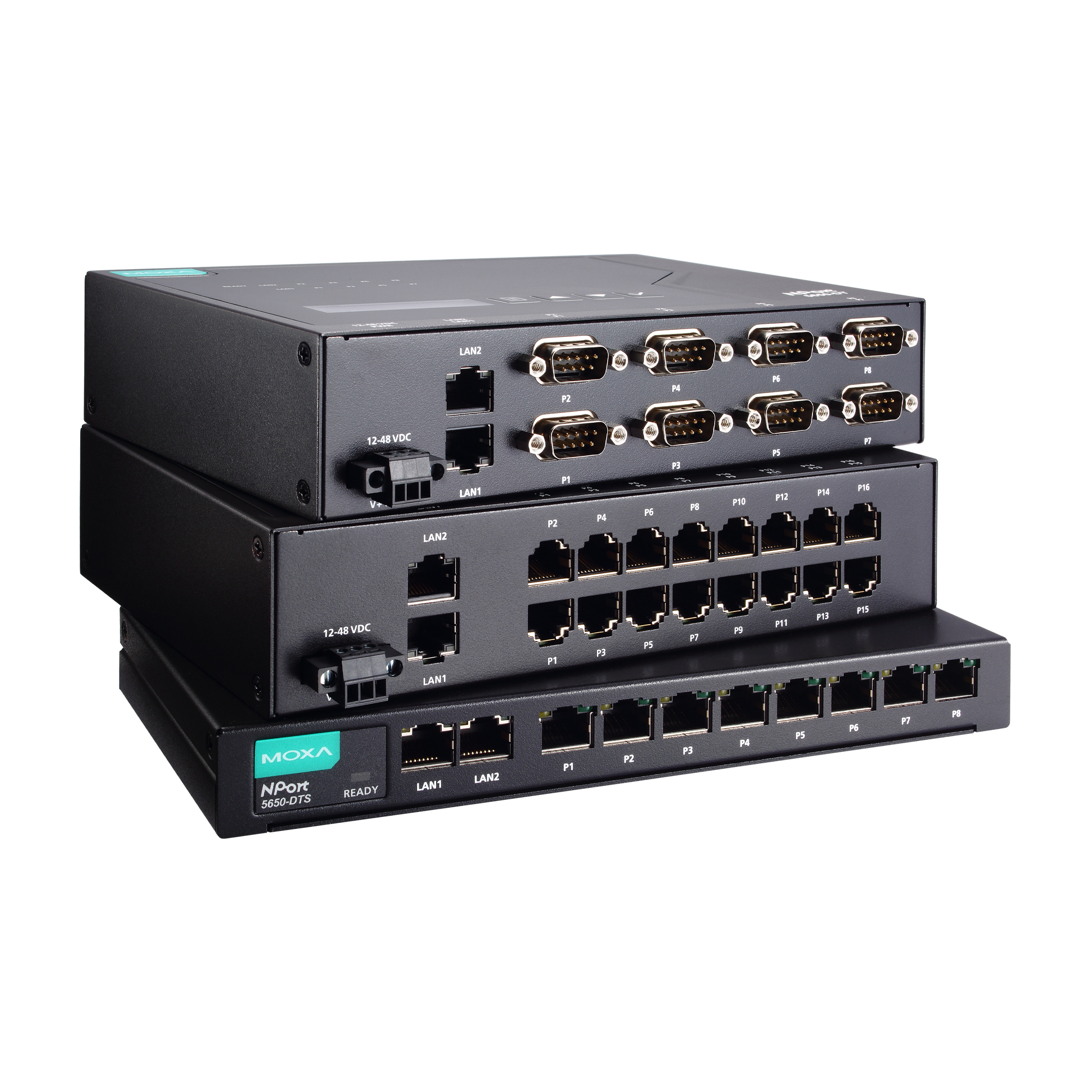

moxa-nport-5600-dt-g2-series-image-(1).jpg | Moxa

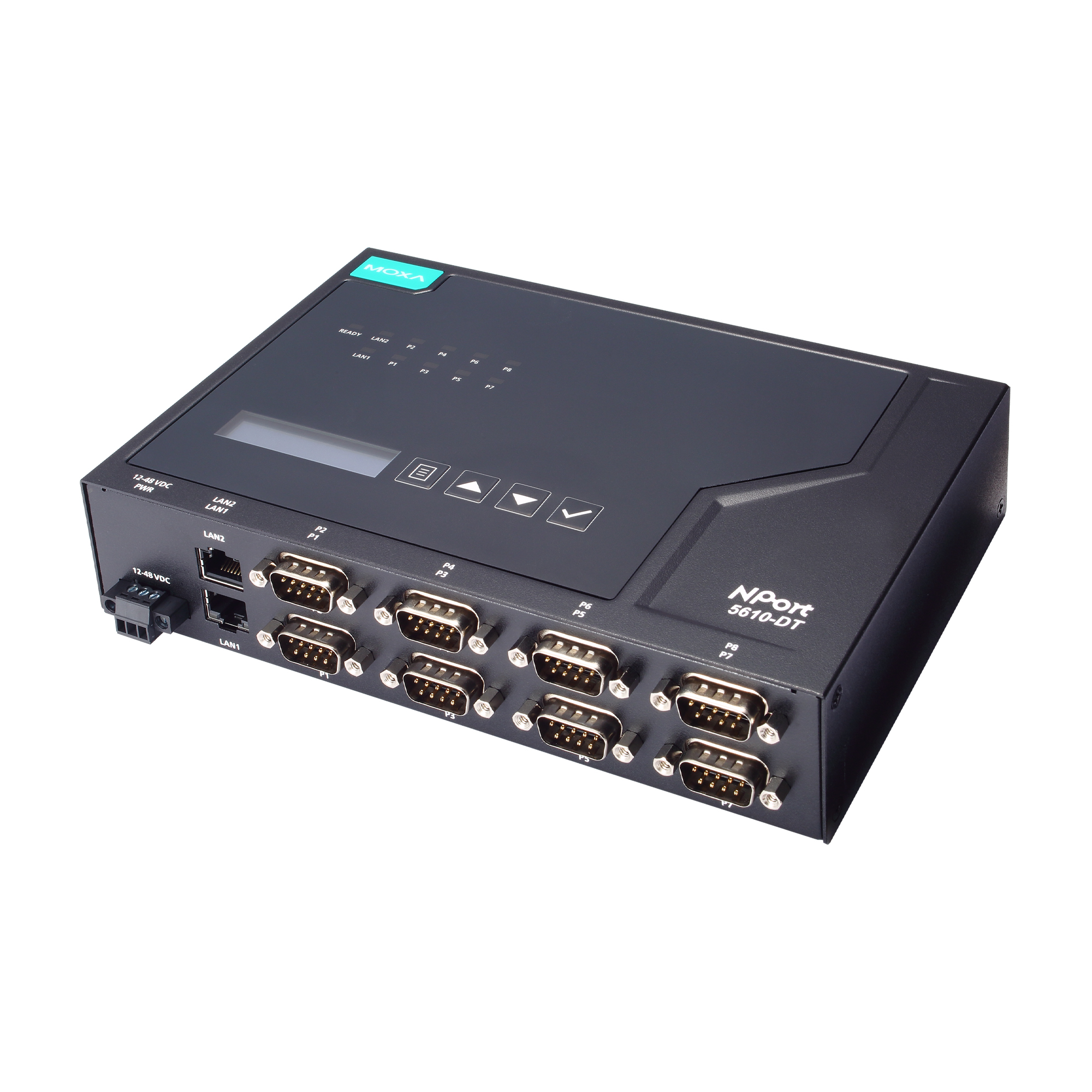

moxa-nport-5600-dt-g2-series-image-1-(1).jpg | Moxa

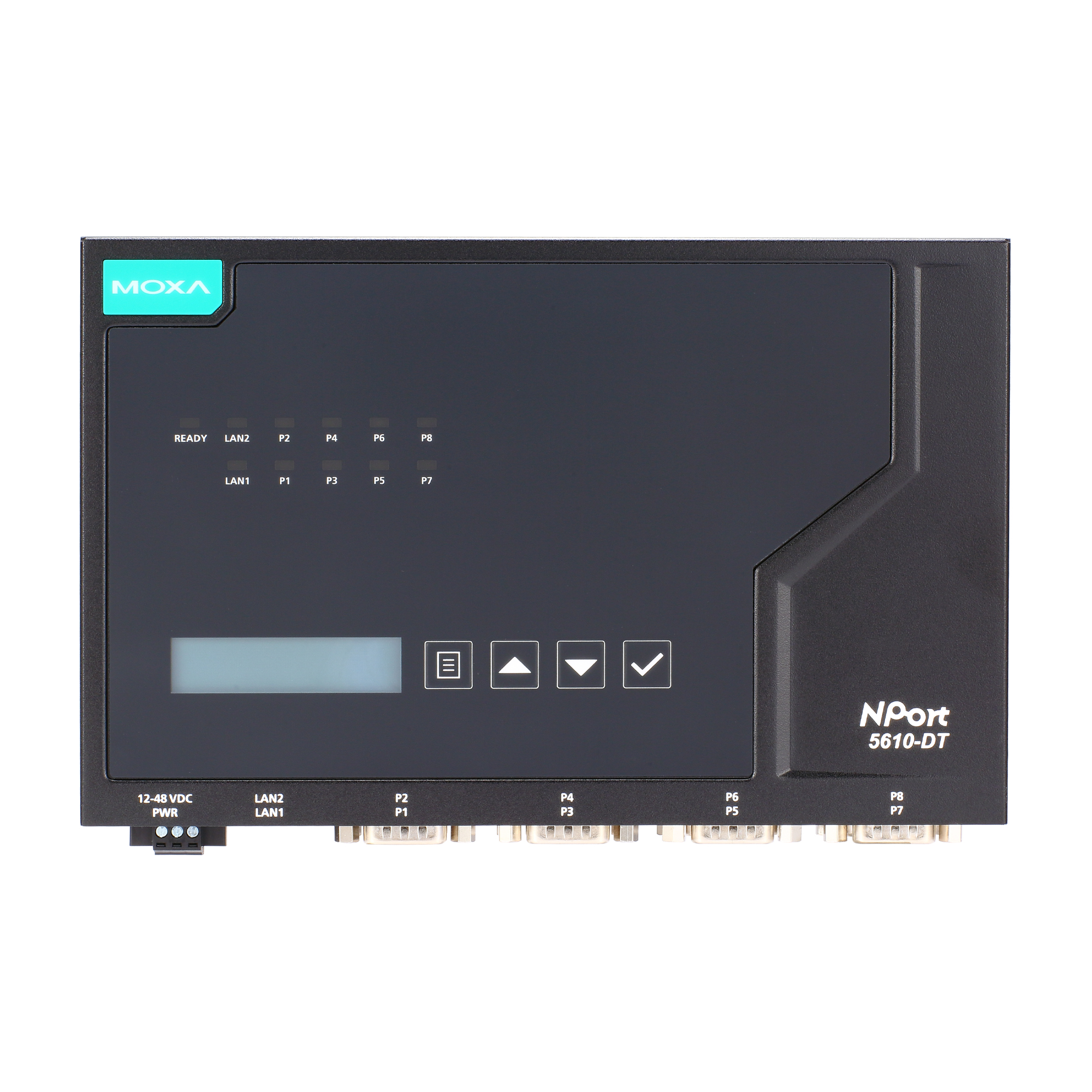

moxa-nport-5600-dt-g2-series-image-2-(1).jpg | Moxa

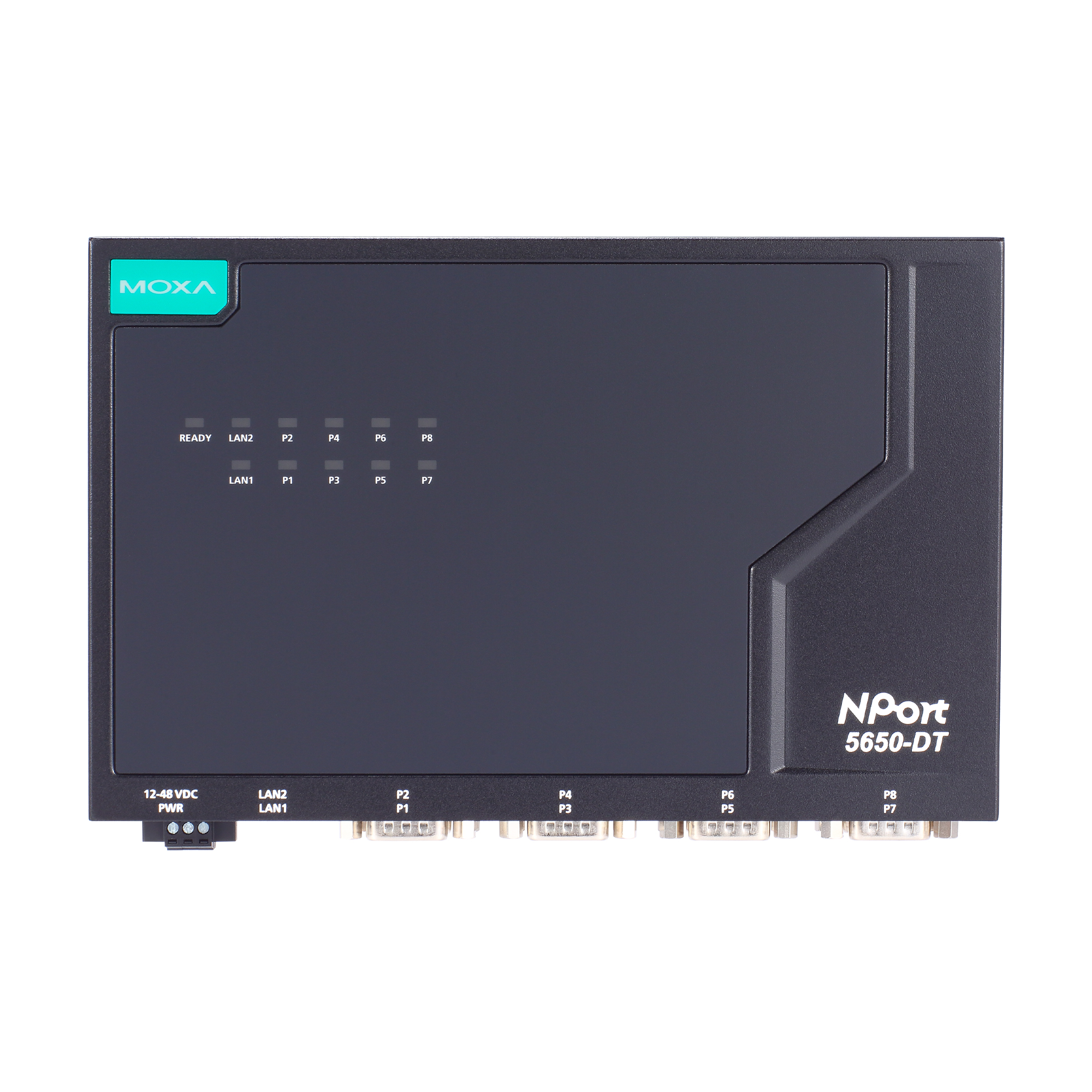

moxa-nport-5600-dt-g2-series-image-3-(1).jpg | Moxa

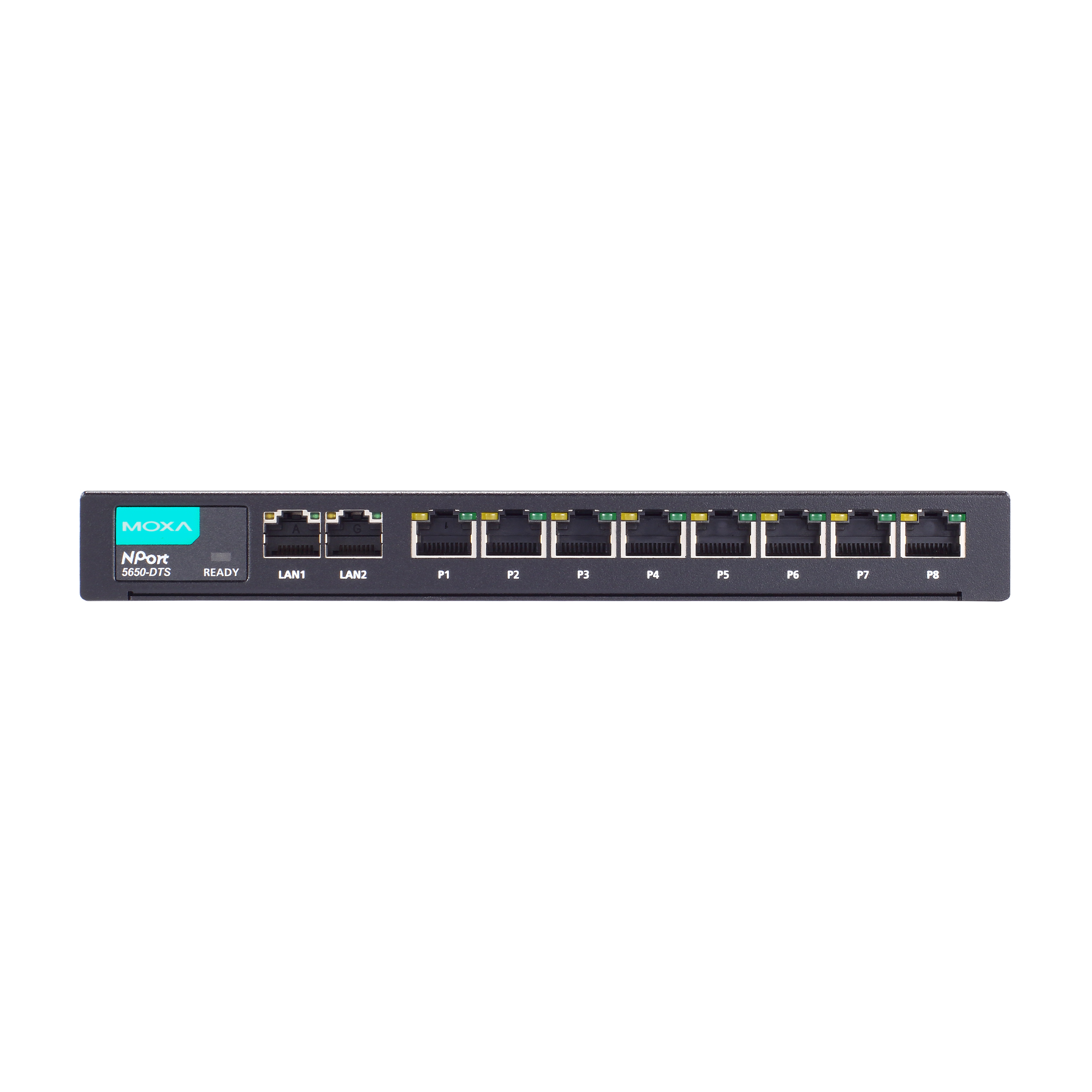

moxa-nport-5600-dt-g2-series-image-4-(1).jpg | Moxa

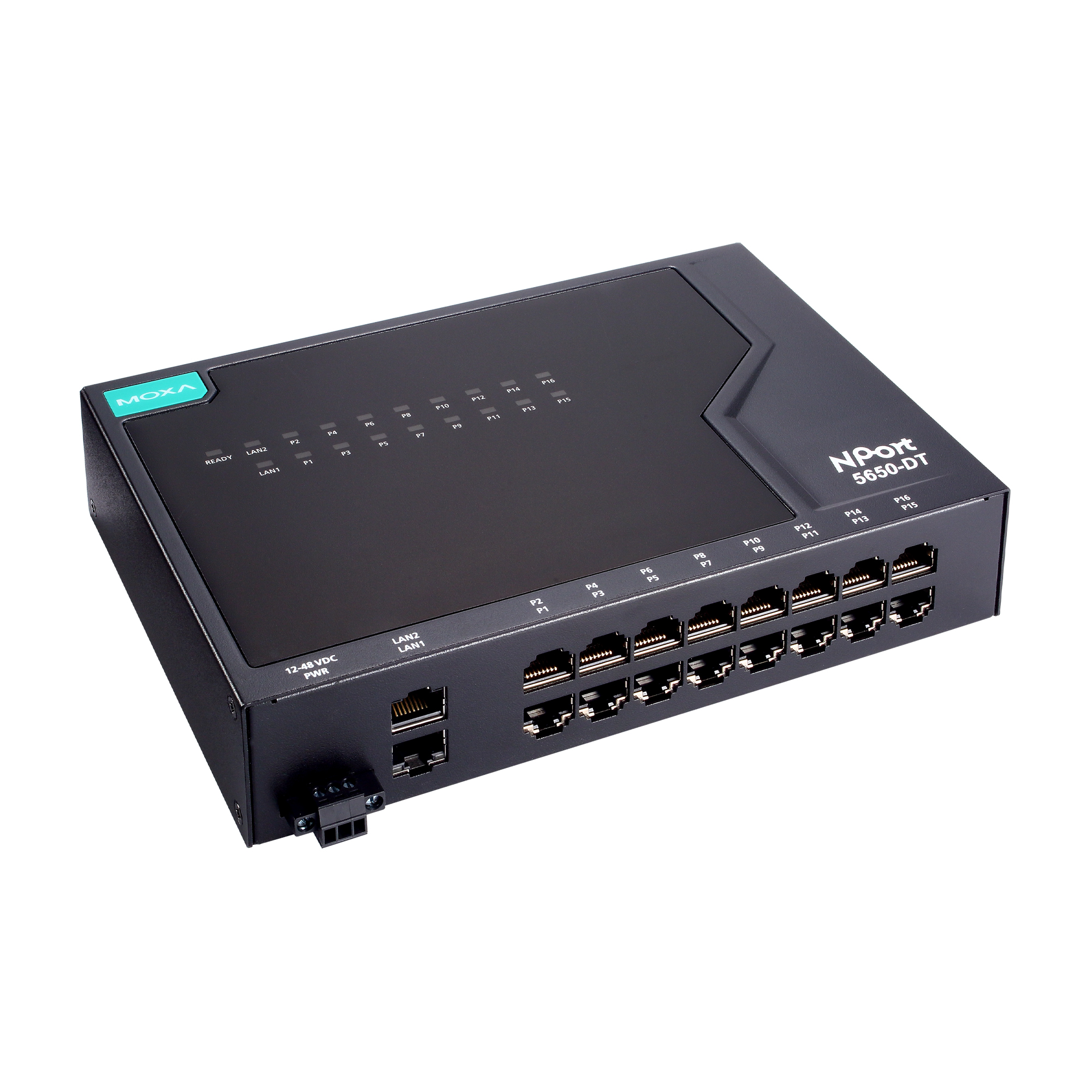

moxa-nport-5600-dt-g2-series-image-5-(1).jpg | Moxa

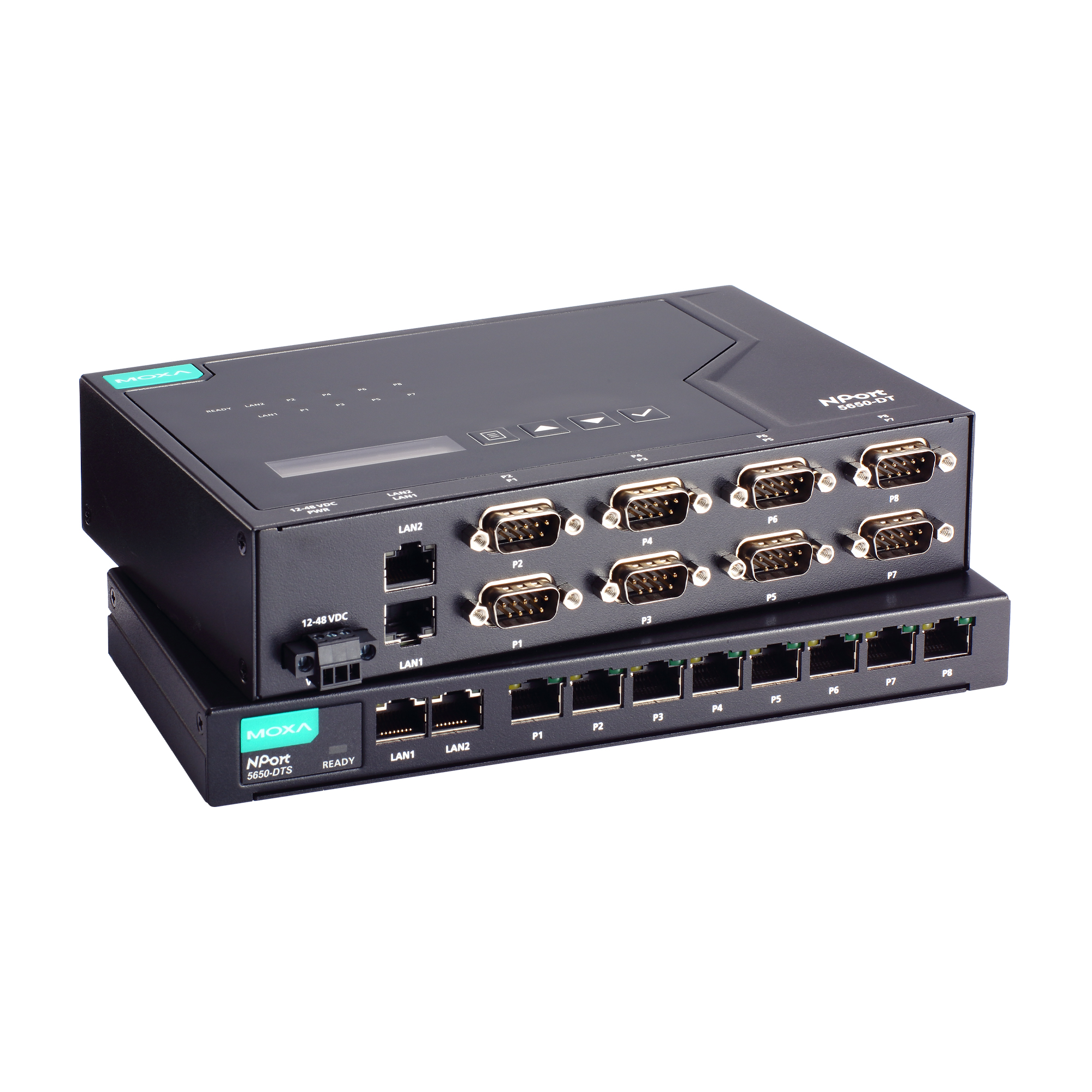

moxa-nport-5600-dt-g2-series-image-6-(1).jpg | Moxa

特色與優點

  • 10/100/1000M 自動感應乙太網路
  • 精巧的桌上型設計:提供 8 埠 DTS 版和 16 埠纖薄版型號
  • 一鍵式日誌收集與應用程式分析,可輕鬆進行故障排除
  • 支援多種安全作業模式的資料加密,包括 Real COM、TCP Server、TCP Client、Pair Connection、Terminal 與 Reverse Termina
  • Secure Boot 僅允許在裝置上執行經 Moxa 授權的韌體
  • 支援 RSA-4096 與 ECC-521 SSL 憑證簽章
  • 符合 IEC 62443-4-2 安全等級 2 的要求

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

NPort 5600-DT-G2 設備伺服器可以藉由方便且透通的方式將多達 16 台串列設備連接到乙太網路,僅需透過基本配置即可將現有的串列設備連上乙太網路。您可以集中管理串列設備連上乙太網路,也可以透過網路分散式管理。由於 NPort 5600-DT-G2 設備伺服器的外型比我們的其他設備伺服器還要纖薄,因此非常適合需要增加串列埠、但無法安裝 DIN 軌道的應用環境。此外,設備伺服器具備一鍵式記錄收集功能和一鍵應用程式分析器,便於進行故障排除。



安全資料傳輸

對於許多應用程式,將串列裝置連接至網路,考量的重點就是保護資料傳輸的安全性。為此,NPort®5600-DT-G2 安全終端伺服器支援 TLS 與 SSH 通訊協定,這些通訊協定會在透過網路傳送資料之前先將資料進行加密。使用 NPort®5600-DT-G2,您就可放心在私有或公用網路上安全地傳送串列資料。



一鍵式日誌與應用程式分析,可輕鬆進行故障排除

在部署階段,系統整合商必須完成設備連線並確認通訊運作正常,但仍可能遇到各種通訊問題,因此需要適當的工具協助進行故障排除。Moxa 提供一鍵式應用程式分析功能,只需按一下即可產生分析報告,協助系統整合商快速找出潛在問題,並了解對應的解決方式。

在維護階段,系統發生異常時往往需要尋求設備廠商協助。傳統故障排除流程通常需耗費大量時間收集資訊,並與技術支援團隊反覆溝通。NPort® 5600-DT-G2 內建一鍵式日誌收集功能,可快速提供技術支援團隊進行系統診斷所需的完整資訊,大幅縮短故障排除時間。



  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTPS)
    Windows Utility
    Device Search Utility (DSU)
    MCC Tool
    Serial Console

  • Management

    ARP
    DHCP Client
    DNS
    HTTPS
    ICMP
    IPv4/IPv6
    SMTP
    SMTPS
    SNMPv1/v2c/v3
    SNTP
    TCP/IP
    UDP
    WINS

  • Windows Real COM Drivers

    Windows 11, 10, 8.1, 8, and 7
    Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2

  • Linux Real TTY Drivers

    Kernel versions 6.x, 5.x, and 4.x

  • Fixed TTY Drivers

    macOS versions: 14, 13, 12, and 11

  • Arm®-based Platform Support

    Windows 11
    Linux Kernel 6.x, 5.x and 4.x
    macOS 14, 13, 12 and 11

  • Virtual Machine

    VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)
    VMware Fusion (Windows on macOS 14, 13, 12, and 11)
    Parallels Desktop (Windows on macOS 14, 13, 12, and 11)

  • Time Management

    SNTP Client

  • MIB

    MIB-II
    RFC1213, RFC1317
    Private MIB

  • Root of Trust

    Secure Boot
    True Random Number Generator (TRNG)

  • Authentication

    Local database (RBAC support)

  • Encryption

    HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC
    SNMPv3: AES-128, SHA-256, SHA-384
    Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC
    Config Import/Export: AES-256, SHA-256, HMAC

  • Security Protocols

    HTTPS (TLS 1.2)
    SNMPv3

  • Connector

    NPort 5600-8-DT-G2 models: DB9 male
    NPort 5600-16-DT-J-G2 models: 8-pin RJ45
    NPort 5600-8-DTS-J-G2 models: 10-pin RJ50

  • No. of Ports

    NPort 5600-8-DT-G2/5600-8-DTS-J-G2 models: 8
    NPort 5600-16-DT-G2 models: 16

  • Serial Standards

    NPort 5610-DT-G2/5610-DTS-G2 models: RS-232
    NPort 5650-DT-G2/5650-DTS-G2 models: RS-232, RS-422, RS-485

  • Secure Operation Modes

    Secure Pair Connection
    Secure Real COM
    Secure TCP Client
    Secure TCP Server

  • Standard Operation Modes

    Disabled
    Pair Connection
    Real COM
    RFC2217
    TCP Client
    TCP Server
    UDP

  • Bitrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None
    RTS/CTS
    DTR/DSR
    XON/XOFF

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Terminator for RS-485

    120 ohms

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • No. of Power Inputs

    1

  • Input Current

    800 mA (max.)

  • Input Voltage

    12 to 48 VDC

  • Reverse Polarity Protection

    Supported

  • Source of Input Power

    Terminal block

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions (without ears)

    NPort 5600-DT-G2 models: 197 x 125 x 44 mm (7.76 x 4.92 x 1.73 in)
    NPort 5600-DTS-G2 models: 210 x 95 x 25 mm (8.27 x 3.74 x 0.98 in)

  • Weight

    NPort 5600-8-DT-G2 models: 880 g (1.94 lbs)
    NPort 5600-16-DT-J-G2 models: 875 g (1.93 lbs)
    NPort 5600-8-DTS-J-G2 models: 610 g (1.34 lbs)

  • Weight (including package)

    NPort 5600-8-DT-G2 models: 1,315 g (2.90 lbs)
    NPort 5600-16-DT-J-G2 models: 1,285 g (2.83 lbs)
    NPort 5600-8-DTS-J-G2 models: 925 g (2.04 lbs)

  • Installation

    Desktop
    Wall mounting
    DIN-rail mounting (with optional kit)

  • Operating Temperature

    Standard models: -10 to 60°C (14 to 140°F)
    Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    IEC 62368-1
    UL 62368-1
    EN 62368-1

  • Vibration

    IEC 60068-2-6

  • Package Drop Test

    ISTA 1A

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort 5610-8-DT-G2: 29,666 hrs
    NPort 5610-8-DT-G2-T: 2,729,079 hrs
    NPort 5650-8-DT-G2: 29,612 hrs
    NPort 5650-8-DT-G2-T: 2,339,917 hrs
    NPort 5650I-8-DT-G2: 29,543 hrs
    NPort 5650I-8-DT-G2-T: 1,971,992 hrs
    NPort 5610-16-DT-J-G2 models: 2,043,468 hrs
    NPort 5650-16-DT-J-G2 models: 1,638,263 hrs
    NPort 5610-8-DTS-J-G2 models: 3,499,034 hrs
    NPort 5650-8-DTS-J-G2 models: 2,883,685 hrs

  • Standards

    Telcordia Standard SR-332
    Telcordia SR-332 Standard Issue 4

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
PComm Lite - Serial Communication Tool
10.3 MB
工具程式
SHA-512
v1.10
  • Windows
2026年9月23日 2026年9月23日 版本說明
Real TTY Linux Kernel 7.x Driver
630.0 KB
驅動程式
SHA-512
v7.0
  • Linux Kernel 7.x
2026年9月15日 2026年9月15日 版本說明
Private MIB for NPort 5600-DT-G2 Series
148.2 KB
軟體套件
SHA-512
v1.0.0
2026年5月27日 2026年5月27日 版本說明
Firmware for NPort 5600-DT-G2 Series
3.0 MB
韌體
SHA-512
v1.0.0
2026年5月27日 2026年5月27日 版本說明
Moxa CLI Configuration Tool (Linux)
11.3 MB
工具程式
SHA-512
v1.6
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
  • Linux Kernel 6.x
2026年2月2日 2026年2月2日 版本說明
Moxa CLI Configuration Tool (Windows)
2.1 MB
工具程式
SHA-512
v1.6
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2026年2月2日 2026年2月2日 版本說明
Real TTY Linux Kernel 6.x Driver
2.5 MB
驅動程式
SHA-512
v6.2
  • Linux Kernel 6.x
2026年1月22日 2026年1月22日 版本說明
Real TTY Linux Kernel 4.x Driver
650.0 KB
驅動程式
SHA-512
v4.4
  • Linux Kernel 4.x
2026年1月22日 2026年1月22日 版本說明
Real TTY Linux Kernel 5.x Driver
650.0 KB
驅動程式
SHA-512
v5.6
  • Linux Kernel 5.x
2026年1月22日 2026年1月22日 版本說明
Moxa Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
11.9 MB
驅動程式
SHA-512
v4.5
  • Windows 11
  • Windows Server 2022
  • Windows Server 2025
2026年1月9日 2026年1月9日 版本說明
Device Search Utility (installer)
236.2 MB
工具程式
SHA-512
v3.1
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2025
2025年11月17日 2025年11月17日 版本說明
Device Search Utility (portable)
128.6 MB
工具程式
SHA-512
v3.1
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2025
2025年11月17日 2025年11月17日 版本說明
Serial Device Server Driver for macOS (macOS 11.x to 14)
6.3 MB
驅動程式
SHA-512
v1.3
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
  • macOS 15
  • macOS 26
2024年9月2日 2024年9月2日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
FOSS Statement for NPort 5000-G2 Series
462.6 KB
聲明書 英文 v1.0 2026年11月6日 2026年11月6日
Tech Note: Secure Real COM Certificate Deployment For NPort G2 Models
654.6 KB
技術說明 英文 v1.0 2026年8月27日 2026年8月27日
Tech Note: RADIUS Login Authentication With FreeRADIUS and Google Authenticator
722.0 KB
技術說明 英文 v1.0 2026年7月8日 2026年7月8日
Datasheet for NPort 5600-DT-G2 Series
4.8 MB
產品資料表 中文 v1.1 2026年7月3日 2026年7月3日
Tech Note: Creating Self-signed Certificate for Trusted HTTPS Connection
525.3 KB
技術說明 英文 v1.0 2026年7月2日 2026年7月2日
Tech Note: The Migration Guide for the NPort 5600-DT Series
1.9 MB
技術說明 英文 v1.0 2026年5月27日 2026年5月27日
Manual for NPort 5600-DT-G2 Series
11.4 MB
使用者手冊 英文 v1.0 2026年5月27日 2026年5月27日
Tech Note: The Security Hardening Guide for the NPort 5600-DT-G2 Series
1.2 MB
技術說明 英文 v1.0 2026年5月27日 2026年5月27日
QIG for NPort 5600-DT-G2 Series
2.5 MB
QIG 英文 v1.0 2026年5月22日 2026年5月22日
FOSS Statement for Moxa CLI Configuration Tool
114.6 KB
聲明書 英文 v1.0 2024年12月10日 2024年12月10日
FOSS Statement for Device Search Utility
161.8 KB
聲明書 英文 v1.0 2024年6月24日 2024年6月24日
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: Real TTY Driver for NPort
379.2 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
FOSS Statement for Moxa Windows Driver Manager
255.8 KB
聲明書 英文 v1.0 2022年8月1日 2022年8月1日

可供選擇的機型 (14)

顯示圖片

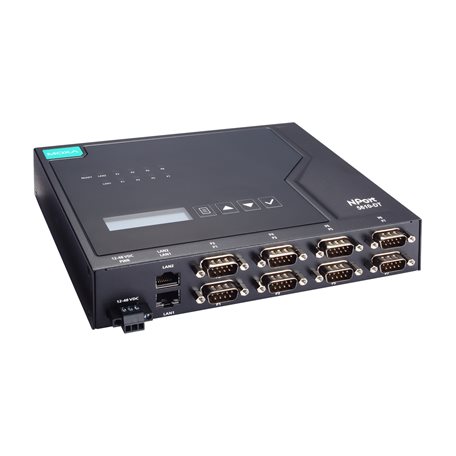

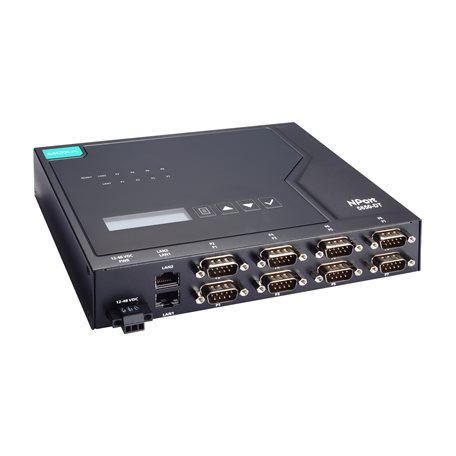

moxa-nport-5610-8-dt-g2-image.jpg | MoxaNPort 5610-8-DT-G2moxa-nport-5610-8-dt-g2-t-image.jpg | MoxaNPort 5610-8-DT-G2-Tmoxa-nport-5650-8-dt-g2-image.jpg | MoxaNPort 5650-8-DT-G2moxa-nport-5650-8-dt-g2-t-image.jpg | MoxaNPort 5650-8-DT-G2-T
Ethernet Interface2 x 10/100/1000M RJ452 x 10/100/1000M RJ452 x 10/100/1000M RJ452 x 10/100/1000M RJ45
No. of Serial Ports8888
Serial StandardsRS-232RS-232RS-232/422/485RS-232/422/485
Serial Interface ConnectorDB9 MaleDB9 MaleDB9 MaleDB9 Male
Serial Interface Isolation––––
Operating Temp.-10 to 60°C-40 to 75°C-10 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-nport-5650i-8-dt-g2-image.jpg | MoxaNPort 5650I-8-DT-G2moxa-nport-5650i-8-dt-g2-t-image.jpg | MoxaNPort 5650I-8-DT-G2-Tmoxa-nport-5610-16-dt-j-g2-image.jpg | MoxaNPort 5610-16-DT-J-G2moxa-nport-5610-16-dt-j-g2-t-image.jpg | MoxaNPort 5610-16-DT-J-G2-T
Ethernet Interface2 x 10/100/1000M RJ452 x 10/100/1000M RJ452 x 10/100/1000M RJ452 x 10/100/1000M RJ45
No. of Serial Ports881616
Serial StandardsRS-232/422/485RS-232/422/485RS-232RS-232
Serial Interface ConnectorDB9 MaleDB9 Male8-pin RJ458-pin RJ45
Serial Interface Isolation2 kV2 kV––
Operating Temp.-10 to 60°C-40 to 75°C-10 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-nport-5650-16-dt-j-g2-image.jpg | MoxaNPort 5650-16-DT-J-G2moxa-nport-5650-16-dt-j-g2-t-image.jpg | MoxaNPort 5650-16-DT-J-G2-Tmoxa-nport-5610-8-dts-j-g2-image.jpg | MoxaNPort 5610-8-DTS-J-G2moxa-nport-5610-8-dts-j-g2-t-image.jpg | MoxaNPort 5610-8-DTS-J-G2-T
Ethernet Interface2 x 10/100/1000M RJ452 x 10/100/1000M RJ452 x 10/100/1000M RJ452 x 10/100/1000M RJ45
No. of Serial Ports161688
Serial StandardsRS-232/422/485RS-232/422/485RS-232RS-232
Serial Interface Connector8-pin RJ458-pin RJ4510-pin RJ5010-pin RJ50
Serial Interface Isolation––––
Operating Temp.-10 to 60°C-40 to 75°C-10 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-nport-5650-8-dts-j-g2-image.jpg | MoxaNPort 5650-8-DTS-J-G2moxa-nport-5650-8-dts-j-g2-t-image.jpg | MoxaNPort 5650-8-DTS-J-G2-T
Ethernet Interface2 x 10/100/1000M RJ452 x 10/100/1000M RJ45
No. of Serial Ports88
Serial StandardsRS-232/422/485RS-232/422/485
Serial Interface Connector10-pin RJ5010-pin RJ50
Serial Interface Isolation––
Operating Temp.-10 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細

product image

Buy online from distributors

已加入詢價列表
