NPort 5000AI-M12 系列

鐵路 1、2 和 4 埠 RS-232/422/485 串列裝置伺服器

moxa-nport-5000ai-m12-series-image-1-(1).jpg | Moxa
moxa-nport-5000ai-m12-series-image-2-(1).jpg | Moxa
moxa-nport-5000ai-m12-series-image-3-(1).jpg | Moxa
moxa-nport-5000ai-m12-series-image-4-(1).jpg | Moxa
moxa-nport-5000ai-m12-series-image-5-(1).jpg | Moxa

特色與優點

  • 快速的 3 步驟網頁式配置
  • COM 連接埠分組和 UDP 多播應用
  • 用於 Windows 和 Linux 的 Real COM/TTY 驅動程式
  • 標準 TCP/IP 介面及通用 TCP 和 UDP 操作模式
  • 符合 EN 50121-4 標準
  • 符合所有 EN 50155 規範強制性測試項目 此產品適用於符合 EN 50155 標準所定義的所有軌道車輛應用。若需更詳細的說明,請參照:www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • M12 連接器和 IP40 金屬外殼
  • 串列訊號的 2 kV 隔離

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

NPort® 5000AI-M12 串列裝置伺服器能夠讓串列裝置立即聯網,並提供從網路上隨處直接存取串列裝置的能力。此外,NPort 5000AI-M12 符合 EN 50121-4 和 EN 50155 的所有強制性部分,涵蓋操作溫度、電源輸入電壓、突波、ESD 和震動,適用於運作環境中有許多震動的軌道和軌旁應用。



3 步驟網頁式配置

NPort 5000AI-M12 的 3 步驟網頁式配置工具簡單明瞭且方便使用。NPort 5000AI-M12 的網路主控台引導使用者透過三個簡單的配置步驟來啟動串列轉乙太網路應用。 透過這種快速的 3 步驟網頁式配置,使用者平均只需要 30 秒即可完成 NPort 設定和啟用應用程式,達到節省大量時間和精力的效果。



輕鬆排除故障

NPort 5000AI-M12 裝置伺服器支援 SNMP,可用於透過乙太網路監控所有裝置。各個裝置都可以配置為在遇到使用者定義的錯誤時自動向 SNMP 管理器傳送陷阱訊息。對於不使用 SNMP 管理器的使用者,可以改為傳送電子郵件警示。使用者可以使用 Moxa 的 Windows 公用程式或 Web 主控台定義警示的觸發條件。例如,警示可以由暖開機、冷開機或密碼變更觸發。



  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    1

  • Configuration Options

    Telnet Console, Web Console (HTTP/HTTPS), Windows Utility

  • Management

    ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

  • Filter

    IGMP v1/v2

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • Connector

    DB9 male

  • No. of Ports

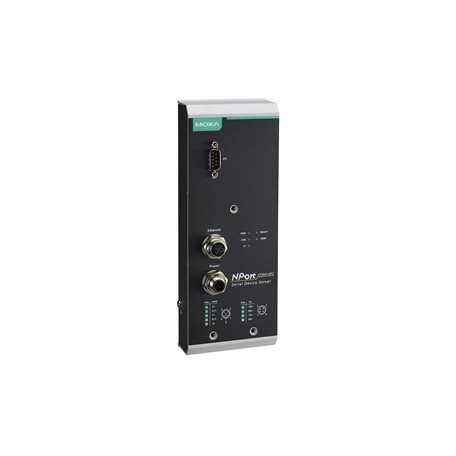

    NPort 5150AI-M12 Series: 1

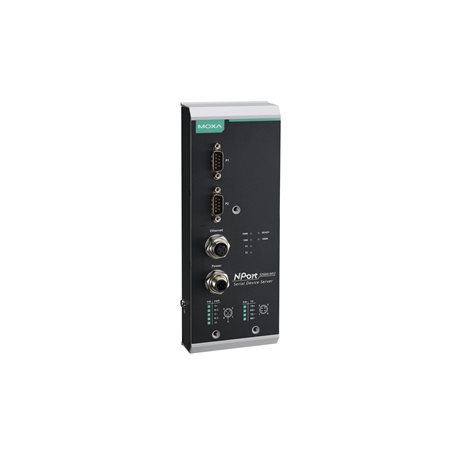

    NPort 5250AI-M12 Series: 2

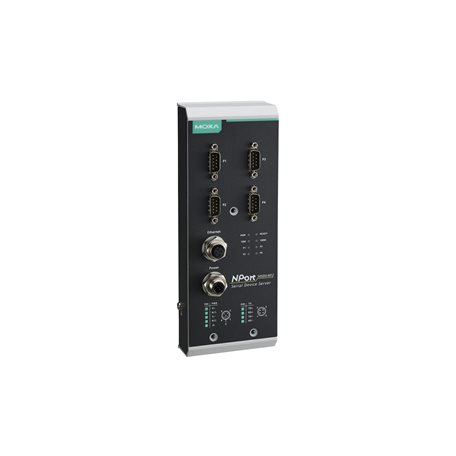

    NPort 5450AI-M12 Series: 4

  • Serial Standards

    RS-232, RS-422, RS-485

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 5150AI-M12 Series: 310 mA @ 12 VDC
    NPort 5250AI-M12 Series: 360 mA @ 12 VDC
    NPort 5450AI-M12 Series: 440 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • Note

    Compliant with EN 50155 on 24/48 VDC

  • Power Connector

    M12 A-coded 5-pin male connector

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Dimensions

    80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)

  • Weight

    686 g (1.51 lb)

  • Protection

    NPort 5000AI-M12-CT Series: PCB Conformal Coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Safety

    UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort 5150AI-M12 Series: 789,341 hrs
    NPort 5250AI-M12 Series: 639,622 hrs
    NPort 5450AI-M12 Series: 467,777 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
374.0 MB
軟體套件
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年1月31日 2024年1月31日 版本說明
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
7.4 MB
驅動程式
SHA-512
v4.2
  • Windows 11
  • Windows Server 2022
2023年12月11日 2023年12月11日 版本說明
Serial Device Server Driver for macOS (macOS 10.1x to 14)
689.8 KB
驅動程式
SHA-512
v1.2
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
2023年11月10日 2023年11月10日 版本說明
Real TTY Linux driver v5.3 (kernel 5.x)
113.3 KB
驅動程式
SHA-512
v5.3
  • Linux Kernel 5.x
2023年10月18日 2023年10月18日 版本說明
MXview One plugin (Linux)
15.4 MB
軟體套件
SHA-512
v1.3
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2023年10月2日 2023年10月2日 版本說明
MXconfig plugin (non-Java version)
839.5 KB
軟體套件
SHA-512
v1.2
  • Windows 10
  • Windows 7
  • Windows Server 2016
  • Windows Server 2019
2023年8月31日 2023年8月31日 版本說明
MXview One plugin (Windows)
12.8 MB
軟體套件
SHA-512
v1.2
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年8月2日 2023年8月2日 版本說明
MXconfig Plugin
3.3 MB
軟體套件
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2023年7月17日 2023年7月17日 版本說明
Moxa CLI Configuration Tool for Windows
2.0 MB
工具程式
SHA-512
v1.3
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年6月29日 2023年6月29日 版本說明
Moxa CLI Configuration Tool for Linux
11.6 MB
工具程式
SHA-512
v1.3
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
2023年6月29日 2023年6月29日 版本說明
Device Search Utility
2.2 MB
工具程式
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月28日 2023年6月28日 版本說明
Real TTY Linux kernel 6.x
113.7 KB
驅動程式
SHA-512
v6.0
  • Linux Kernel 6.x
2023年5月4日 2023年5月4日 版本說明
MXview plugin
32.8 MB
軟體套件
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2023年5月2日 2023年5月2日 版本說明
Real TTY Linux drivers v4.2 (kernel 4.x)
114.9 KB
驅動程式
SHA-512
v4.2
  • Linux Kernel 4.x
2023年1月17日 2023年1月17日 版本說明
NPort Administrator Suite v3.2 (Windows 7 to 8.1 and Windows Server 2008 R2 to 2016, WHQL certified)
4.1 MB
驅動程式
SHA-512
v3.2
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2023年1月17日 2023年1月17日 版本說明
NPort Administrator Suite (Windows 10 and Server 2019 and later, WHQL certified)
7.7 MB
驅動程式
SHA-512
v4.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年1月17日 2023年1月17日 版本說明
Device Server Android API
18.0 MB
程式庫
SHA-512
v1.1
  • Android
2022年12月22日 2022年12月22日 版本說明
Windows Driver Manager v3.5 (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.8 MB
驅動程式
SHA-512
v3.5
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2022年12月1日 2022年12月1日 版本說明
Serial Device Server Driver for macOS (macOS 10.12 to 10.15)
611.6 KB
驅動程式
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
2022年9月26日 2022年9月26日 版本說明
Firmware for NPort 5000AI-M12 Series (NPort 5450AI-M12)
859.7 KB
韌體
SHA-512
v1.5
2020年10月15日 2020年10月15日 版本說明
Firmware for NPort 5000AI-M12 Series (NPort 5150AI-M12)
853.7 KB
韌體
SHA-512
v1.5
2020年10月15日 2020年10月15日 版本說明
Firmware for NPort 5000AI-M12 Series (NPort 5250AI-M12)
856.4 KB
韌體
SHA-512
v1.5
2020年10月15日 2020年10月15日 版本說明
Real TTY drivers for Linux 2.x.x
92.2 KB
驅動程式
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2019年10月24日 2019年10月24日 版本說明
Real TTY drivers for Linux 3.x.x
95.0 KB
驅動程式
SHA-512
v3.0
  • Linux Kernel 3.x
2019年10月24日 2019年10月24日 版本說明
Windows Driver Manager (Windows Vista, Server 2008, and prior)
2.6 MB
驅動程式
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2019年8月1日 2019年8月1日 版本說明
NPort Administration Suite
4.0 MB
驅動程式
SHA-512
v1.22
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Vista
  • Windows XP
2016年10月27日 2016年10月27日 版本說明
Driver for NPort 5000AI-M12 Series (WinCE 5)
230.5 KB
驅動程式
SHA-512
v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012年11月14日 2012年11月14日 版本說明
PComm Lite - Serial Communication Tool for Windows
1.6 MB
工具程式
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012年5月13日 2012年5月13日 版本說明
Driver for NPort 5000AI-M12 Series (WinXP Embedded)
1.2 MB
驅動程式
SHA-512
v1.14
  • Windows XP Embedded
2012年4月4日 2012年4月4日 版本說明
Driver for NPort 5000AI-M12 Series (UNIX)
73.0 KB
驅動程式
SHA-512
v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • FreeBSD 8.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
2012年3月19日 2012年3月19日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
Moxa CLI Configuration Tool User Manual
1.0 MB
使用者手冊 英文 v2.2 2024年1月26日 2024年1月26日
Manual for NPort 5000 Series
20.0 MB
使用者手冊 英文 v7.0 2023年6月13日 2023年6月13日
Tech Note: Real COM mode for NPort
479.5 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: TCP Client Mode for NPort
394.5 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: TCP Server Mode for NPort
395.0 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: Reverse Telnet Mode for NPort
364.5 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: UDP Mode for NPort
397.2 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: Pair Connection Mode
544.0 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: Ethernet Modem Mode
429.4 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: Accessing Multiple NPorts Behind NAT
497.2 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: Fixed TTY Driver for NPort
389.7 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: Real TTY Driver for NPort
379.2 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
技術說明 英文 v2.0 2023年6月8日 2023年6月8日
Tech Note: The Security Hardening Guide for NPort 5000 Series
1.7 MB
技術說明 英文 v2.1 2023年5月30日 2023年5月30日
EULA for NPort Administrator Suite
100.3 KB
技術說明 英文 v1.0 2023年5月18日 2023年5月18日
Manual for NPort 5000 Series
18.7 MB
使用者手冊 英文 v6.8 2022年9月5日 2022年9月5日
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
技術說明 英文 v1.0 2021年8月5日 2021年8月5日
QIG for NPort 5000AI-M12 Series
1.3 MB
QIG 英文 v3.2 2021年4月28日 2021年4月28日
Tech Note: Real COM mode for NPort
423.5 KB
技術說明 英文 v1.1 2020年4月30日 2020年4月30日
NPort 5000AI-M12 系列產品資料表
3.4 MB
產品資料表 中文 v1.3 2019年11月26日 2019年11月26日
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
技術說明 英文 v1.0 2014年11月17日 2014年11月17日
Tech Note: TCP Server Mode for NPort
311.3 KB
技術說明 英文 v1.0 2013年6月29日 2013年6月29日
2D CAD for NPort 5150AI-M12
300.0 KB
2D CAD 英文 2012年3月20日 2012年3月20日
2D CAD for NPort 5250AI-M12
305.7 KB
2D CAD 英文 2012年3月20日 2012年3月20日
2D CAD for NPort 5450AI-M12
322.9 KB
2D CAD 英文 2012年3月20日 2012年3月20日
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
技術說明 英文 v1.0 2009年11月3日 2009年11月3日
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
技術說明 英文 v1.0 2009年11月3日 2009年11月3日
Tech Note: NPort's Pair Connection Mode
211.4 KB
技術說明 英文 v1.0 2009年11月3日 2009年11月3日
Tech Note: Real COM Mode for NPort
253.0 KB
技術說明 英文 v1.0 2009年11月3日 2009年11月3日
Tech Note: UDP Mode for NPort
173.2 KB
技術說明 英文 v1.0 2009年11月3日 2009年11月3日
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
技術說明 英文 v1.0 2009年11月3日 2009年11月3日
Tech Note: TCP Client Mode for NPort
224.4 KB
技術說明 英文 v1.0 2009年11月3日 2009年11月3日
Tech Note: Real TTY Driver for NPort
204.2 KB
技術說明 英文 v1.0 2009年5月21日 2009年5月21日
Tech Note: Fixed TTY Driver for NPort
207.6 KB
技術說明 英文 v1.0 2009年5月21日 2009年5月21日

可供選擇的機型 (12)

顯示圖片
moxa-nport-5150ai-m12-ct-image.jpg | MoxaNPort 5150AI-M12-CTmoxa-nport-5250ai-m12-ct-image.jpg | MoxaNPort 5250AI-M12-CTmoxa-nport-5150ai-m12-t-image.jpg | MoxaNPort 5150AI-M12-Tmoxa-nport-5250ai-m12-t-image.jpg | MoxaNPort 5250AI-M12-T
No. of Serial Ports1212
Power Input Voltage12-48 VDC12-48 VDC12-48 VDC12-48 VDC
Operating Temp.-25 to 55°C-25 to 55°C-40 to 75°C-40 to 75°C
PCB Conformal Coating
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-nport-5450ai-m12-ct-image.jpg | MoxaNPort 5450AI-M12-CTmoxa-nport-5450ai-m12-t-image.jpg | MoxaNPort 5450AI-M12-Tmoxa-nport-5150ai-m12-image.jpg | MoxaNPort 5150AI-M12moxa-nport-5250ai-m12-image.jpg | MoxaNPort 5250AI-M12
No. of Serial Ports4412
Power Input Voltage12-48 VDC12-48 VDC12-48 VDC12-48 VDC
Operating Temp.-25 to 55°C-40 to 75°C-25 to 55°C-25 to 55°C
PCB Conformal Coating
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-nport-5450ai-m12-image.jpg | MoxaNPort 5450AI-M12moxa-nport-5150ai-m12-ct-t-image.jpg | MoxaNPort 5150AI-M12-CT-Tmoxa-nport-5250ai-m12-ct-t-image.jpg | MoxaNPort 5250AI-M12-CT-Tmoxa-nport-5450ai-m12-ct-t-image.jpg | MoxaNPort 5450AI-M12-CT-T
No. of Serial Ports4124
Power Input Voltage12-48 VDC12-48 VDC12-48 VDC12-48 VDC
Operating Temp.-25 to 55°C-40 to 75°C-40 to 75°C-40 to 75°C
PCB Conformal Coating
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細

product image

Buy online from distributors

已加入詢價列表
