MOXA

工業級設備伺服器

Moxa 工業設備伺服器提供增強的突波保護，並通過危險場所操作認證，可在軌道車輛中和軌道旁穩定地運作。此外，這些設備經過精心設計，可在石油、天然氣和電力自動化等嚴苛環境中，確保可靠的串列轉乙太網路連接。

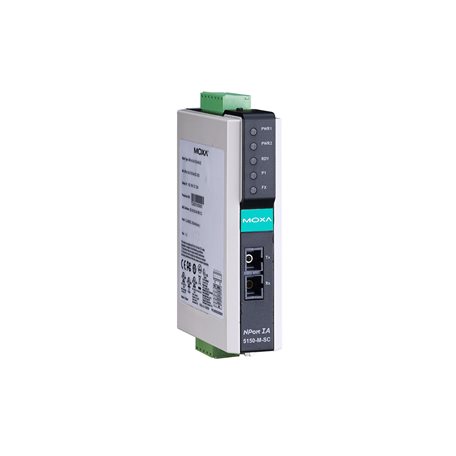

NPort IA-5150I-M-SC
NPort IA5000 系列

1-port RS-232/422/485 device server with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 kV optical isolation, 0 to 55°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2 (NPort IA-5150/5150I/5250)

  • 100BaseFX Ports (multi-mode SC connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Optical Fiber

    •

  • Optical Fiber

    •   100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP), Windows Utility, Telnet Console, Serial Console

  • Management

    • DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet

  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15

  • Android API

    • Android 3.1.x and later

  • Time Management

    • SNTP

  • MIB

    • RFC1213, RFC1317
Serial Interface

  • Connector

    • NPort IA-5150: DB9 male for RS-232, terminal block for RS-422/485
      NPort IA-5250: DB9 male for RS-232/422/485

  • No. of Ports

    • NPort IA-5150 Models: 1
      NPort IA-5250 Models: 2

  • Serial Standards

    • RS-232, RS-422, RS-485

  • Baudrate

    • Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2

  • Flow Control

    • RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • Isolation

    • 2 kV isolation protection (NPort IA-5150I, NPort IA-5150I-M-SC, NPort IA-5150I-S-SC)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • NPort IA-5150 Models: 238 mA @ 12 VDC
      NPort IA-5150I Models: 257 mA @ 12 VDC
      NPort IA-5150-M-SC Models: 315 mA @ 12 VDC
      NPort IA-5150I-M-SC Models: 339 mA @ 12 VDC
      NPort IA-5150-S-SC Models: 328 mA @ 12 VDC
      NPort IA-5150I-S-SC Models: 333 mA @ 12 VDC
      NPort IA-5250 Models: 238 mA @ 12 VDC

  • Input Voltage

    • 12 to 48 VDC

  • No. of Power Inputs

    • 2

  • Power Connector

    • Terminal block
Physical Characteristics

  • Housing

    • Plastic

  • IP Rating

    • IP30

  • Dimensions

    • 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)

  • Weight

    • NPort IA-5150: 360 g (0.79 lb)
      NPort IA-5250: 380 g (0.84 lb)

  • Installation

    • DIN-rail mounting
Environmental Limits

  • Operating Temperature

    • Standard Models: 0 to 55°C (32 to 131°F)
      Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Freefall

    • IEC 60068-2-32

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Safety

    • UL 508, UL 60950-1

  • Vibration

    • IEC 60068-2-6
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • NPort IA-5150 Models: 183,747 hrs
      NPort IA-5150I Models: 195,614 hrs
      NPort IA-5250 Models: 194,765 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
