工業級設備伺服器

Moxa 工業設備伺服器提供增強的突波保護,並通過危險場所操作認證,可在軌道車輛中和軌道旁穩定地運作。此外,這些設備經過精心設計,可在石油、天然氣和電力自動化等嚴苛環境中,確保可靠的串列轉乙太網路連接。

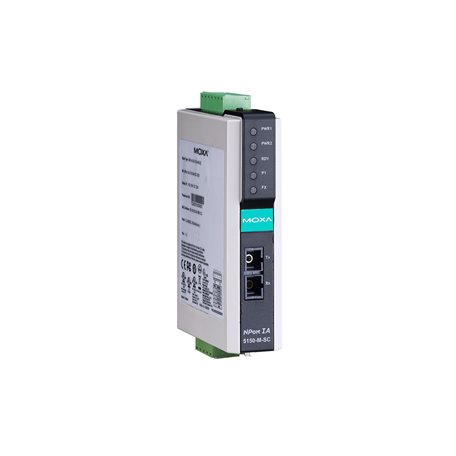

NPort IA-5150I-M-SC-T
NPort IA5000 系列

1-port RS-232/422/485 device server with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 kV optical isolation, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2 (NPort IA-5150/5150I/5250)
  • 100BaseFX Ports (multi-mode SC connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

    •
  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
  • Management

    • DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
  • Android API

    • Android 3.1.x and later
  • Time Management

    • SNTP
  • MIB

    • RFC1213, RFC1317
Serial Interface
  • Connector

    • NPort IA-5150: DB9 male for RS-232, terminal block for RS-422/485
      NPort IA-5250: DB9 male for RS-232/422/485
  • No. of Ports

    • NPort IA-5150 Models: 1
      NPort IA-5250 Models: 2
  • Serial Standards

    • RS-232, RS-422, RS-485
  • Baudrate

    • Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • Isolation

    • 2 kV isolation protection (NPort IA-5150I, NPort IA-5150I-M-SC, NPort IA-5150I-S-SC)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • NPort IA-5150 Models: 238 mA @ 12 VDC
      NPort IA-5150I Models: 257 mA @ 12 VDC
      NPort IA-5150-M-SC Models: 315 mA @ 12 VDC
      NPort IA-5150I-M-SC Models: 339 mA @ 12 VDC
      NPort IA-5150-S-SC Models: 328 mA @ 12 VDC
      NPort IA-5150I-S-SC Models: 333 mA @ 12 VDC
      NPort IA-5250 Models: 238 mA @ 12 VDC
  • Input Voltage

    • 12 to 48 VDC
  • No. of Power Inputs

    • 2
  • Power Connector

    • Terminal block
Physical Characteristics
  • Housing

    • Plastic
  • IP Rating

    • IP30
  • Dimensions

    • 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
  • Weight

    • NPort IA-5150: 360 g (0.79 lb)
      NPort IA-5250: 380 g (0.84 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • Standard Models: 0 to 55°C (32 to 131°F)
      Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Freefall

    • IEC 60068-2-32
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Safety

    • UL 508, UL 60950-1
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • NPort IA-5150 Models: 183,747 hrs
      NPort IA-5150I Models: 195,614 hrs
      NPort IA-5250 Models: 194,765 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
