終端伺服器

Moxa 終端伺服器具備專用功能和安全防護特性，以便建立可靠的終端機網路連接，方便您連接終端機、數據機、資料交換器、主機和 POS 設備等各種設備，讓網路主機和流程能善用這些設備。

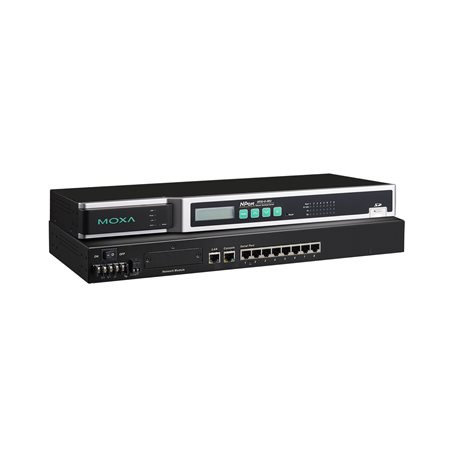

NPort 6650-8-48V
NPort 6400/6600 系列

8-port RS-232/422/485 to Ethernet secure terminal server, ±48 VDC input

Memory

  • SD Slot

    • Up to 32 GB (SD 2.0 compatible)
Input/Output Interface

  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
      Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Compatible Modules

    • NM Series expansion modules for optional extension of RJ45 and fiber Ethernet ports

  • Optical Fiber

    •

  • Optical Fiber

    •   100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Serial Console, Telnet/SSH Console

  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP

  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15

  • Android API

    • Android 3.1.x and later

  • MIB

    • MIB-II

  • Time Management

    • SNTP Client

  • Unicast Routing

    • RIPV1/V2, Static Route

  • Authentication

    • Local Account Accessibility, RADIUS, TACACS+
Serial Interface

  • Connector

    • 8-pin RJ45

  • No. of Ports

    • 8

  • Serial Standards

    • RS-232, RS-422, RS-485

  • Secure Operation Modes

    • Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH

  • Standard Operation Modes

    • Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP

  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, DTR/DSR, XON/XOFF

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)

  • Terminator for RS-485

    • 120 ohms
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 293 mA @ 48 VDC

  • Input Voltage

    • ±48 VDC, 20 to 72 VDC, -20 to -72 VDC
Reliability

  • Automatic Reboot Trigger

    • Built-in WDT

  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics

  • Housing

    • Metal

  • Dimensions (with ears)

    • 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)

  • Dimensions (without ears)

    • 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)

  • Weight

    • 3460 g (7.63 lb)

  • Interactive Interface

    • LCD panel display
      Push buttons for configuration

  • Installation

    • Rack mounting
Environmental Limits

  • Operating Temperature

    • 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF

  • Safety

    • UL 60950-1

  • Traffic Control

    • NEMA TS2

  • Vibration

    • IEC 60068-2-6

  • Freefall

    • IEC 60068-2-34
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 636,600 hrs

  • Standards

    • Telcordia (Bellcore) Standard
Warranty
