行動通訊閘道器

有了 Moxa LTE 閘道器，您可更有效率地部署高效能、長距離網路應用。Moxa LTE 閘道器易於配置，可保護您的通訊通道、支援智慧型遠端管理，並提供可靠的連接。

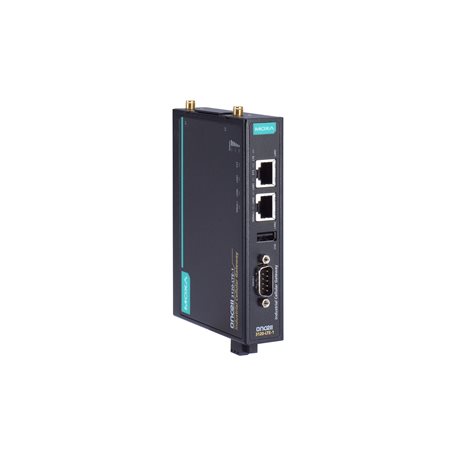

OnCell 3120-LTE-1-AU
OnCell 3120-LTE-1 系列

Industrial LTE Cat 1 cellular gateway, B3/B5/B8/B28, 1 x RS232/422/485 serial port, 2 x 10/100BaseT(X) RJ45 ports, 0 to 55°C operating temperature

Cellular Interface

  • Cellular Standards

    • LTE CAT-1, HSPA, UMTS, EDGE, GPRS, GSM

  • LTE Data Rate

    • 10 MHz bandwidth: 10.2 Mbps DL, 5.2 Mbps UL

  • HSPA Data Rates

    • 7.2 Mbps DL, 5.76 Mbps UL

  • Band Options (AU)

    • LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
      UMTS/HSPA 2100 MHz / 850 MHz / 900 MHz

  • No. of SIMs

    • 2

  • SIM Format

    • Nano SIM

  • Cellular Antenna Connectors

    • 2 SMA female
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
USB Interface

  • No. of USB Ports

    • 1

  • USB Connector

    • USB Type A

  • USB Standards

    • USB 2.0
Serial Interface

  • No. of Ports

    • 1

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232/422/485

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Baudrate

    • 75 bps to 921.6 kbps

  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Ethernet Software Features

  • Management

    • GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Power Saving, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, OnCell Central Manager, Wireless Search Utility

  • Firewall

    • Filter: MAC, IP protocol, port-based, Access IP list

  • Routing

    • NAT, Port forwarding

  • Security

    • HTTPS

  • Time Management

    • SNTP Client
IPsec VPN

  • Authentication

    • PSK/X.509/RSA

  • Encryption

    • DES, 3DES, AES, MD5, SHA-1, DH2, DH5

  • Concurrent VPN Tunnels

    • 5
OpenVPN

  • OpenVPN

    • OpenVPN (client and server), Tunnel mode (routing) and TAP mode (bridge)

  • Encryption

    • Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC

  • Concurrent VPN Tunnels

    • 5
Power Parameters

  • Input Current

    • 0.8 A (max.)

  • Input Voltage

    • 9 to 36 VDC

  • Power Consumption

    • 5 W (typ.)

  • Power Connector

    • Terminal block

  • Reverse Polarity Protection

    • Supported

  • Power Button

    • Reset button
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)

  • Weight

    • 550 g (1.22 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    • CISPR 22, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz
      IEC 61000-4-8: 30 A/m

  • Freefall

    • IEC 60068-2-32

  • Hazardous Locations

    • ATEX, IECEx, Class I Division 2

  • Radio Frequency

    • PTCRB, FCC ID SLE-LE910CXNF

  • Radio

    • RCM, KC

  • Carrier Approvals

    • Verizon
      AT&T

  • Cellular Standards

    • EN 301511
      EN 301908-1
      EN 62311(MPE SAR)
      AS/CA S042
      EN 301489-1/-52

  • Safety

    • IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 585,775 hrs

  • Standards

    • Telcordia SR332
