EN 50155 交換器

Moxa 已取得 IRIS 認證,可提供符合 EN 50155 標準強制條款的堅固型乙太網路交換器。這些產品廣泛部署於全球眾多軌道和地鐵系統。利用我們的創新解決方案和技術,列車製造商可輕易提升整體運輸安全性和效率,並大幅節省鐵路系統運作與維護的成本和時間。

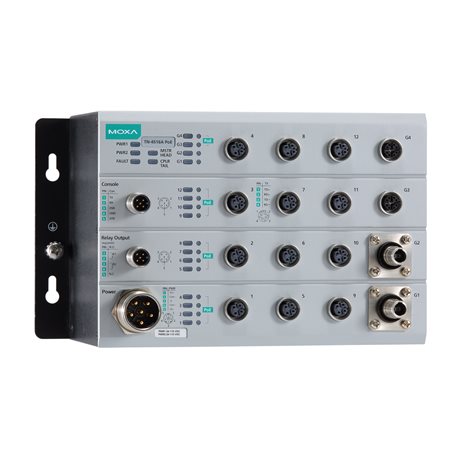

TN-4516A-12PoE-2GPoE-2GODC-WV-CT-T
TN-4500A 系列

12 PoE 10/100 Base-T(X) ports with M12 connector, 2 PoE 10/100/1000 Base-T(X) ports with M12 connector, 2 1000BaseLSX fiber optic ports with Q-ODC® interface, 1 (dual input) 24-110 VDC power supply, -40 to 75°C operating temperature, conformal coating

Input/Output Interface
  • Alarm Contact Channels

    • 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Ethernet Interface
  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    • 12
  • PoE Ports (10/100/1000BaseT(X), M12 A-coded 8-pin female connector)

    • 2
  • 10/100/1000BaseT(X) Ports, Q-ODC Fiber Connector

    • 2
  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding
  • Configuration Options

    • Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
  • Filter

    • 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, Static Multicast
  • Industrial Protocols

    • EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave)
  • Management

    • Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management
  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC
  • Security

    • Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH
  • Time Management

    • IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP
Switch Properties
  • IGMP Groups

    • 256
  • Max. No. of VLANs

    • 64
  • VLAN ID Range

    • VID 1 to 4094
LED Interface
  • LED Indicators

    • STATE, PWR1, PWR2, FAULT, 10/100/1000M
Serial Interface
  • Console Port

    • M12 A-coded male connector
Power Parameters
  • Input Current

    • TN-4516A Series non-PoE models: Max. 0.7 A @ 24 VDC
      TN-4516A Series PoE models: Max. 7.0 A @ 24 VDC
      TN-4524A Series: Max. 6.5 A @ 24 VDC
      TN-4528A Series: Max. 7.2 A @ 24 VDC
  • Input Voltage

    • 24/36/48/72/96/110 VDC
  • No. of Power Inputs

    • 2
  • Operating Voltage

    • 16.8 to 137.5 VDC
  • Overload Current Protection

    • Supported
  • Power Connector

    • M23 connector
  • Reverse Polarity Protection

    • Supported
  • Total PoE Power Budget

    • 120 W
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP42
  • Dimensions

    • 229.8 x 132 x 122.3 mm (9.05 x 5.20 x 4.81 in)
  • Weight

    • 2705 g (5.96 lb)
  • Installation

    • DIN-rail mounting (optional), Wall mounting
  • Protection

    • PCB conformal coating
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Radio Frequency

    • FCC
  • Railway

    • EN 50121-4, EN 50155, IEC 60571
  • Railway Fire Protection

    • EN 45545-2
  • Safety

    • IEC 60950-1, UL 61010-2-201
  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Standards

    • Telcordia SR332
  • Time

    • 421,432 hrs
